GENIE 2S

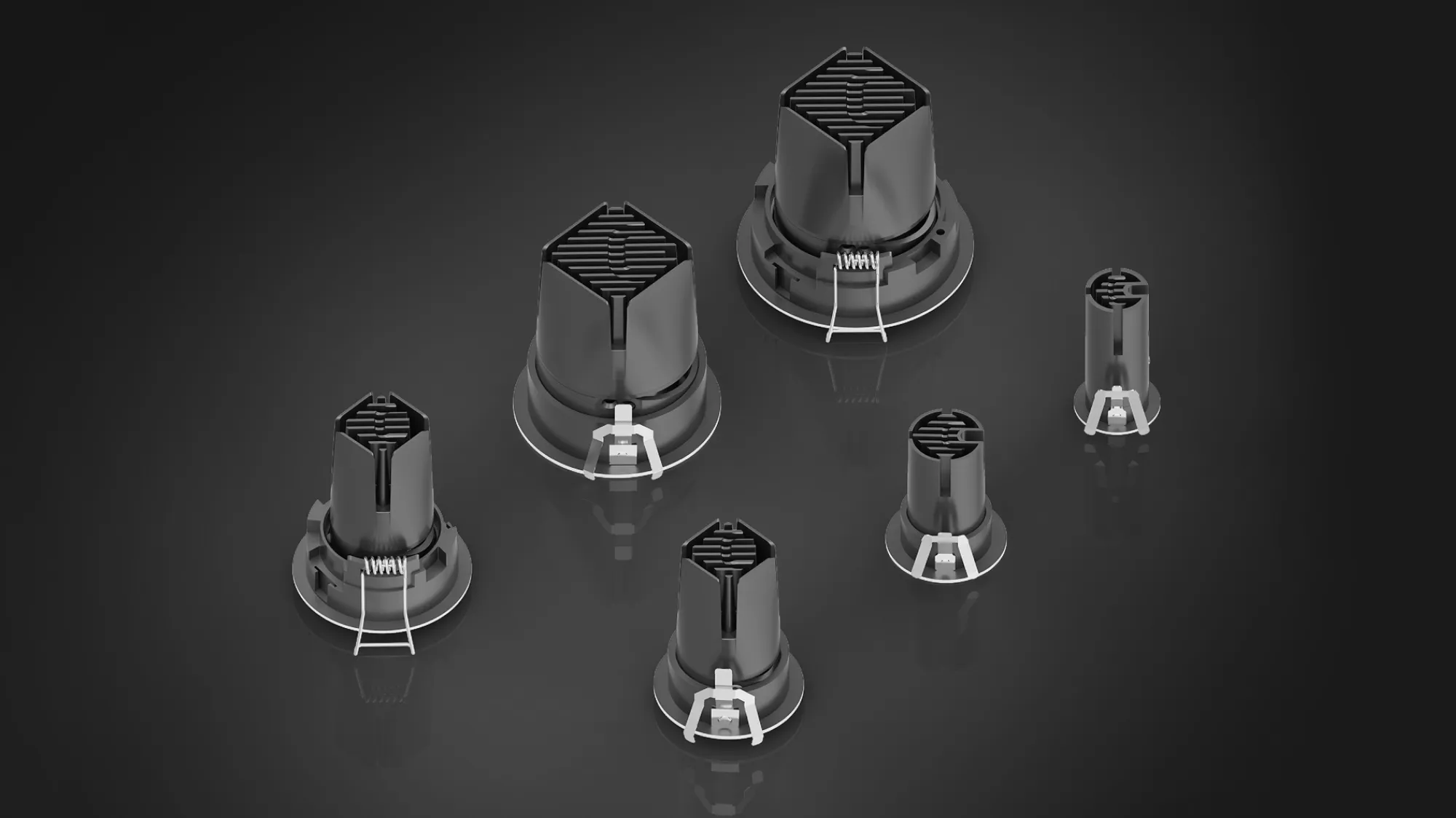

Discover GENIE 2SThe GENIE 2S series boasts a sleek design with deep anti-glare features, 45° shading angle, and a slim 5mm bezel. It delivers excellent illumination, gentle yet powerful, with various optical options including a narrow 9° beam angle and high CRI of 90. Perfect for upscale hospitality and residential, its all-metal body ensures efficient heat dissipation while offering flexibility in installation, meeting designers' highest standards.
The all-metal body design ensures efficient heat dissipation, while the product's slim and delicate build allows for flexible adaptation, meeting designers' pursuit of ultimate application.
Key Features
Exceptional industrial design
The perfect integration of architecture and products

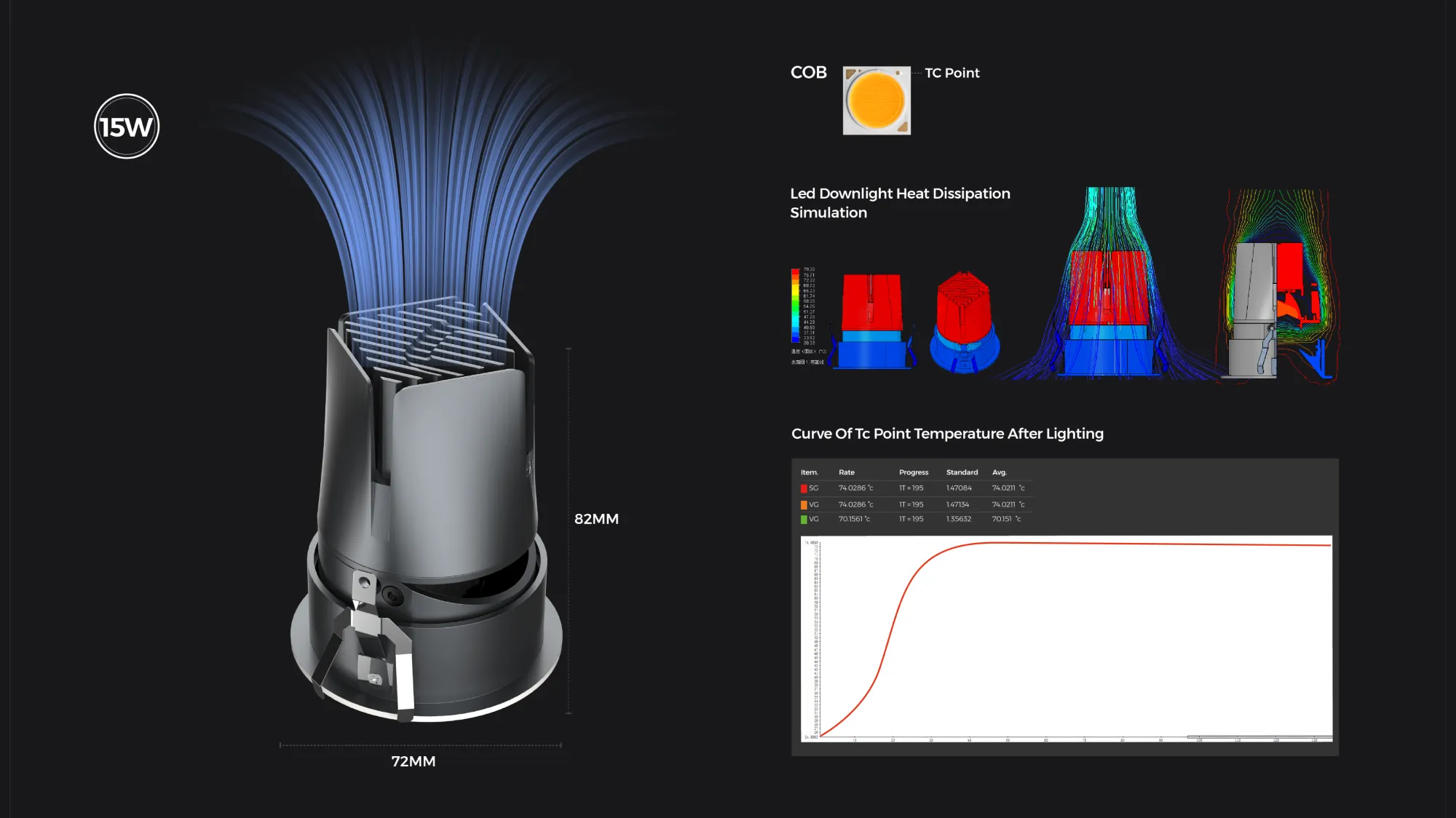

Four-way Convection All-metal Body Small Body Big Power Rigorous Thermal Design Management

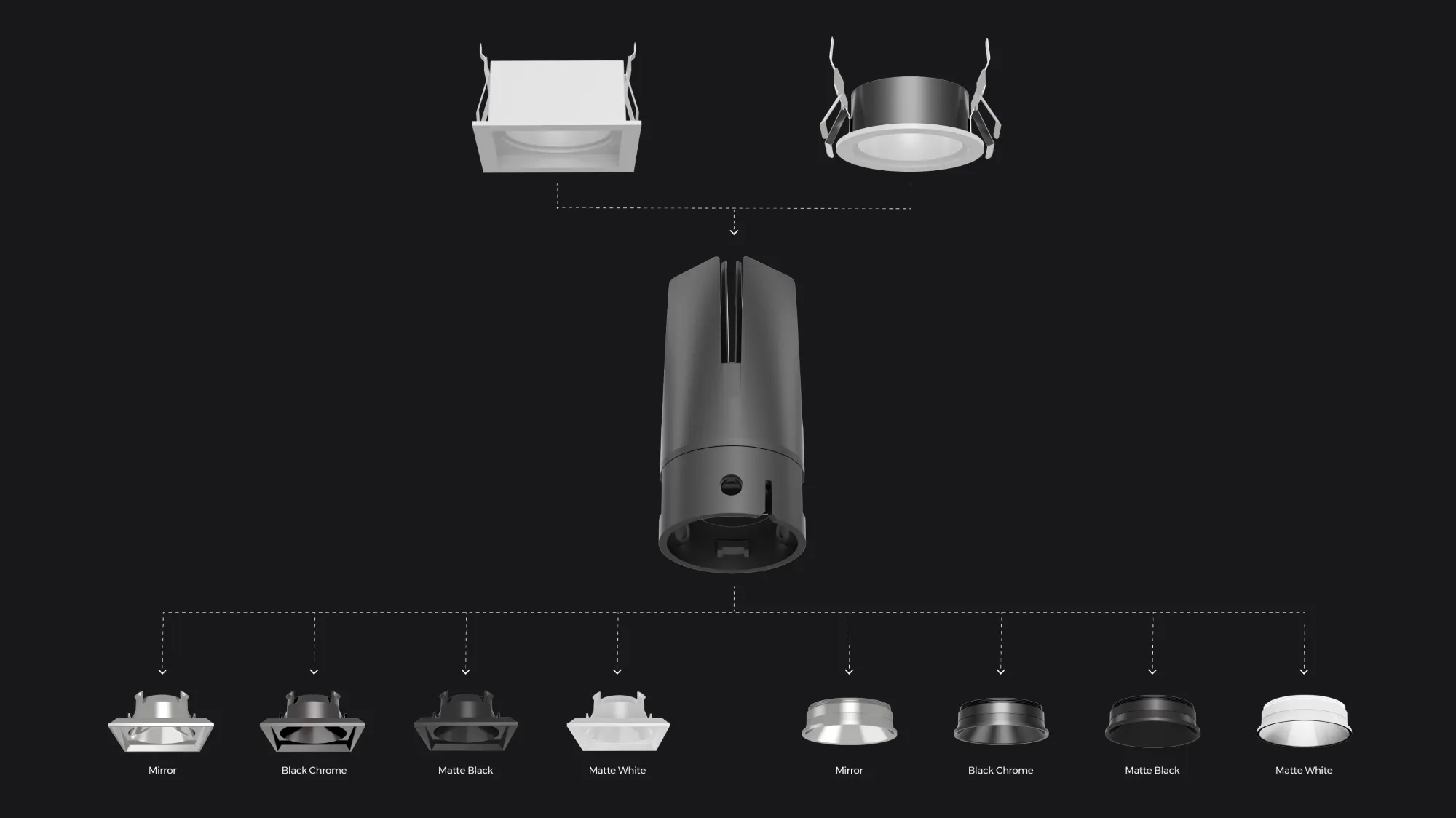

Split Design
Easy Installation
Easy maintenance

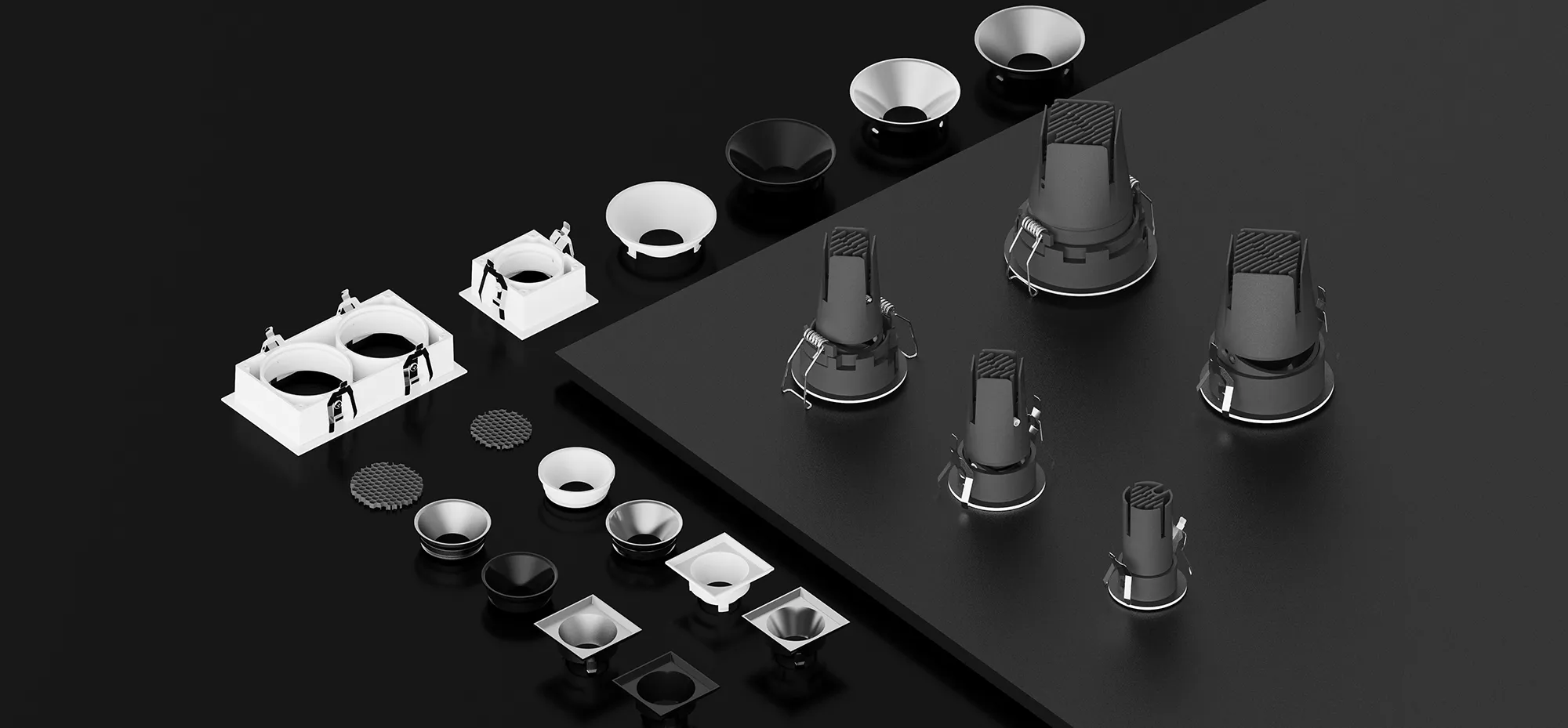

Free combination

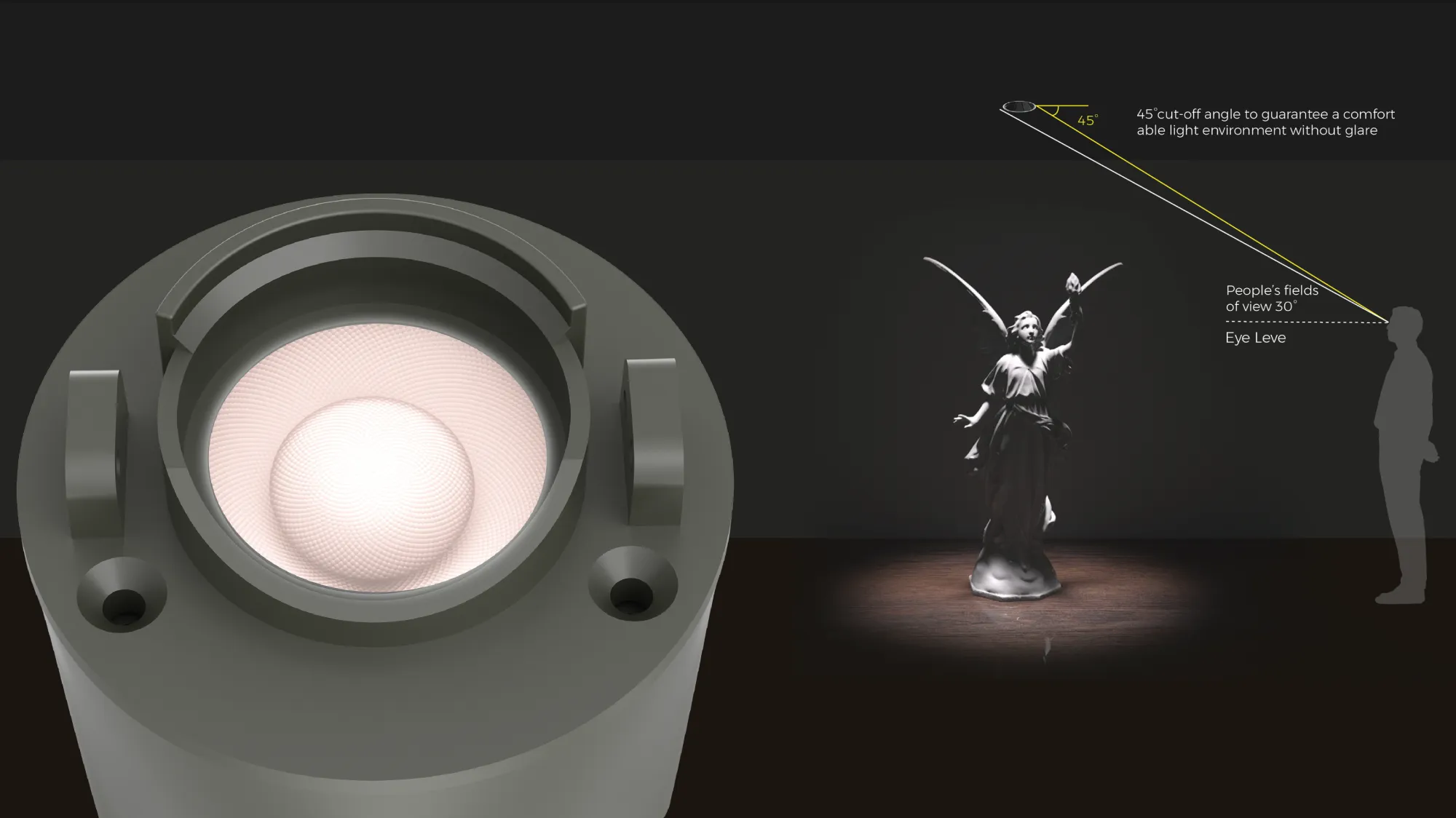

Patented Lens Design Deep Anti-glare Dark Light Technology Minimum UGR ≤ 1
Proprietary Optical Design for a Soft Pure Glow

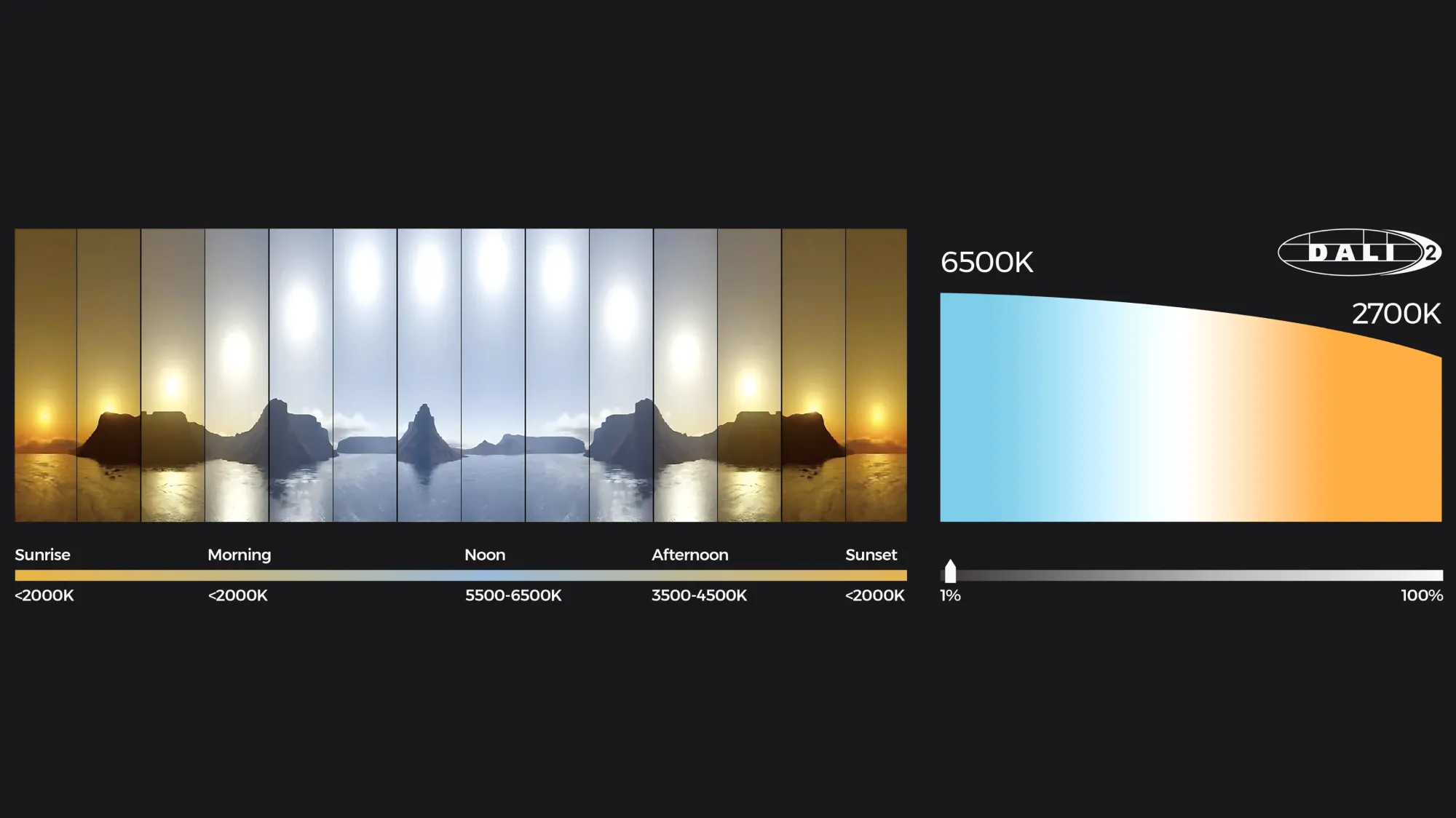

Adjust The Brightness And CCT For Individual Application
White and bright to warm and dim, tunable white gives character to its environment

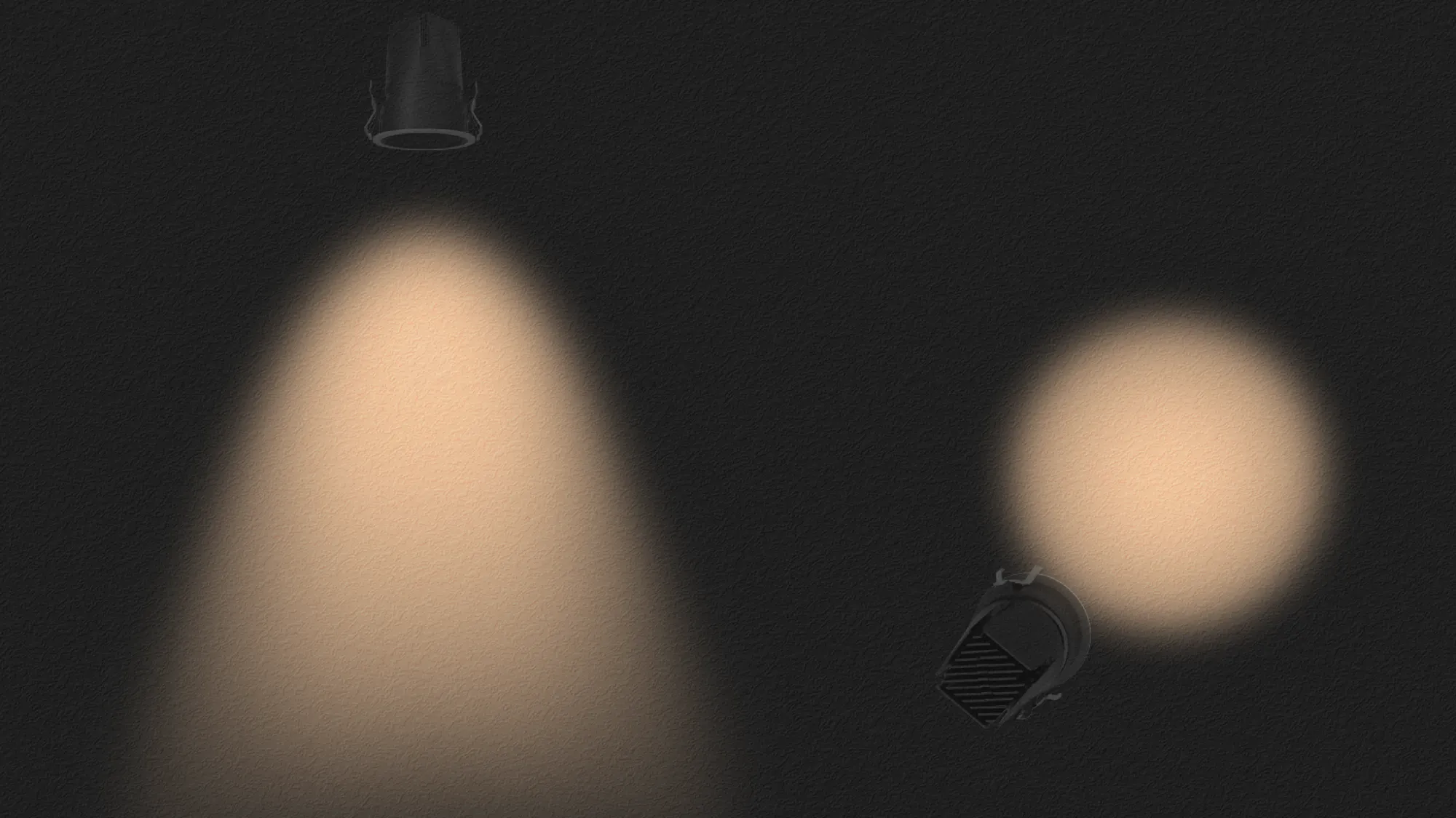

Application Principle

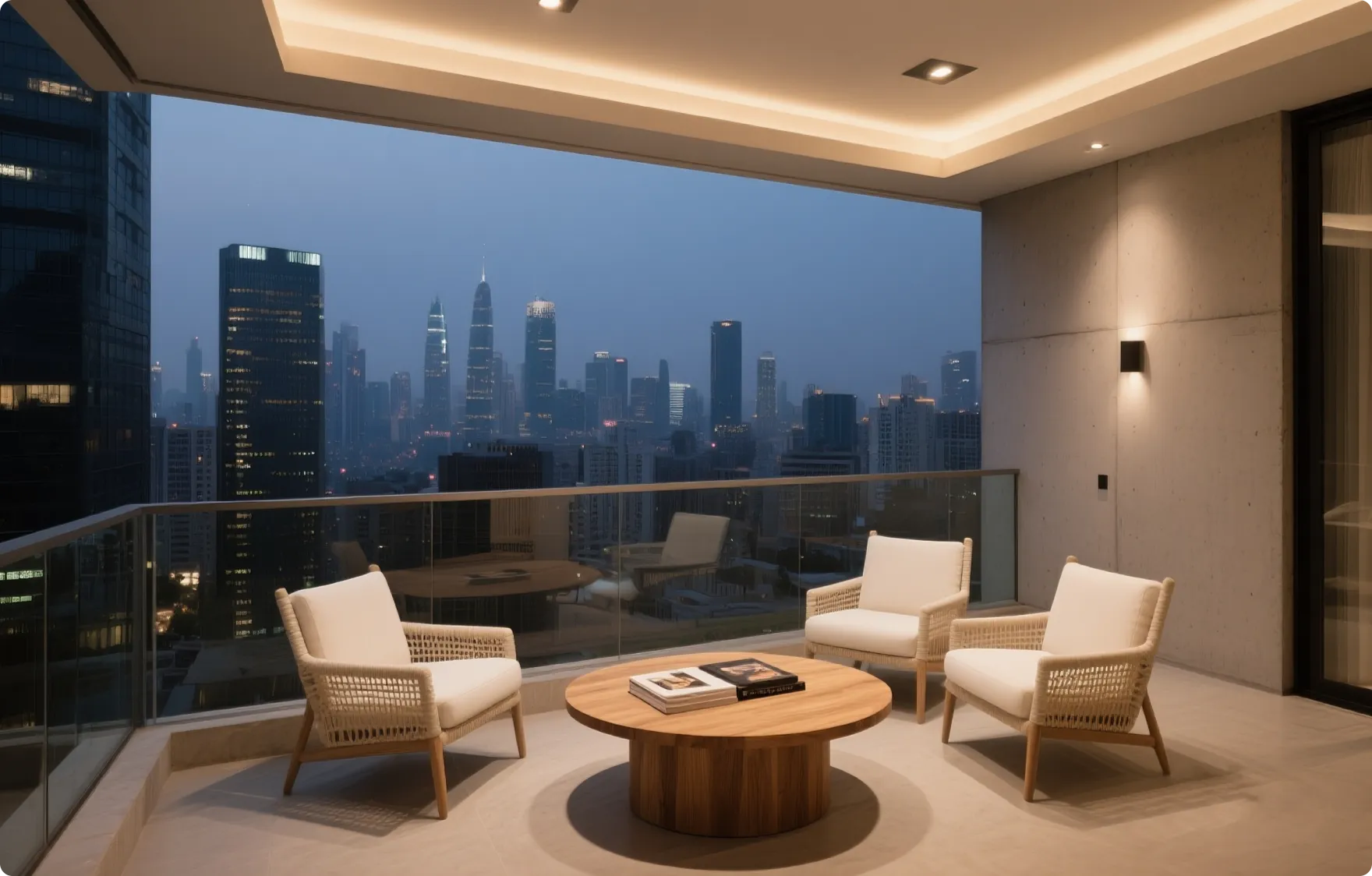

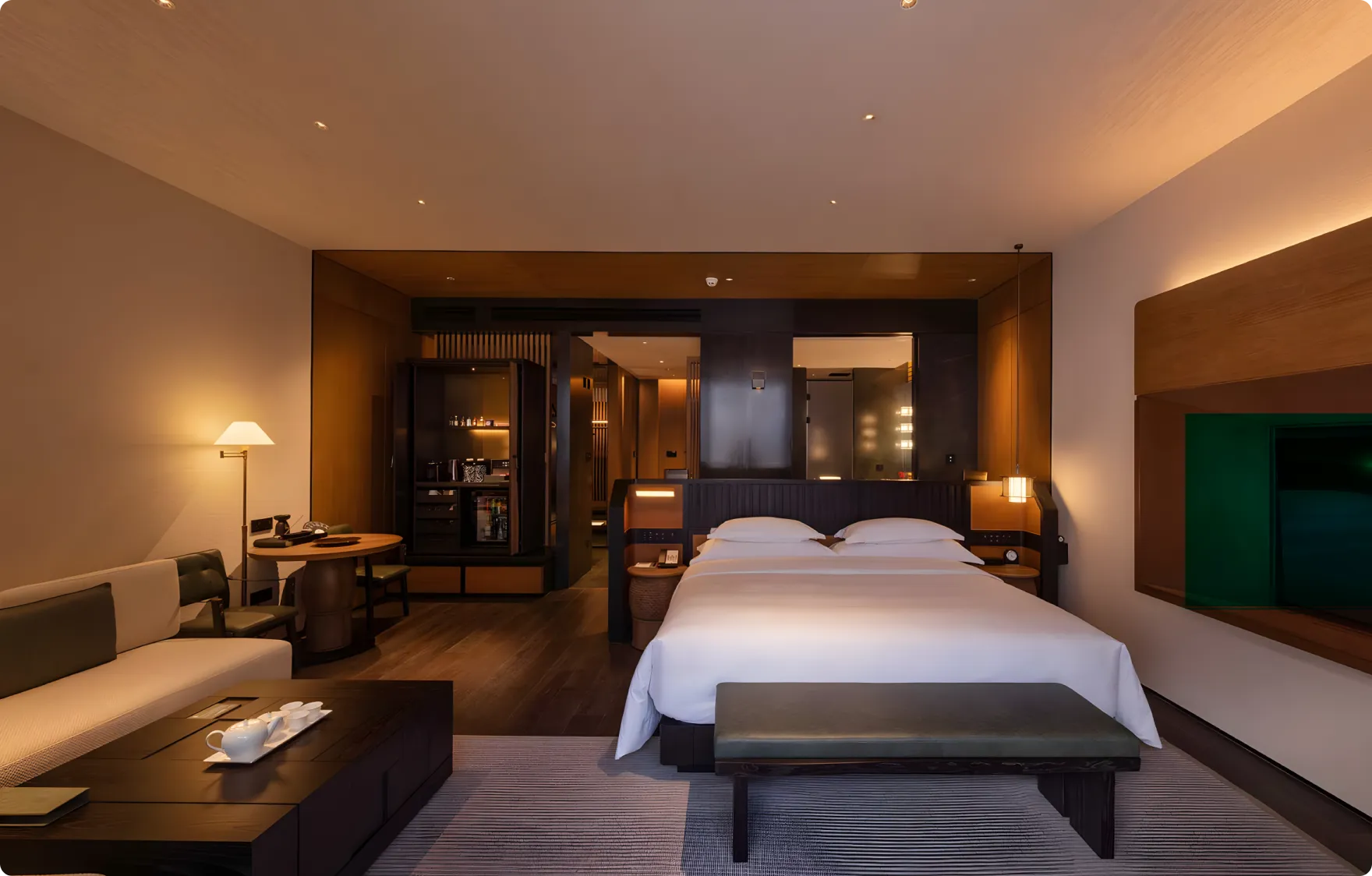

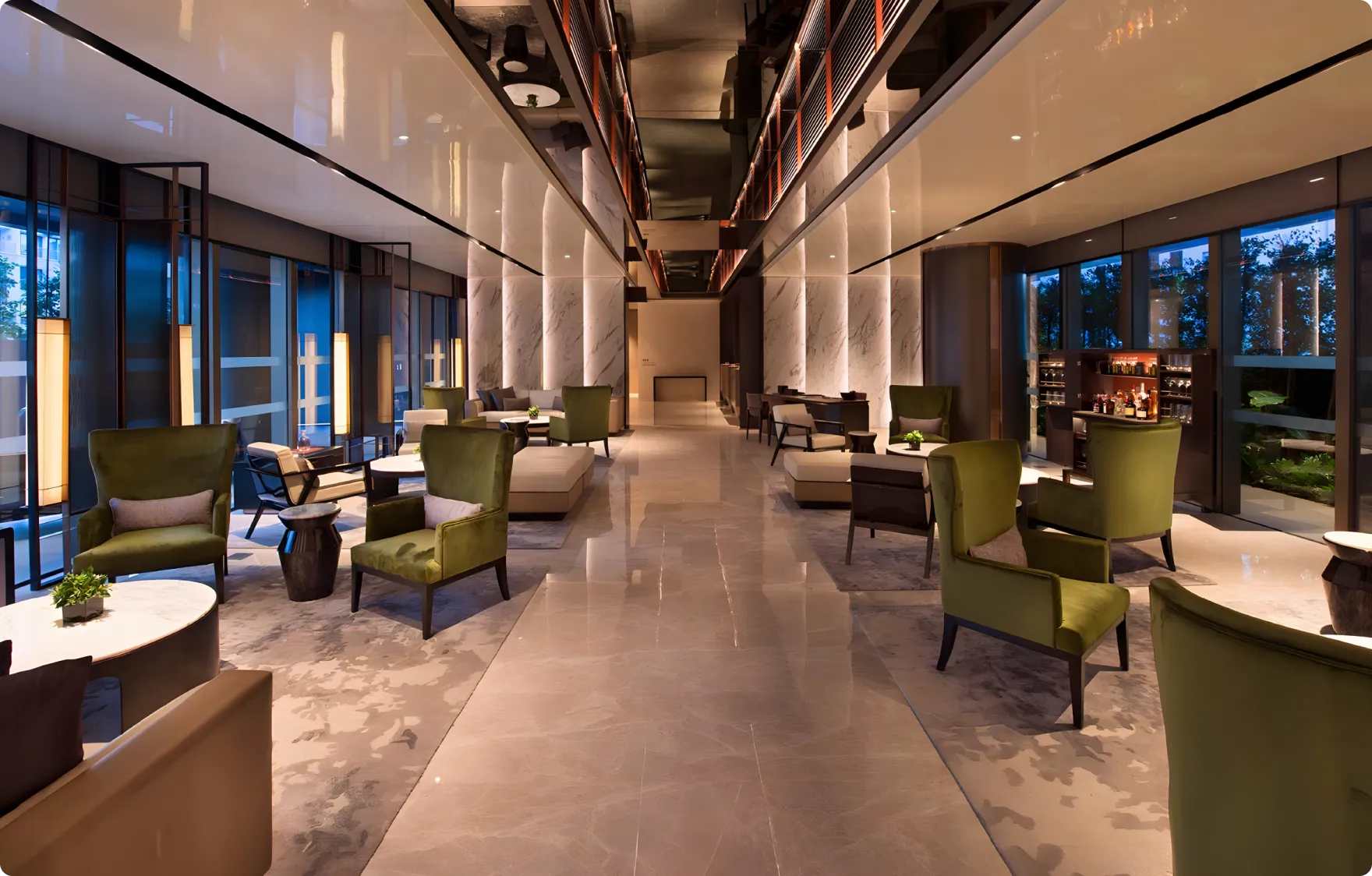

Scenario Case
Ordering Code

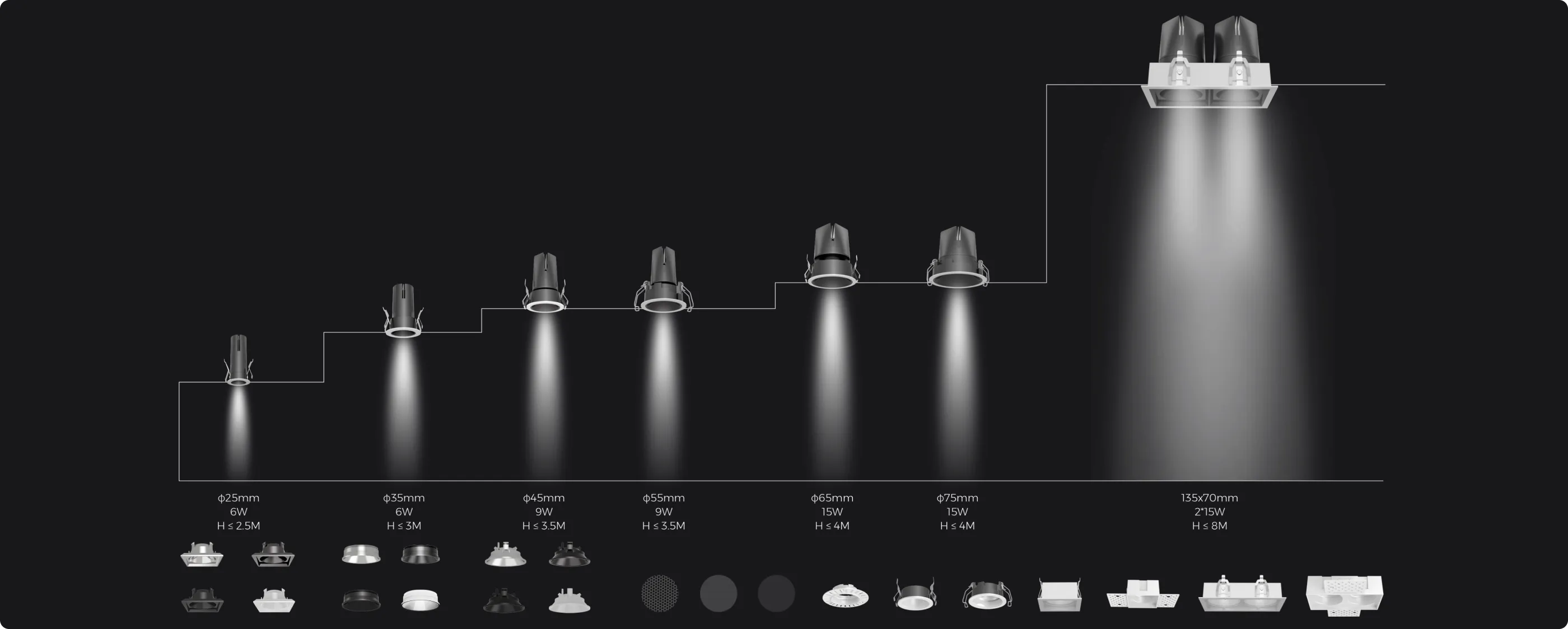

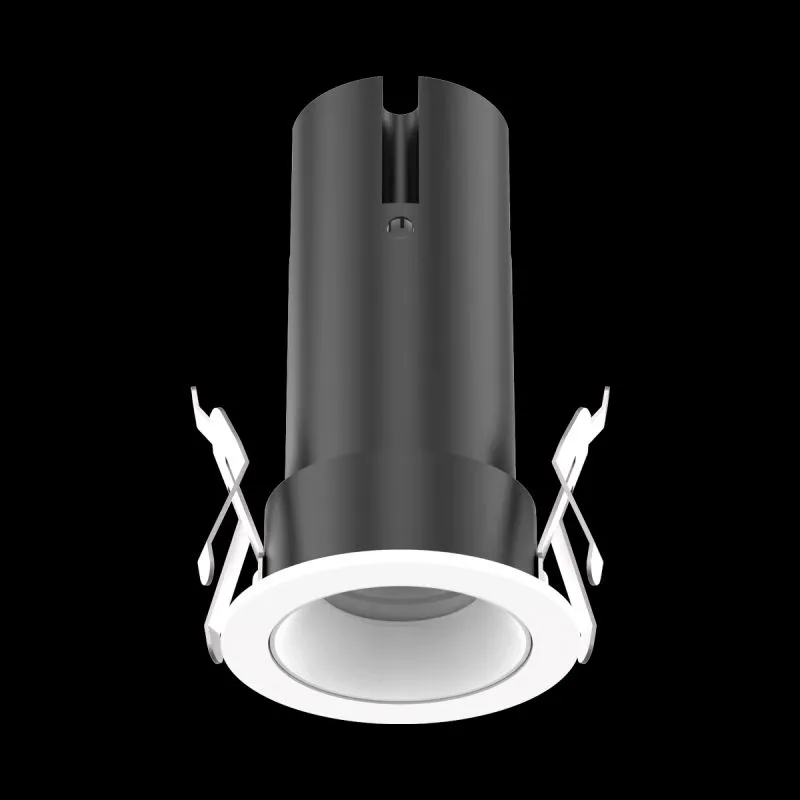

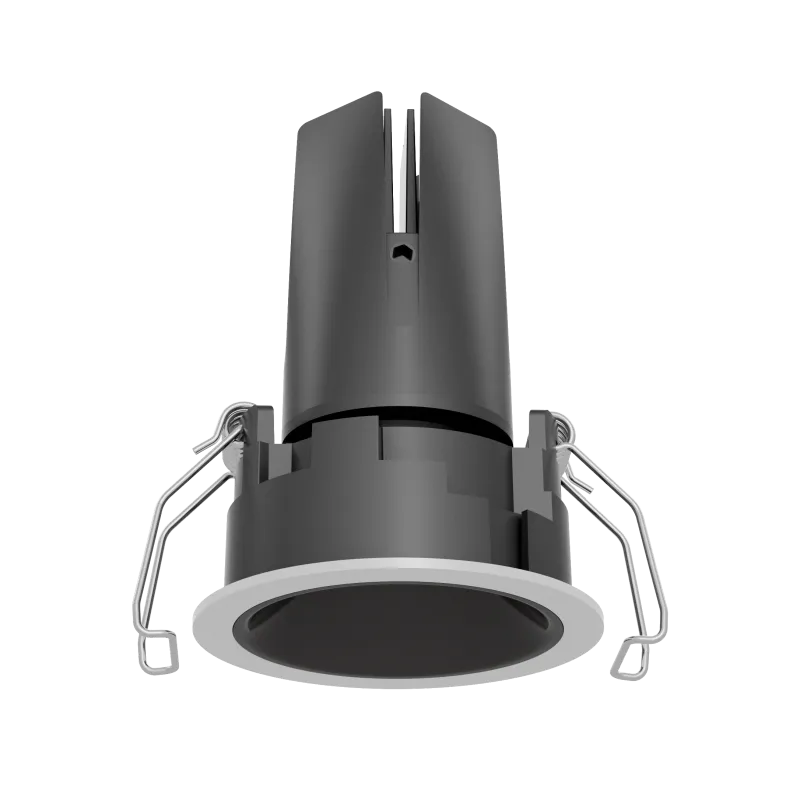

Optional Model

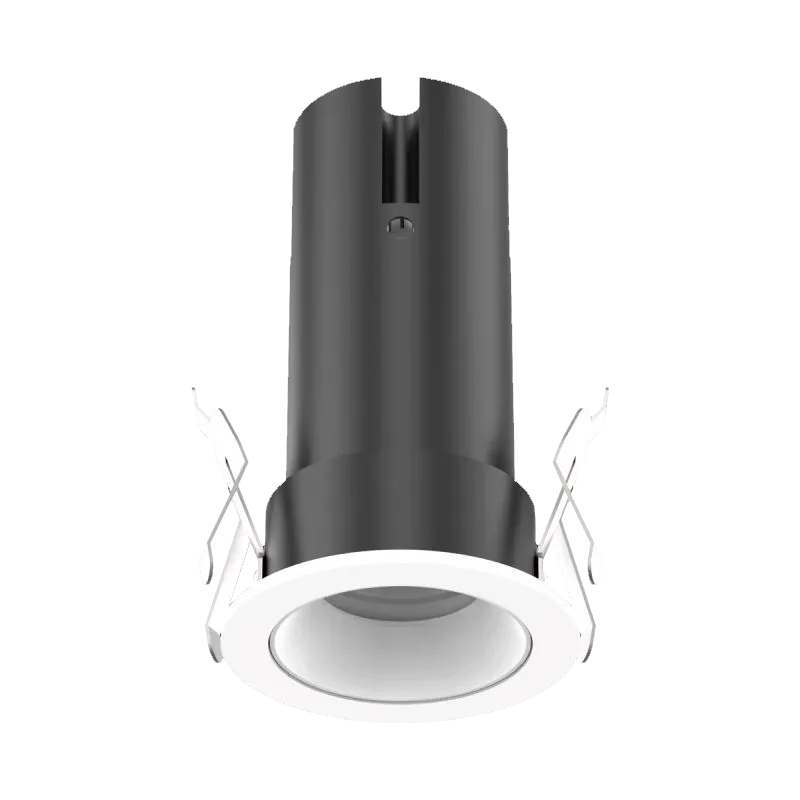

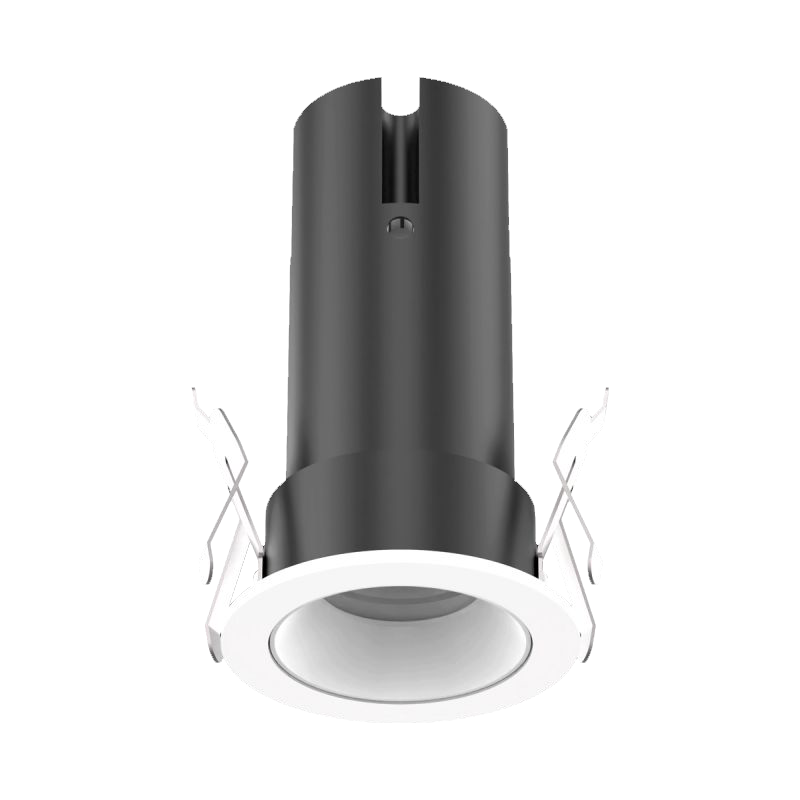

G2SE35L1(E)

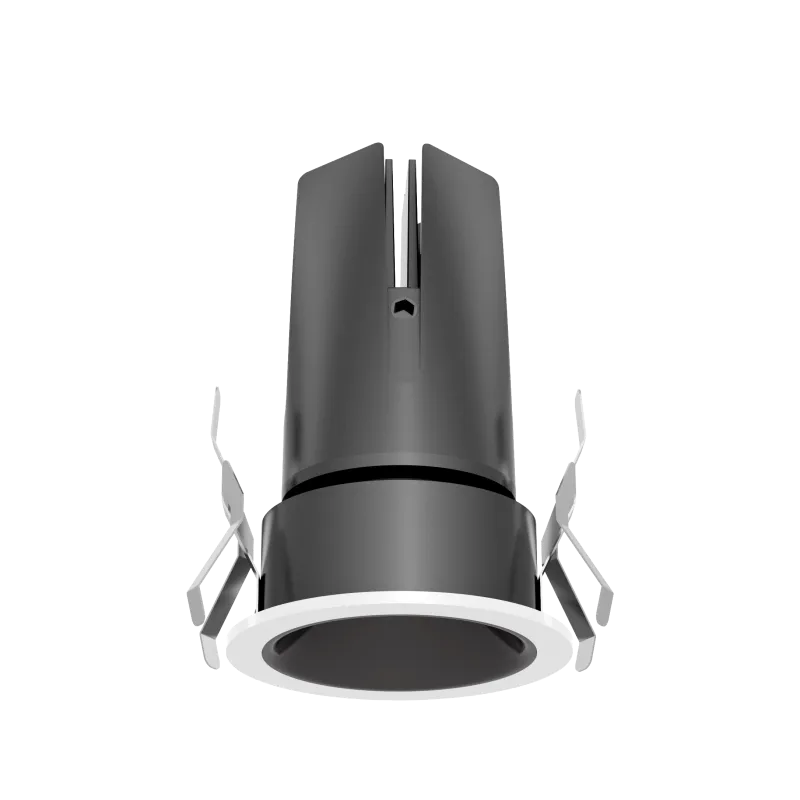

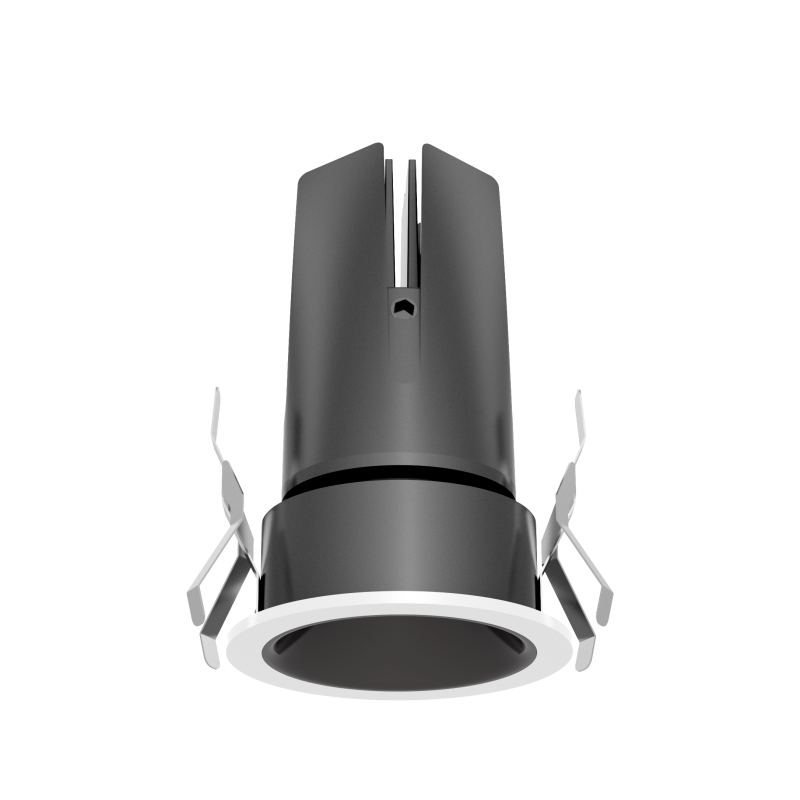

G2SE45L2(E)

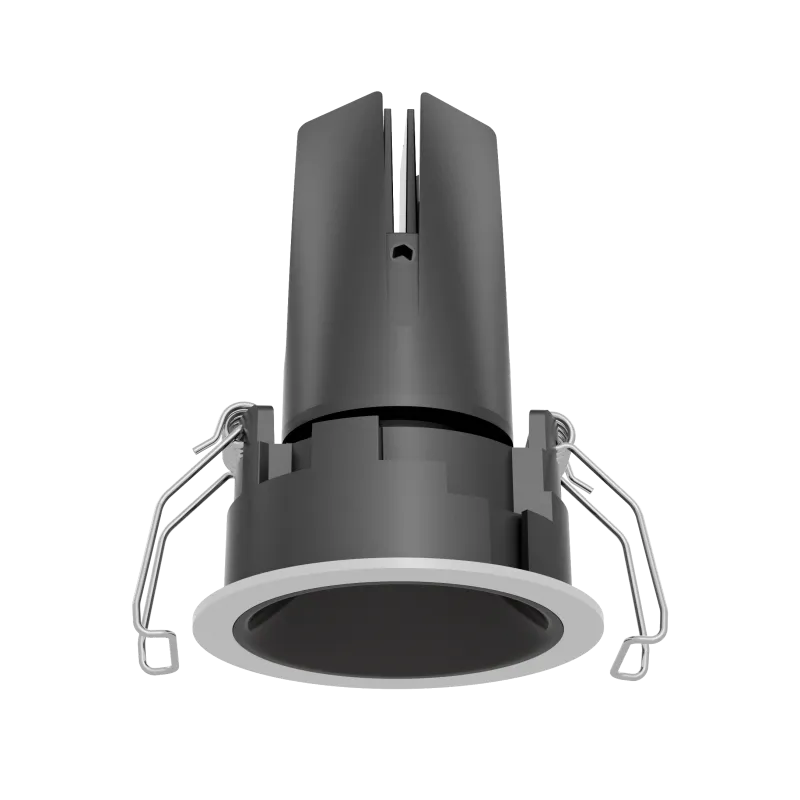

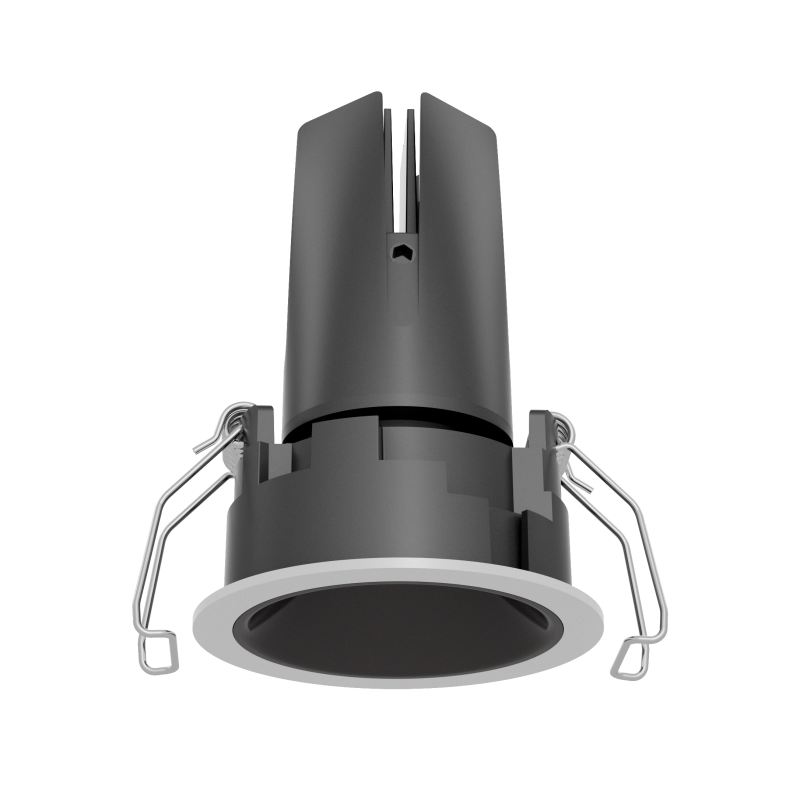

G2SE55L2(E)

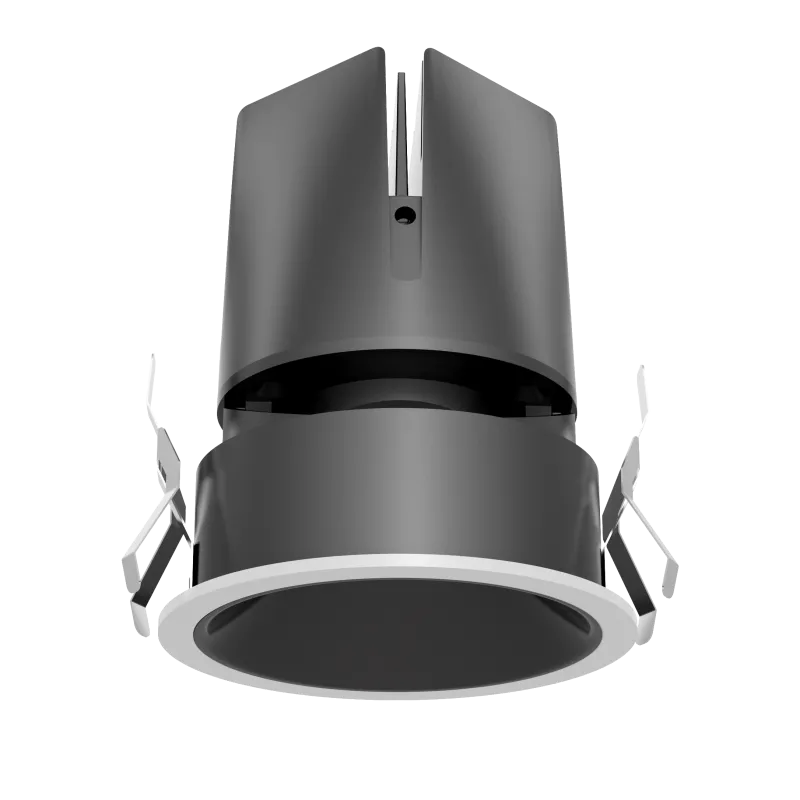

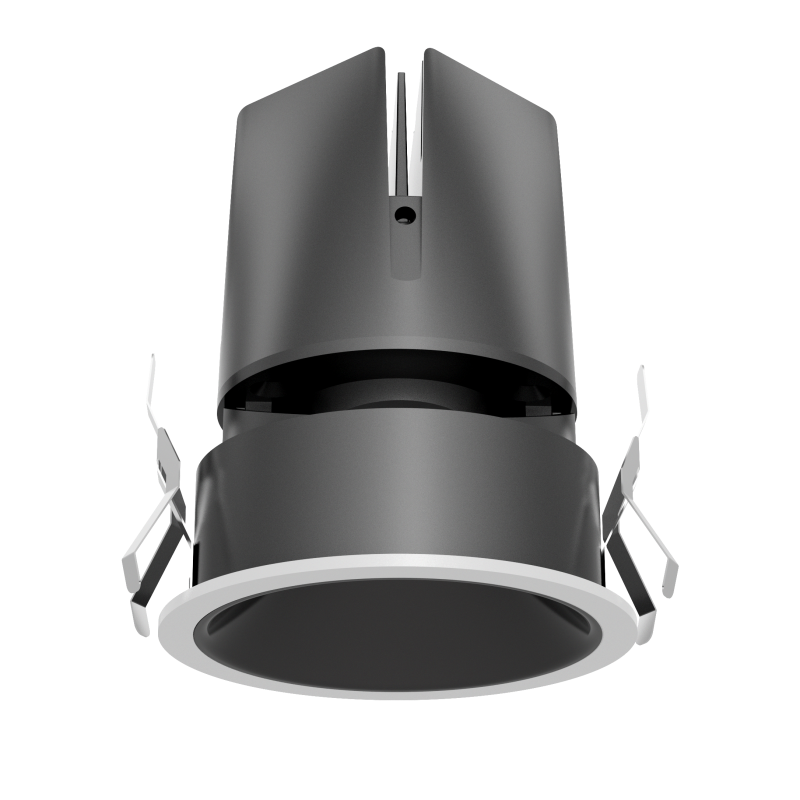

G2SE65L2(E)

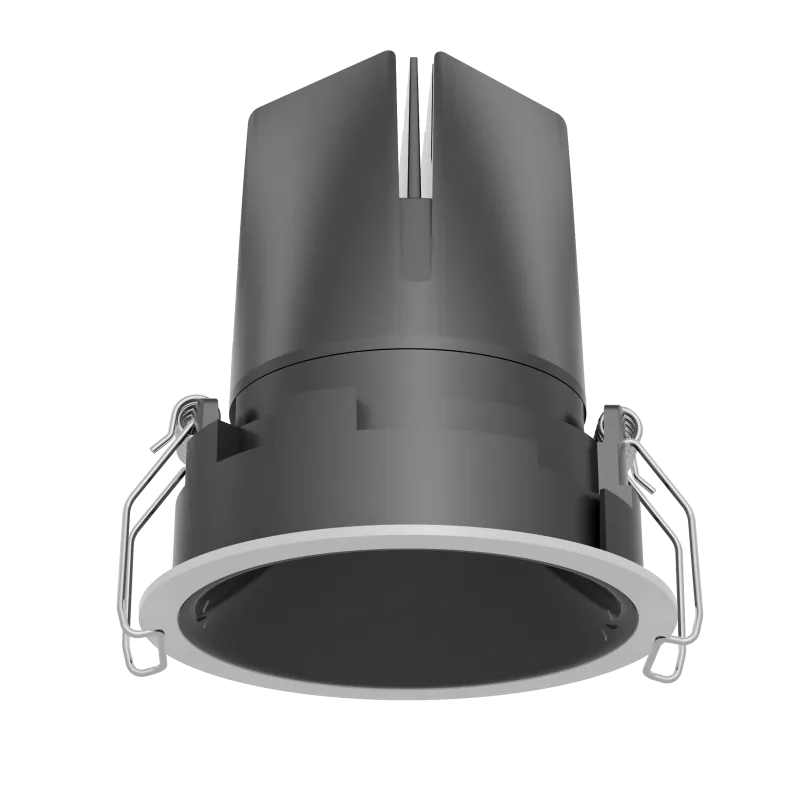

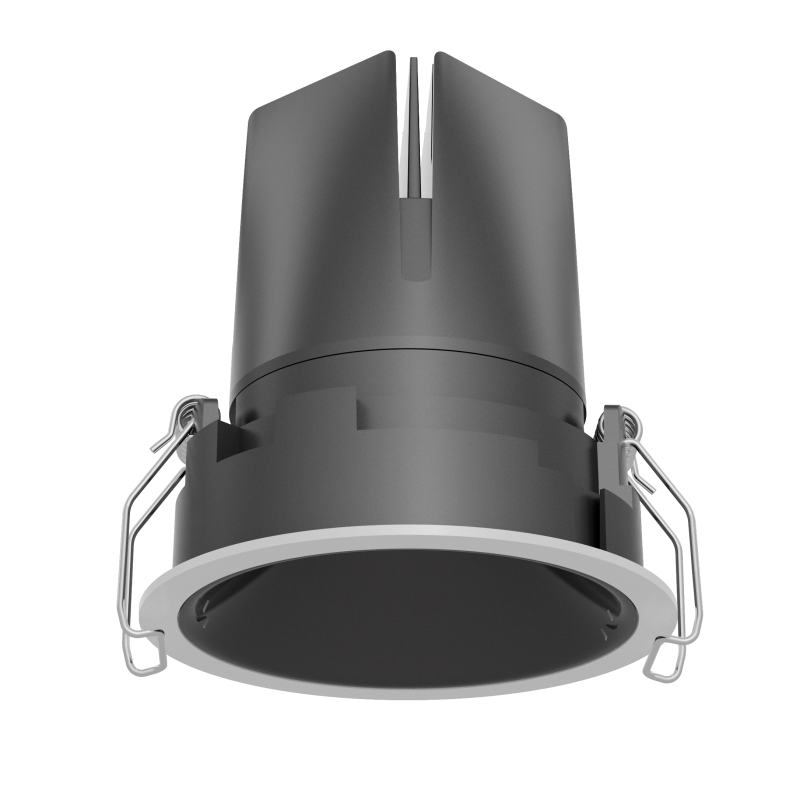

G2SE75L2(E)

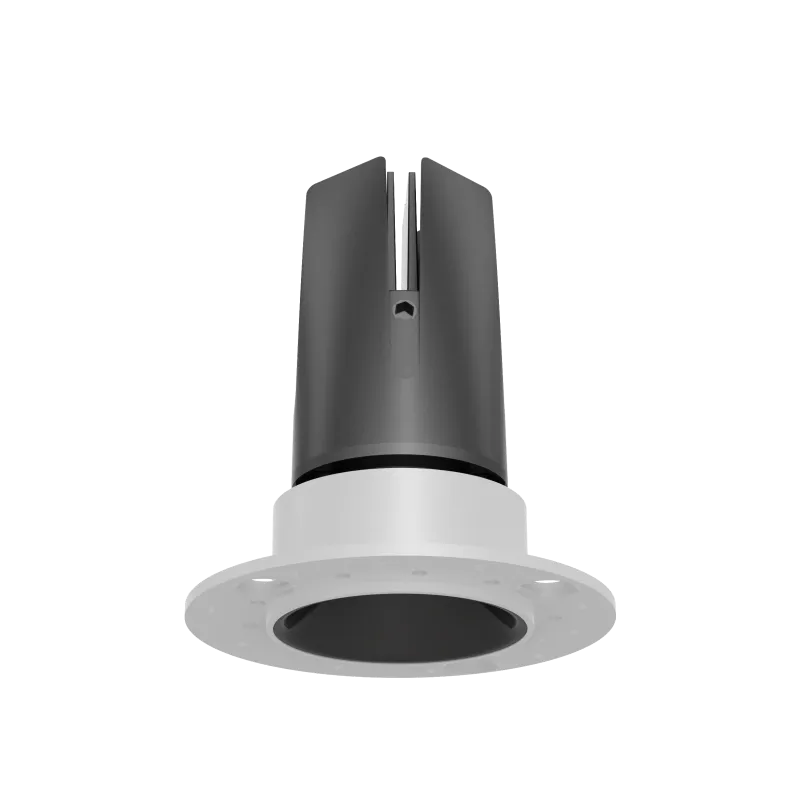

G2SR45L2(E)

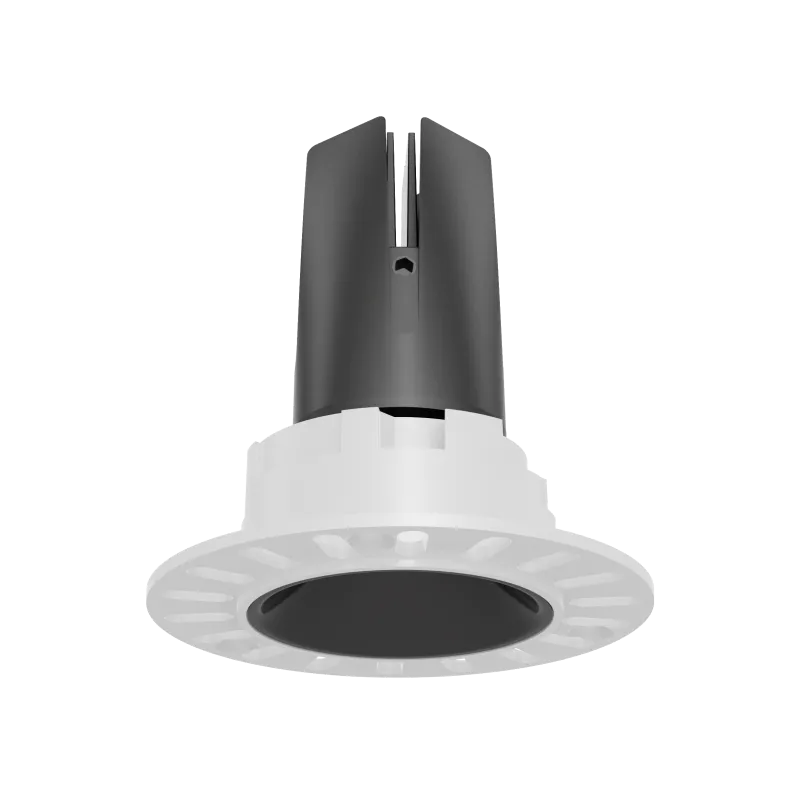

G2SR55L2(E)

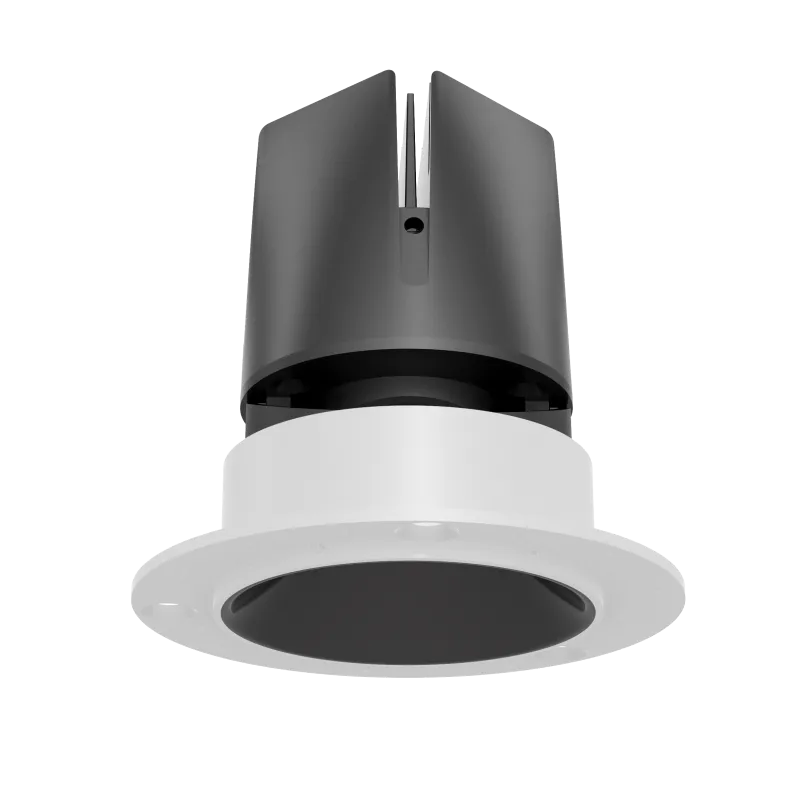

G2SR65L2(E)

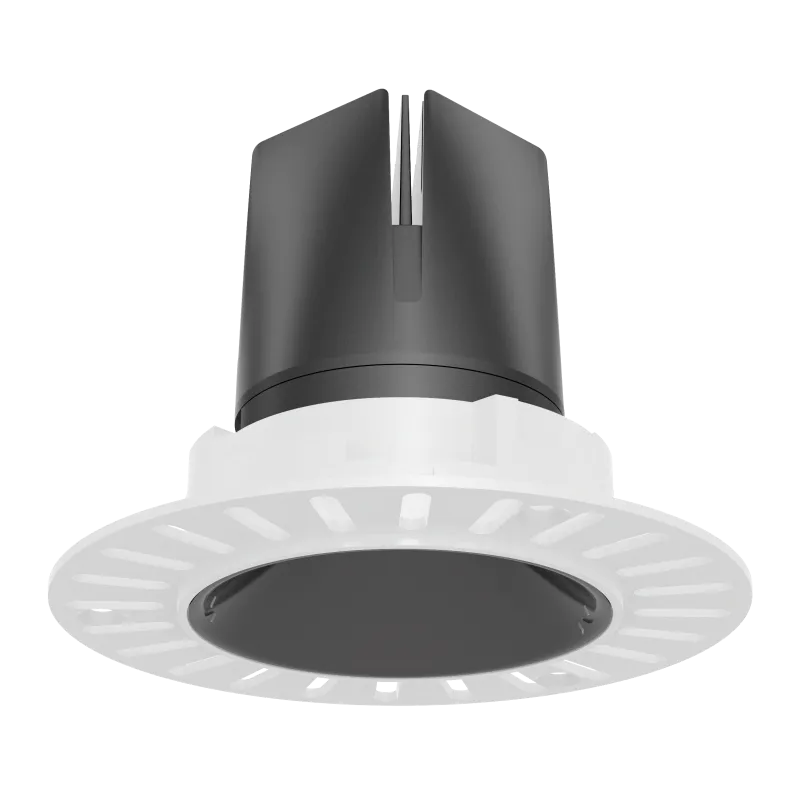

G2SR75L2(E)
G2SE50S2(E)

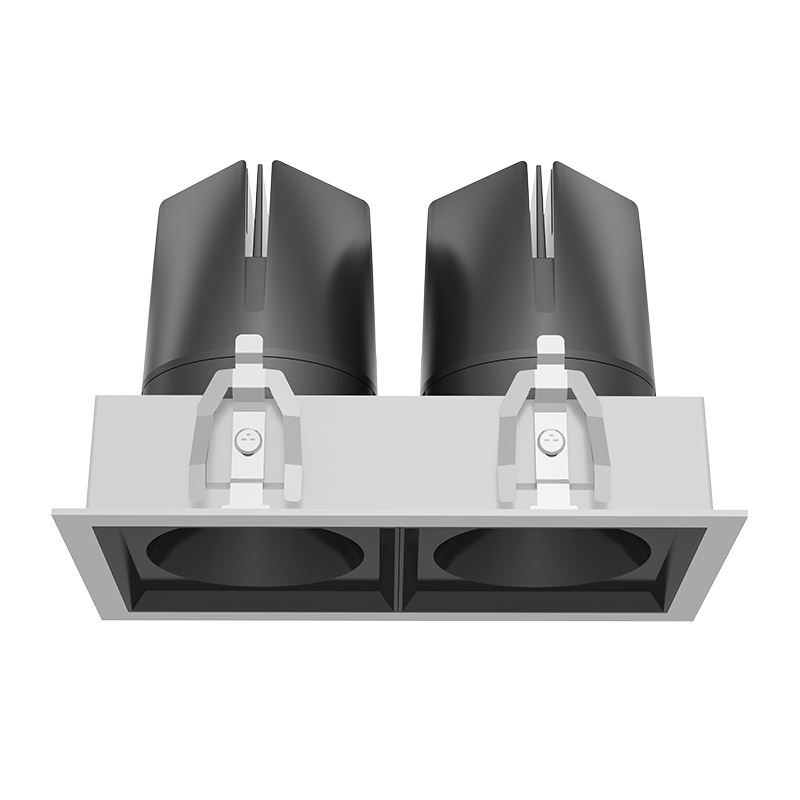

G2SE70S2(E)

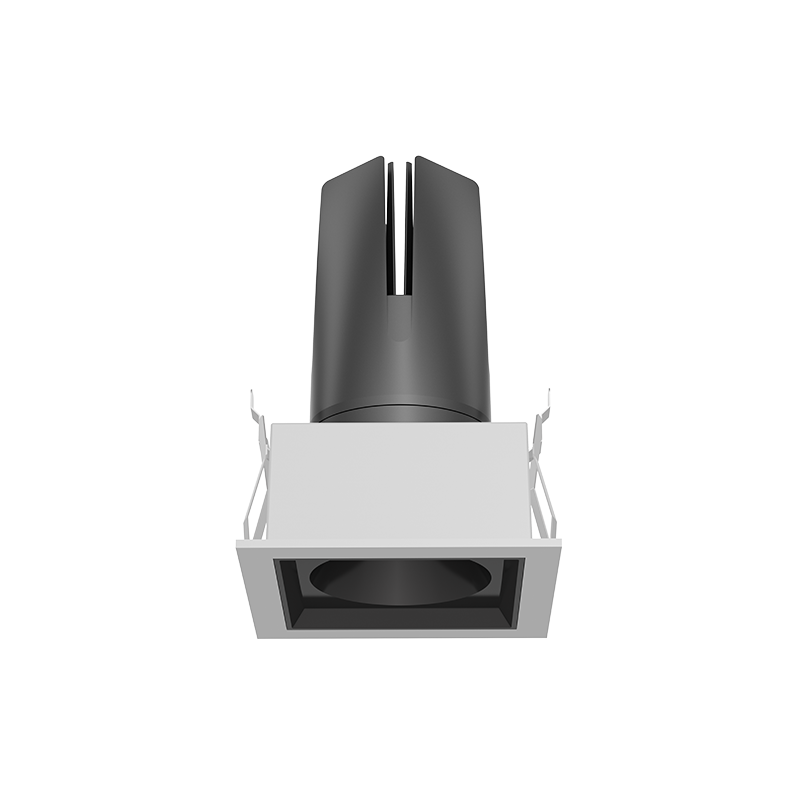

G2SE50S1(E)
G2SE70S1(E)

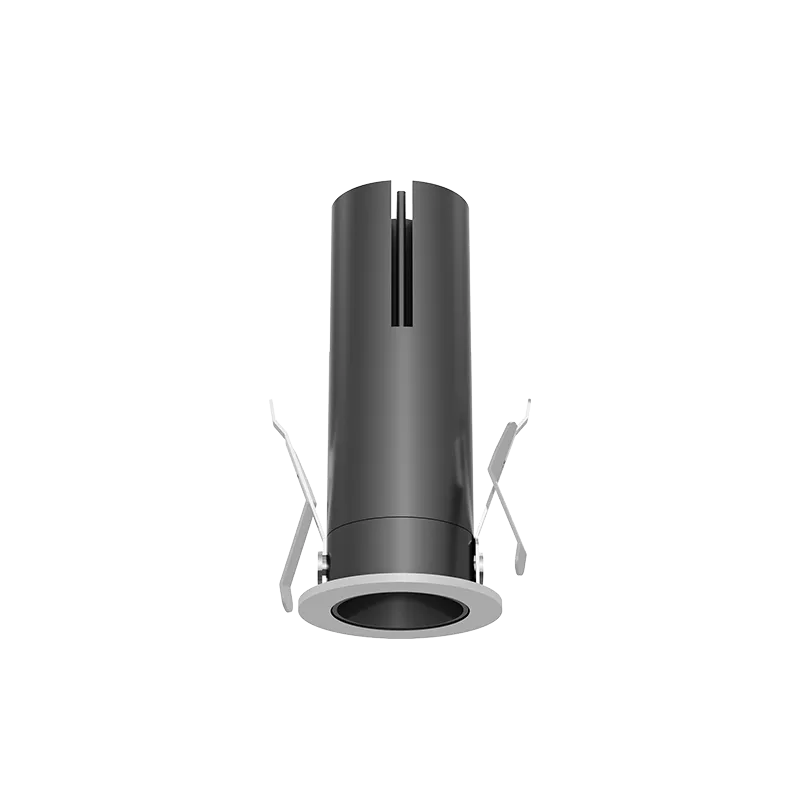

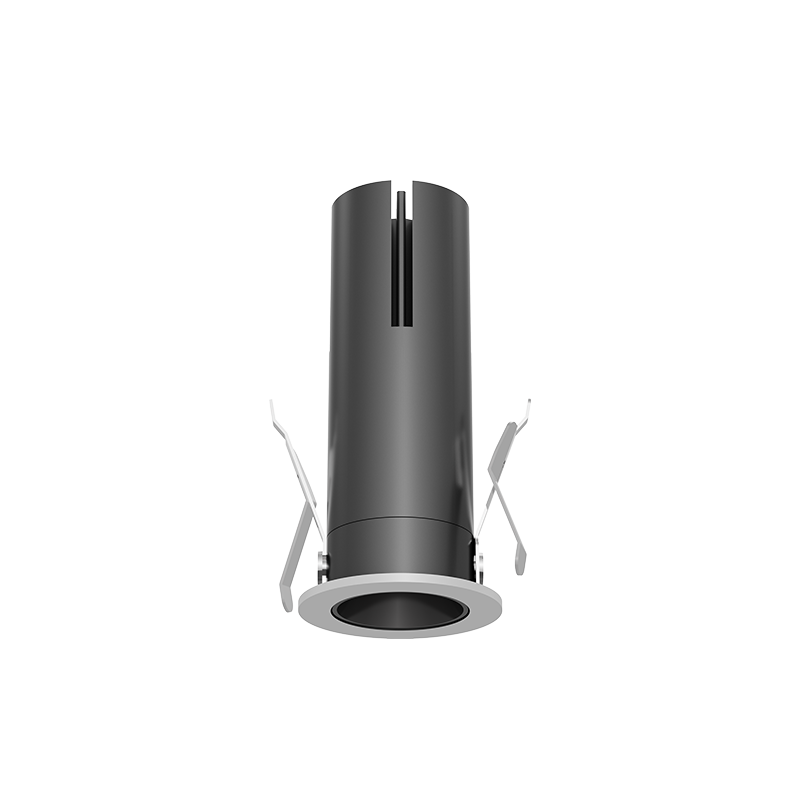

G2SE25L1(E)
G2SE35L1(E)
Basic parameter
Material
AL1070,spraying surface
Dimming Method
Non-dimming
UGR
≤13(15°/24°),≤19(36°)
IP Process
IP20
Warranty
5 years
Certification
CE,ROHS,Reach
Installation
Recessed
Type Power
(W)
Input Voltage
(V)
Input Current
(mA)

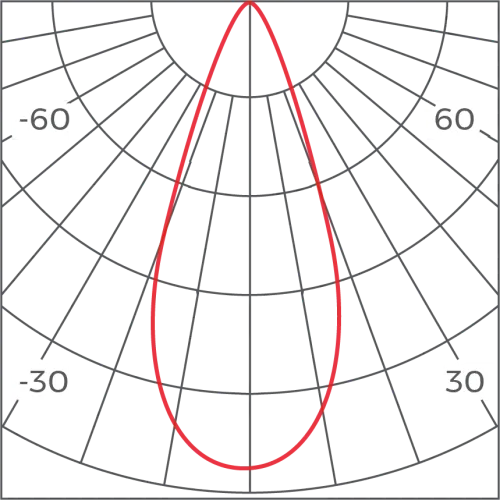

Beam Angle
CCT
Lumen(LM)
6
DC36
120
15°
2700K
220
6
DC36
120
24°
2700K
240
6
DC36
120
36°
2700K
220
6
DC36
120
15°
3000K
230
6
DC36
120
24°
3000K
255
6
DC36
120
36°
3000K
230
6
DC36
120
15°
4000K
250
6
DC36
120
24°
4000K
275
6
DC36
120
36°
4000K
250
6W-15°
h(m)
D(cm)
E(lx)
1
30
1762
2
60
400
3
90
195
4
121
110
6W-24°
h(m)
D(cm)
E(lx)
1
37
1533
2
74
383
3
111
170
4
148
95
6W-36°
h(m)
D(cm)
E(lx)
1
60
540
2
121
135
3
182
60
4
243
33
Size (mm/box)
Quantity /box
QTY/CTN
NW (kg/box)
N. WT (ctn)
G.WT (ctn)
Size (cm/carton)
Product Size (mm)
L120*W120*H95mm
1
48
0.11
5.28
10.62
L496*W496*H306mm
Φ41*70mm
