Features

·Material: AL1070,sprayingsurface


·DriverInstallation: Remote


·Lightingdirection: Downward


·Beamangle: 15°/24°/36°optional


·UGR(X=4H,Y=8H): ≤13(15°/24°),≤19(36°)


·Openingsize: φ35mm


·Dimmingmethod: Non-Dimming


·SDCM(Lightsource): <3Step(ANSI)


·CRI: 90


·CCT: 2700/3000/3500/4000K optional


·Inputvoltage: AC220-240V


·Application: Indoor


·Installation: Recessed


·IPgrade: IP20


·Certification: CE,ROHS,Reach


·Warranty: 5years

BASIC CONFIGURATION

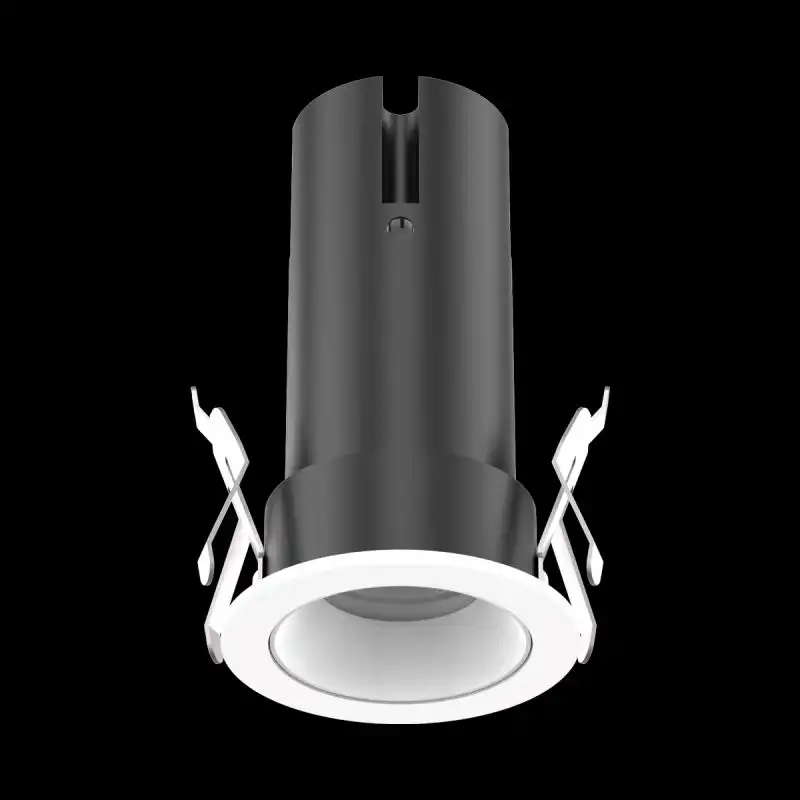

G2SE35L1(E) luminaire


Power supply optional





Note:


If the "Honeycomb" is selected, it will be installed on the spotlight by default,and the parameters will change as follows.


(1)Spotlights with beam angles of "15°" and "24°":the light efficiency will be reduced by 30%, the beam Angle will be reduced by 12%, the anti-glare effect will be better, and the UGR will be reduced by 40%.


(2)Spotlights with beam angles of "36°"the light efficiency will be reduced by 50%, the beam Angle will be reduced by 25%, the anti-glare effect will be better, and the UGR will be reduced by 40%.

Dimension

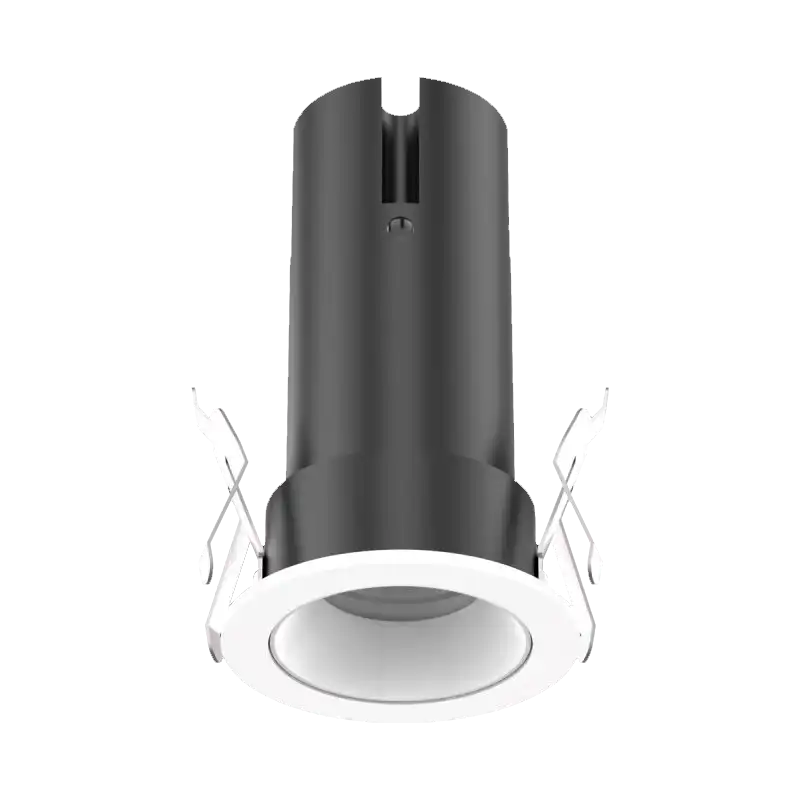

G2SE35L1(E)

$
**
/set
Login to view price

Flexible Options

Reset selected

Typ.power

  • 6W

Beam Angle

  • 15°

  • 24°

  • 36°

Color

  • Black(Frame)

  • White(Frame)

Dimming Method

  • No Power

  • Non-Dimming

  • 0-10V Dimming

  • DALI Dimming

CRI

  • >90

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

Reflector Color

  • Mirror

  • Matte White

  • Matte Black

  • Black chrome

IP Grade

  • IP20

  • IP54

Optical Accessory

  • No Honeycomb

  • Honeycomb

Entry Cable

  • With cable of drive input

  • With junction box

User Manual

  • EN

Label Type

  • COLORS

  • Customized Label

Delivery Date
Ordering Code :

DL-G2SE35L1(E)-0690

$ **/set
