LINE LINK
Discover LINE LINKThe LINE LINK Quick Connect lighting system features an innovative quick-connect end cap design, making the structural and electrical connections between fixtures simple and efficient. With a simple plug-and-play mechanism, users can achieve instant structural and electrical connections in just one second. Combined with its modular design, this system allows customers to quickly create extended configurations, significantly reducing the additional costs
associated with custom lengths.
Specification
Key Features

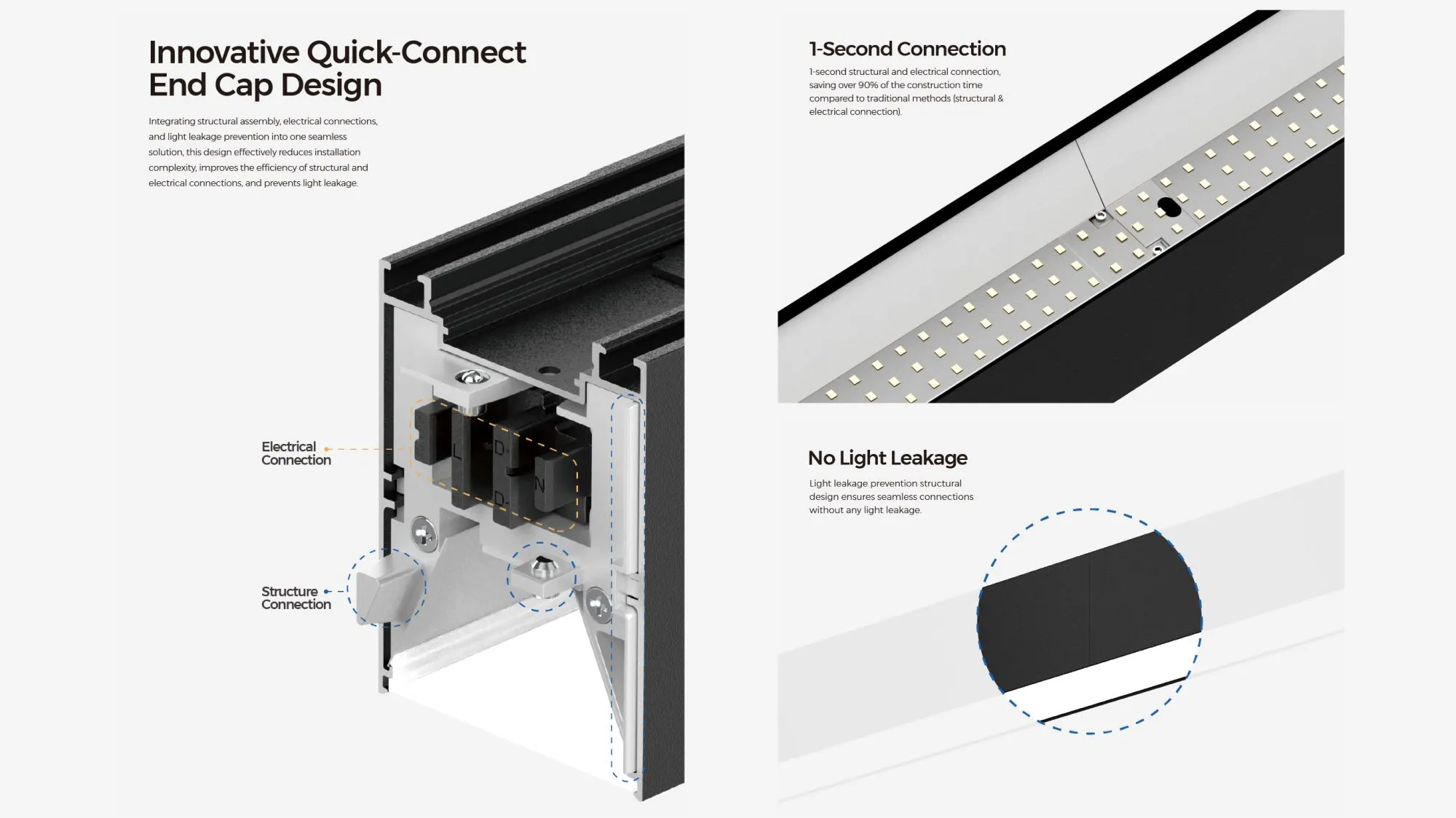

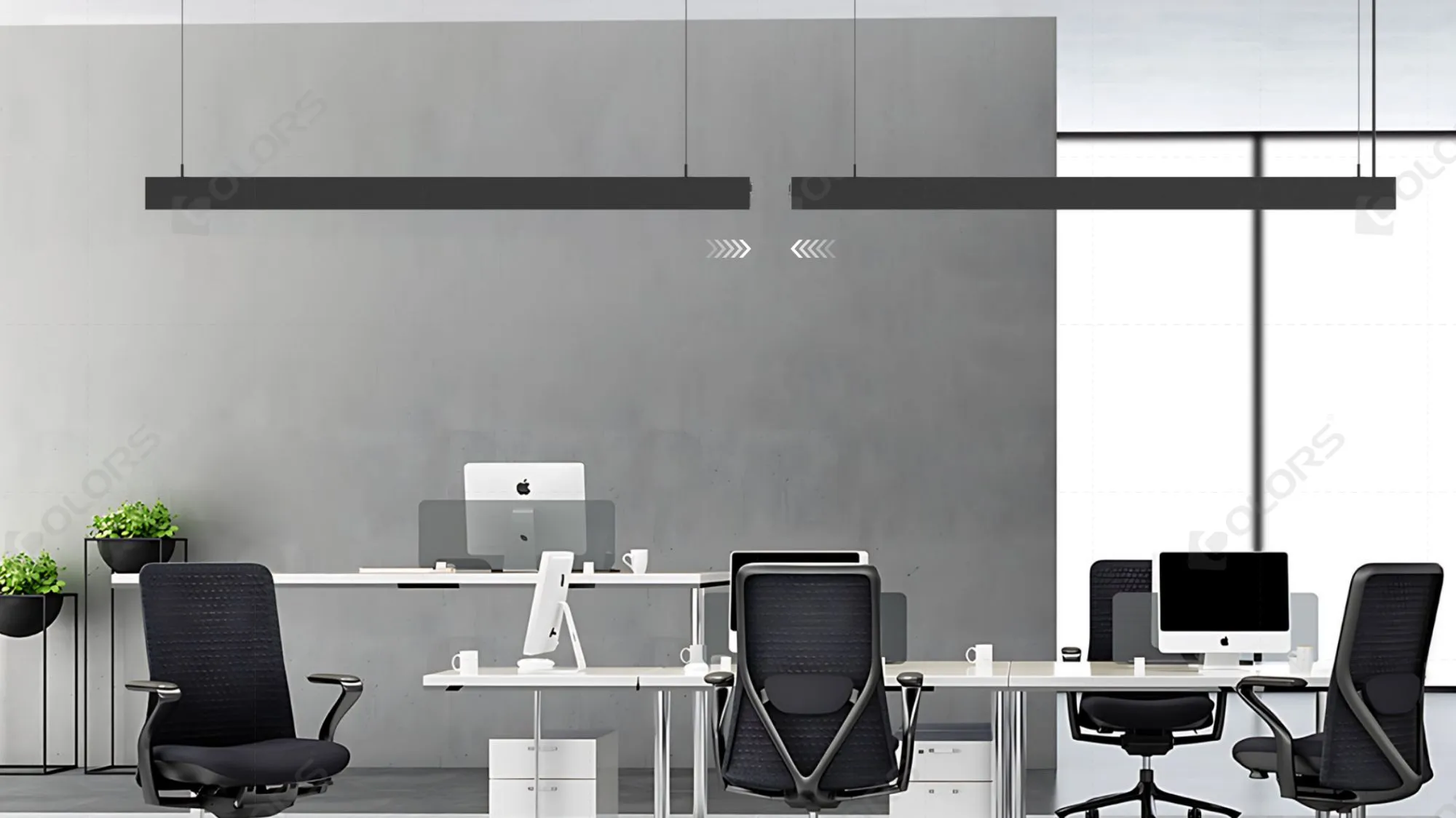

Innovative Quick-Connect End Cap Design
Integrating structural assembly, electrical connections,and light leakage prevention into one seamless solution, this design effectively reduces installation complexity, improves the efficiency of structural and electrical connections, and prevents light leakage.
Ultra Long Application
With modular design, customers can quickly implement ultra-long applications, significantly reducing the additional costs associated with custom lengths.

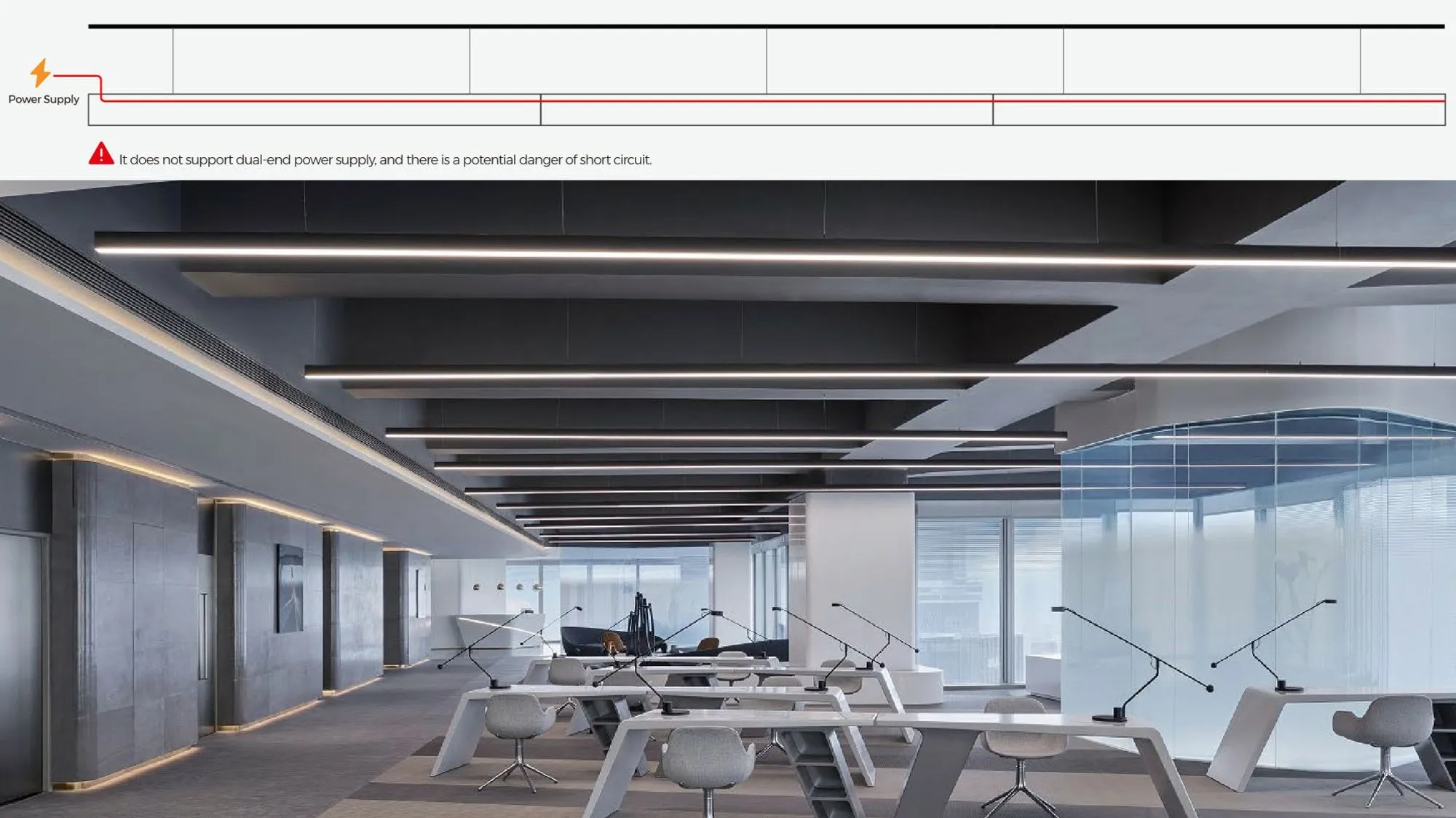

Ultra-Long Single-End Power in
The quick-connect lighting design supports a maximum cascading length of 40 meters, significantly reducing wiring and connection labor costs. It enhances the installation efficiency of lighting and electrical connections, while also shortening project construction time.

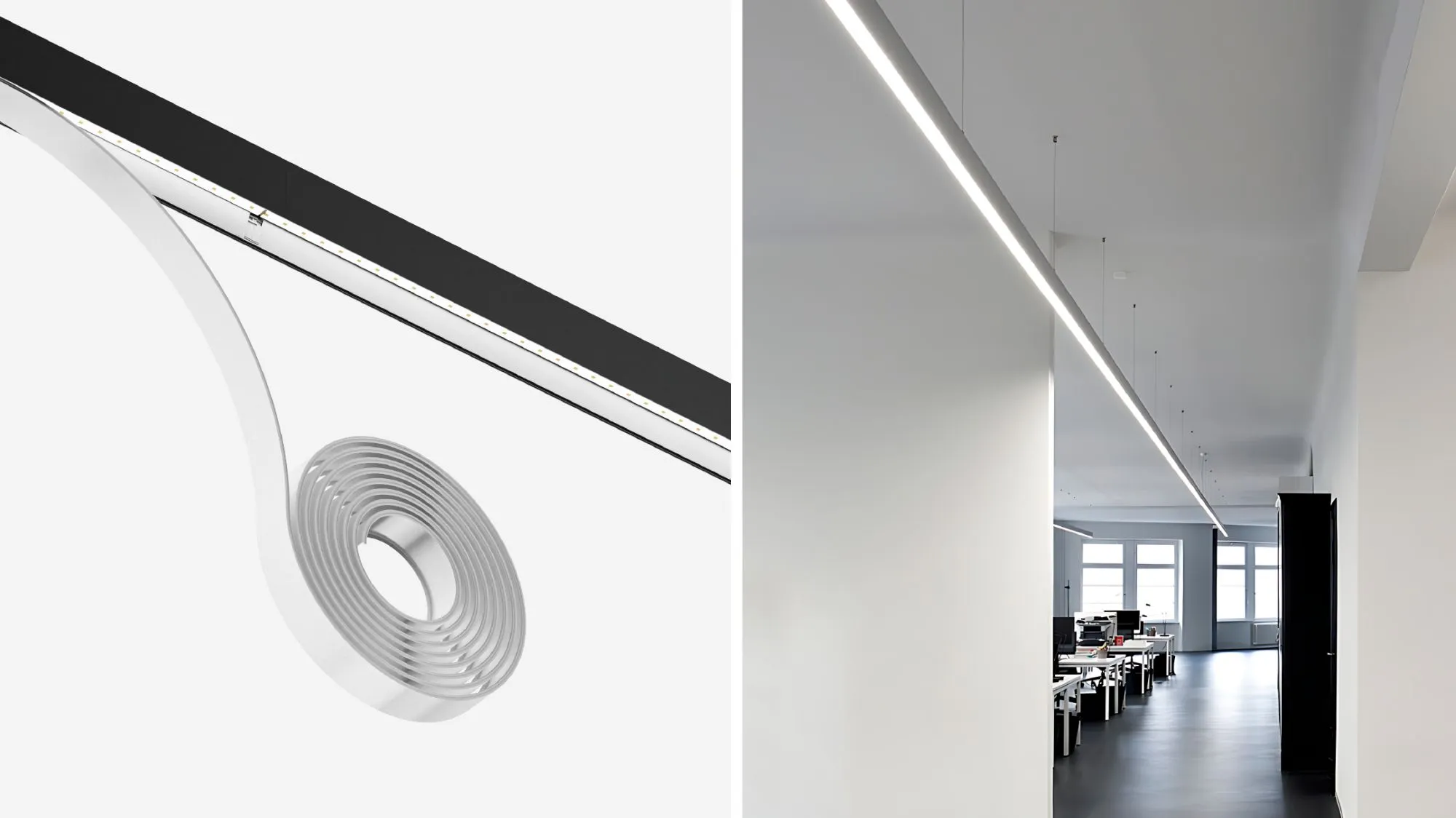

Extra-Long Flexible Diffuser & Prismatic
Available in 50M options,designed for extended applications with continuous, uninterrupted lighting.

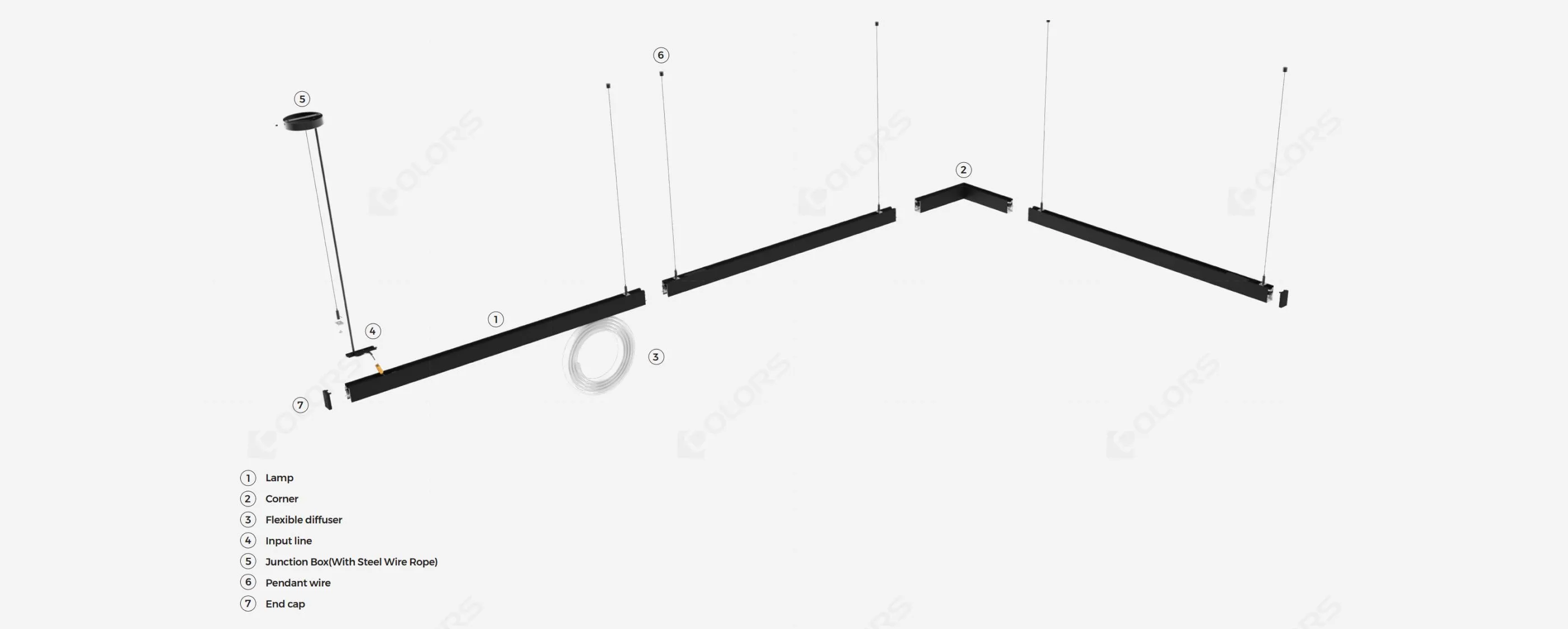

Application Principle

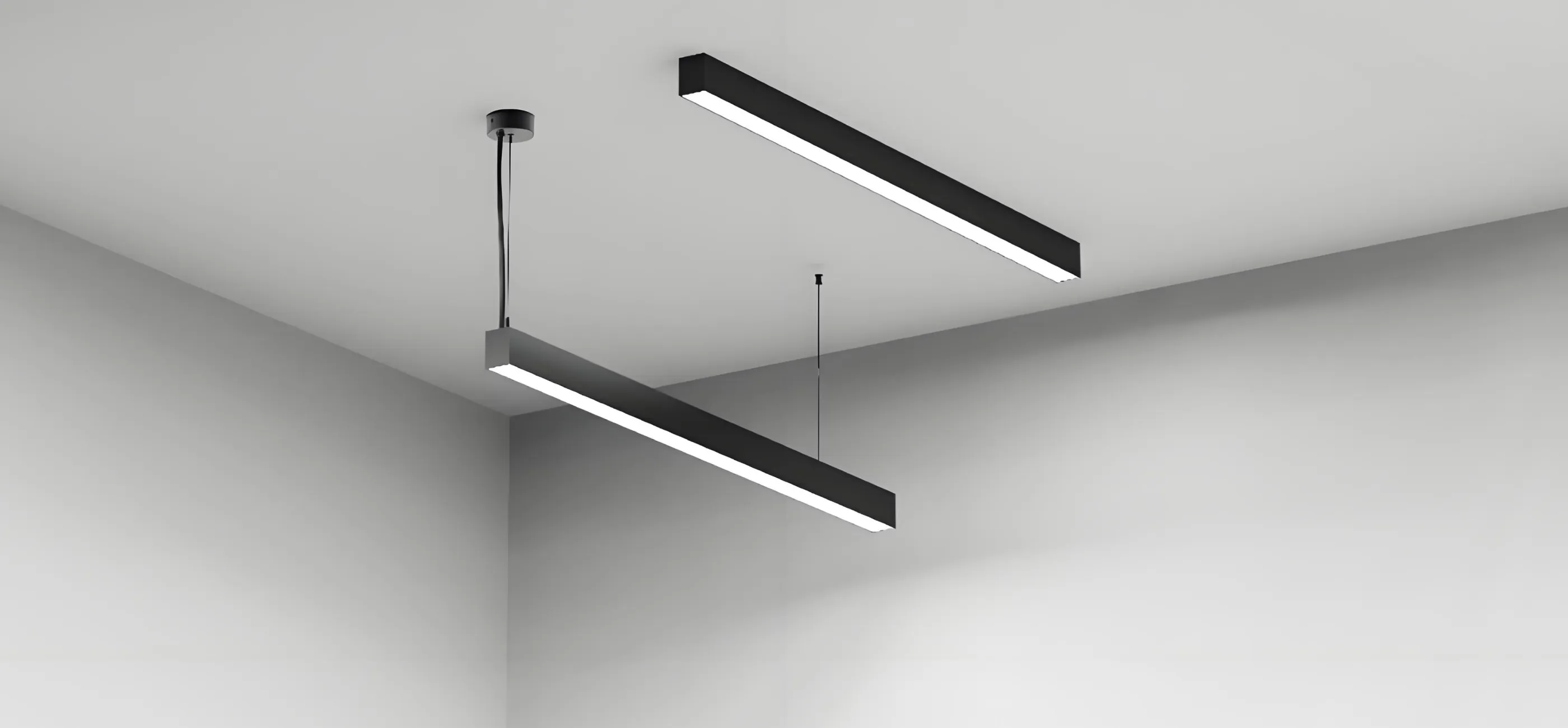

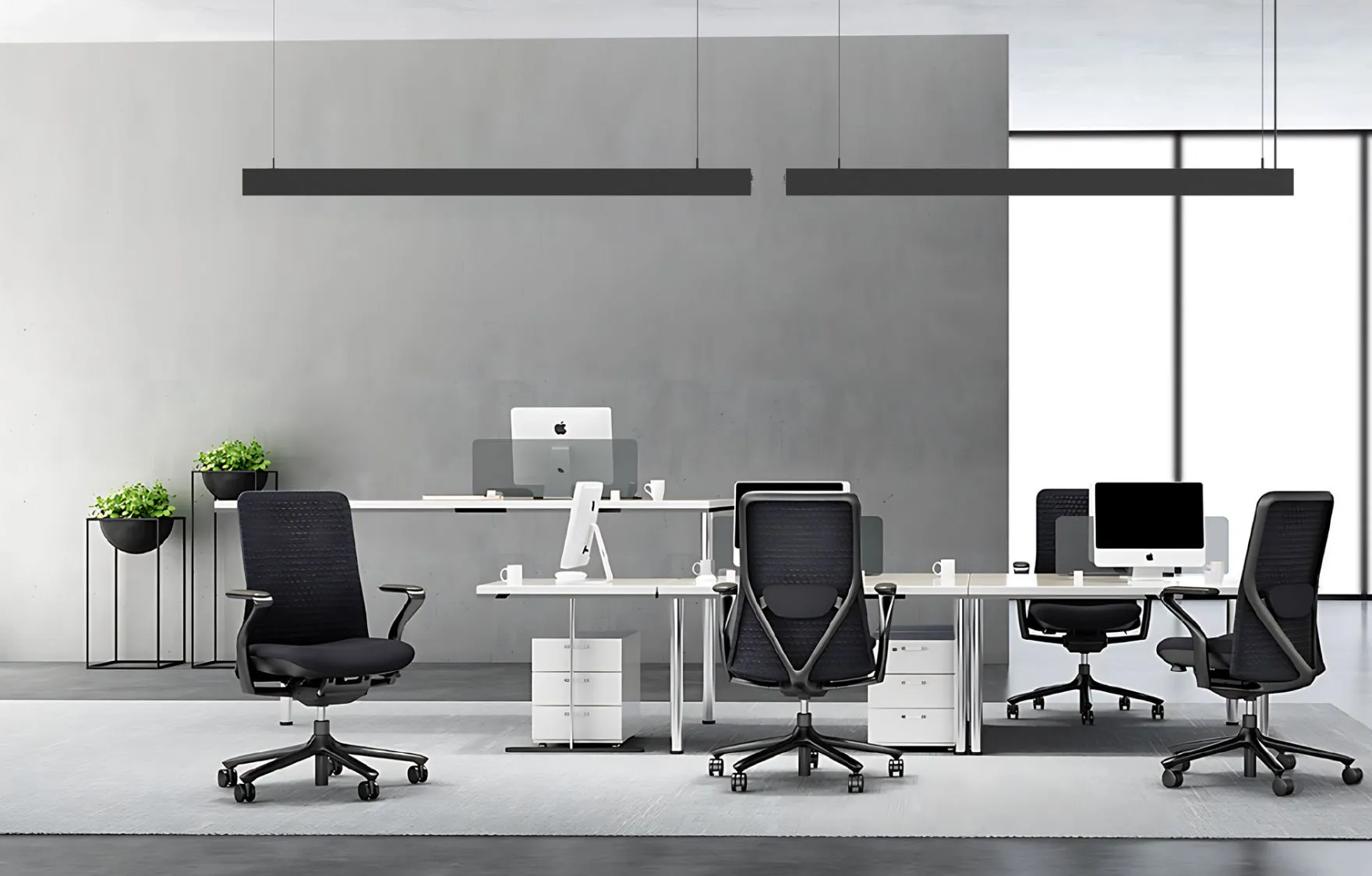

Scenario Case
Ordering Code
Optional Model

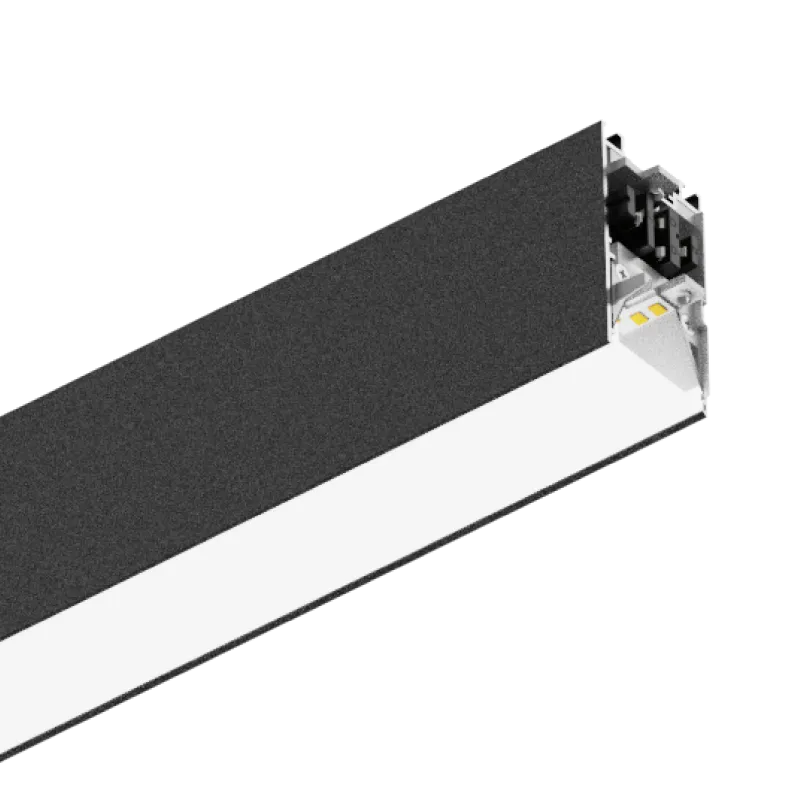

MS35FD

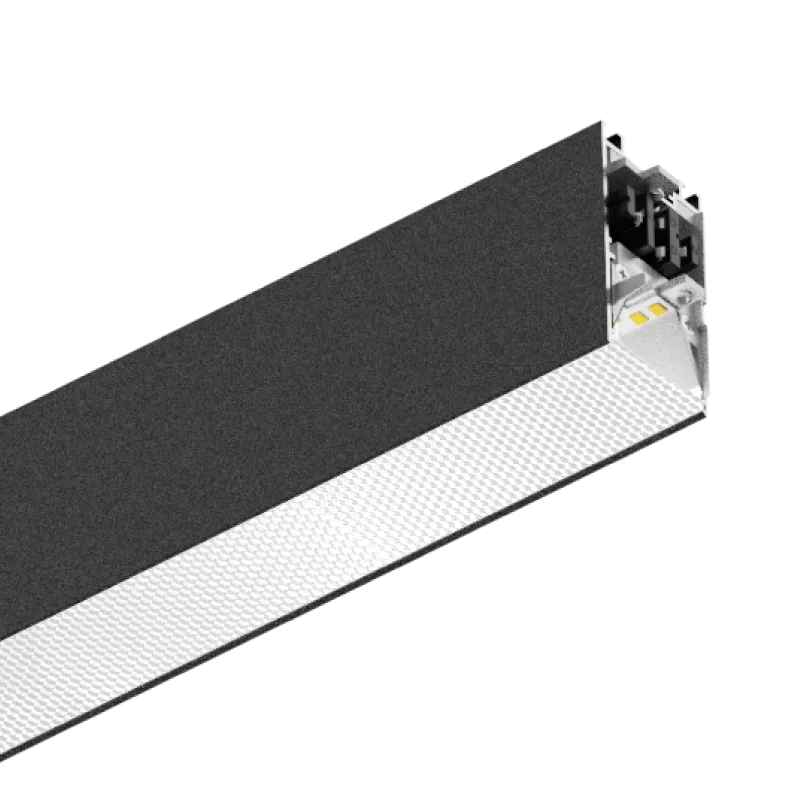

MS35FP
MS50FD
MS50FP
MS70FD

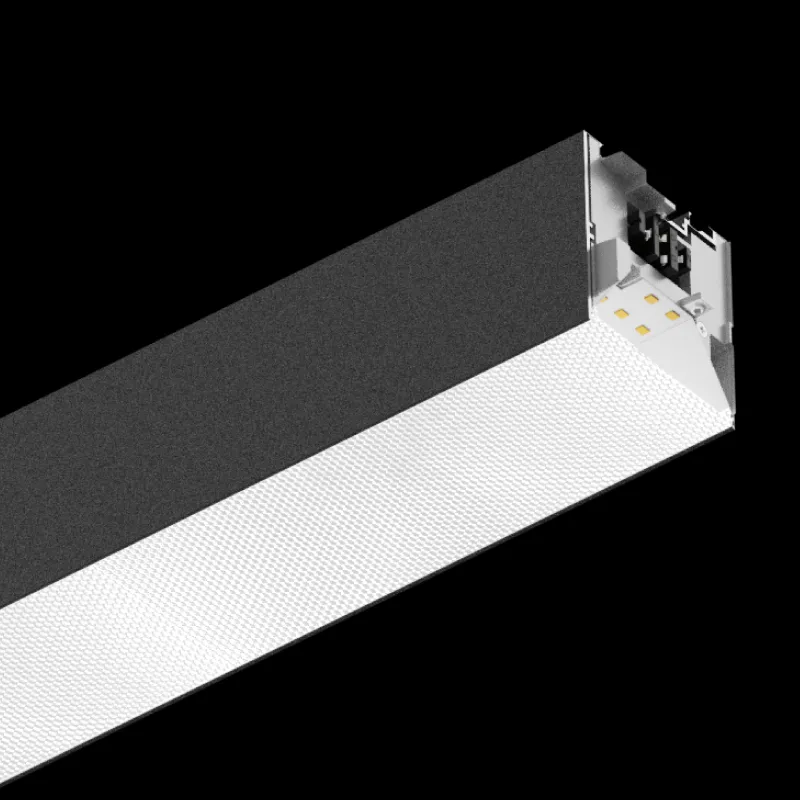

MS70FP

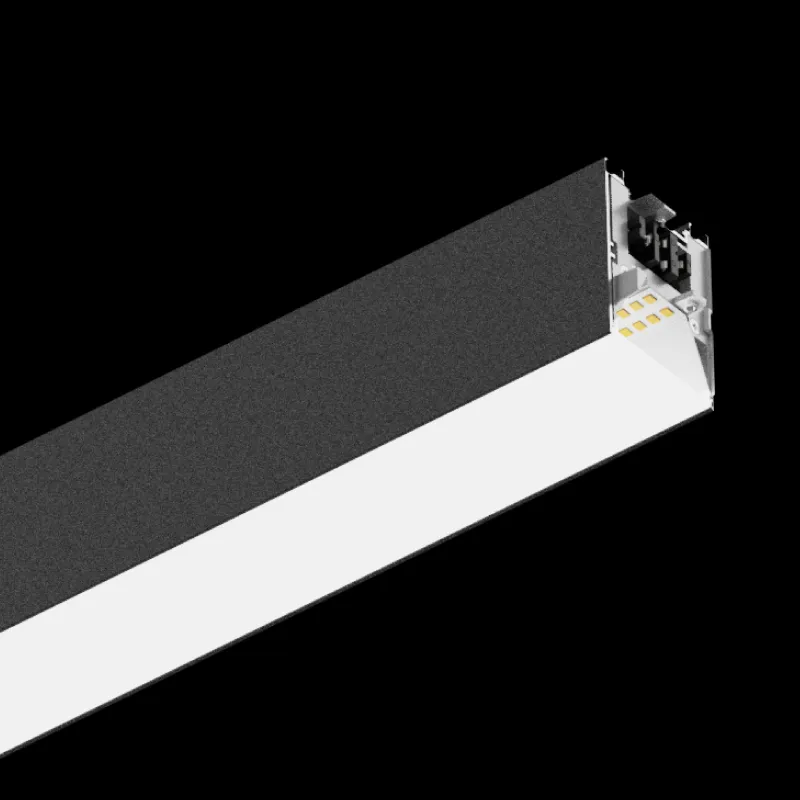

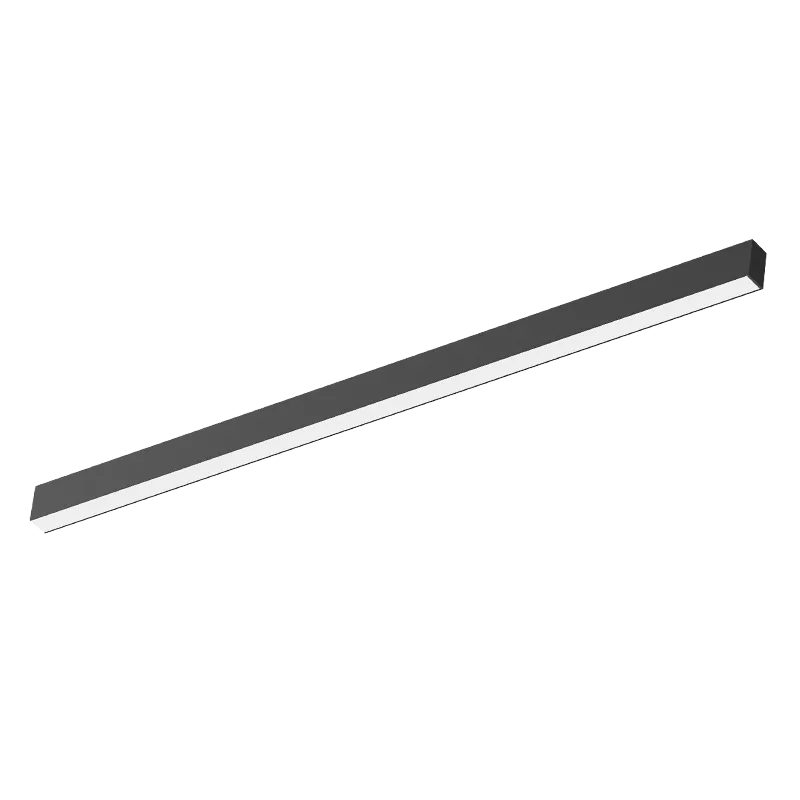

MS35FD
Basic parameter
Material
AL6063-T5,spraying surface
Coating
Matte Black,Matte White
Dimming Method
Non, 1-10V, DALI2 optional
CCT
2700, 3000, 4000, 6500, 3000-4200-6500K optional
CRI
80, 90
Sdcm Lamp
<3 Step (ANSI)
SDCM(Light source)
<3 Step (ANSI)

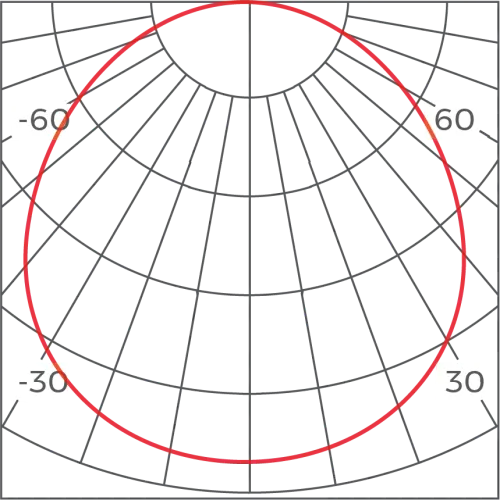

Beam Angle
100°
Light Efficiency
110LM/W(Normal),150LM/W(High efficiency),135LM/W(Regular-3CCT Dial switch),110LM/W(High efficiency-3CCT Dial switch),
Input Voltage
AC220-240V
IP Process
IP20
Warranty
5 years
Certification
CE,UKCA,ROHS,Reach
Quantity
L≤1.2m modular included 2 PCS clips, 1PCS ceiling screw; 1.2m＜L≤2.5m modular included 3 PCS clips.
Installation
Pendant,Surface
Version
Size
Power(W)
PCB Current(A)
CRI
CCT
Lumens(LM)
@White, Sliver
Lumens(LM)
@Black
Regular
1200
29
0.65
>80
4000K
3190
2871
Regular
1800
45
1
>80
4000K
4950
4455
Regular
2400
58
1.3
>80
4000K
6380
5742
Regular
1200
29
0.65
>90
4000K
2743.4
2469.06
Regular
1800
45
1
>90
4000K
4257
3831.3
Regular
2400
58
1.3
>90
4000K
5486.8
4938.12
High-Efficiency
1200
22
0.5
>80
4000K
3080
2772
High-Efficiency
1800
33
0.75
>80
4000K
4620
4158
High-Efficiency
2400
44
1
>80
4000K
6160
5544
High-Efficiency
1200
22
0.5
>90
4000K
2833.6
2550.24
High-Efficiency
1800
33
0.75
>90
4000K
4250.4
3825.36
High-Efficiency
2400
44
1
>90
4000K
5667.2
5100.48
Regular-100°
h(m)
D(cm)
E(lx)
1
228
1285
2
457
321
3
685
143
4
913
80
High efficiency-100°
h(m)
D(cm)
E(lx)
1
229
1396
2
459
349
3
688
155
4
918
87
Regular-3CCT Dial Switch-100°
h(m)
D(cm)
E(lx)
1
226
1139
2
451
285
3
677
127
4
902
71
High efficiency-3CCT Dial Switch-100°
h(m)
D(cm)
E(lx)
1
226
1344
2
451
336
3
677
149
4
902
71
Size (mm/box)
Quantity /box
QTY/CTN
NW (kg/box)
N. WT (ctn)
G.WT (ctn)
Size (cm/carton)
Product Size (mm)
1215*80*40mm
1
8
1.15
9.2
11.3
1220*185*175mm
1208*35*60mm
1815*80*40mm
1
8
1.9
15.2
18.1
1820*185*175mm
1803*35*60mm
2410*80*40mm
1
8
2.45
19.6
23.3
2410*185*175mm
2399*35*60mm
Accessories Type
Cover
Power feeder
End cap accessory
Installation accessory
Standard Corner
Size
Name
Model
Description
Quantity
Application

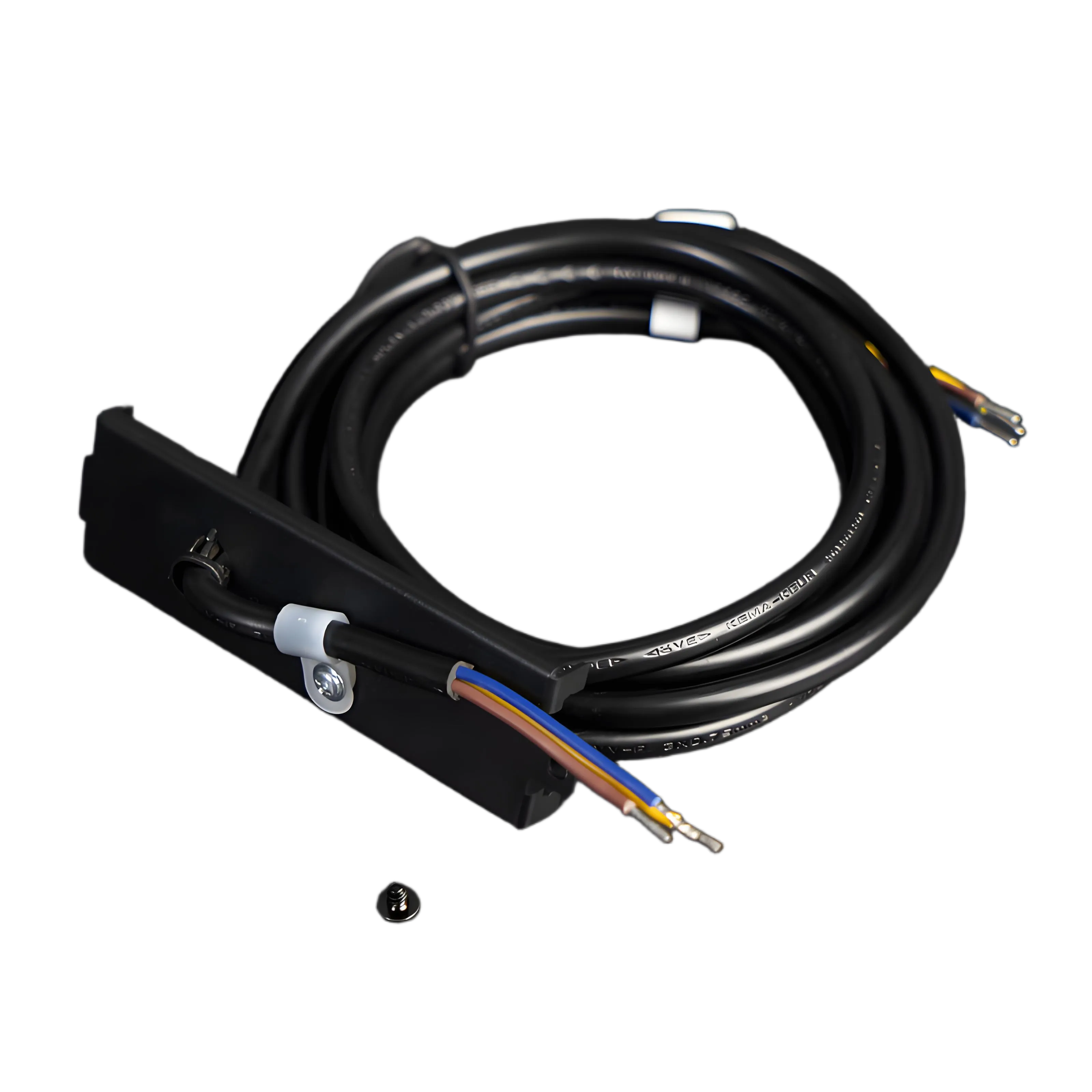

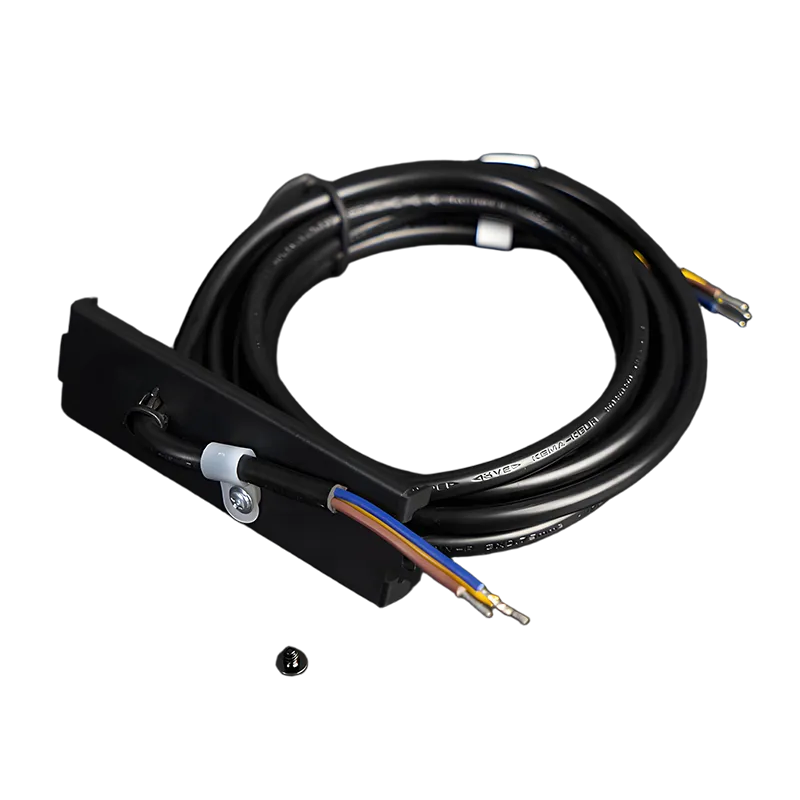

CM-25
CM-25
Applicable product model: MS35/MH35
Type: Non-dimming Input line(3PIN)
Material process: Wiring cover: SPCC/Input line: PVC
Size: Wiring cover: 108.5*30.2*4mm/Input line: 2200*φ6mm
Quantity: 1PCS/ set
Others: Including 1pcs wiring cover+1pcs input line
1PCS/SET

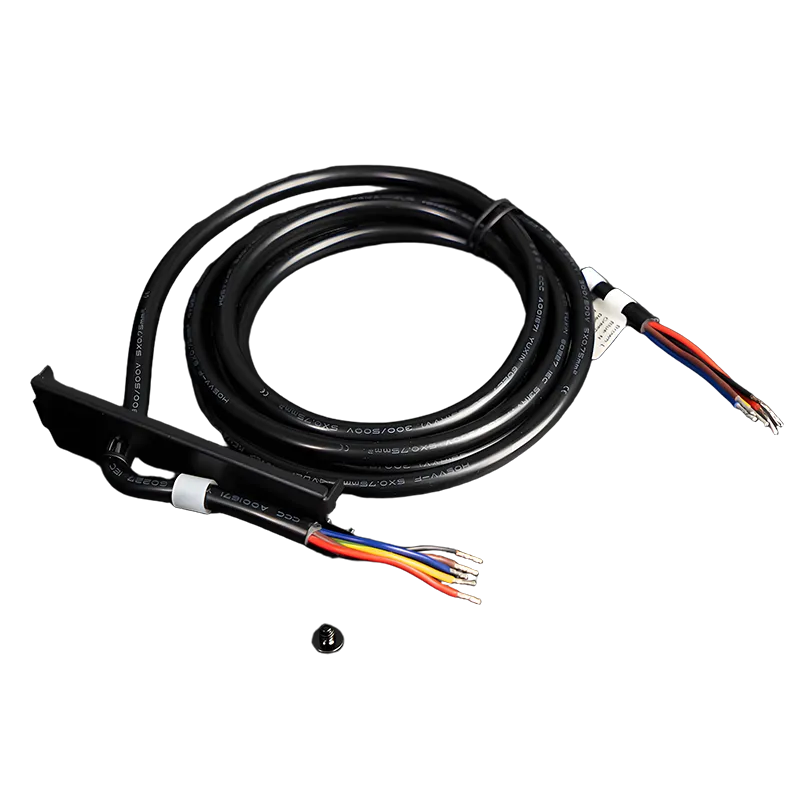

CM-26
CM-26
Applicable product model: MS35/MH35
Type: Dimming Input line(5PIN)
Material process: Wiring cover: SPCC/Input line: PVC
Size: Wiring cover: 108.5*30.2*4mm/Input line: 2200*φ7.2mm
Quantity: 1PCS/ set
Others: Including 1pcs wiring cover+1pcs input line
1PCS/SET

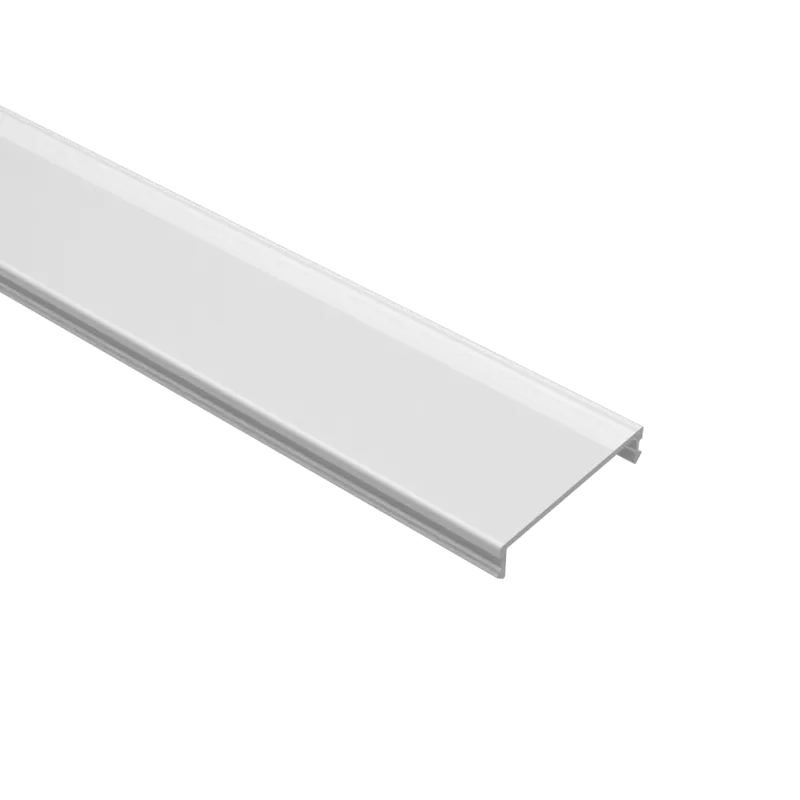

CV-MS35FD
CV-MS35FD
Applicable product model:MS35FD/MH35FD(suitable for down-lighting)
Diffuser Nature: Diffuser
Material process: PC
Light transmittance:80%
Size: 50m/Reel: 50000*30.9*5.6mm
Other: Fire protection rating UL94-V2;

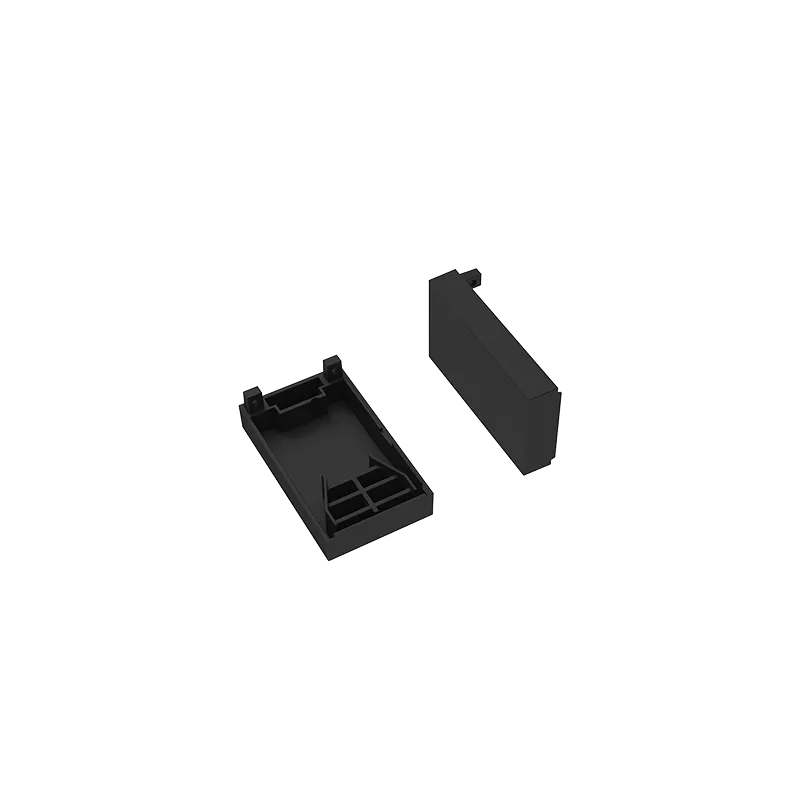

EC-MS35
EC-MS35
Applicable product model:MS35/MH35
Material process: ADC12/powder-coated
Size: L35.2*W60.7*H17mm
Quantity:2PCS/ set
2PCS/SET

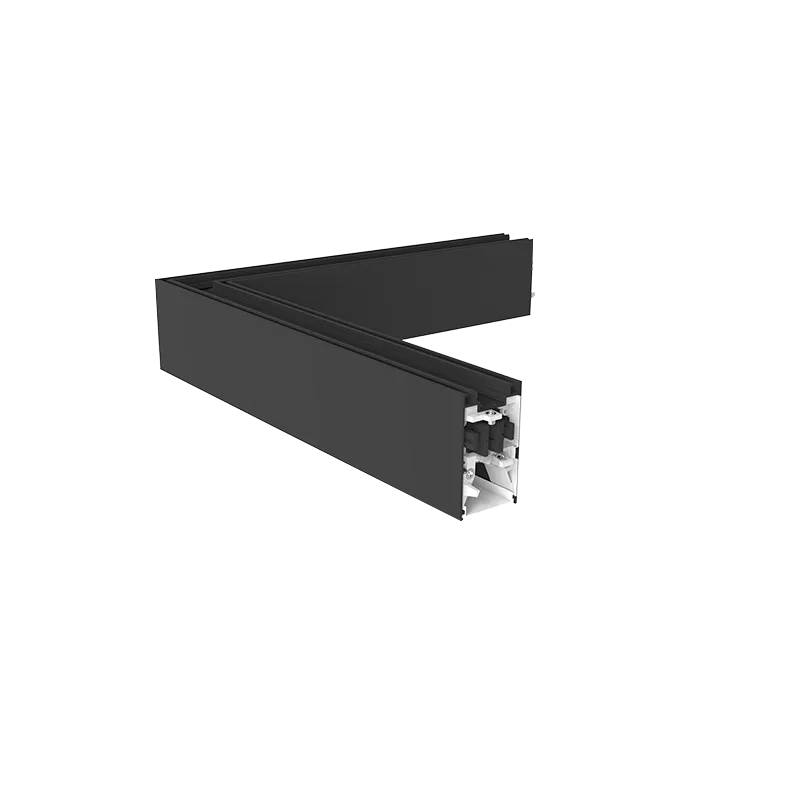

MS35FD-L90
MS35FD-L90
Applicable product model: MS35FD
Installation method: L-shaped 90° splicing
Material process: AL6063-T5/spraying
Coating: Black(RAL9006), White(RAL9003
Diffuser Nature:Diffuser
Light source: Constant Current Rigid PCB
Size: L300*W35*H60mm
Installation method: L-shaped 90° splicing
Material process: AL6063-T5/spraying
Coating: Black(RAL9006), White(RAL9003
Diffuser Nature:Diffuser
Light source: Constant Current Rigid PCB
Size: L300*W35*H60mm
1PCS/SET
