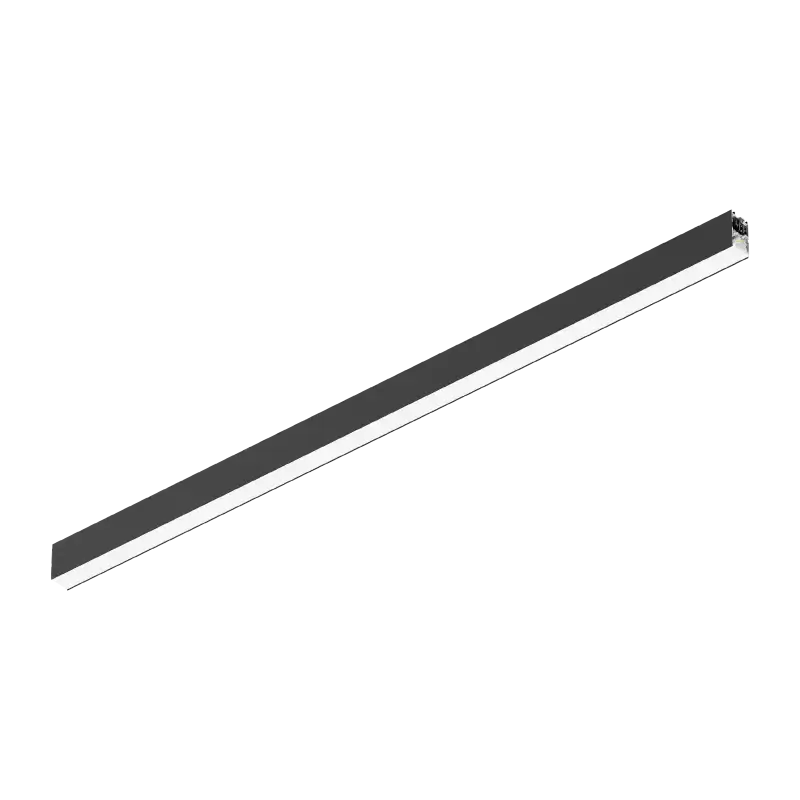

Features

·Material:AL6063-T5,spraying surface
·Coating:Matte black,Matte white
·Length:1200,1800,2400mm optional
·Lighting direction:Downward

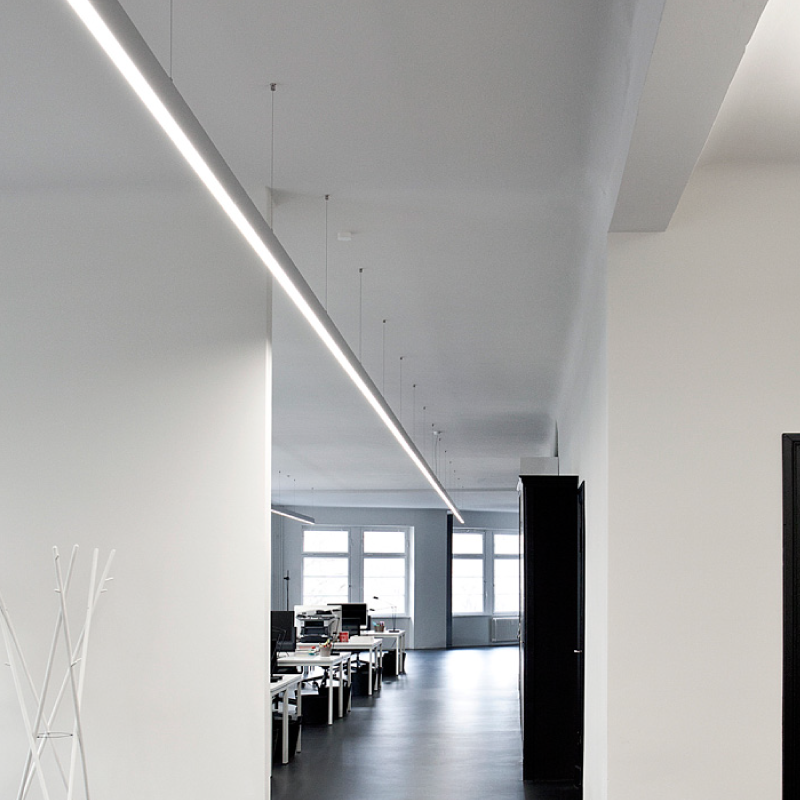

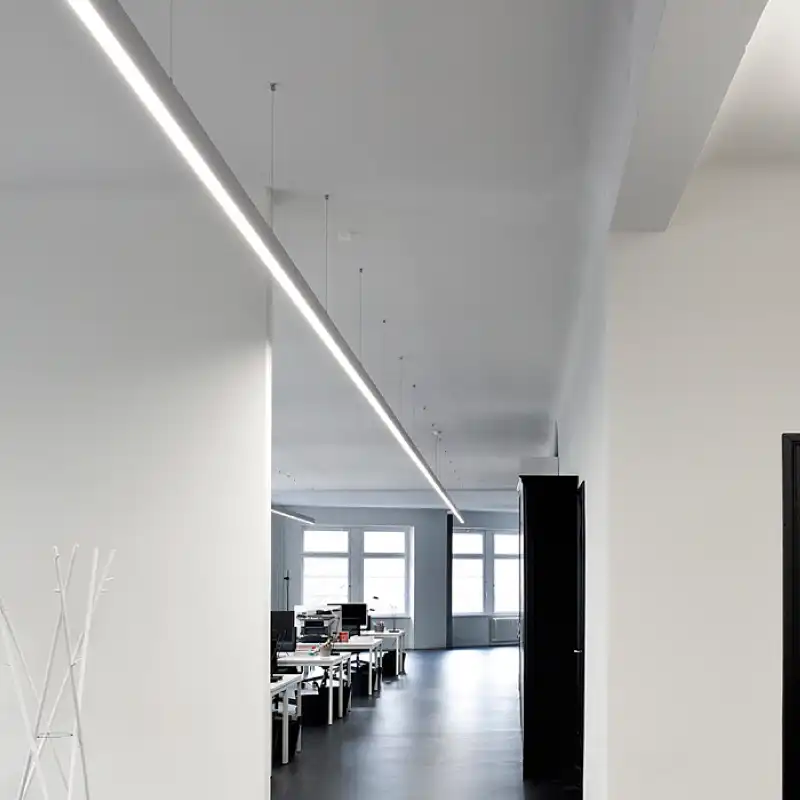

·Installaton:Pendant,Ceiling
·IP grade:IP20
·Application:Indoor
·Light efficiency:110LM/W(Normal),100LM/W(Normal-3CCT Dial switch) 140LM/W(High efficiency),130LM/W(High efficiency-3CCT Dial switch)
·SDCM:<3 Step (ANSI)
·CRI:80,90
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years

BASIC CONFIGURATION

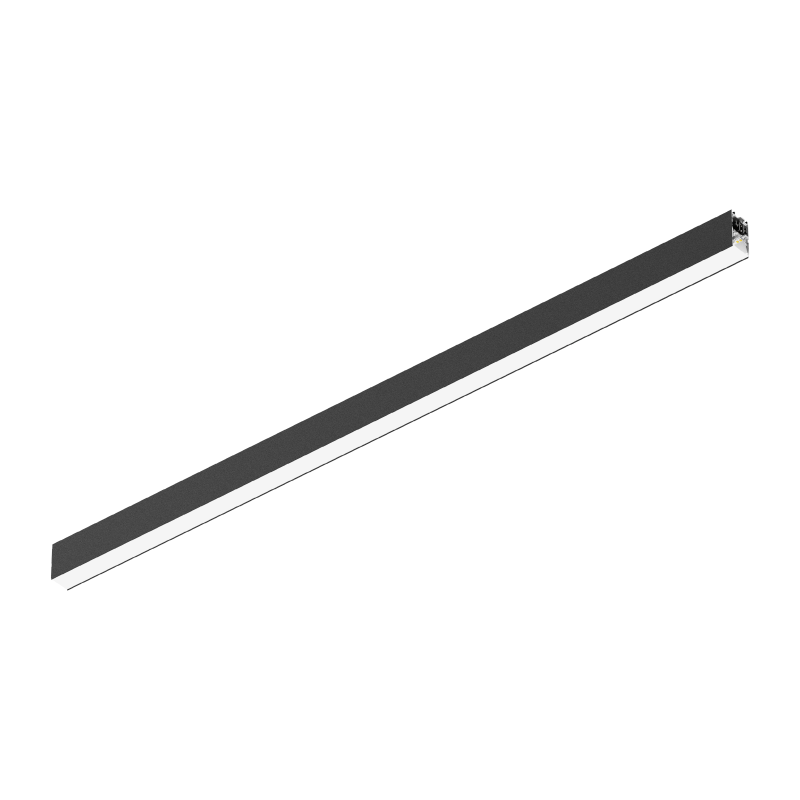

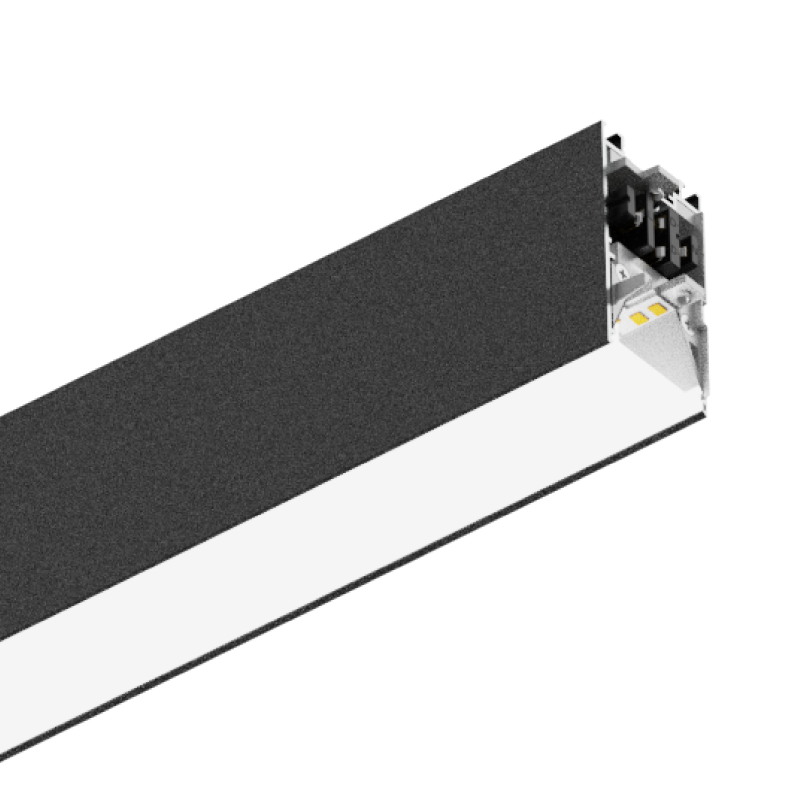

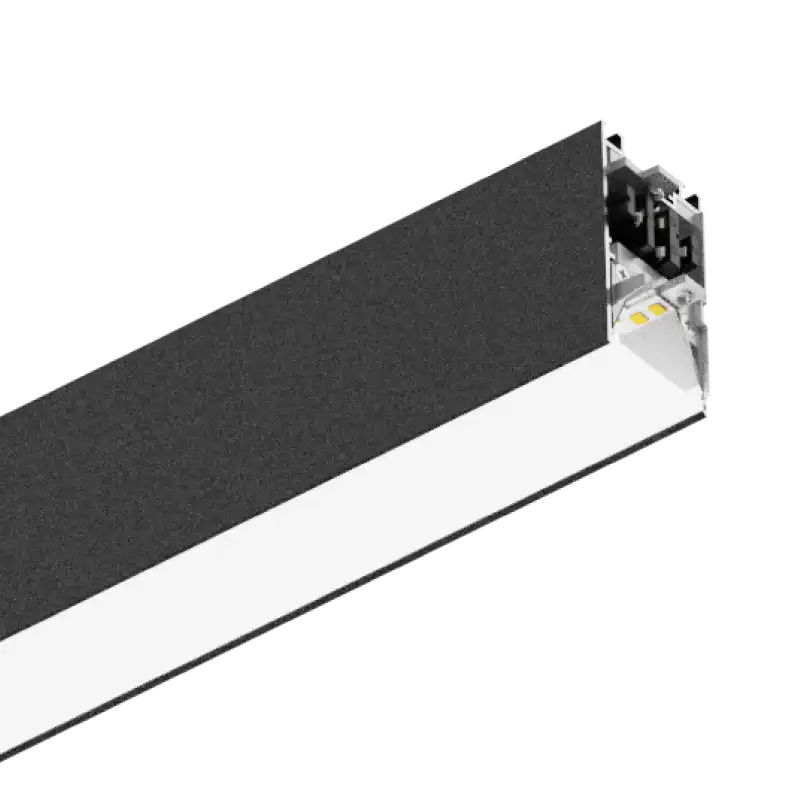

MS35FD Module(AC220V)L≤1.2m modular included 2 PCS clips, 1PCS ceiling screw;
1.2m＜L≤2.5m modular included 3 PCS clips;

MS35FD

/set

Flexible Options

Smart Picks

Reset selected

Version

Regular

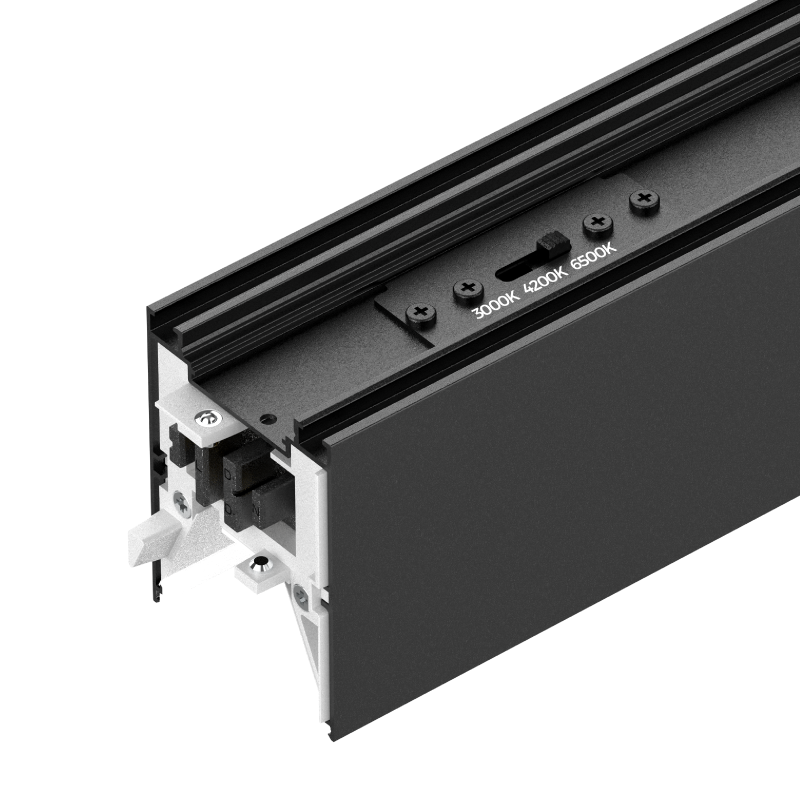

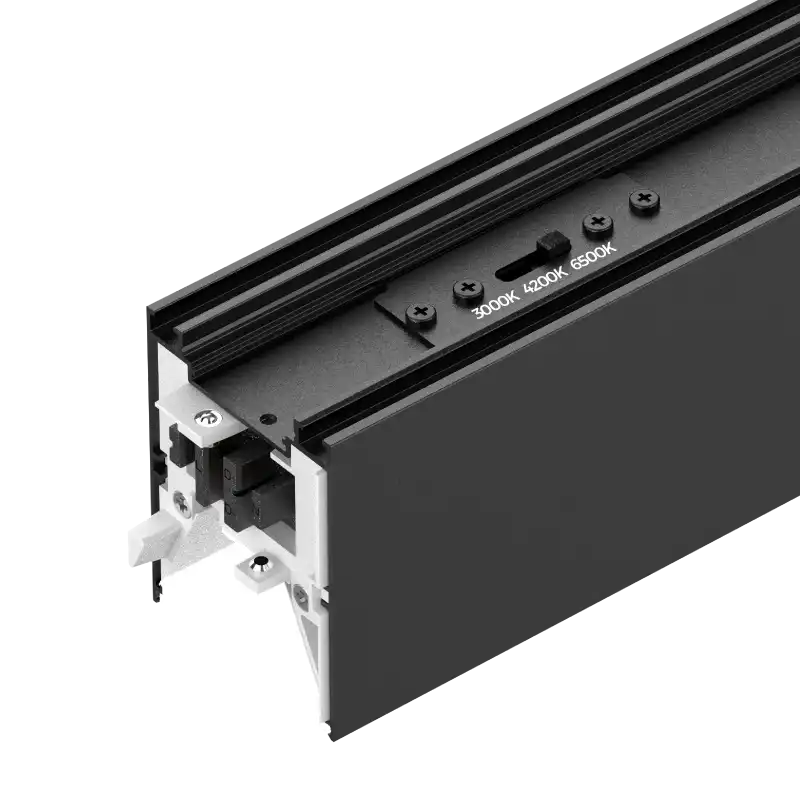

Regular-3 CCT Dial Switch
High efficiency
High efficiency-3 CCT Dial Switch

Diffuser Nature

Diffuser
No diffuser

Length

1200mm
1800mm
2400mm

Typ.power

Carrier Style

No carrier

Color

Black
White

Dimming Method

Non-Dimming
1-10V Dimming
DALI Dimming

CRI

CCT

2700K
3000K
4000K
6500K
3000K-4200K-6500K

Light Source Type

Constant Current Rigid PCB

Input Voltage

AC220-240V

End Cap Style

No end cap

Label Type

COLORS
Customized Label

Package

Single-Unit Inner Box Packaging

Ordering Code :

XX-T-D

Datasheet

$ **/set

Common Accessories

Accessories Type

Cover
Power feeder
End cap accessory
Installation accessory
Standard Corner

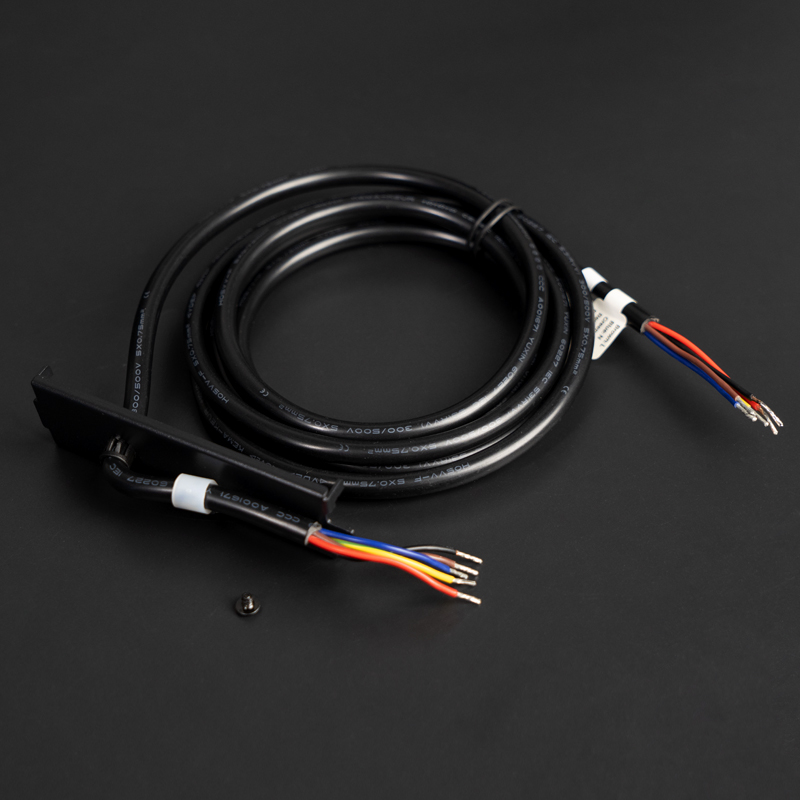

CM-25

Applicable product model: MS35/MH35 Type: Non-dimming Input line(3PIN) Material process: Wiring cover: SPCC/Input line: PVC Size: Wiring cover: 108.5*30.2*4mm/Input line: 2200*φ6mm Quantity: 1PCS/ set Others: Including 1pcs wiring cover+1pcs input line

$ ** /SET

CM-26

Applicable product model: MS35/MH35 Type: Dimming Input line(5PIN) Material process: Wiring cover: SPCC/Input line: PVC Size: Wiring cover: 108.5*30.2*4mm/Input line: 2200*φ7.2mm Quantity: 1PCS/ set Others: Including 1pcs wiring cover+1pcs input line

$ ** /SET

CV-MS35FD

Applicable product model:MS35FD/MH35FD(suitable for down-lighting) Diffuser Nature: Diffuser Material process: PC Light transmittance:80% Size: 50m/Reel: 50000*30.9*5.6mm Other: Fire protection rating UL94-V2;

$ ** /M

EC-MS35

Applicable product model:MS35/MH35 Material process: ADC12/powder-coated Size: L35.2*W60.7*H17mm Quantity:2PCS/ set

$ ** /SET

MS35FD-L90

Applicable product model: MS35FDInstallation method: L-shaped 90° splicingMaterial process: AL6063-T5/sprayingCoating: Black(RAL9006), White(RAL9003Diffuser Nature:DiffuserLight source: Constant Current Rigid PCBSize: L300*W35*H60mm

$ ** /SET
