LINE LINK
Discover LINE LINKThe LINE LINK Quick Connect lighting system features an innovative quick-connect end cap design, making the structural and electrical connections between fixtures simple and efficient. With a simple plug-and-play mechanism, users can achieve instant structural and electrical connections in just one second. Combined with its modular design, this system allows customers to quickly create extended configurations, significantly reducing the additional costs
associated with custom lengths.
Specification
Key Features

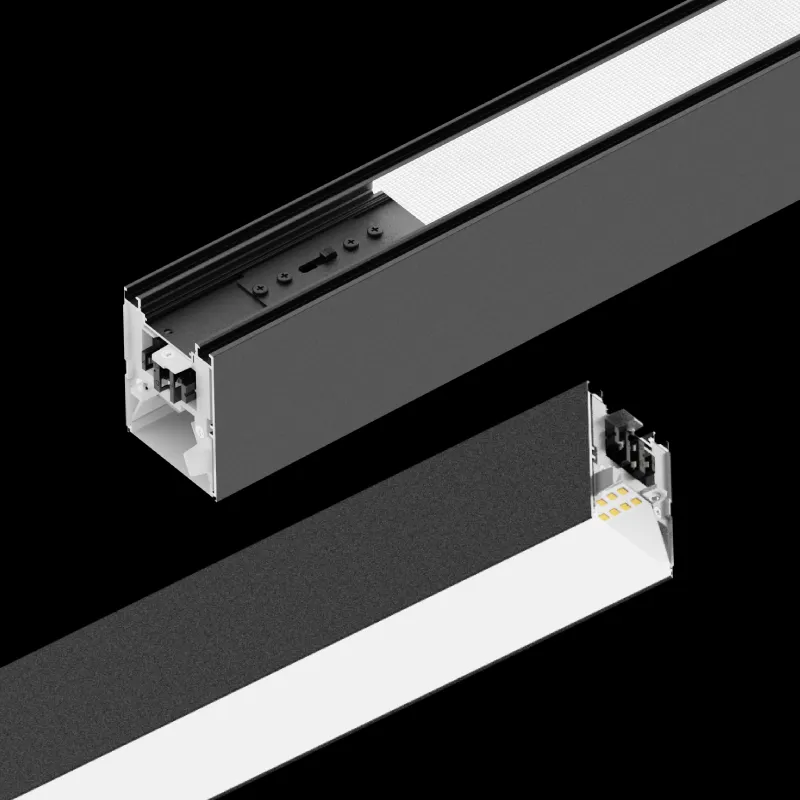

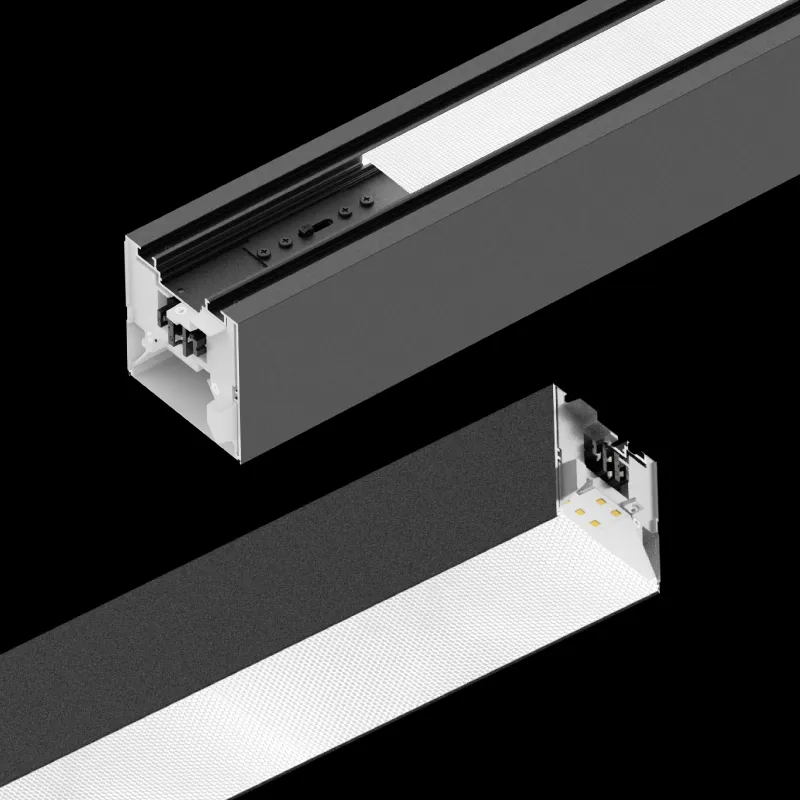

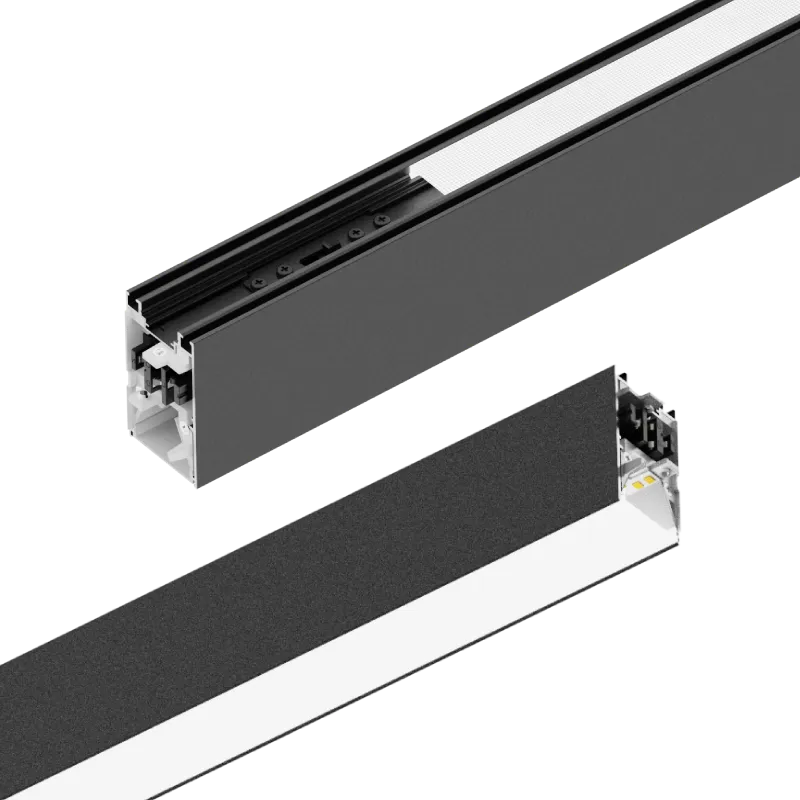

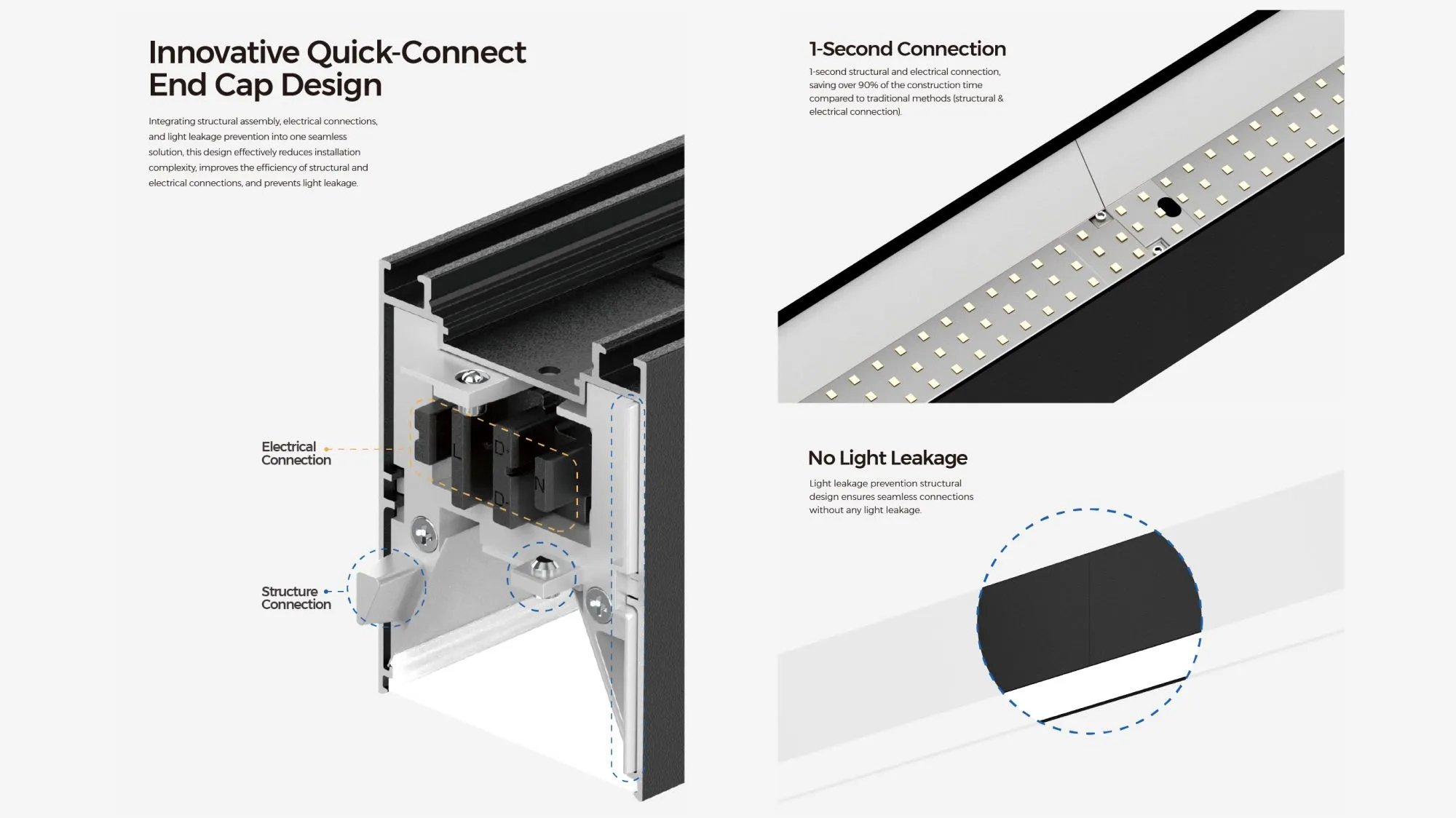

Innovative Quick-Connect End
Integrating structural assembly, electrical connections,and light leakage prevention into one seamless solution, this design effectively reduces installation complexity, improves the efficiency of structural and electrical connections, and prevents light leakage.

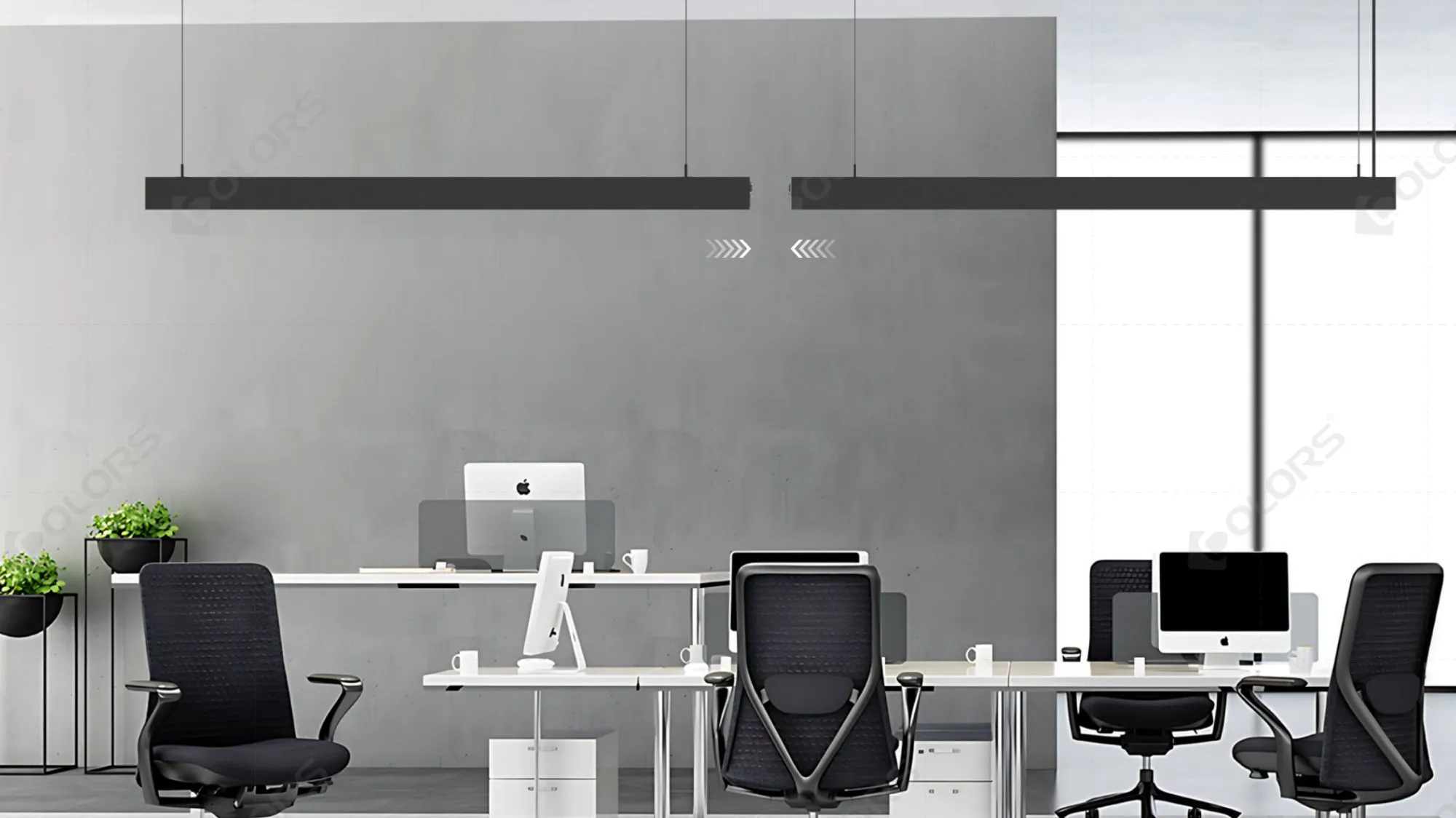

Ultra Long Application
With modular design, customers can quickly implement ultra-long applications, significantly reducing the additional costs associated with custom lengths.

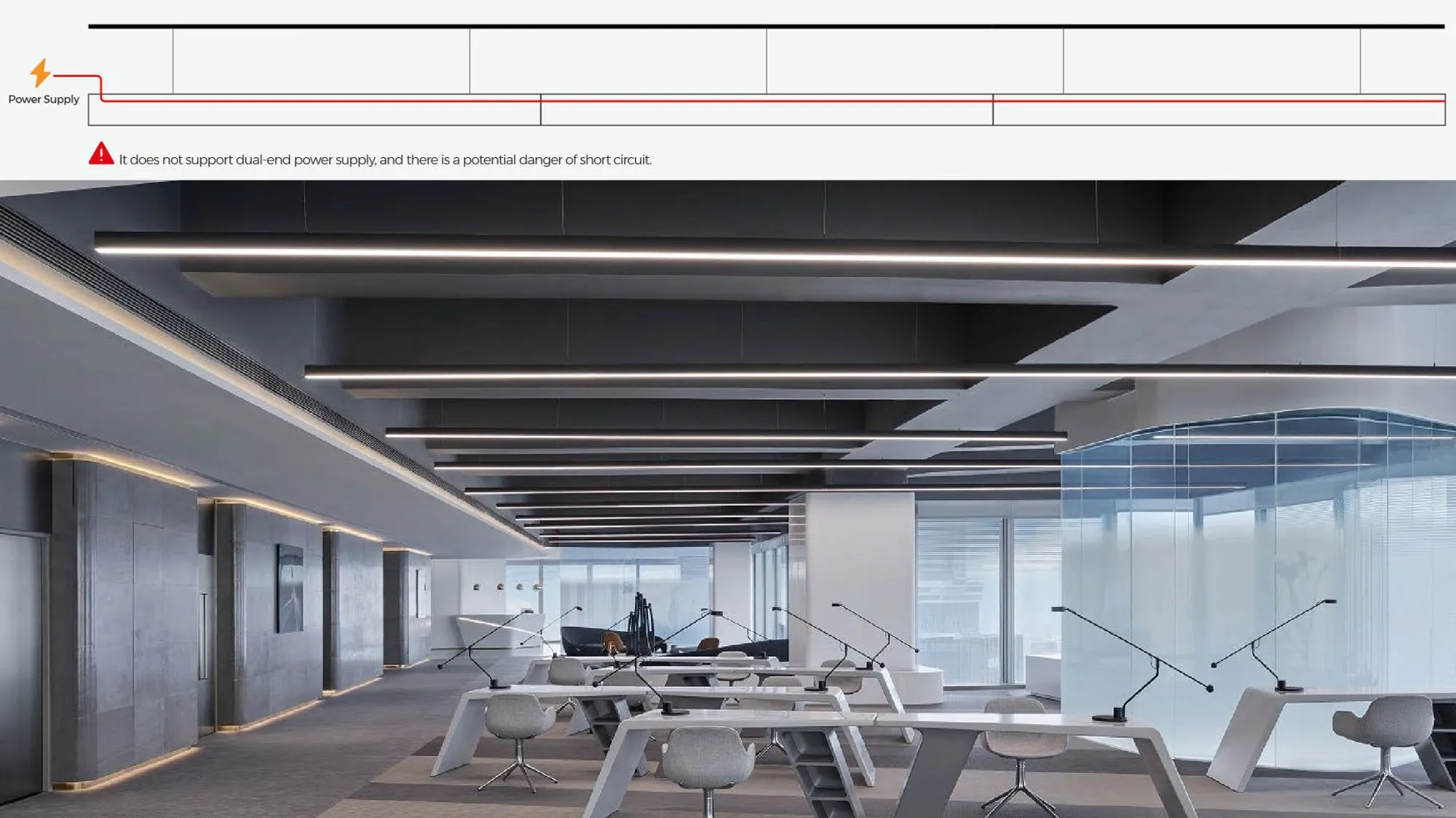

Ultra-Long Single-End Power in
The quick-connect lighting design supports a maximum cascading length of 40 meters, significantly reducing wiring and connection labor costs. It enhances the installation efficiency of lighting and electrical connections, while also shortening project construction time.

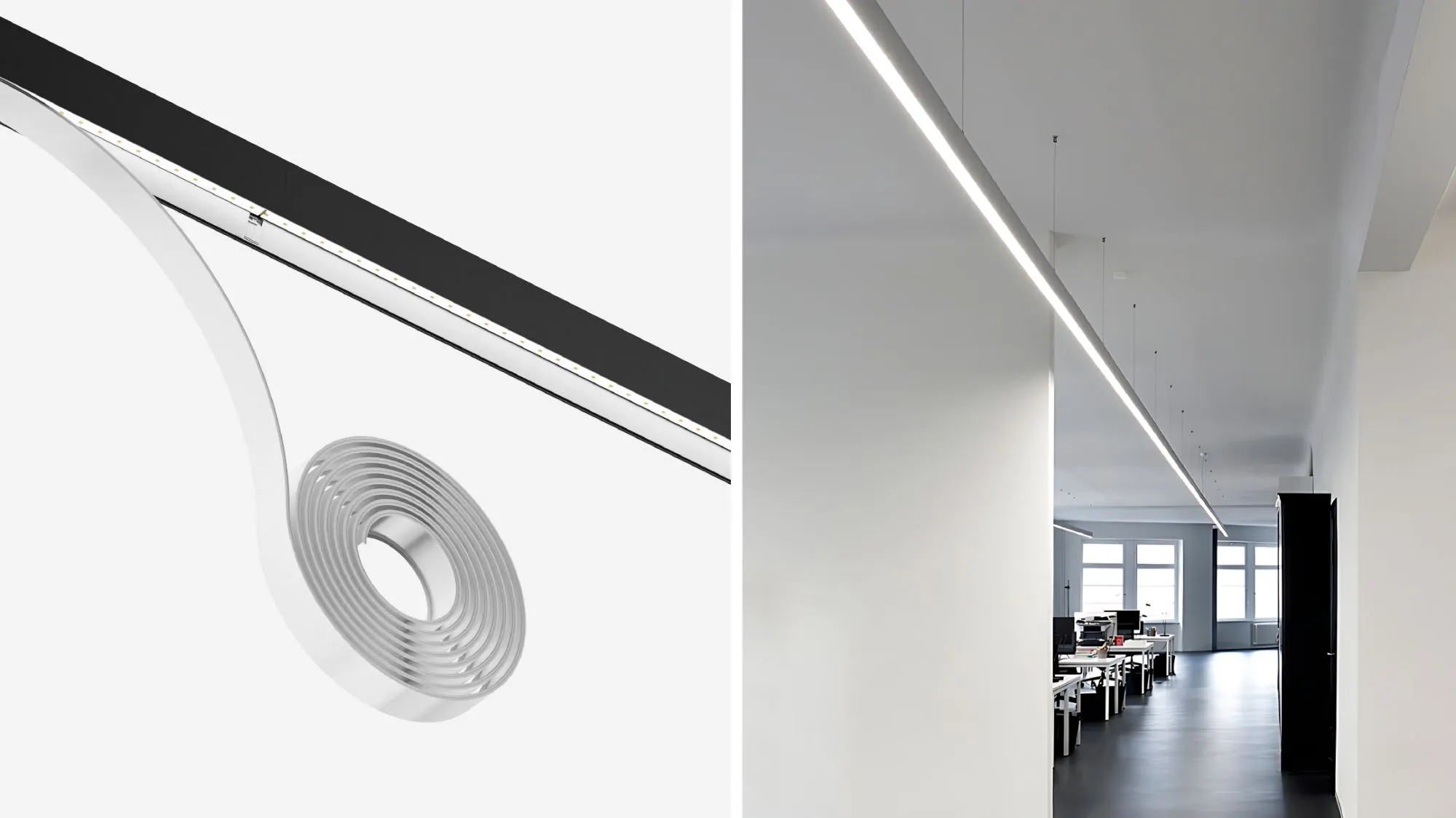

Extra-Long Flexible Diffuser & Prismatic
Available in 50M options,designed for extended applications with continuous, uninterrupted lighting.

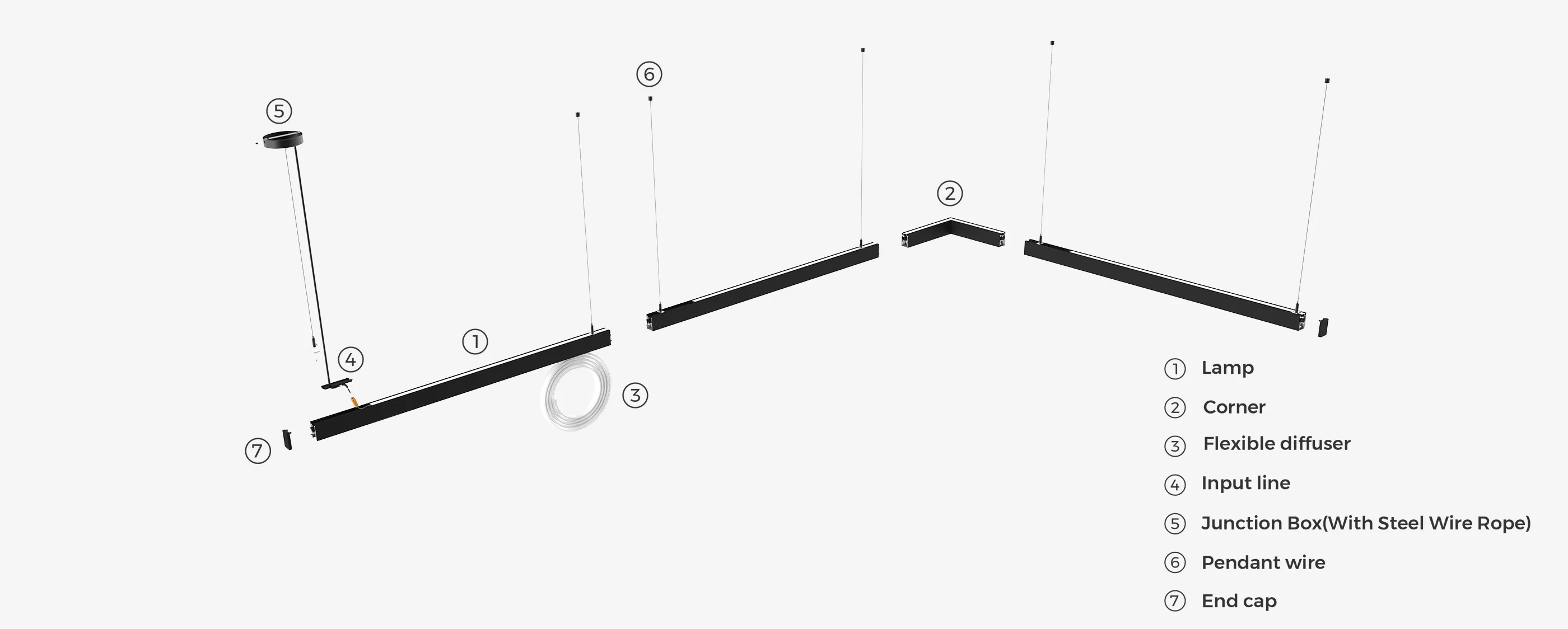

Application Principle

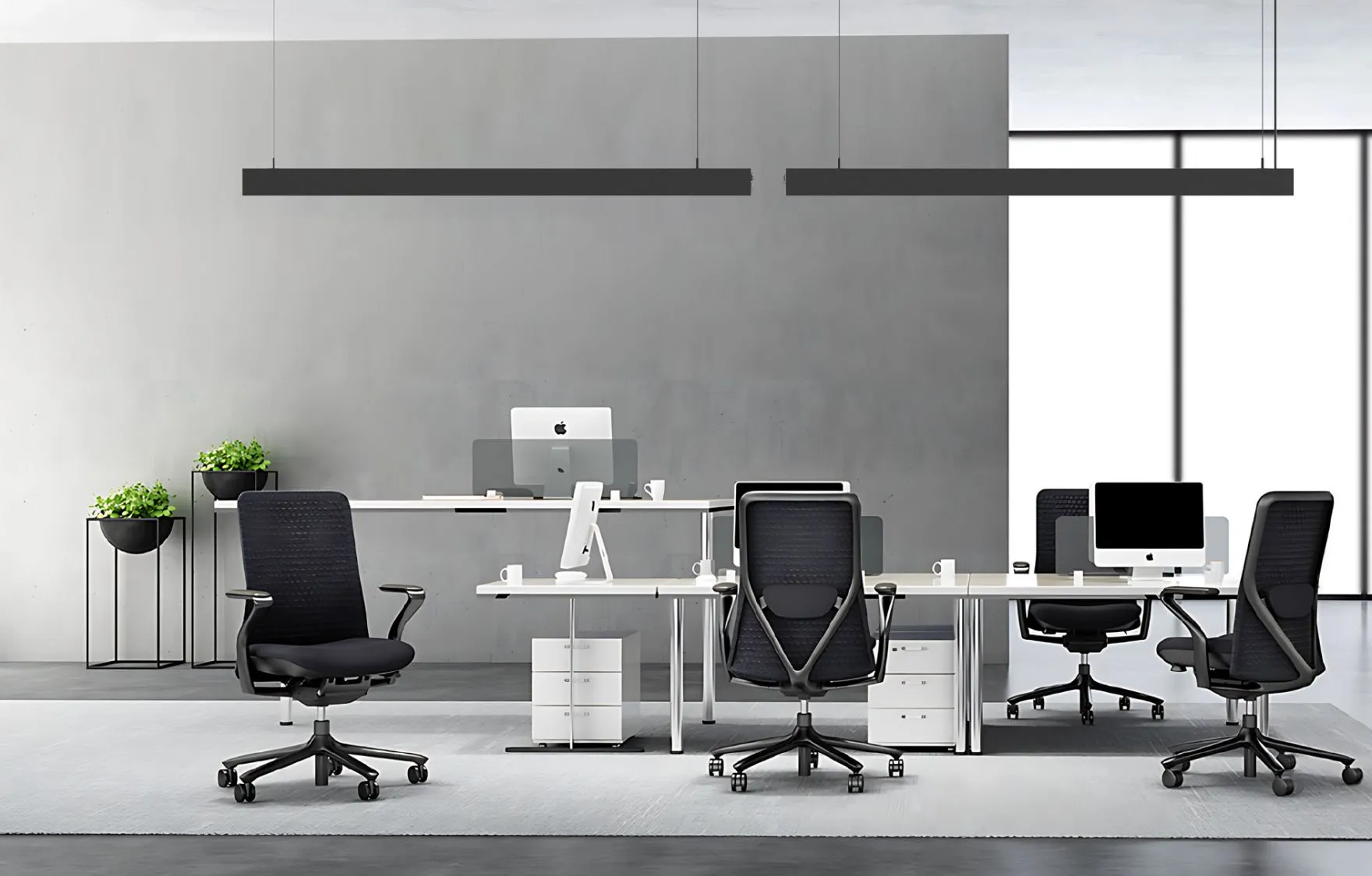

Scenario Case

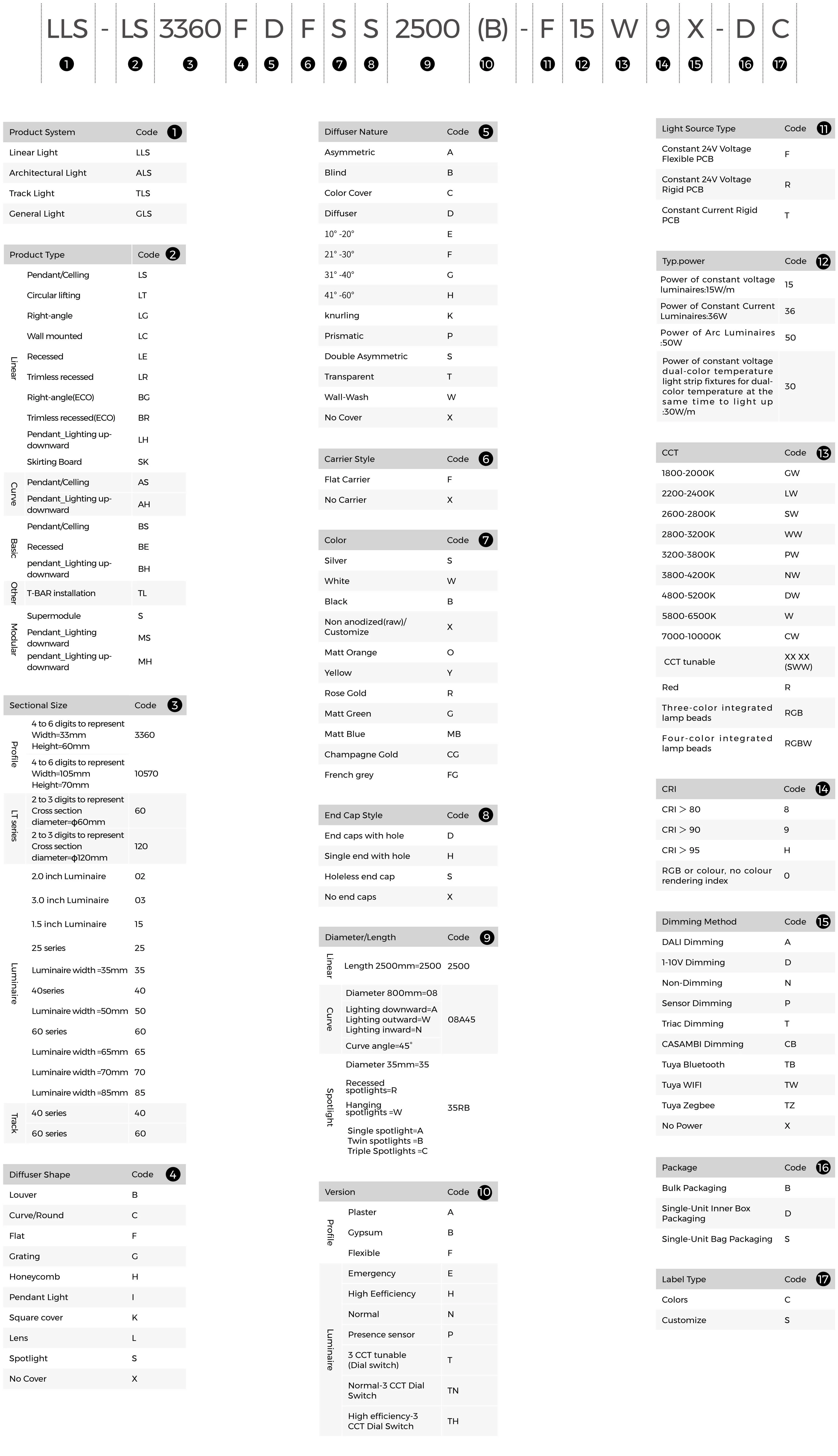

Ordering Code
Optional Model

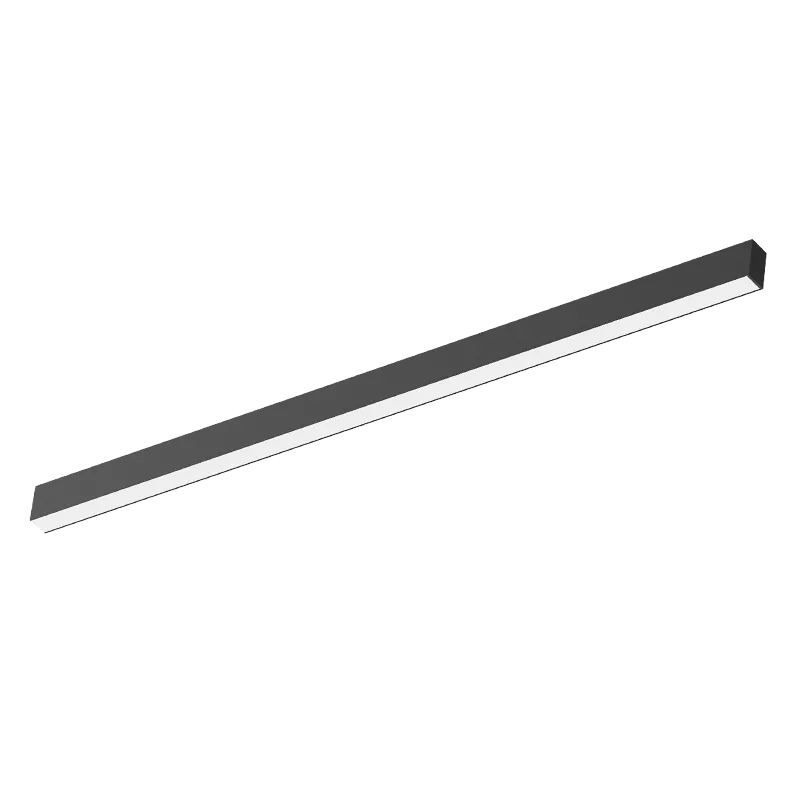

MH35FD
MH35FP
MH50FD
MH50FP
MH70FD
MH70FP
MH35FD
Basic parameter
Material
AL6063-T5,spraying surface
Sdcm Lamp
<3 Step (ANSI)
IP Process
IP20
Warranty
5 years
Certification
CE,UKCA,ROHS,Reach
Installation
Pendant
Version
Size
Power(W)
PCB Current(A)
CRI
CCT
Lumens(LM)
@White, Sliver
Lumens(LM)
@Black
Regular
1200
45
1
>80
4000K
4950
4455
Regular
1800
67
1.55
>80
4000K
7370
6633
Regular
2400
90
2
>80
4000K
9900
8910
Regular
1200
45
1
>90
4000K
4257
3831.3
Regular
1800
67
1.55
>90
4000K
6338.2
5704.38
Regular
2400
90
2
>90
4000K
8514
7662.6
High-Efficiency
1200
33
0.8
>80
4000K
4620
4158
High-Efficiency
1800
50
1.2
>80
4000K
7000
6300
High-Efficiency
2400
66
1.6
>80
4000K
9240
8316
High-Efficiency
1200
33
0.8
>90
4000K
4250.4
3825.36
High-Efficiency
1800
50
1.2
>90
4000K
6440
5796
High-Efficiency
2400
66
1.6
>90
4000K
8500.8
7650.72
Regular -100°
h(m)
D(cm)
E(lx)
1
228
1285
2
457
321
3
685
143
4
913
80
High efficiency -100°
h(m)
D(cm)
E(lx)
1
229
1396
2
459
349
3
688
155
4
918
87
Regular-3CCT Dial Switch -100°
h(m)
D(cm)
E(lx)
1
226
1139
2
451
285
3
677
127
4
902
71
High efficiency-3CCT Dial Switch -100°
h(m)
D(cm)
E(lx)
1
226
1344
2
451
336
3
677
149
4
902
71
Size (mm/box)
Quantity /box
QTY/CTN
NW (kg/box)
N. WT (ctn)
G.WT (ctn)
Size (cm/carton)
Product Size (mm)
1215*80*40mm
1
8
1.2
9.6
11.7
1220*185*175mm
1208*35*60mm
1815*80*40mm
1
8
1.95
15.6
18.5
1820*185*175mm
1803*35*60mm
2410*80*40mm
1
8
2.55
20.4
24.1
2410*185*175mm
2399*35*60mm
Accessories Type
Cover
Power feeder
End cap accessory
Installation accessory
Standard Corner
Size
Name
Model
Description
Quantity
Application
CM-25
CM-25
Applicable product model: MS35/MH35
Type: Non-dimming Input line(3PIN)
Material process: Wiring cover: SPCC/Input line: PVC
Size: Wiring cover: 108.5*30.2*4mm/Input line: 2200*φ6mm
Quantity: 1PCS/ set
Others: Including 1pcs wiring cover+1pcs input line
1PCS/SET
CM-26
CM-26
Applicable product model: MS35/MH35
Type: Dimming Input line(5PIN)
Material process: Wiring cover: SPCC/Input line: PVC
Size: Wiring cover: 108.5*30.2*4mm/Input line: 2200*φ7.2mm
Quantity: 1PCS/ set
Others: Including 1pcs wiring cover+1pcs input line
1PCS/SET
CV-MS35FD
CV-MS35FD
Applicable product model:MS35FD/MH35FD(suitable for down-lighting)
Diffuser Nature: Diffuser
Material process: PC
Light transmittance:80%
Size: 50m/Reel: 50000*30.9*5.6mm
Other: Fire protection rating UL94-V2;
EC-MS35
EC-MS35
Applicable product model:MS35/MH35
Material process: ADC12/powder-coated
Size: L35.2*W60.7*H17mm
Quantity:2PCS/ set
2PCS/SET

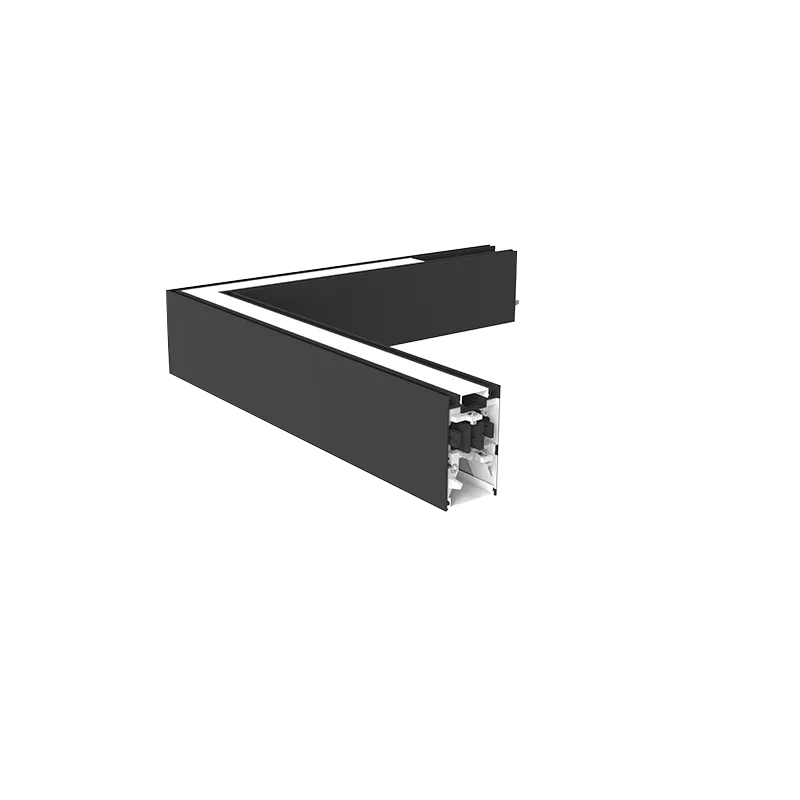

MH35FD-L90
MH35FD-L90
Applicable product model: MH35FD
Installation method: L-shaped 90° splicing
Material process: AL6063-T5/spraying
Coating: Black(RAL9006), White(RAL9003)
Diffuser Nature:Diffuser
Light source: Constant Current Rigid PCB
Size: L300*W35*H60mm
- 1
- 2
