MicroTrack 11

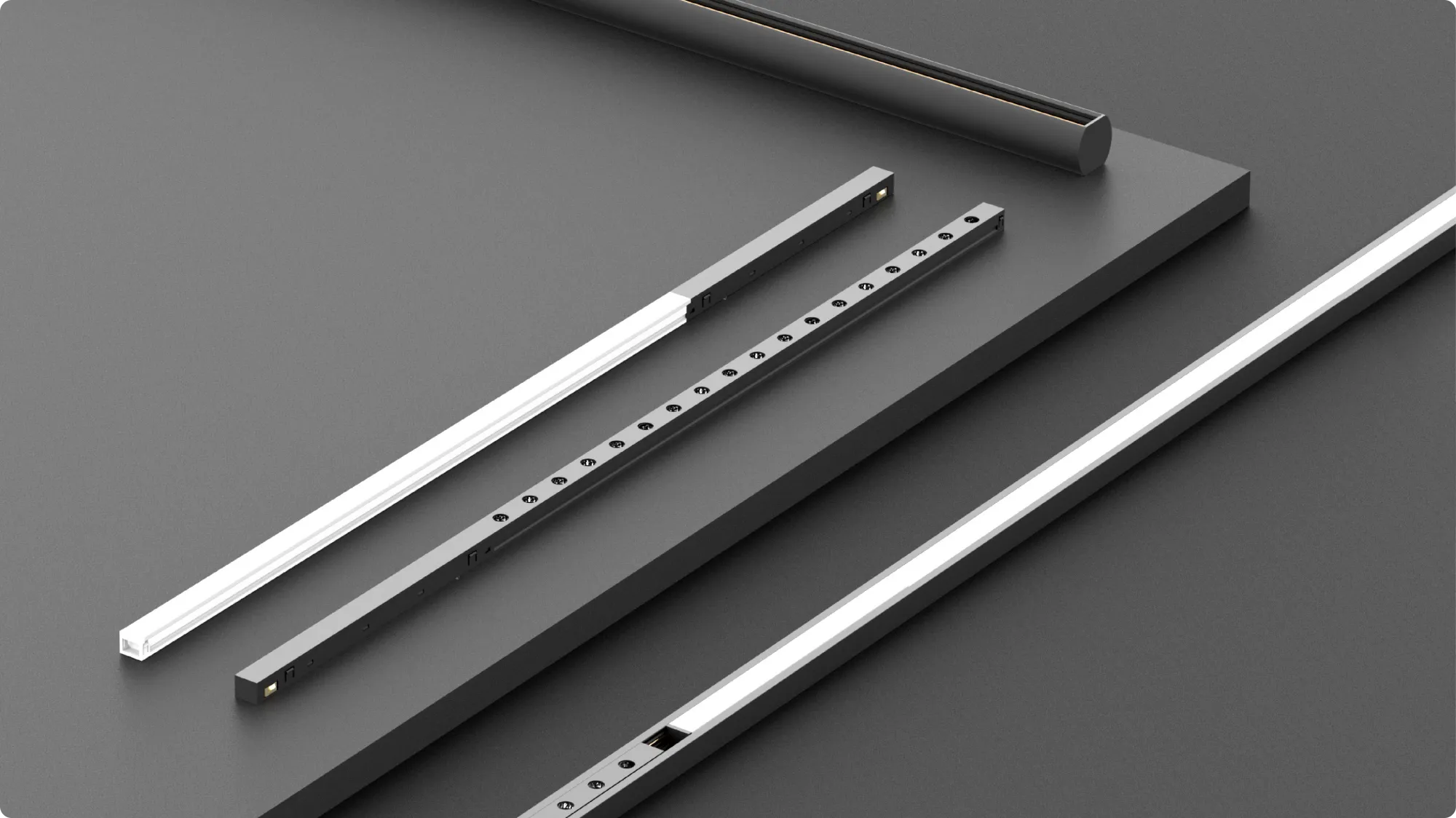

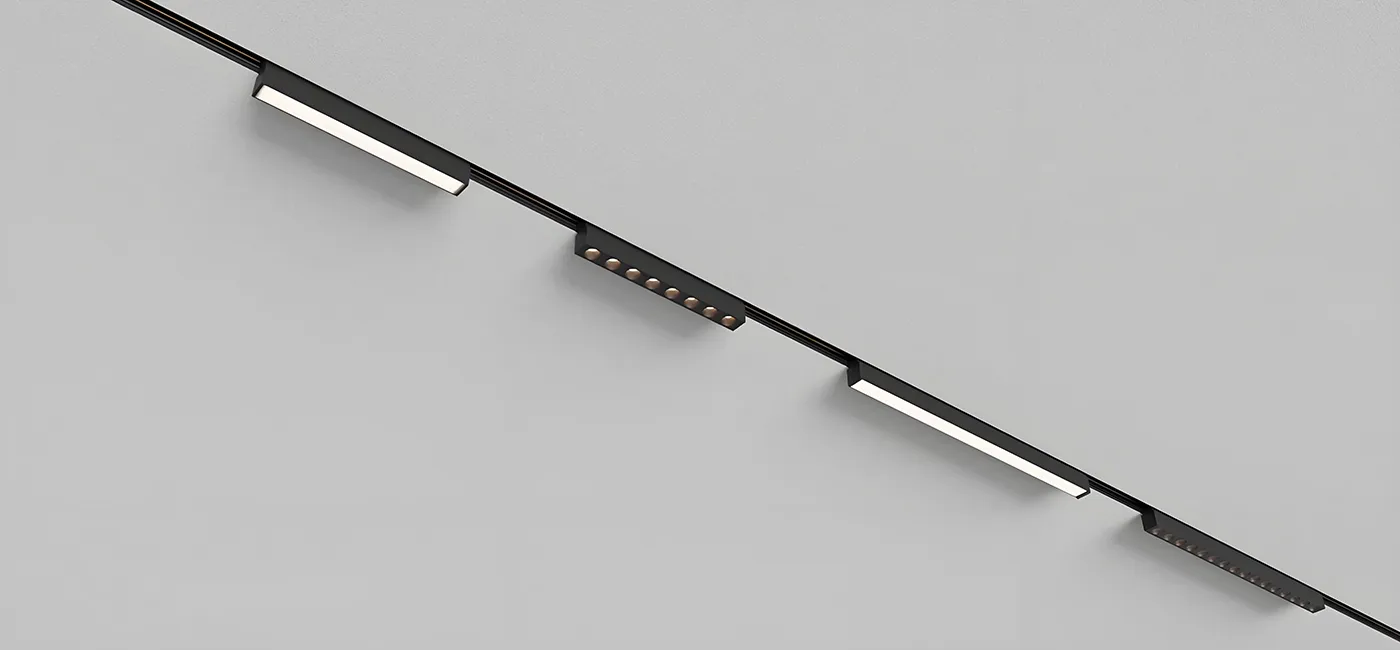

Discover MicroTrack 11MicroTrack 11 is a low-voltage track system with an ultra-thin 10.2mm and ultraslim 19mm design. It is compatible with 48V and 24V. Thanks to the 4-wire design, the modules are dimmable and can be precisely controlled. The system provides spotlight modules, linear modules, and decorative modules; it can be widely used in residential, hotel, exhibition, etc.
Key Features

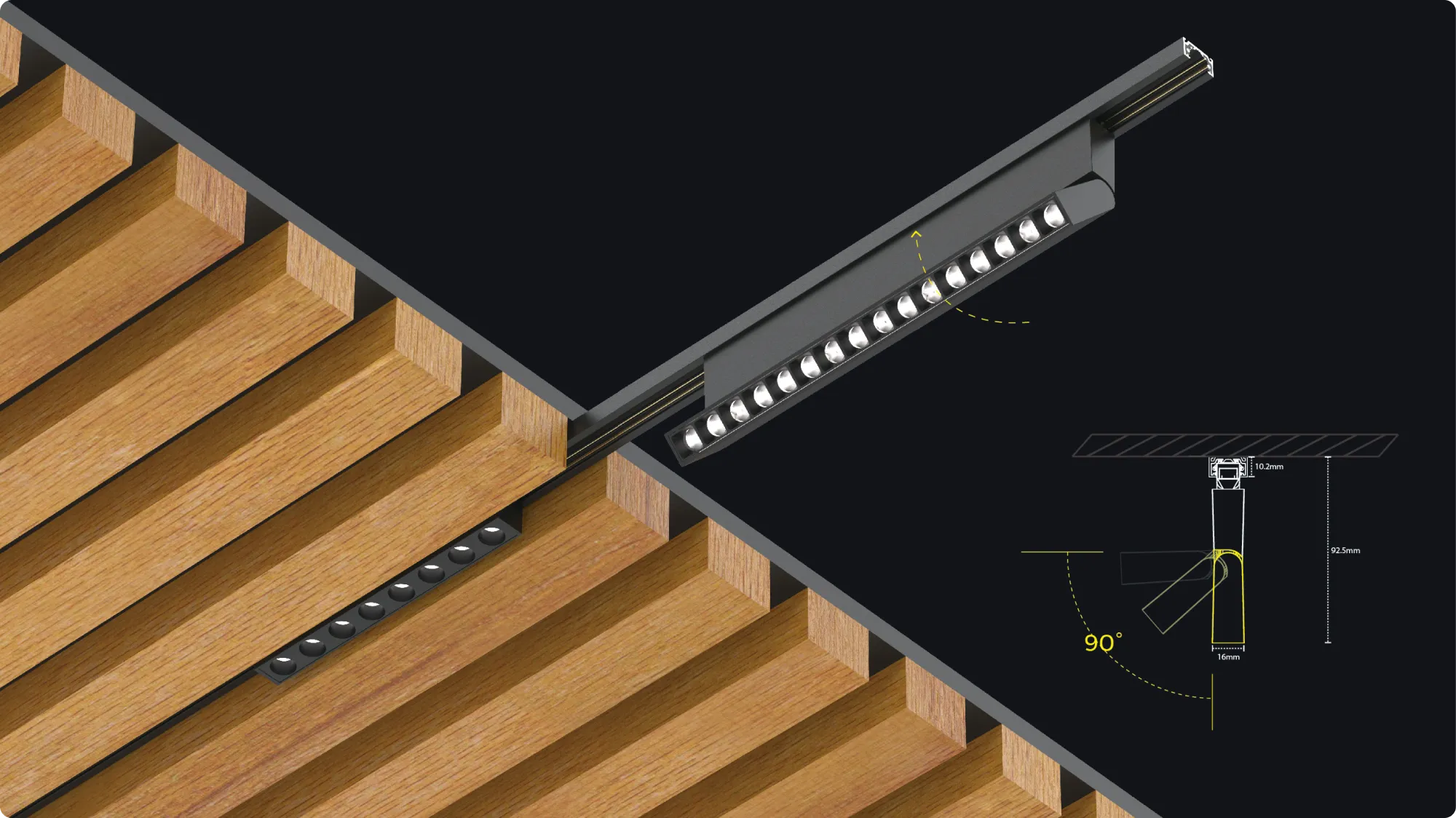

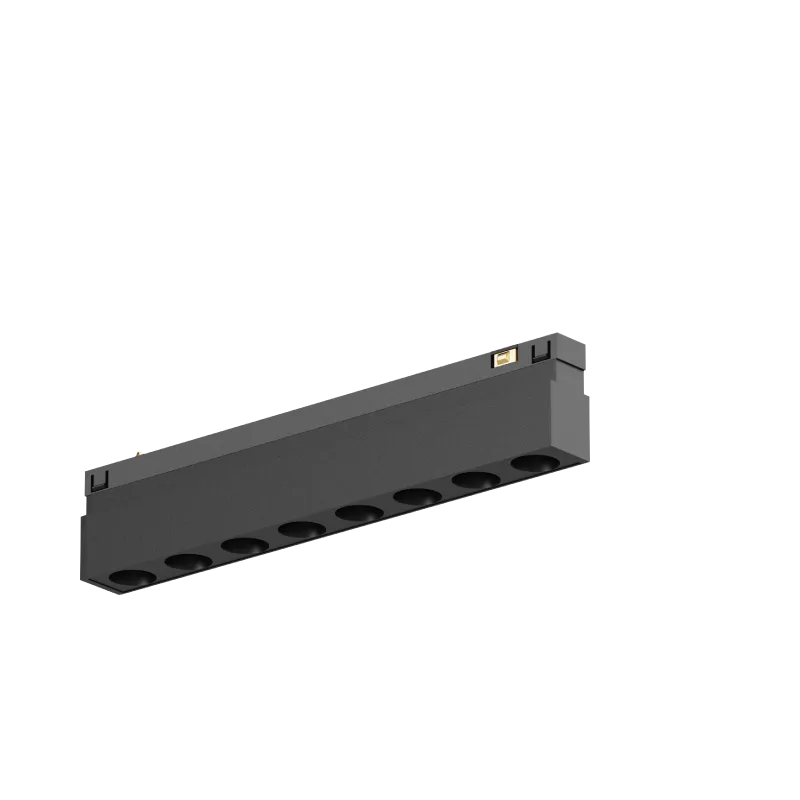

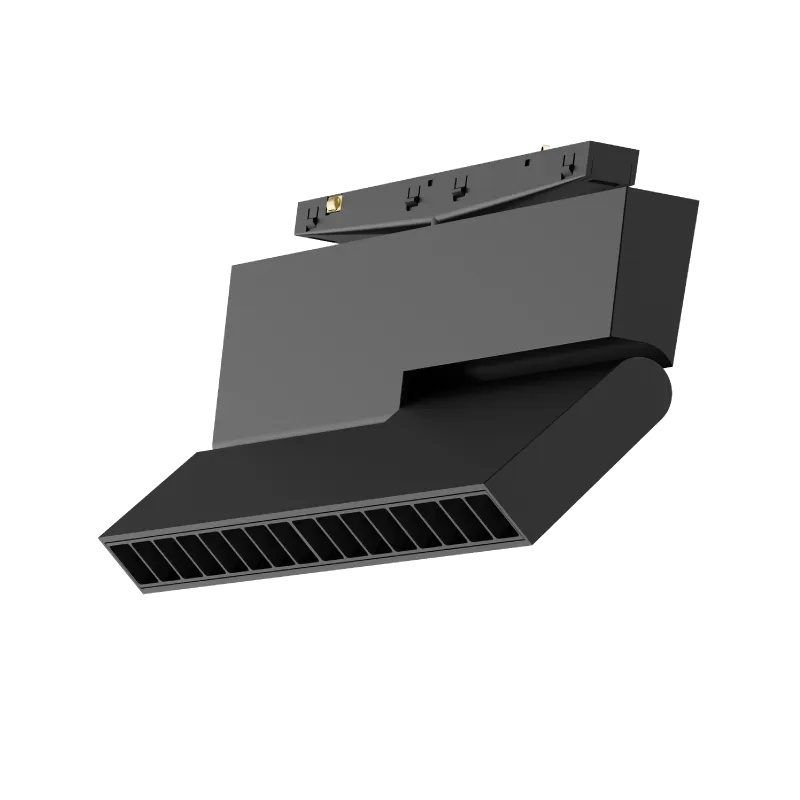

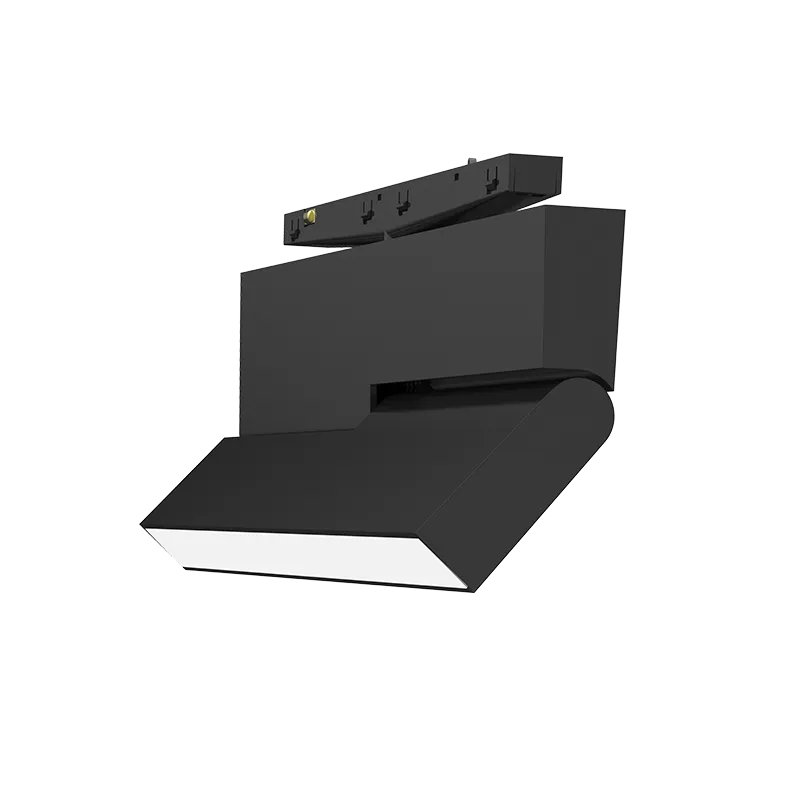

Adjustable angle grille modules
Each light can be precisely controlled by adjusting the angle from 0 to 90 degrees.

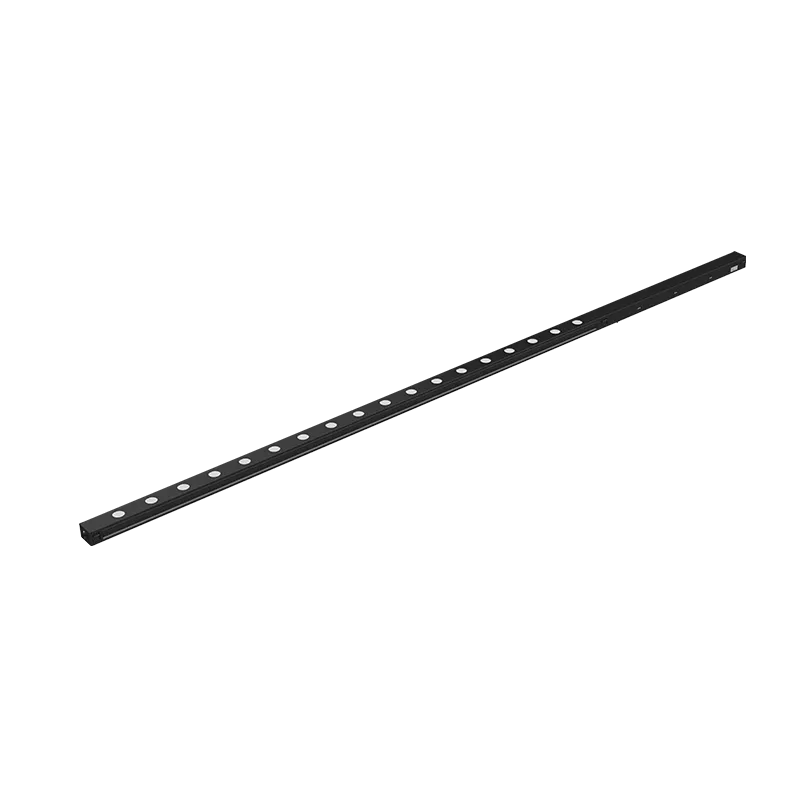

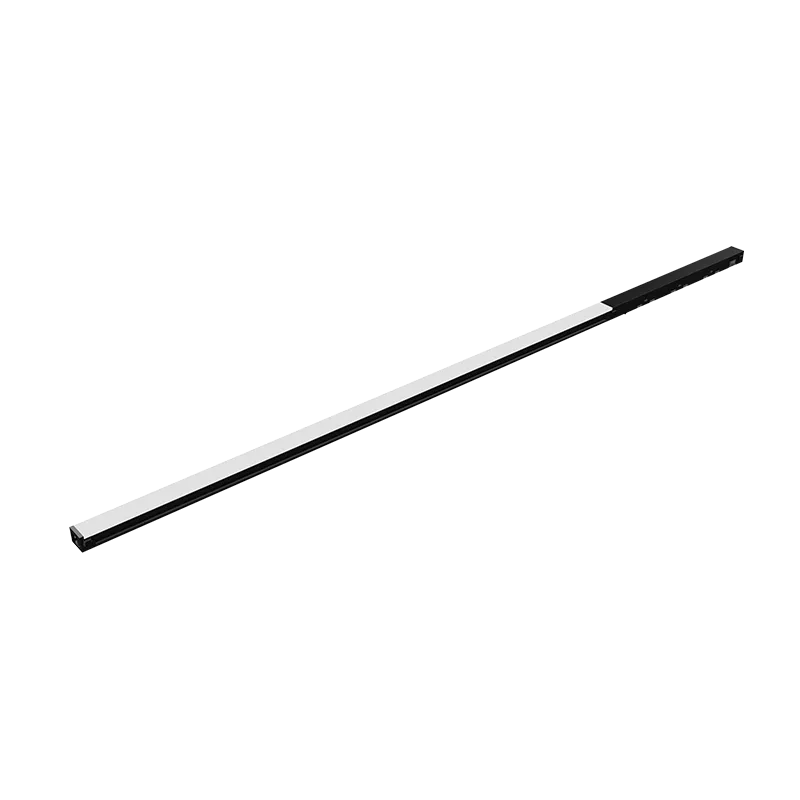

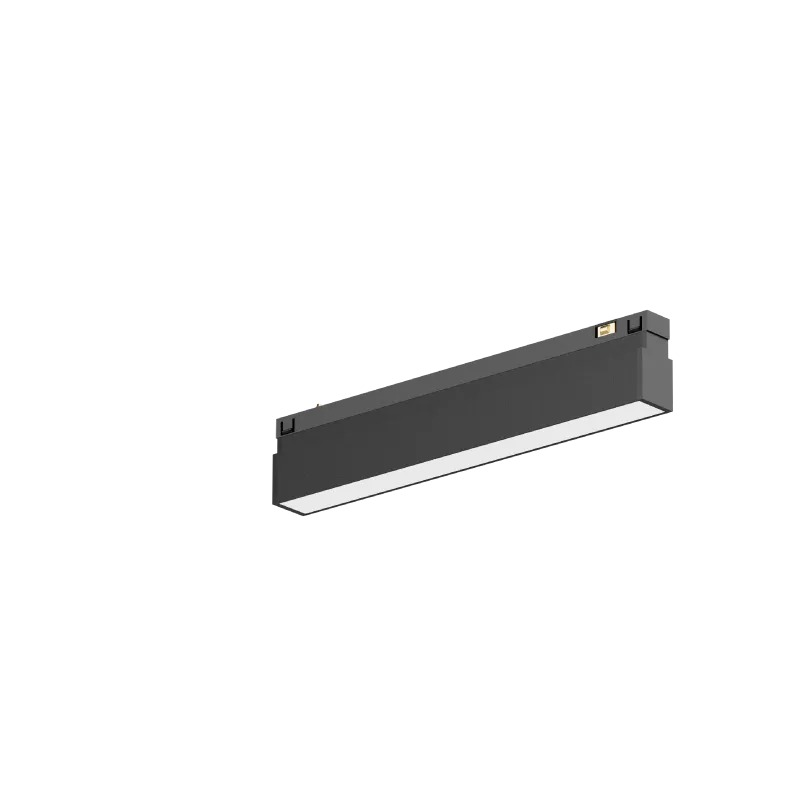

Built-in linear modules
The built-in linear modules can be totally hidden
into the narrow track, achieving an extremely
exquisite appearance.

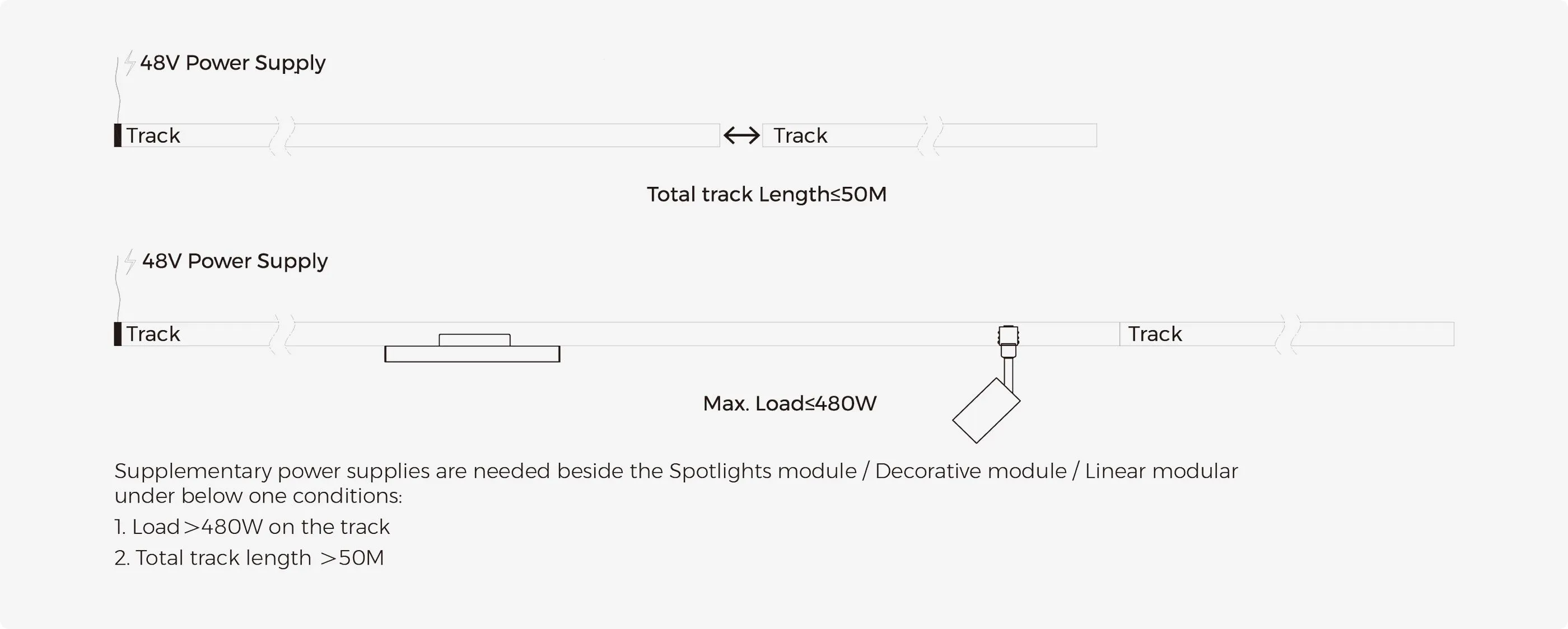

Application Principle

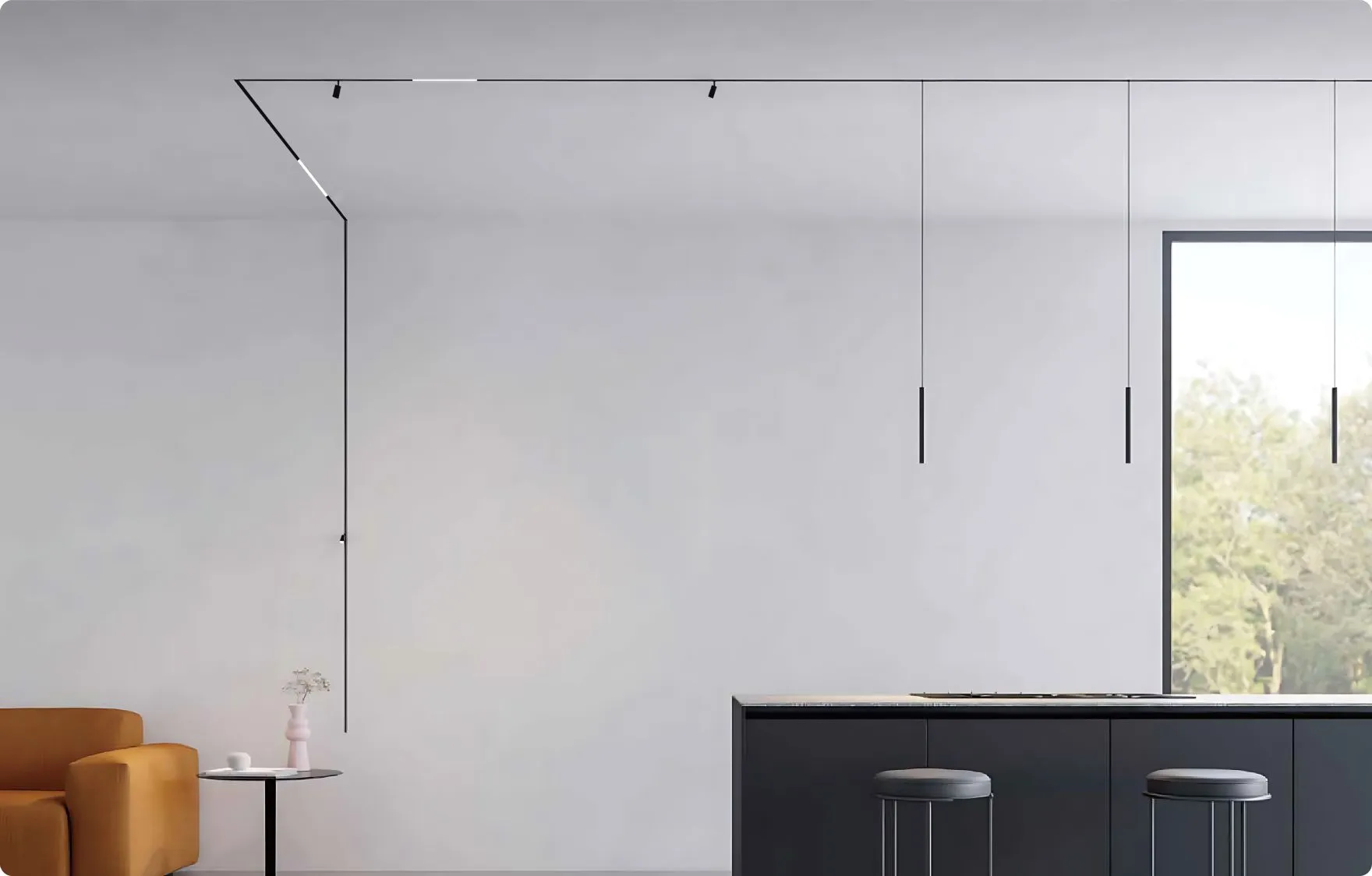

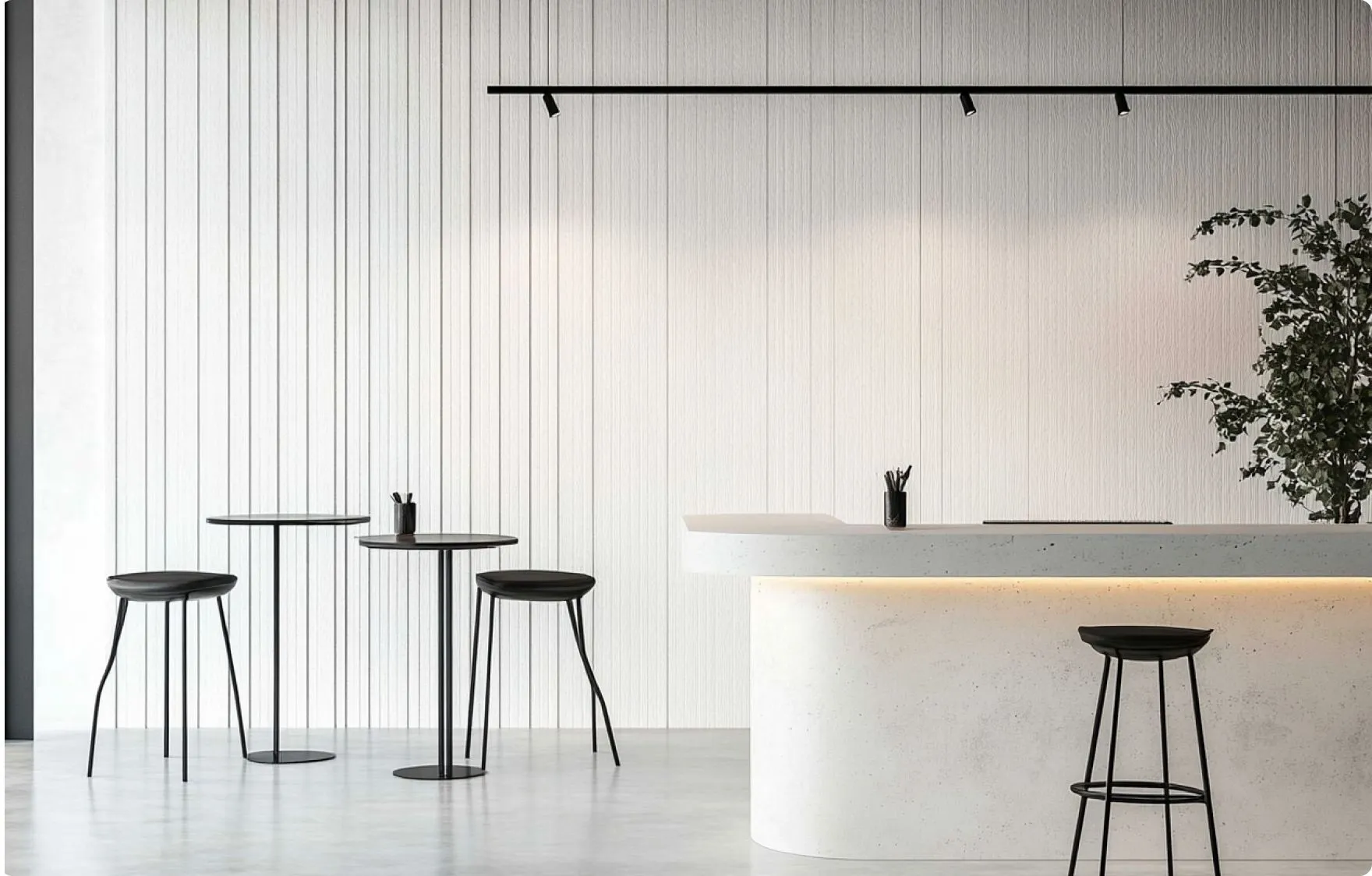

Scenario Case

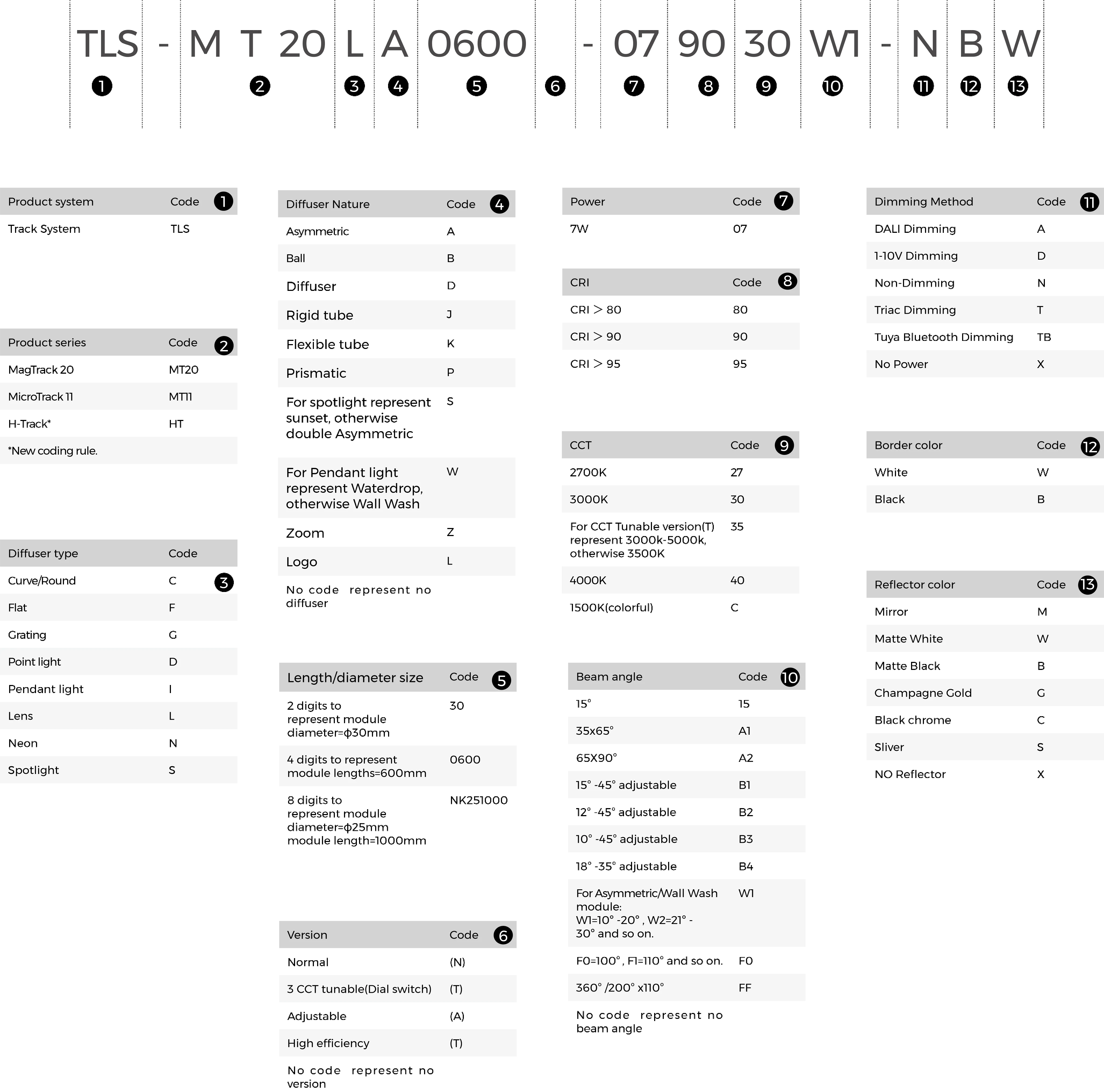

Ordering Code
Optional Model
MT11DD
MT11DG
MT11FD
MT11FD(A)
MT11G
MT11G(A)
MT11NK-11
MT11NK-13
MT11DD
Basic parameter
Material
AL6063,spraying surface
IP Process
IP20
Warranty
5 years
Certification
CE,UKCA,ROHS,Reach
Installation
Track
Accessories Type
Track
Standard Corner
Power feeder
Splicing accessory
Installation accessory
End cap accessory
Power Supply
Size
Name
Model
Description
Quantity
Application

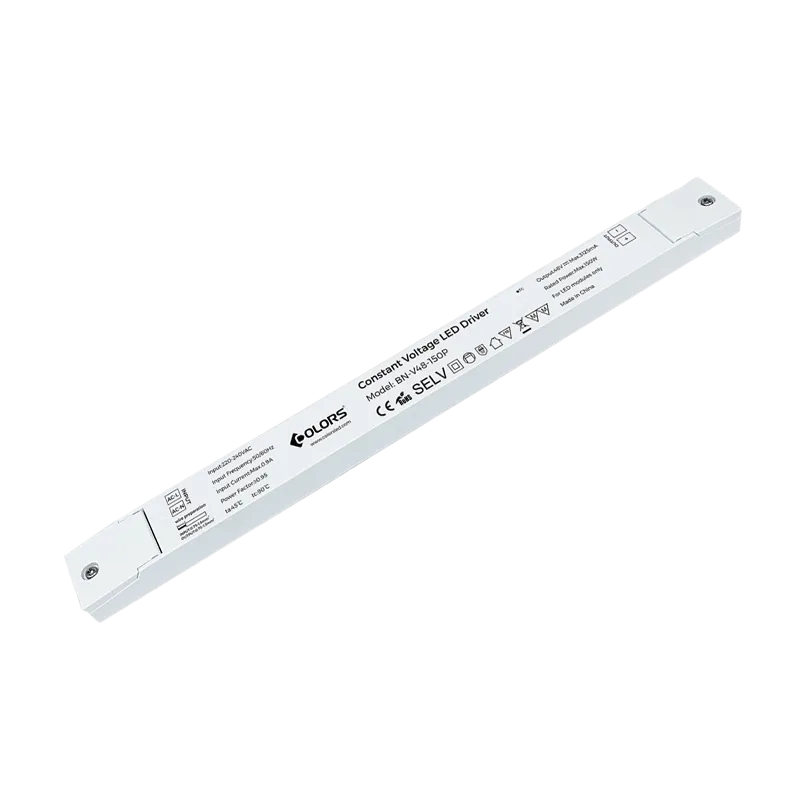

BN-V48-XP
BN-V48-XP
Product name:BN-V48-100P/BN-V48-150P/BN-V48-250P
Output power:100W/150W/250W
Output current:≤2.10A/≤3.13A/≤5.21A
Product size:350.0*30.0*18.0mm/350.0*30.0*18.0mm/400.0*40.0*22.0mm
Input voltage:AC220-240V
Output voltage:DC48V
PF：PF>0.95
IP:IP20
Dimming method:Non-Dimming
Material:Plastic housing
Certification:CE/CB
Warranty:5 years
Note:Products with COLORS LOGO

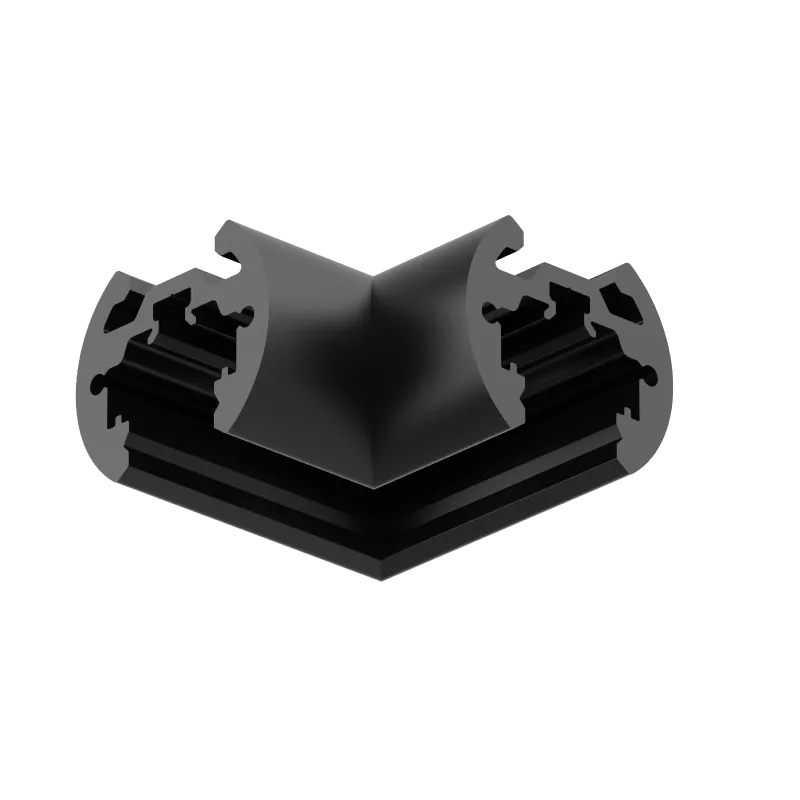

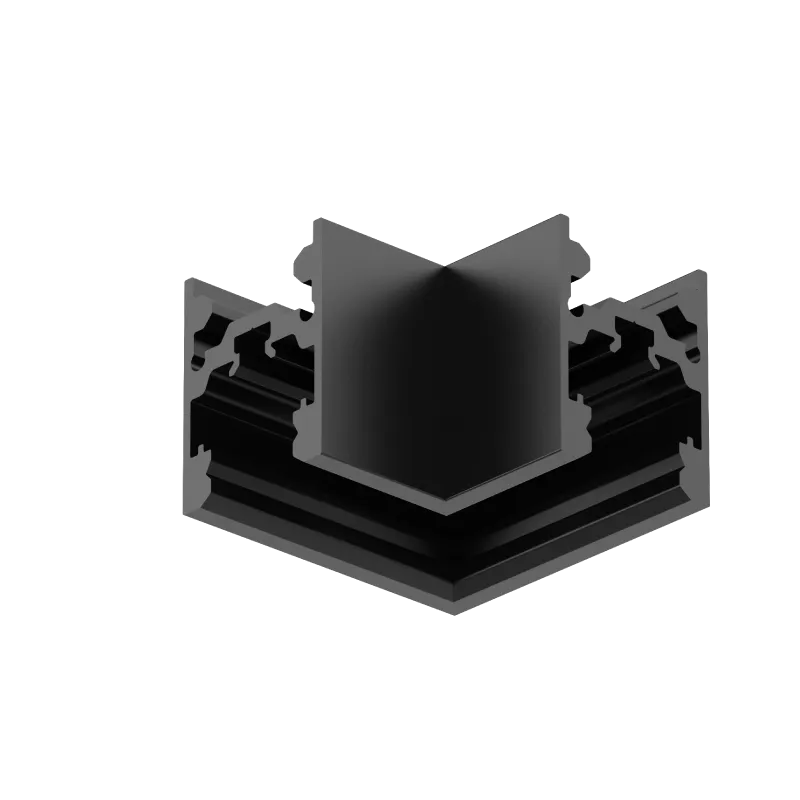

MT11-L90-MH11
MT11-L90-MH11
Applicable product model: TLS-MT11-HX0
Installation method: L-shaped splicing(Downward)
Material process: Aluminum
Light source: No
Size: L34.5×W34.5×H24mm

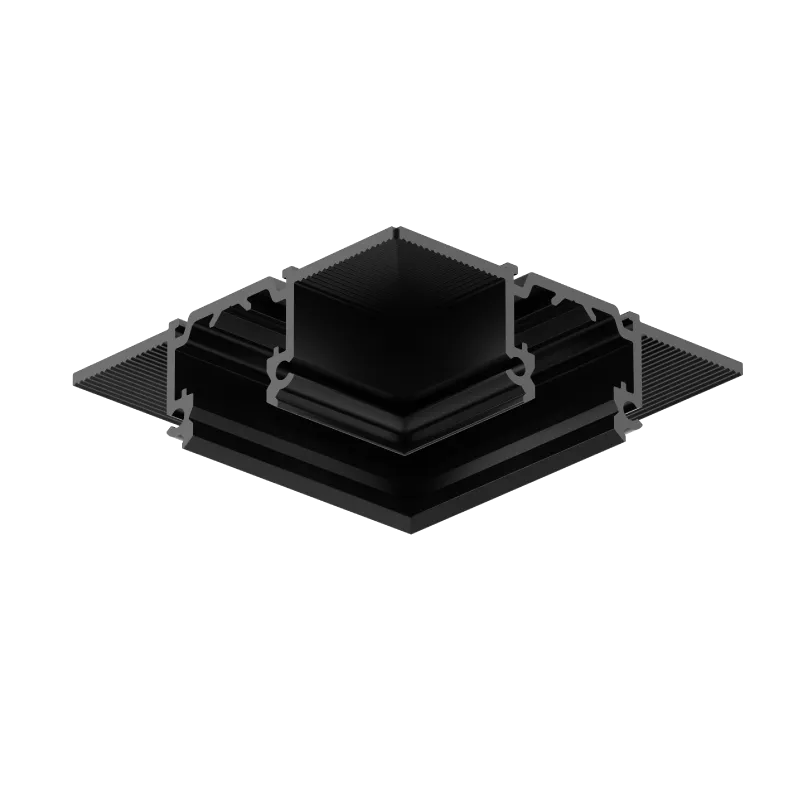

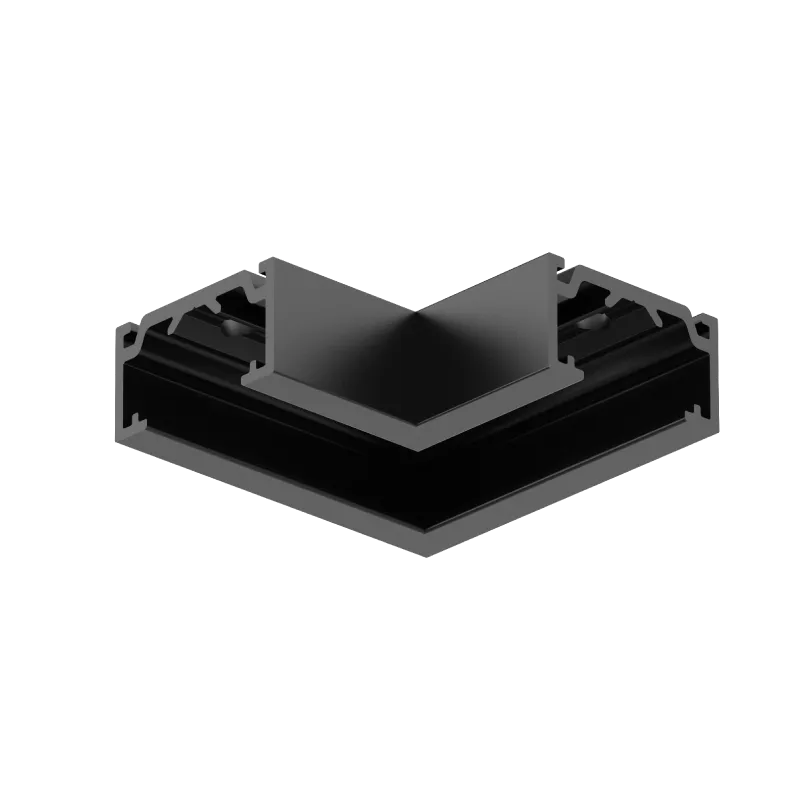

MT11-L90-MR11
MT11-L90-MR11
Applicable product model: TLS-MT11-RX0
Installation method: L-shaped splicing(Downward)
Material process: Aluminum
Light source: No
Size: : L49.5×W49.5×H15mm
MT11-L90-MS11
MT11-L90-MS11
Applicable product model: TLS-MT11-SX0
Installation method: L-shaped splicing(Downward)
Material process: Aluminum
Light source: No
Size: L34.5×W34.5×H10.2mm
MT11-L90-MSR11
MT11-L90-MSR11
Applicable product model: TLS-MT11-SRX0
Installation method: L-shaped splicing(Downward)
Material process: Aluminum
Light source: No
Size: L38×W38×φ25.5mm
- 1
- 2
- 3
- 4
- 5
