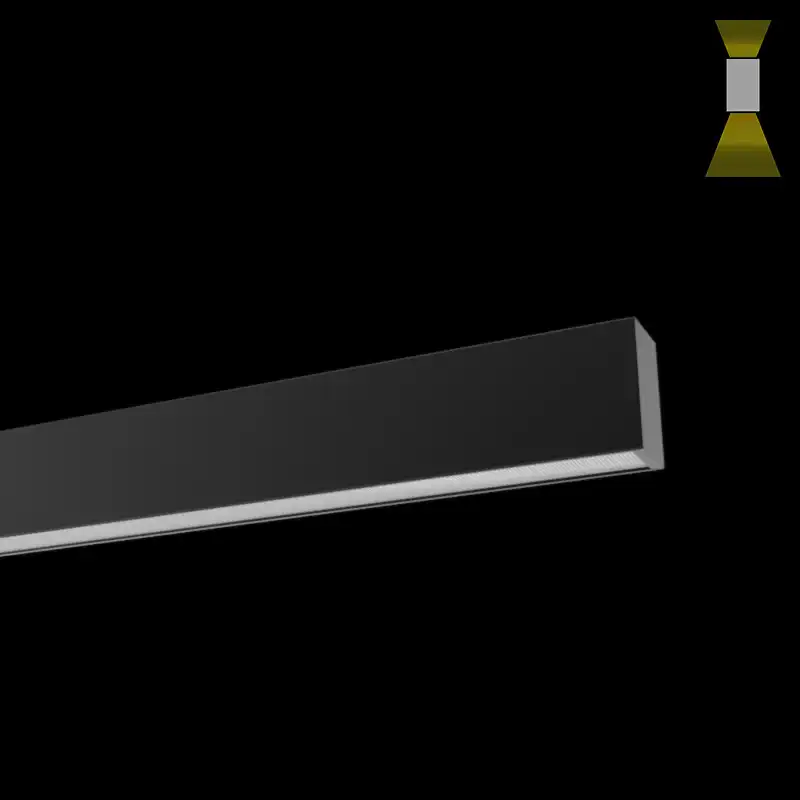

BH3360FP luminaire
luminaire entry cable 1.5M、no application accessories
- EN
BASIC CONFIGURATION
Features
·Material:AL6063-T5,spraying surface/anodizing
·Coating:Silver anodized(RAL9006),Black(RAL9005),White(RAL9003)
·Lighting direction: upward & downward
·Light efficiency:105LM/W
·U G R:UGR<19(X=4H,Y=8H)
·Dimming method:Non/ DALI-2+PUSH/ 1-10V optional
·Length:1200mm/1800mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500K optional
·Input voltage:AC220-240V
·Application: Indoor
·Installation:Pendant
·IP grade:IP20
·Certification:CE、CB、UKCA、ROHS、Reach
·Warranty:5 years
·Coating:Silver anodized(RAL9006),Black(RAL9005),White(RAL9003)
·Lighting direction: upward & downward
·Light efficiency:105LM/W
·U G R:UGR<19(X=4H,Y=8H)
·Dimming method:Non/ DALI-2+PUSH/ 1-10V optional
·Length:1200mm/1800mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500K optional
·Input voltage:AC220-240V
·Application: Indoor
·Installation:Pendant
·IP grade:IP20
·Certification:CE、CB、UKCA、ROHS、Reach
·Warranty:5 years
BH3360FP_CC
Reset selected
Package
COLORS Individual
Light Source Type
Constant Current Rigid PCB
Length
1800mm
1200mm
Input Voltage
AC200-240V
End Cap Style
Holeless end cap
Dimming Method
Non-Dimming
DALI Dimming
1-10V Dimming
Diffuser Nature
Prismatic
Color
White
Silver
Black
Carrier Style
Flat carrier
Version
Normal
Typ.power
45W
27W
CCT
2700K
3000K
3500K
4000K
5000K
6500K
CRI
>80
>90
Label Type
Customized Label
COLORS
Qty
$ ** /SET
Ordering Code:
LLS-BH3360FPFS(N)-T-D
Common Accessories
Other accessories
Installation accessory
End cap accessory
Splicing accessory
