Features

Led:2216
FPCB:3oz
CRI:90
Typ.Power:15W/M
Max.Power:16.5W/M

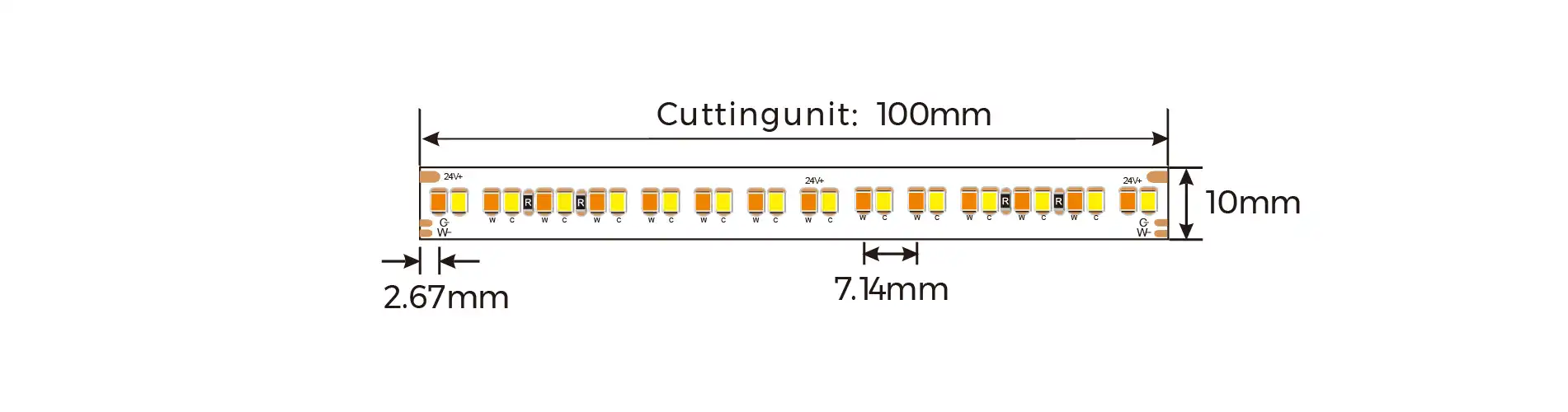

Min Cut:100mm
Luminous flux:1600LM/M@SWW
Warranty:5years
Product Certification:CE
Operating temperature:-25~40°C;Tc:75°C(max)

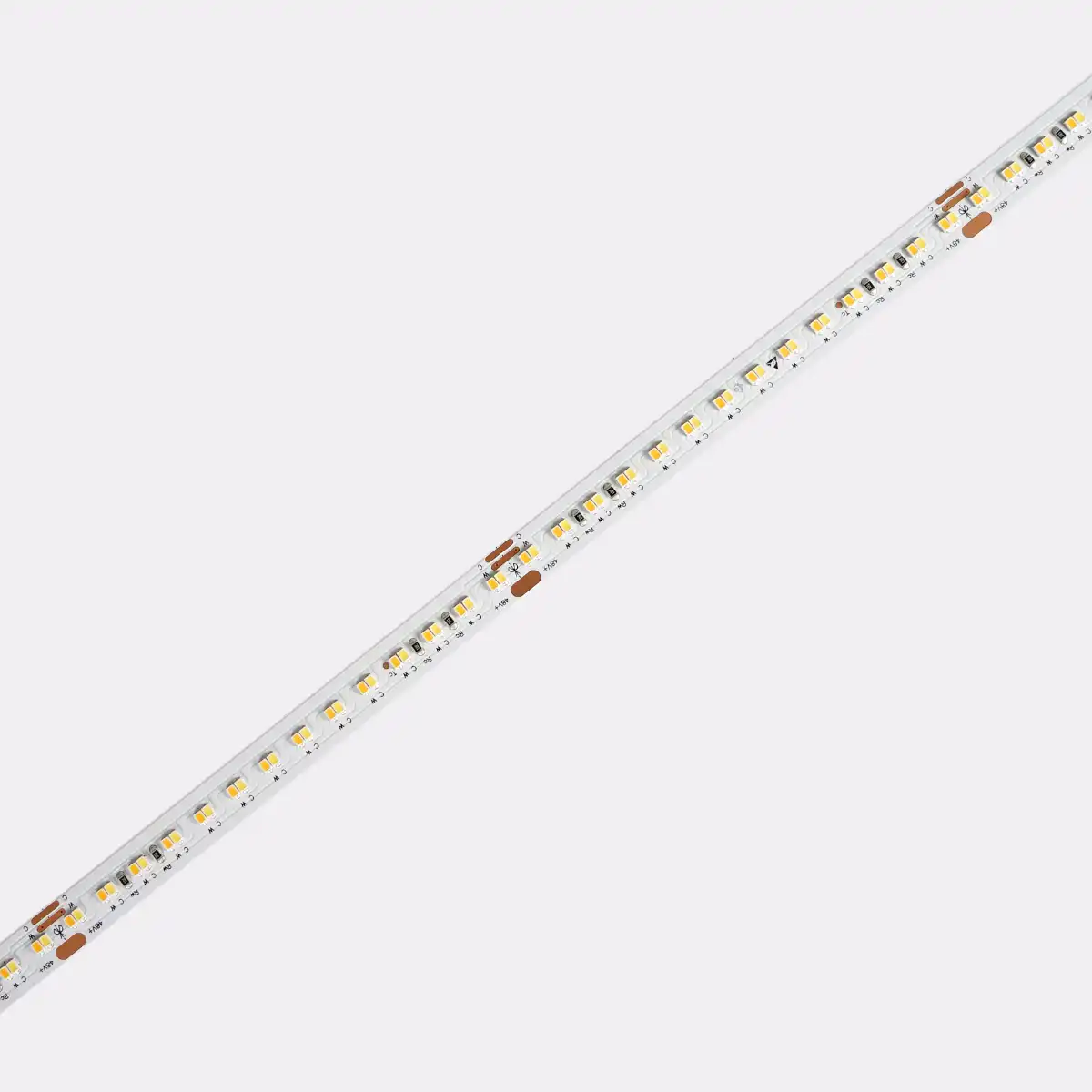

D6280SWW-48V-10mm

$
**
/m
Login to view price

Flexible Options

Reset selected

Version
  • Non-UL

  • UL

CCT
  • 2700+6000K

  • others

CRI
  • >90

Typ.power
  • 2.5W/M

  • 5W/M

  • 10W/M

  • 15W/M

  • others

Silk Printing
  • COLORS

  • Neutral

  • Customize

Strip Length
  • 5M

  • 10M

  • Customized Length

IP Process
  • IP20(NO)

  • IP65(NA)

Tape Type
  • No tape

  • White(3M 55230H)

  • Red(4910F)

  • Yellow(3M 9495)

  • others

Entry Cable
  • No

  • One end

  • Dual ends

Wire Type
  • No

  • Parallel

  • Silicone

  • PVC

  • male and female waterproof cable

Wire Length
  • No

  • 12CM

  • 20CM

  • 25CM

  • 50CM

  • 100CM

  • 200CM

  • others

Label Type
  • COLORS

  • Customized Label

Package
  • COLORS

  • Paper-neutral

  • Plastic-neutral

Delivery Date
Ordering Code :

D62804810-9

$ **/m

Common Accessories

Accessories Type
  • Other
  • Controller
  • Installation accessory
Product Name: CR2-GBA Input Voltage: 12-48V Output Current:8A*2CH,Max 16A Output Power:192W/384W@12V/24V,384W/576W@36V/48V Dimming Mode: Two-color 2.4 remote control IP:IP20 Product Size:L175*W45*H27(mm)
$ ** /PCS
Login to view price
Product Name:Transparent mounting slot Appearance size:1000*13.8*9.5mmApplicable models: suitable for 10mm board width ET/EF extrusion light strip 1pcs/set Support Packaging:50PCS/bag
$ ** /SET
Login to view price
Product Name:Silicone Plug Kit
$ ** /SET
Login to view price
Silicone plug set Applicable models: Suitable for 10mm FPC width, EH/ET/EF extruded led strip Packing:5PCS/bag
$ ** /SET
Login to view price
Product Name:Silicone Clip Applicable models:For 10mm board width SF/ST/EH/EF/ET protective light strip Packing:10PCS/SET(10PCS clips+20PCS screws)
$ ** /SET
Login to view price
