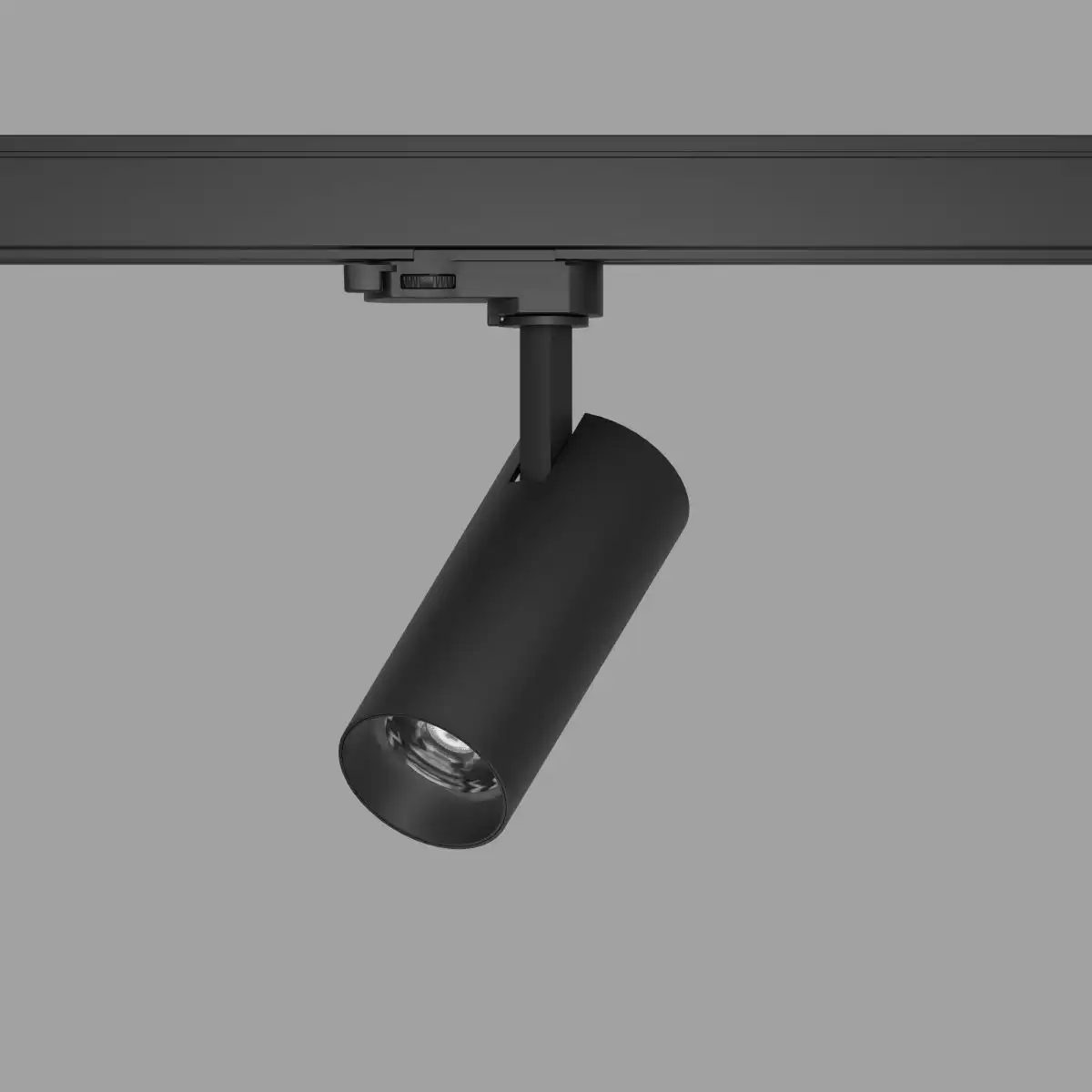

EHS-80

BASIC CONFIGURATION

EHS-80_Module(AC220V)
Required track installation
Including electrical conector
Adapted track brand:Powergear, Stucchi, Global, Staff, Eutrac, Nordic

Features

· Material: AL6063-T5, spraying surface
· Coating: Black (RAL9005)、White(RAL9003)
· IP grade: IP20
·Beam angle: 15°/24°/32°/50° optional
· CCT: 2700/3000/4000/3000-5000K optional
· CRI: ＞90
· SDCM: <5 Step (ANSI)
· Input voltage: AC220-240V
· Working temperature: -15℃~35℃
· Lighting direction: Downward
· Dimming method: Non-dimming(Suitable for four-wire three-circuit guide rail)/DALI dimming(Suitable for six-wire three-circuit guide rail) optional
· Application: Indoor
· Certification: CE、UKCA、ROHS、Reach
· Warranty: 5years

EHS-80

Smart recommendations

Reset selected

Version

Normal
3 CCT tunable(Dial switch)

Diffuser Nature

50°
32°
24°
15°

Length

φ80mm Spotlight

Typ.power

Color

White
Black

Dimming Method

Non-Dimming
DALI Dimming

CRI

CCT

3000K-5000K
2700K
3000K
4000K

Label Type

Customized Label
COLORS

Ordering Code:

80-930

Qty

$ ** /SET

Ordering Code:

80-930

Common Accessories
