Features

·Material: ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: downward
·Beam angle: 15°/24°/28°/36°/45° optional
·UGR(X=4H,Y=8H): ≤10(15°/24°),≤13(36°)≤19(45°)
·Opening size: φ55mm
·Dimming method: Non/0-10V/Traic/DALI optional
·SDCM(Lightsource): <3 Step(ANSI)
·CRI: 90/95
·CCT: 2700/3000/3500/4000K/2700-6500K optional
·Input voltage: AC220-240V
·Application: Indoor
·Installation: Trimless Recessed
·IP grade: IP20/IP54
·Certification: CE、ROHS、Reach
·Warranty: 5 years

BASIC CONFIGURATION

G2SR55L2 luminaire Power supply optional Embedded parts optional Note: If "Honeycomb" is selected, the luminous efficacy will decrease, and both the beam angle and UGR will be reduced.he UGR will be reduced by 40%.

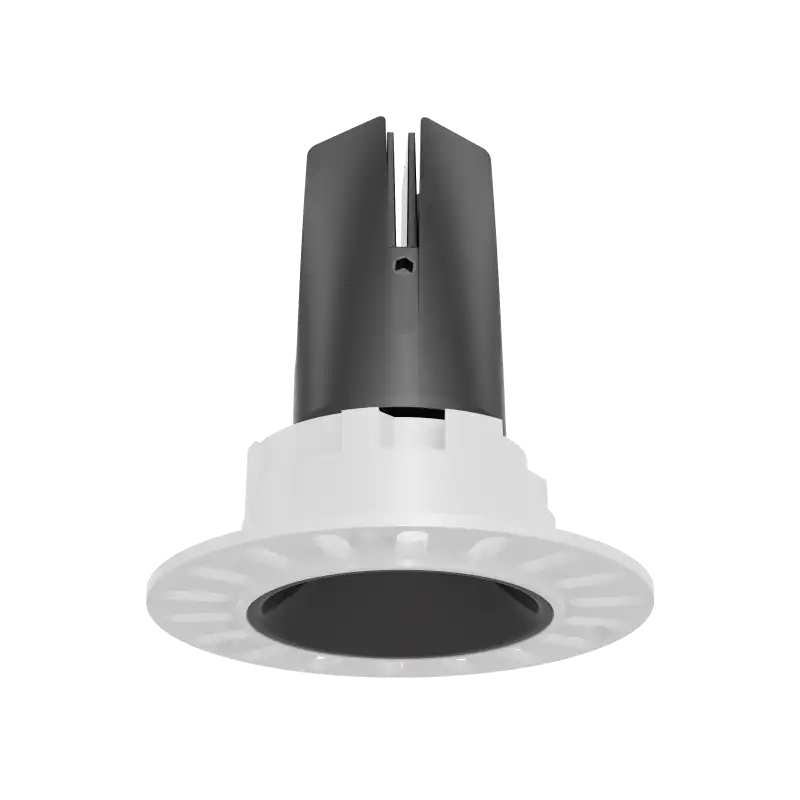

G2SR55L2

In-stock

Reset selected

Version
  • Normal

  • CCT Tunable

Typ.power
  • 6W

  • 9W

Beam Angle
  • 15°

  • 24°

  • 28°

  • 36°

  • 45°

Color
  • No(Frame)

  • White(Frame)

Dimming Method
  • No Power

  • Non-Dimming

  • 0-10V Dimming

  • DALI Dimming

  • Triac Dimming

CRI
  • >90

  • >95

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 2700K-6500K

Reflector Color
  • Mirror

  • Black chrome

  • Matte Black

  • Matte White

IP Grade
  • IP20

  • IP54

Optical Accessory
  • Linear Spread Filter

  • Honeycomb

  • Diffusion Filter

  • Honeycomb + Linear Spread Filter

  • Honeycomb + Diffusion Filter

  • NO

Fixed Options
Length:
Opening φ55mm
User Manual:
CN
Label Type:
Customized Label
Package:
Whole Packaging
Ordering Code :

$ **/set

Common Accessories

Accessories Type
  • Installation accessory
