BASIC CONFIGURATION

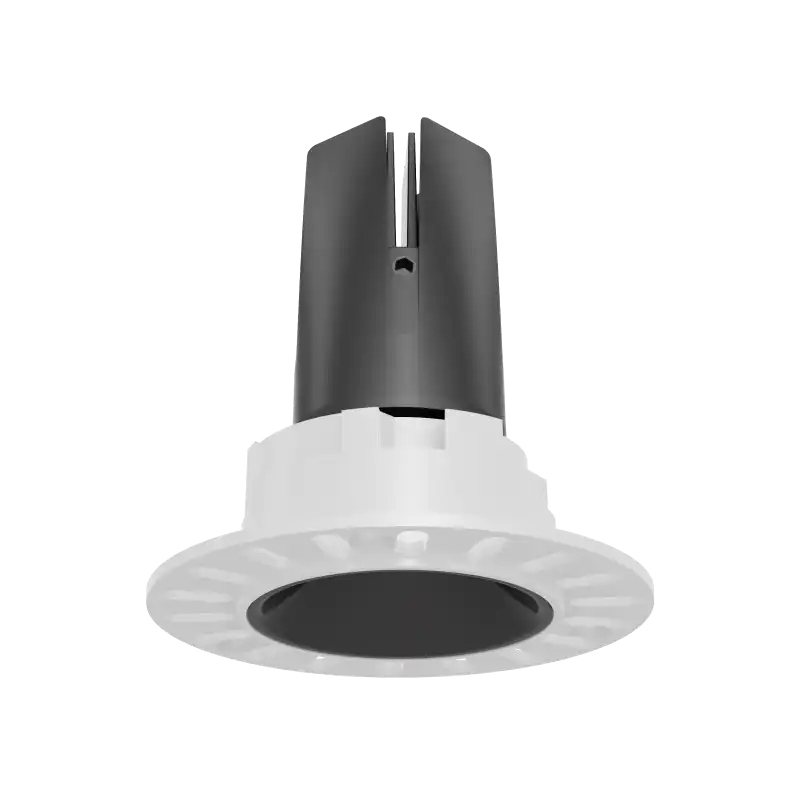

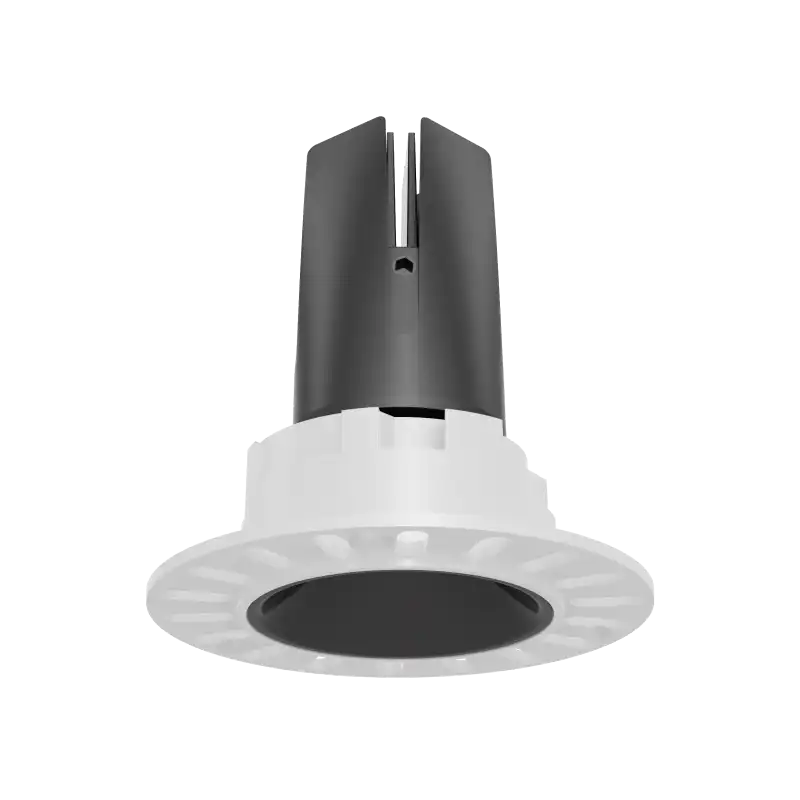

G2SR55L2(E) luminaire
Power supply optional
Embedded parts optional

Note:
If the "Honeycomb" is selected, it will be installed on the spotlight by default,and the parameters will change as follows.
(1)Spotlights with beam angles of "15°" and "24°":the light efficiency will be reduced by 30%, the beam Angle will be reduced by 12%, the anti-glare effect will be better, and the UGR will be reduced by 40%.
(2)Spotlights with beam angles of "36°":the light efficiency will be reduced by 50%, the beam Angle will be reduced by 25%, the anti-glare effect will be better, and the UGR will be reduced by 40%.

Features

·Material:ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: downward
·Beamangle:15°/24°/36° optional
·UGR(X=4H, Y=8H): ≤10(15°/24°),≤16(36°)
·Opening size:φ55mm
·Dimming method:Non/1-10V/DALI optional
·SDCM(Light source): <3 Step(ANSI)
·CRI:90
·CCT:2700/3000/3500/4000K optional
·Input voltage:AC220-240V
·Application: Indoor
·Installation:Recessed
·IP grade:IP20/ IP54
·Certification:CE、ROHS、Reach
·Warranty:5 years

G2SR55L2(E)

Reset selected

Typ.power
  • 6W

  • 9W

Beam Angle
  • 15°

  • 24°

  • 36°

Color
  • No(Border)

  • White(Border)

Dimming Method
  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

  • No Power

CRI
  • >90

CCT
  • 2700K

  • 3000K

  • 4000K

  • 3500K

Reflector Color
  • Mirror

  • Black chrome

  • Matte Black

  • Matte White

IP Grade
  • IP20

  • IP54

Accessory Quantity
  • 1(Including embedded parts)

  • 0(Excluding embedded parts)

Optical Accessory
  • Linear Spread Filter

  • Honeycomb

  • Diffusion Filter

  • Honeycomb & Linear Spread Filter

  • Honeycomb & Diffusion Filter

  • NO

Entry Cable
  • With junction box

  • With cable of drive input

User Manual
  • EN

Label Type
  • COLORS

  • Customized Label

Ordering Code:

90

Qty

$ ** /SET

Ordering Code:

90

Common Accessories
