Features

·Material: ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: downward
·Beam angle: 9°/15°/24°/36°/50° optional
·UGR(X=4H,Y=8H): ≤10(9°/15°/24°/36°),≤19(50°)
·Opening size: φ65mm
·Dimming method: Non/0-10V/Traic/DALI optional
·SDCM(Lightsource): <3 Step(ANSI)
·CRI: 90
·CCT: 2700/3000/3500/4000K/2700-6500K optional
·Input voltage: AC220-240V
·Application: Indoor
·Installation: Trimless Recessed
·IP grade: IP20/IP54
·Certification: CE、ROHS、Reach
·Warranty: 5 years

BASIC CONFIGURATION

G2SR65L2(E) luminaire Power supply optional Embedded parts optional Note: If "Honeycomb" is selected, the luminous efficacy will decrease, and both the beam angle and UGR will be reduced.

Dimension

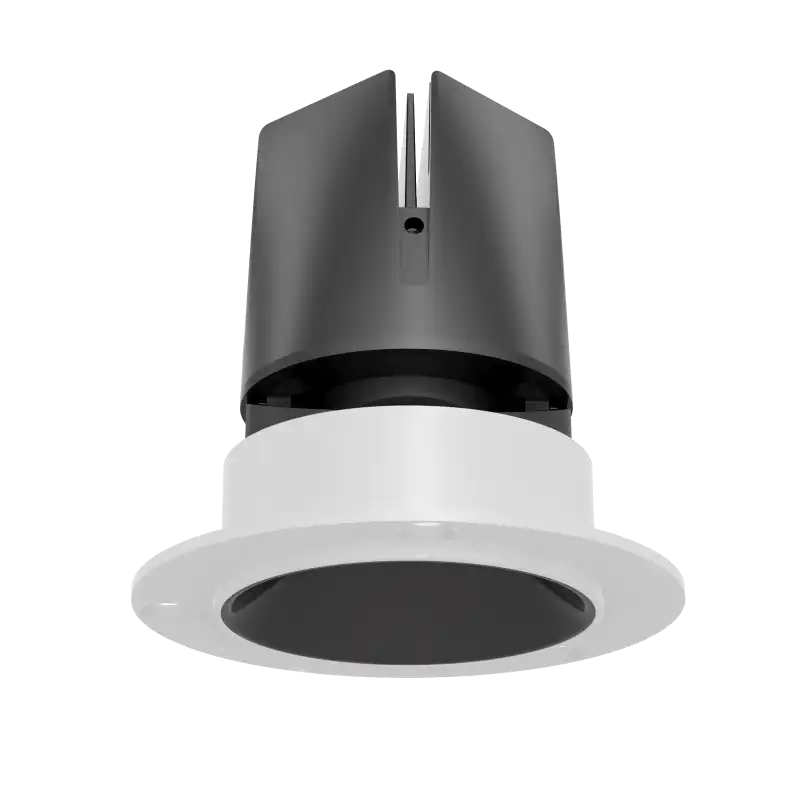

G2SR65L2(E)

$
**
/set
Login to view price

Flexible Options

Reset selected

Length:
Opening φ65mm
CRI:
>90
User Manual:
EN
Version
  • Normal

  • CCT Tunable

Typ.power
  • 9W

  • 12W

  • 15W

Beam Angle
  • 15°

  • 24°

  • 36°

  • 50°

Color
  • No(Frame)

  • White(Frame)

Dimming Method
  • No Power

  • Non-Dimming

  • 0-10V Dimming

  • DALI Dimming

  • Triac Dimming

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 2700K-6500K

Reflector Color
  • Mirror

  • Black chrome

  • Matte Black

  • Matte White

IP Grade
  • IP20

  • IP54

Optical Accessory
  • Linear Spread Filter

  • Honeycomb

  • Diffusion Filter

  • Honeycomb + Linear Spread Filter

  • Honeycomb + Diffusion Filter

  • NO

Entry Cable
  • With junction box

  • With cable of drive input

Label Type
  • COLORS

  • Customized Label

Delivery Date : About 7~15 Days
Ordering Code :

$ **/set

Common Accessories

Accessories Type
  • Installation accessory
Specifications
Related Projects

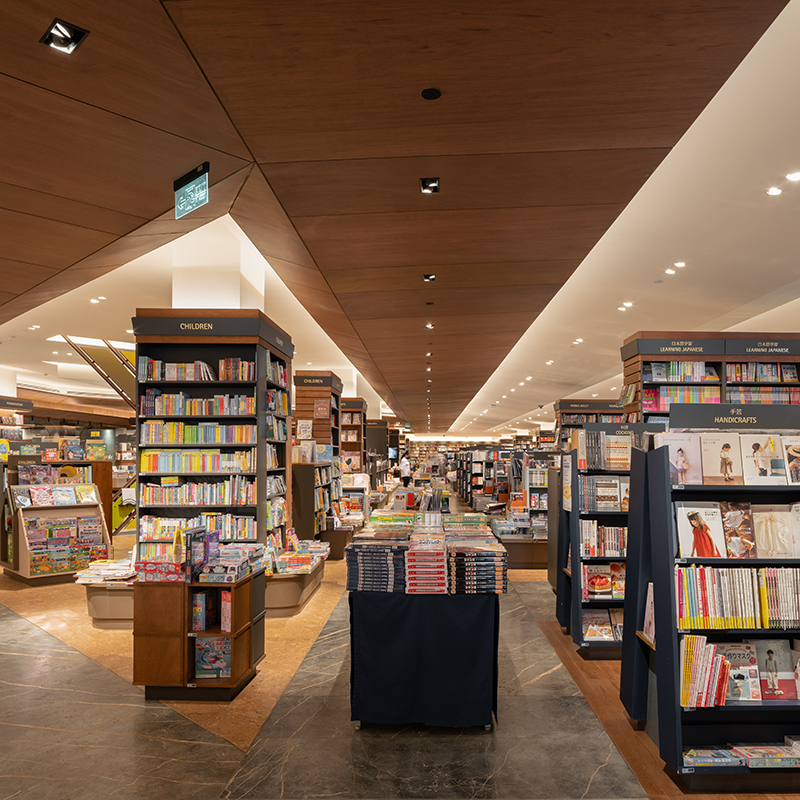

JUNDAO
