Features

·Material:AL6063-T5，spraying surface
·Coating:Black(RAL9005)、White(RAL9003)
·Lighting direction: downward
·Light efficiency:100LM/W(CCT tunable)、110LM/W(Normal/Emergency/Presence sensing)、130LM/W(High efficiency )
·Dimming method:Non/ DALI-2+PUSH/ 1-10V optional
·Length:1200mm/1500mm/1800mm/2400mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500/3000-6500K optional
·Input voltage:AC200-240V
·Application: Indoor
·Installation:Recessed
·IP grade:IP20
·Certification:CE、UKCA、ROHS、Reach
·Warranty:5 years (emergency model: 3 years)

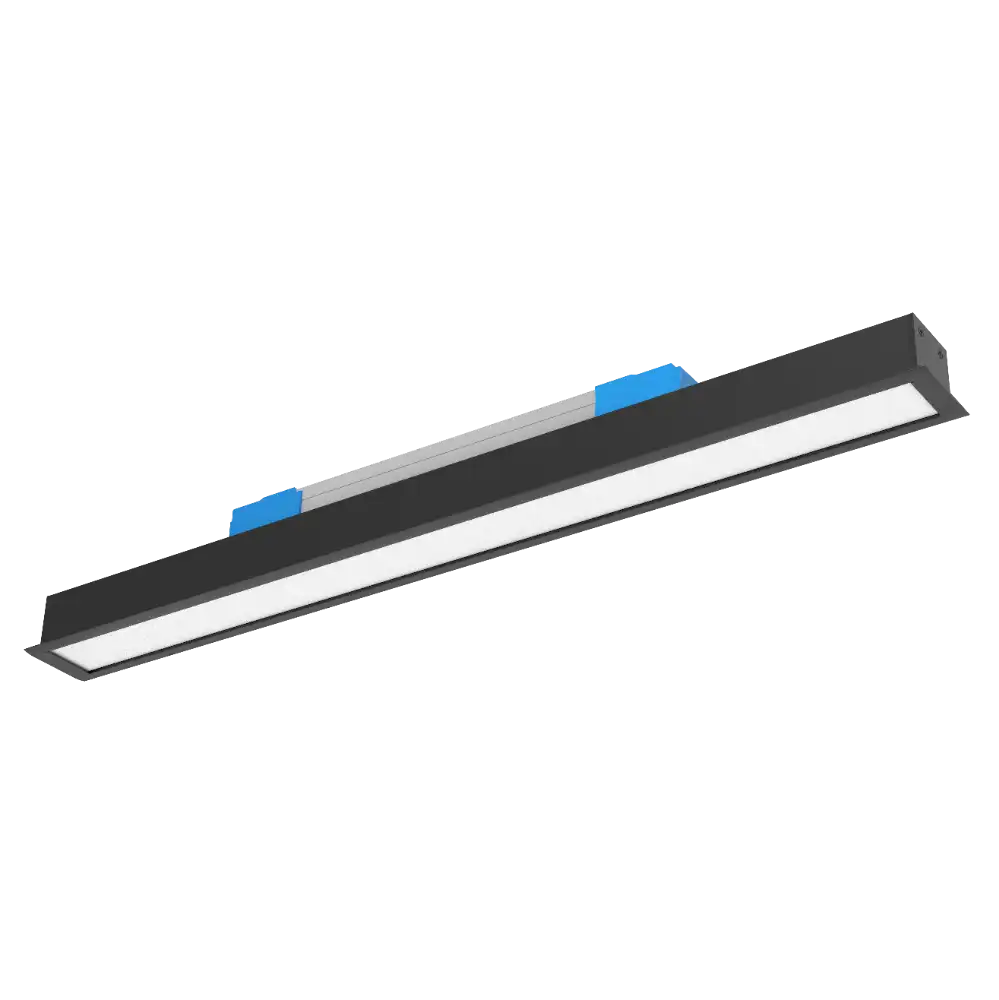

LE40FD

$
**
/set
Login to view price

Flexible Options

Reset selected

Version

  • Normal

  • High efficiency

  • 3 CCT tunable(Dial switch)

  • Emergency

Diffuser Nature

  • Diffuser

Length

  • 1200mm

  • 1500mm

  • 1800mm

  • 2400mm

Typ.power

  • 68W

  • 51W

  • 46W

  • 34W

Carrier Style

  • No carrier

Color

  • Black

  • White

  • Matt Orange

  • Matt Blue

  • Yellow

  • Champagne Gold

  • Rose gold

  • Matt Green

Dimming Method

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

CRI

  • >80

  • >90

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 5000K

  • 6500K

  • 3000K-6500K

Light Source Type

  • Constant Current Rigid PCB

Input Voltage

  • AC200-240V

End Cap Style

  • Holeless end cap

Label Type

  • Customized Label

  • COLORS

Package

  • COLORS Individual

Delivery Date
Ordering Code :

LLS-LE40FDXS-T-D

$ **/set

Common Accessories

Accessories Type
  • Splicing accessory
  • Standard Corner

Applicable product model:LG7043/LR3735/LR3840(A)/LR3840(B)/LR3924/LR3943/LS1911C/LS1911K/SK10032/SK6013(A)/SK6013(B)/LE5535/LE6935(F)/LE9435/LR5535(A)/LR5535(B)/LS3360/LS4067/LS5470(F)/LS7977/M20FD/M20G(A)/M20G/M20I/M20S/R25FD/R25FP/R25G/R25KD/R25L/R35I/R35S/RNR30MJ/RNR30NJ/RNR30NKMaterial process: SPCC/ spray paintSize: 80*10*2mmQuantity: 10 PCS/ setOther:180° straight splicing bar,include 20pcs M5X4 headless hex socket screws, 20pcs M5X4 flat head hex socket screws, 1pc 2.5 Allen key(15mm), 1pc 2.5 Allen key(20mm)

$ ** /SET
Login to view price
Applicable product model: LE40 Installation method: L-shaped 120° splicing Material process: Al6063-T5/spraying Diffuser Nature:Diffuser Light source: NO Size: L200*W200.7*H40.0mm [Inch size:L7.87''*W7.90''*H1.57''] Others:Including 4pcs 180° sliver straight splicing bar, 12pcs M5X4 headless hex socket screws, 1pc 2.5 Allen key(15mm)
$ ** /SET
Login to view price
Applicable product model: LE40 Installation method: L-shaped 60° splicing Material process: Al6063-T5/spraying Diffuser Nature:Diffuser Light source: NO Size: L200*W173.2*H40.0mm [Inch size:L7.87''*W6.82''*H1.57''] Others:Including 4pcs 180° sliver straight splicing bar, 12pcs M5X4 headless hex socket screws, 1pc 2.5 Allen key(15mm)
$ ** /SET
Login to view price
Applicable product model: LE40 Installation method: L-shaped 90° splicing Material process: Al6063-T5/spraying Diffuser Nature:Diffuser Light source: NO Size: L200*W200*H40.0mm [Inch size:L7.87''*W7.87''*H1.57''] Others:Including 4pcs 180° sliver straight splicing bar, 12pcs M5X4 headless hex socket screws, 1pc 2.5 Allen key(15mm)
$ ** /SET
Login to view price
Applicable product model: LE40 Installation method: X-shaped 90° splicing Material process: Al6063-T5/spraying Diffuser Nature:Diffuser Light source: NO Size: L400*W400*H40.0mm [Inch size:L15.75''*W15.75''*H1.57''] Others:Including 4pcs 180° sliver straight splicing bar, 12pcs M5X4 headless hex socket screws, 1pc 2.5 Allen key(15mm)
$ ** /SET
Login to view price
