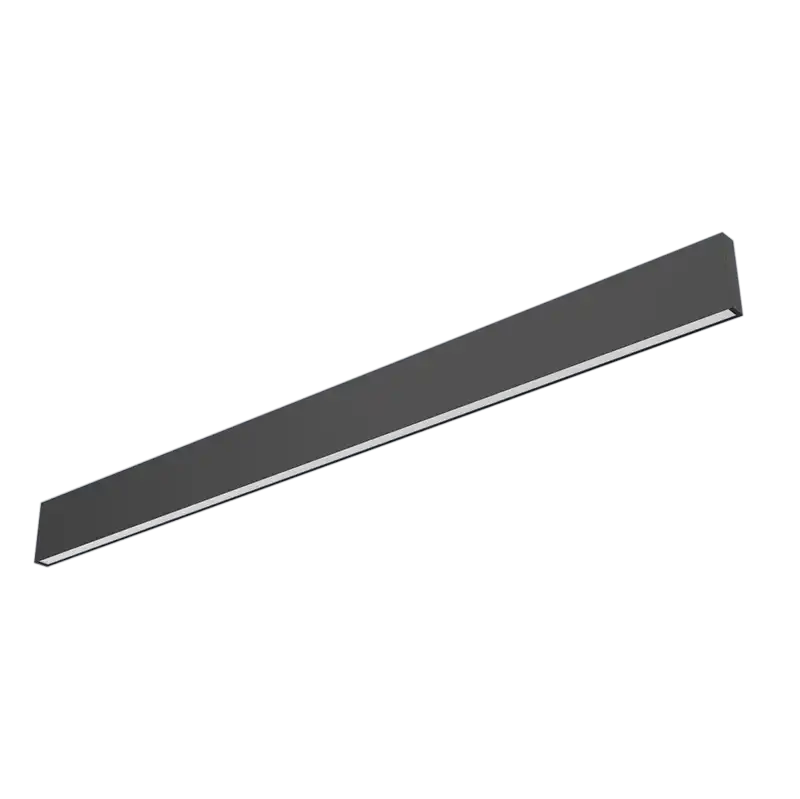

LH25FD luminaire
luminaire entry cable 2M
no power supply
Including 1set pendant accessories(PE-H)
(1set pendant accessory include1PCS 2m wire rope, 1PCS 2m 2-in-1 cable, 2PCS small-head cable lockers, 2PCS fixing plate, 2PCS PM3*13.5 screws, 2PCS crimping screws)
- EN
BASIC CONFIGURATION
Features
·Material:AL6063-T5,spraying surface
·Coating:Black(RAL9005),White(RAL9003)
·Lighting direction: upward & downward
·Light efficiency:90LM/W
·Dimming method:no power supply
·Length:600mm/1200mm/1500mm/1800mm/2400mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500 optional
·Input voltage:DC24V
·Application: Indoor
·Installation:Pendant
·IP grade:IP20
·Certification:CE、ROHS、Reach
·Warranty:5 years
·Coating:Black(RAL9005),White(RAL9003)
·Lighting direction: upward & downward
·Light efficiency:90LM/W
·Dimming method:no power supply
·Length:600mm/1200mm/1500mm/1800mm/2400mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500 optional
·Input voltage:DC24V
·Application: Indoor
·Installation:Pendant
·IP grade:IP20
·Certification:CE、ROHS、Reach
·Warranty:5 years
LH25FD
Reset selected
Package
COLORS Individual
Light Source Type
Flexible strip
Length
Customized Length
600mm
2400mm
1800mm
1500mm
1200mm
End Cap Style
Holeless end cap
Dimming Method
No Power
Diffuser Nature
Diffuser
Color
White
Black
Carrier Style
No carrier
Typ.power
40W/M
CCT
2700K
3000K
3500K
4000K
5000K
6500K
CRI
>80
>90
Label Type
Customized Label
COLORS
Qty
$ ** /SET
Ordering Code:
LLS-LH25FDXS-F40X-D
Common Accessories
Power Supply
Splicing accessory
Installation accessory
