BASIC CONFIGURATION

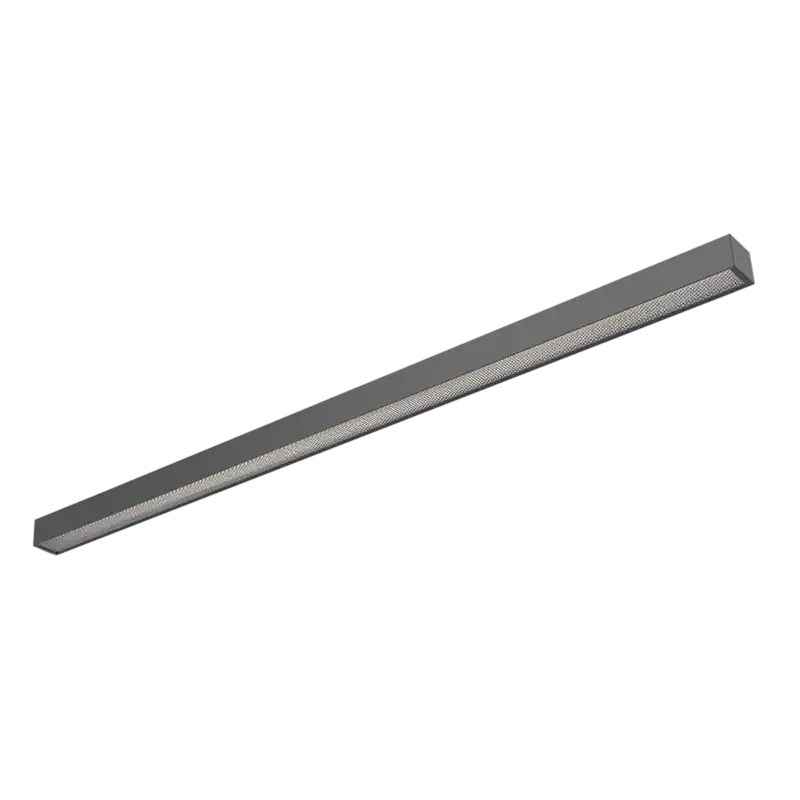

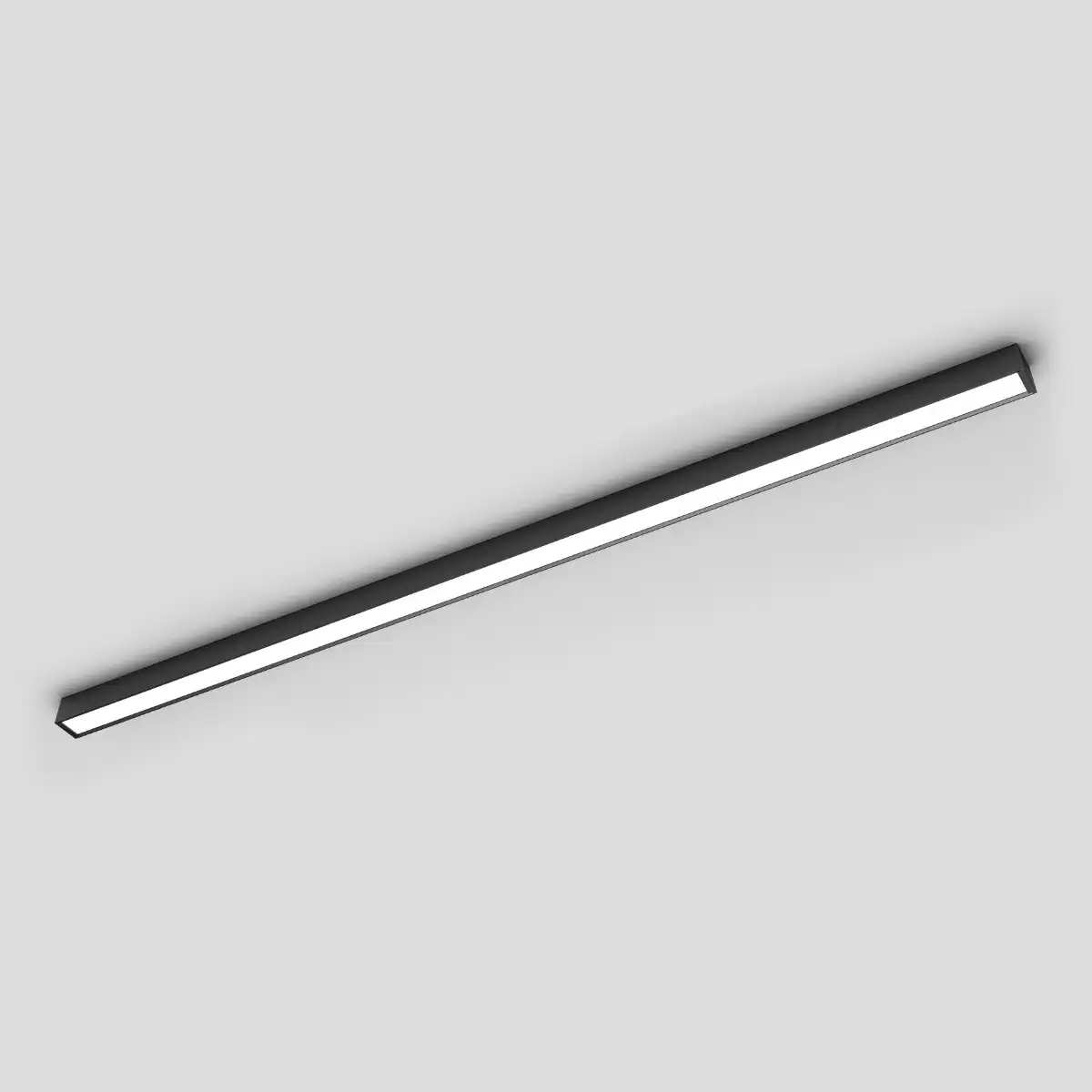

LM25FP luminaire
luminaire entry cable 2M
no power supply
Including  ceiling accessories
(luminaire<1400mm,with 2pcs ceiling accessories,2 pcs screws,2 pcs expansion tube
1400mm≤luminaire<2000mm,with 3pcs ceiling accessories,3 pcs screws,3 pcs expansion tube
2000mm≤luminaire<2500mm, with 4pcs ceiling accessories,4 pcs screws,4 pcs expansion tube)

Features

·Material:AL6063-T5,spraying surface
·Coating:Black(RAL9005),White(RAL9003)
·Lighting direction: downward
·Light efficiency:105LM/W
·Dimming method:no power supply
·Length:200mm/600mm/1200mm/1500mm/1800mm/2400mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500 optional
·Input voltage:DC24V
·Application: Indoor
·Installation:Ceiling
·IP grade:IP20
·Certification:CE、ROHS、Reach
·Warranty:5 years

LM25FP_Luminaires

Linear Lights > Luminaires > SLIM25 > Ceiling

Reset selected

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 5000K

  • 6500K

CRI

  • >80

  • >90

Typ.power

  • 20W/M

Label Type

  • COLORS

  • Customized Label

Package

  • COLORS Individual

Diffuser Nature

  • Prismatic

Carrier Style

  • No carrier

Color

  • Yellow

  • White

  • Rose gold

  • Matt Orange

  • Matt Green

  • Matt Blue

  • Champagne Gold

  • Black

Light Source Type

  • Flexible strip

Length

  • 600mm

  • 1200mm

  • 1500mm

  • 1800mm

  • 2400mm

  • Customized Length

Dimming Method

  • No Power

End Cap Style

  • Holeless end cap

Ordering Code:

LLS-LM25FPXS-F20X-D

Qty

$ ** /SET

Ordering Code:

LLS-LM25FPXS-F20X-D
