BASIC CONFIGURATION

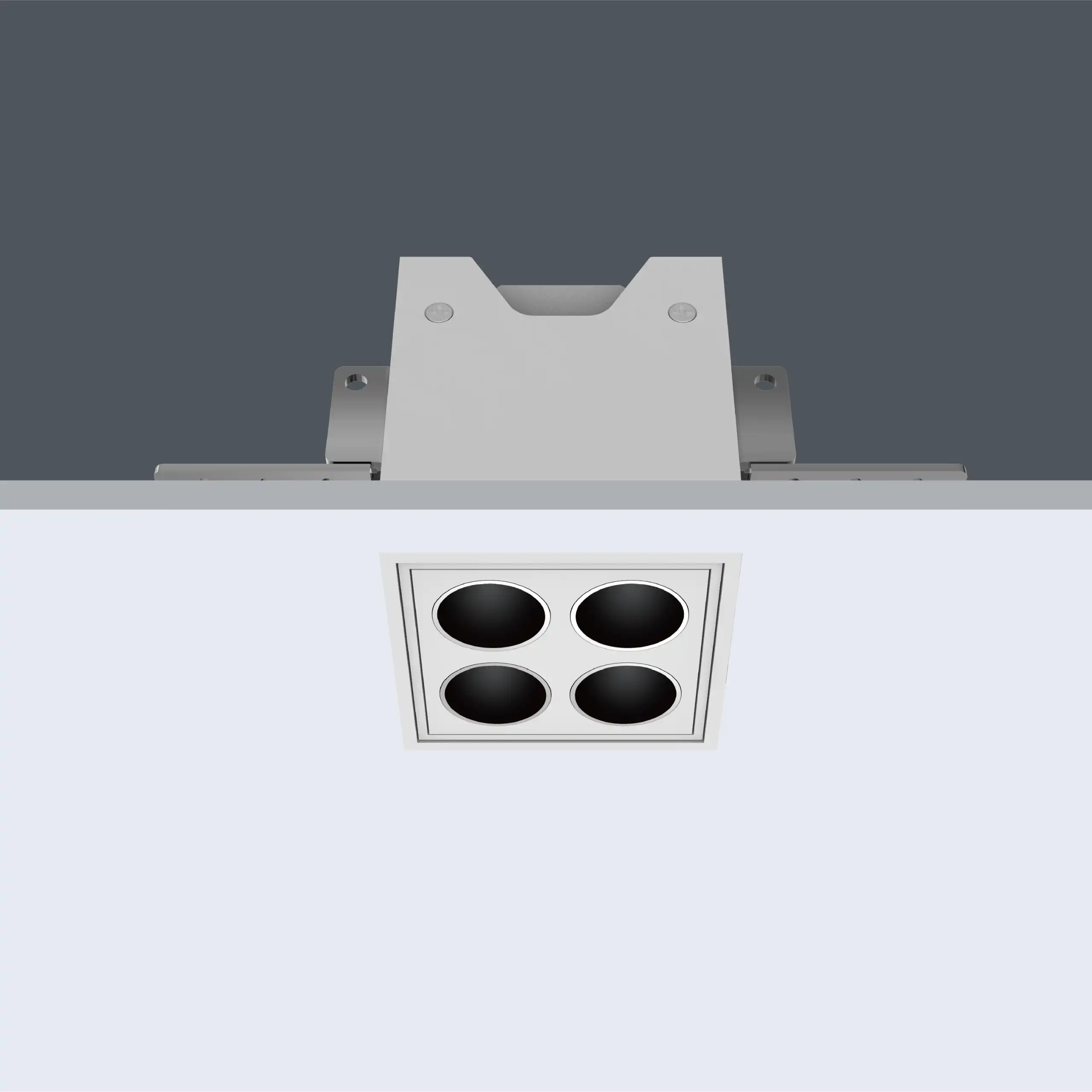

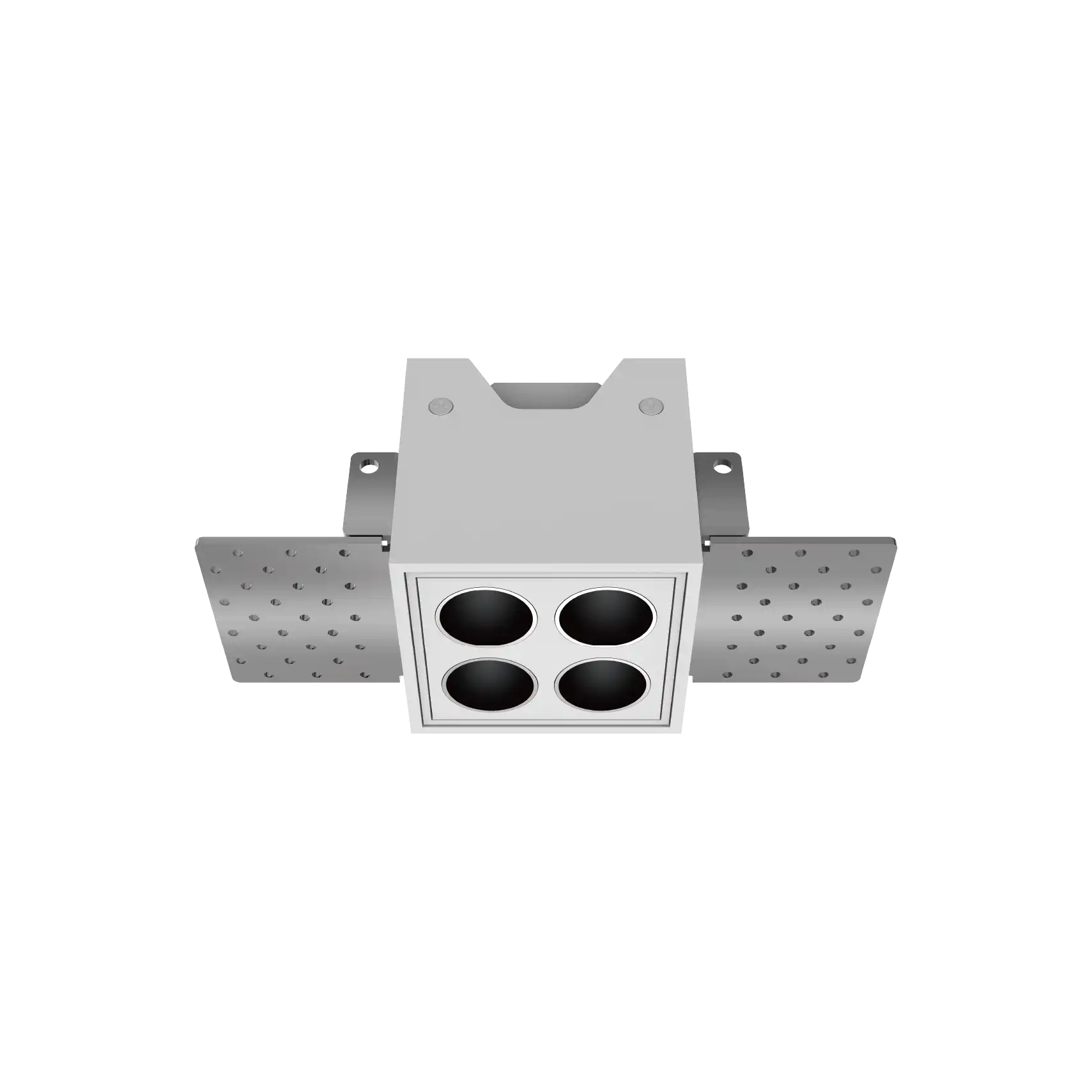

GLE-MR35G04 luminaire
Including power supply and recessed installation accessories

Features

·Material:AL6063-T5,spraying surface
·Coating:White(RAL9003)、Black
·Lighting direction: downward
·Light efficiency:68LM/W
·Beam angle:30°/45° optional
·UGR :≤13(X=4H,Y=8H)
·Dimming method:Non/1-10V/DALI optional
·Color tolerance:SDCM≤3(ANSI)
·CRI:90
·CCT:2700/3000/3500/4000K optional
·Input voltage:AC220-240V
·Application: Indoor
·Installation:Trimless recessed
·Power installation:External
·IP grade:IP20
·Certification:CE、ROHS、Reach
·Warranty:3 years

GLE-MR35G04

Downlights > Recessed > Magicube > Trimless recessed

Reset selected

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

CRI

  • >90

Typ.power

  • 10W

Label Type

  • COLORS

  • Customized Label

Diffuser Nature

  • 30°

  • 45°

Color

  • White

  • Black

Dimming Method

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

Ordering Code:

9

Qty

$ ** /SET

Ordering Code:

9
