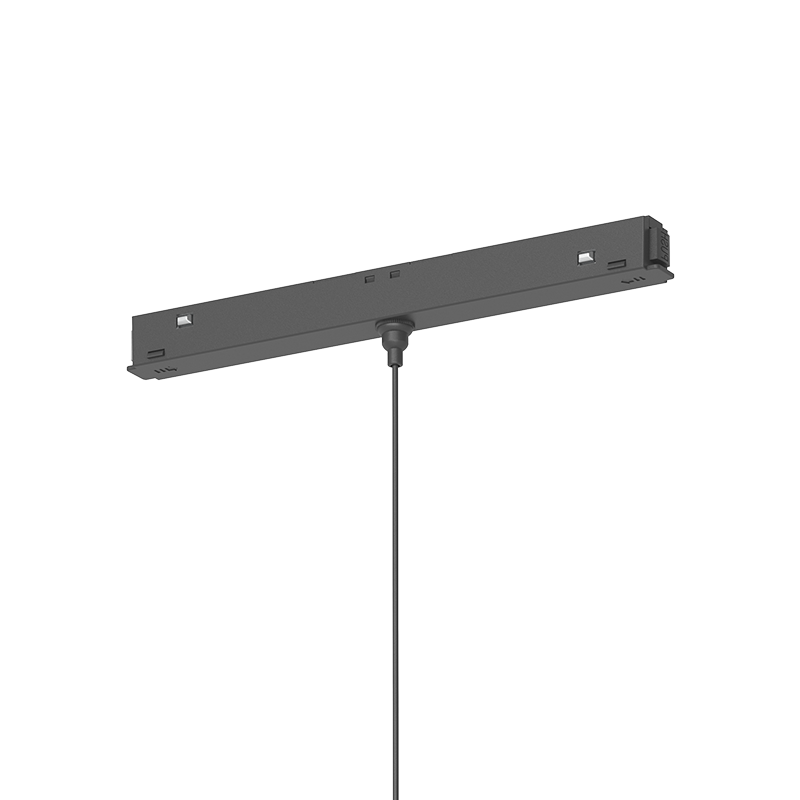

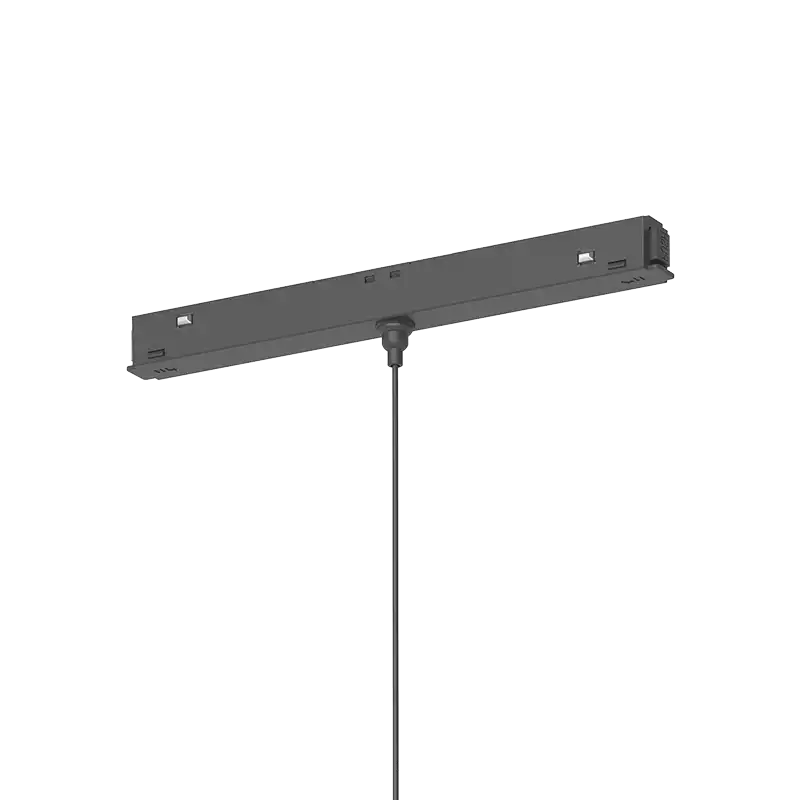

MT20I-30_Module
Required track installation
Including electrical conector
Only some tracks of listed brands are compatible：Powergear, Stucchi
- EN
BASIC CONFIGURATION
Features
· Material: AL6063-T5, spraying surface
· Coating: Black (RAL9005)/White (RAL9003)
· Length: 300mm optional
· IP grade: IP20
· CCT: 2700K,3000K,4000K optional
· CRI: 90
· SDCM(Light source): ≤3 Step(ANSI)
· Beam angle: 24°,36°
· Light efficiency: 66LM/W
· Input voltage: DC24-48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years
· Coating: Black (RAL9005)/White (RAL9003)
· Length: 300mm optional
· IP grade: IP20
· CCT: 2700K,3000K,4000K optional
· CRI: 90
· SDCM(Light source): ≤3 Step(ANSI)
· Beam angle: 24°,36°
· Light efficiency: 66LM/W
· Input voltage: DC24-48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years
MT20I-30
Reset selected
Length

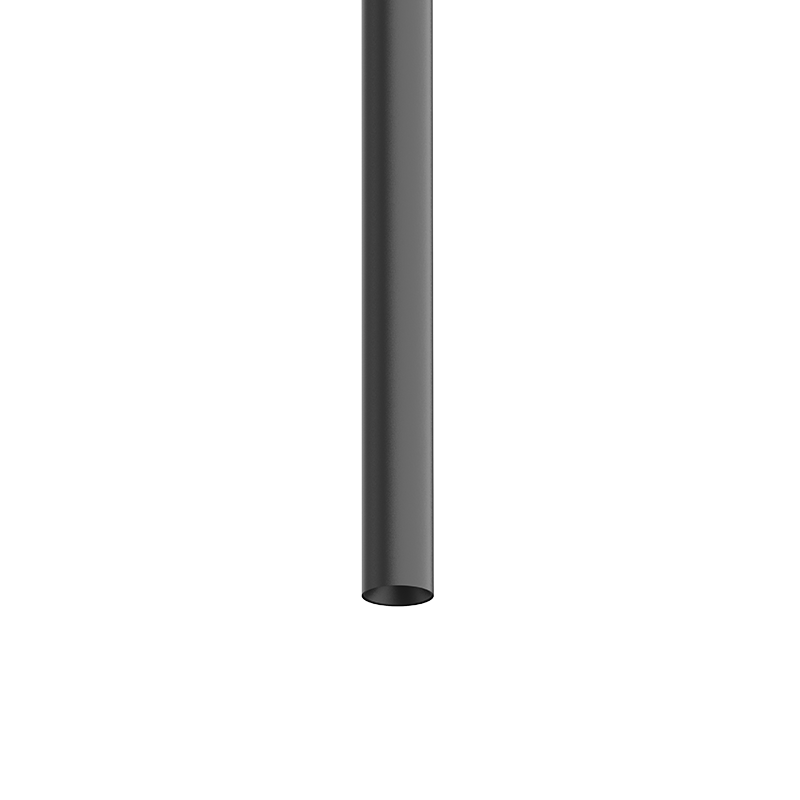

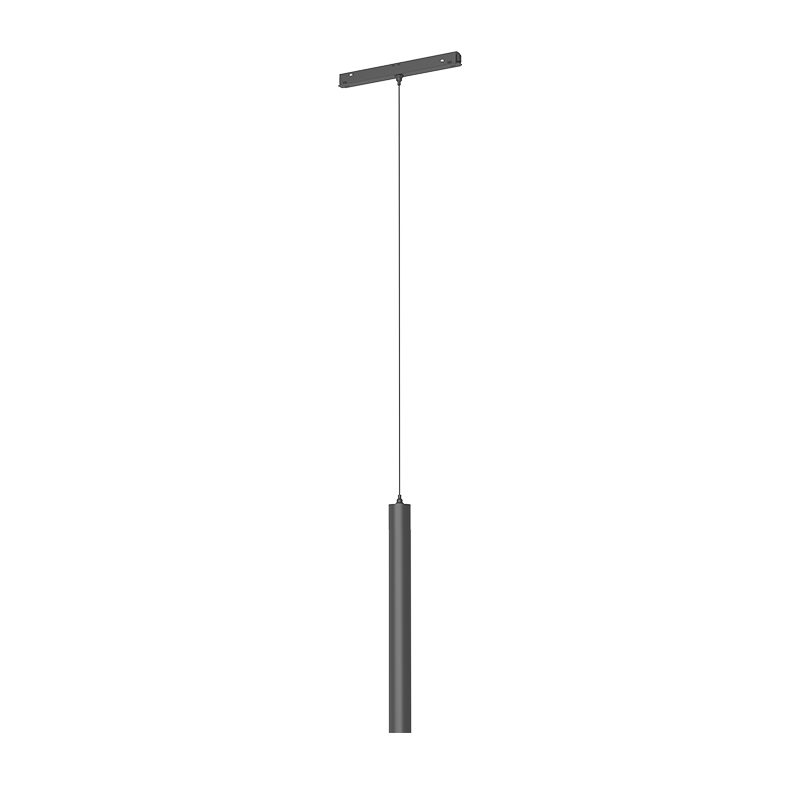

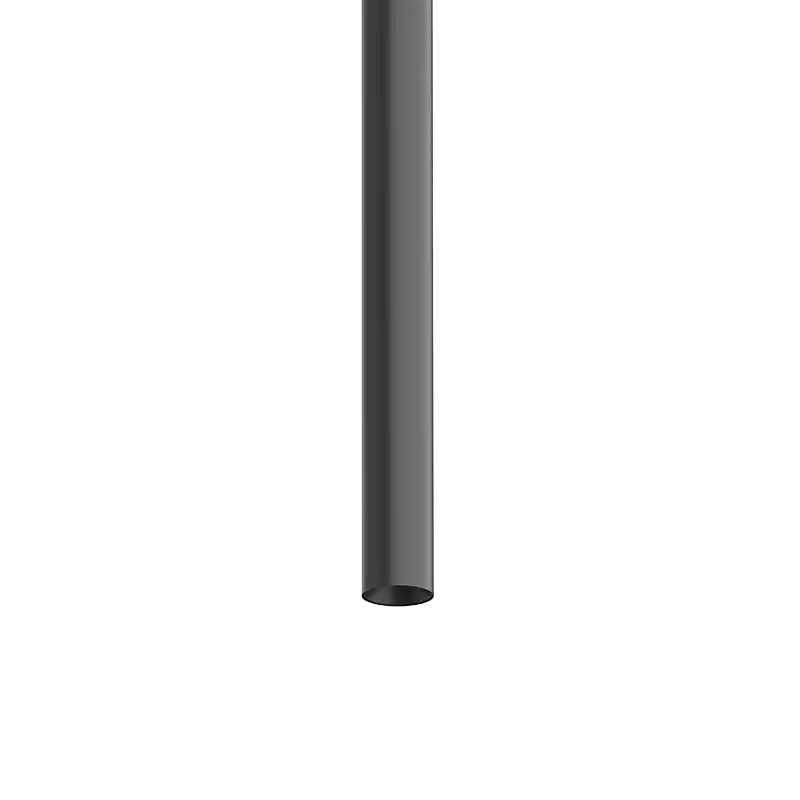

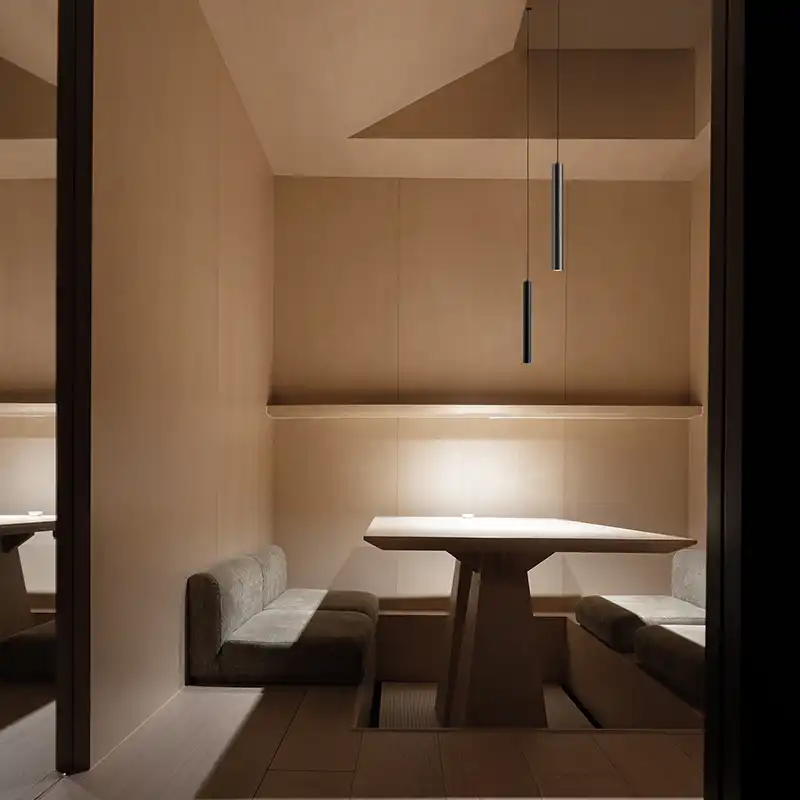

φ30mm Pendant light
Typ.power
5W
Beam Angle
24°
36°
Color
White
Black
Dimming Method
Non-Dimming
DALI Dimming
Tuya-Bluetooth Mesh Dimming
CRI
>90
CCT
2700K
3000K
4000K
Input Voltage
DC24-48V
Wire Length
900mm
700mm
500mm
1500mm
1300mm
1100mm
User Manual
EN
Label Type
COLORS
Customized Label
Qty
$ ** /SET
Ordering Code:
TLS-MT20I30-0590
Common Accessories
Controller

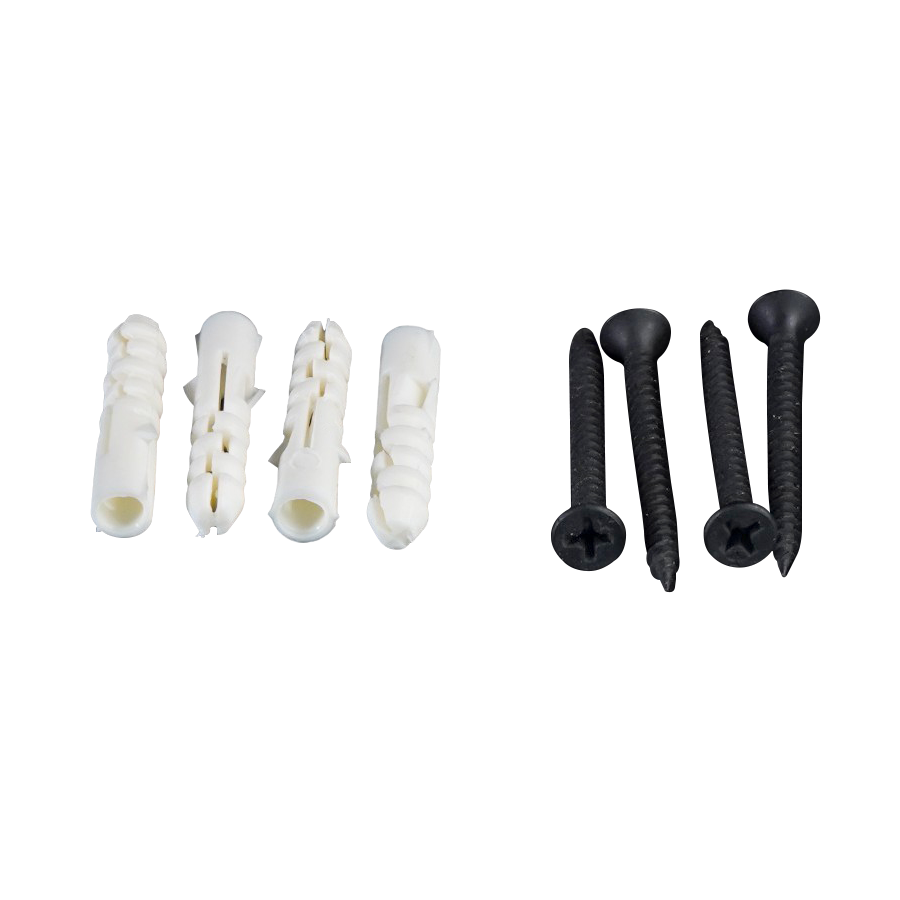

Installation accessory
End cap accessory
Standard Corner
Power Supply
Splicing accessory
Track
Power feeder
