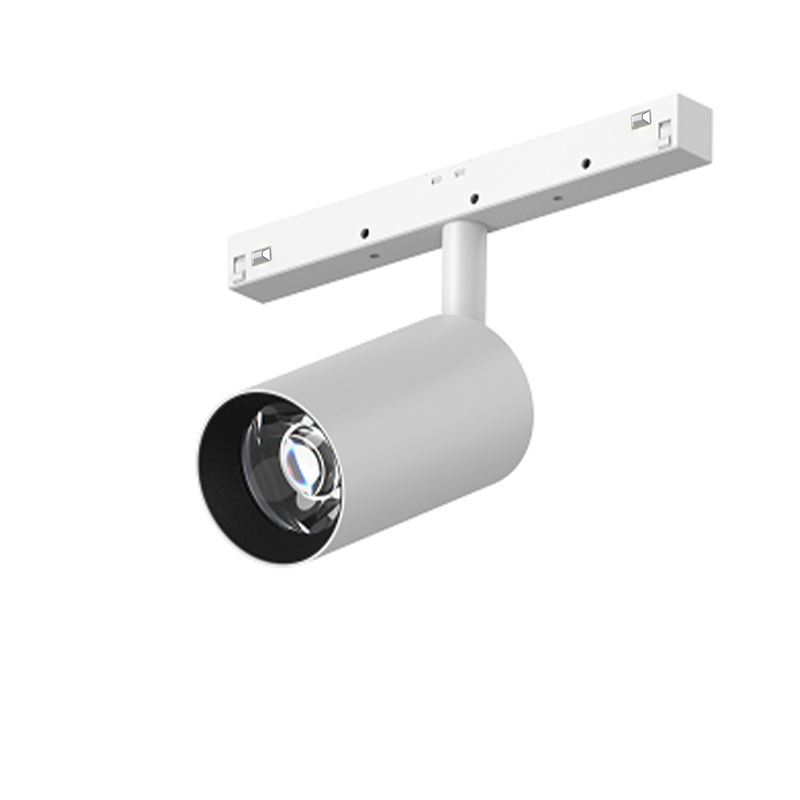

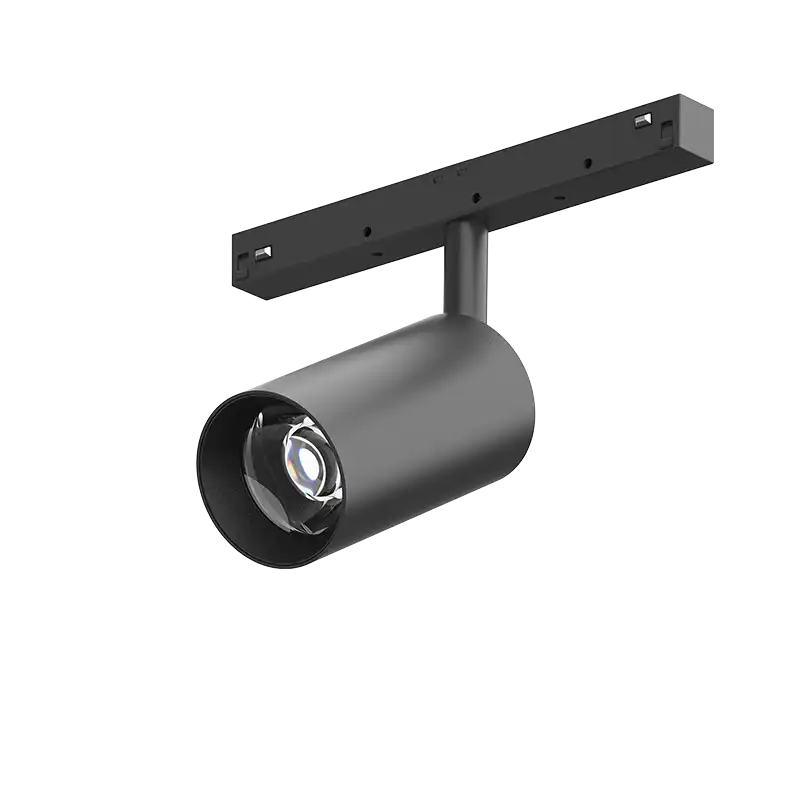

MT20S-52

BASIC CONFIGURATION

MT20S-52_Module
Required track installation
Including electrical conector
Only some tracks of listed brands are compatible：Powergear, Stucchi

Features

· Material:AL1070,spraying surface
· Coating: Black (RAL9005)/White (RAL9003)
· IP grade: IP20
· CCT: 2700K,3000K,4000K,3000K-3800K-5000K optional
· CRI: 90
· SDCM(Light source):≤3 Step(ANSI)
· Beam angle: 15°,20°,24°,36°,38°,50° optional
· Light efficiency: 91LM/W optional
· Input voltage: DC24-48V,DC48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI

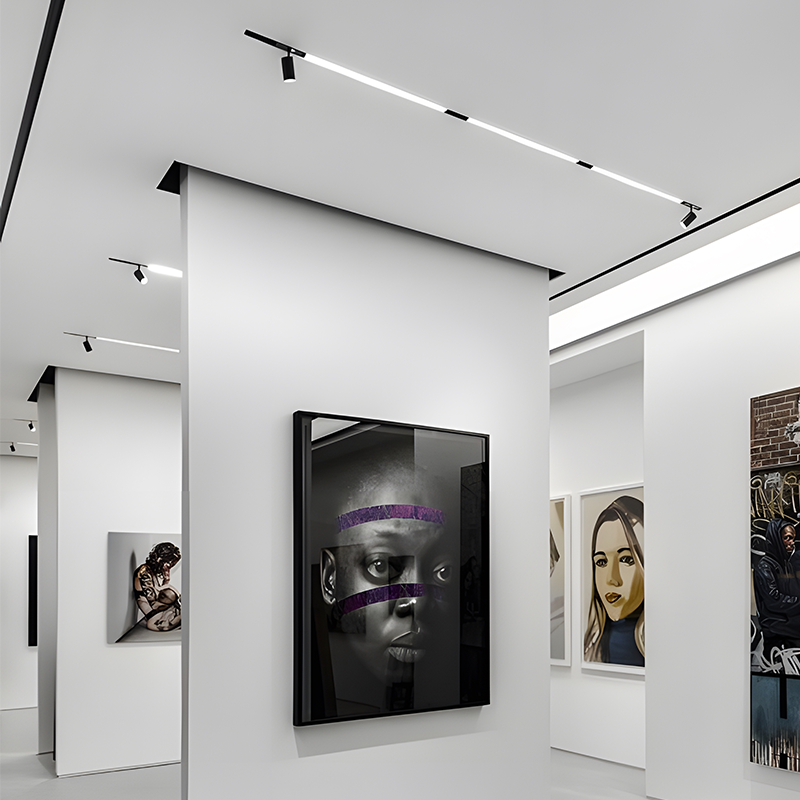

· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years

MT20S-52

Smart recommendations

Reset selected

Version

Normal
3 CCT tunable(Dial switch)

Length

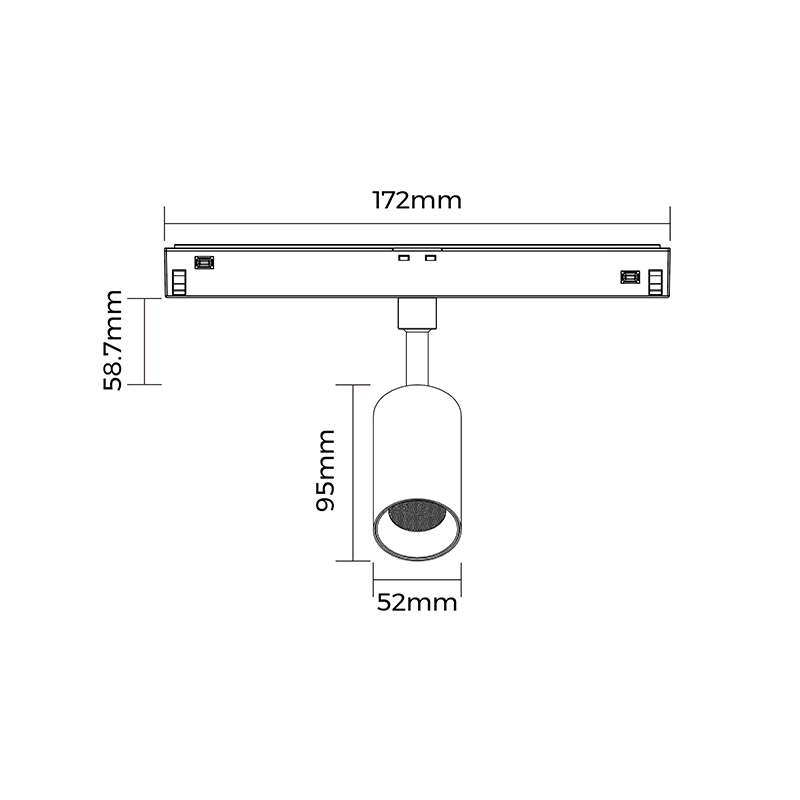

φ52mm Spotlight

Typ.power

Beam Angle

15°
20°
24°
36°
38°
50°

Color

White
Black

Dimming Method

Non-Dimming
DALI Dimming
Tuya-Bluetooth Mesh Dimming

CRI

CCT

2700K
3000K
4000K
3000K-3800K-5000K

Inner Ring Color

Black

Input Voltage

DC48V
DC24-48V

Optical Accessory

No Honeycomb
Honeycomb

User Manual

Label Type

COLORS
Customized Label

Ordering Code:

TLS-MT20S52-1090B

Qty

$ ** /SET

Ordering Code:

TLS-MT20S52-1090B
