MT20SZ-65_Module
Required track installation
Including electrical conector
Only some tracks of listed brands are compatible：Powergear, Stucchi
- EN
BASIC CONFIGURATION
Features
· Material:AL1070,spraying surface
· Coating: Black (RAL9005)/White (RAL9003)
· IP grade: IP20
· CCT: 2700K,3000K,4000K optional
· CRI: 90
· SDCM(Light source):≤3 Step(ANSI)
· Beam angle: 15°-45° adjustable
· Light efficiency: 78LM/W optional
· Input voltage: DC24-48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years
· Coating: Black (RAL9005)/White (RAL9003)
· IP grade: IP20
· CCT: 2700K,3000K,4000K optional
· CRI: 90
· SDCM(Light source):≤3 Step(ANSI)
· Beam angle: 15°-45° adjustable
· Light efficiency: 78LM/W optional
· Input voltage: DC24-48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years
MT20SZ-65
Reset selected
Length

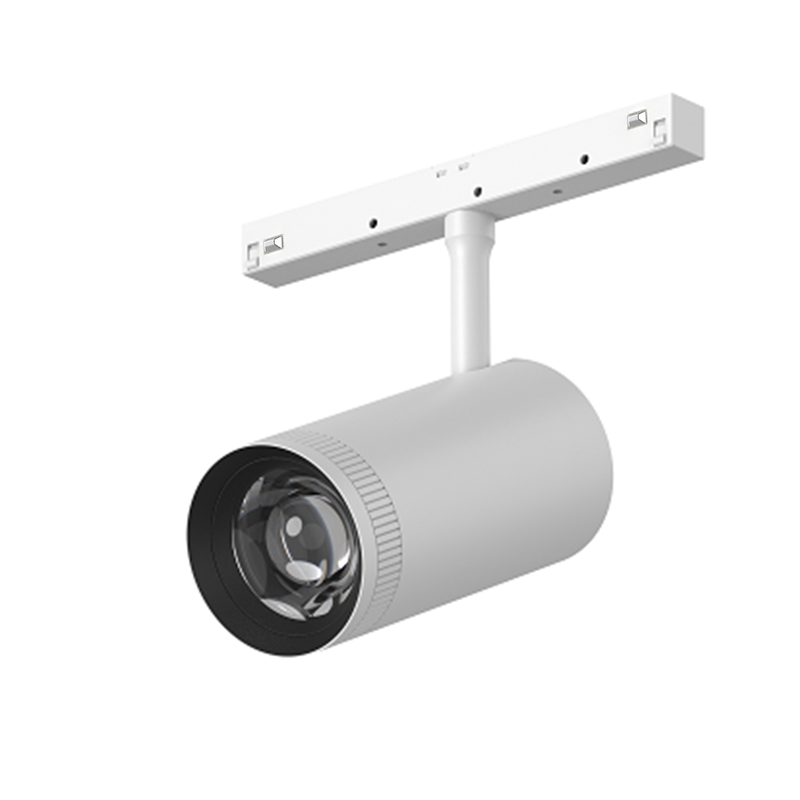

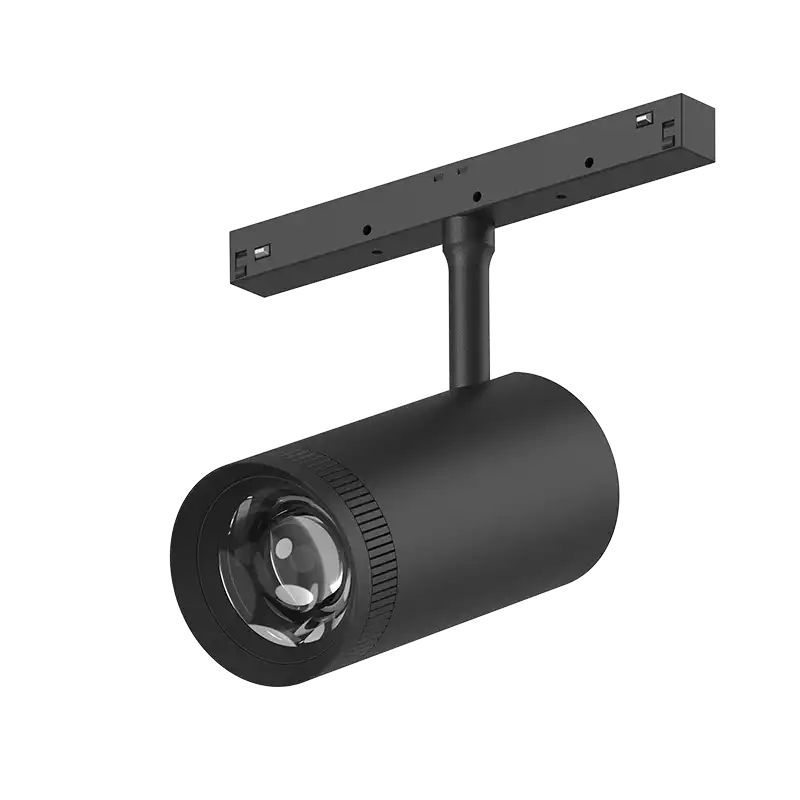

φ65mm Zoom Spotlight
Typ.power
12W
Beam Angle
15°-45° Angle Adjustable
Color
White
Black
Dimming Method
Non-Dimming
DALI Dimming
Tuya-Bluetooth Mesh Dimming
CRI
>90
CCT
2700K
3000K
4000K
Inner Ring Color
Black
Input Voltage
DC24-48V
User Manual
EN
Label Type
COLORS
Customized Label
Qty
$ ** /SET
Ordering Code:
TLS-MT20SZ65-1290B1B
Common Accessories
Controller
Installation accessory
End cap accessory
Standard Corner
Power Supply
Splicing accessory
Track
Power feeder
