BASIC CONFIGURATION

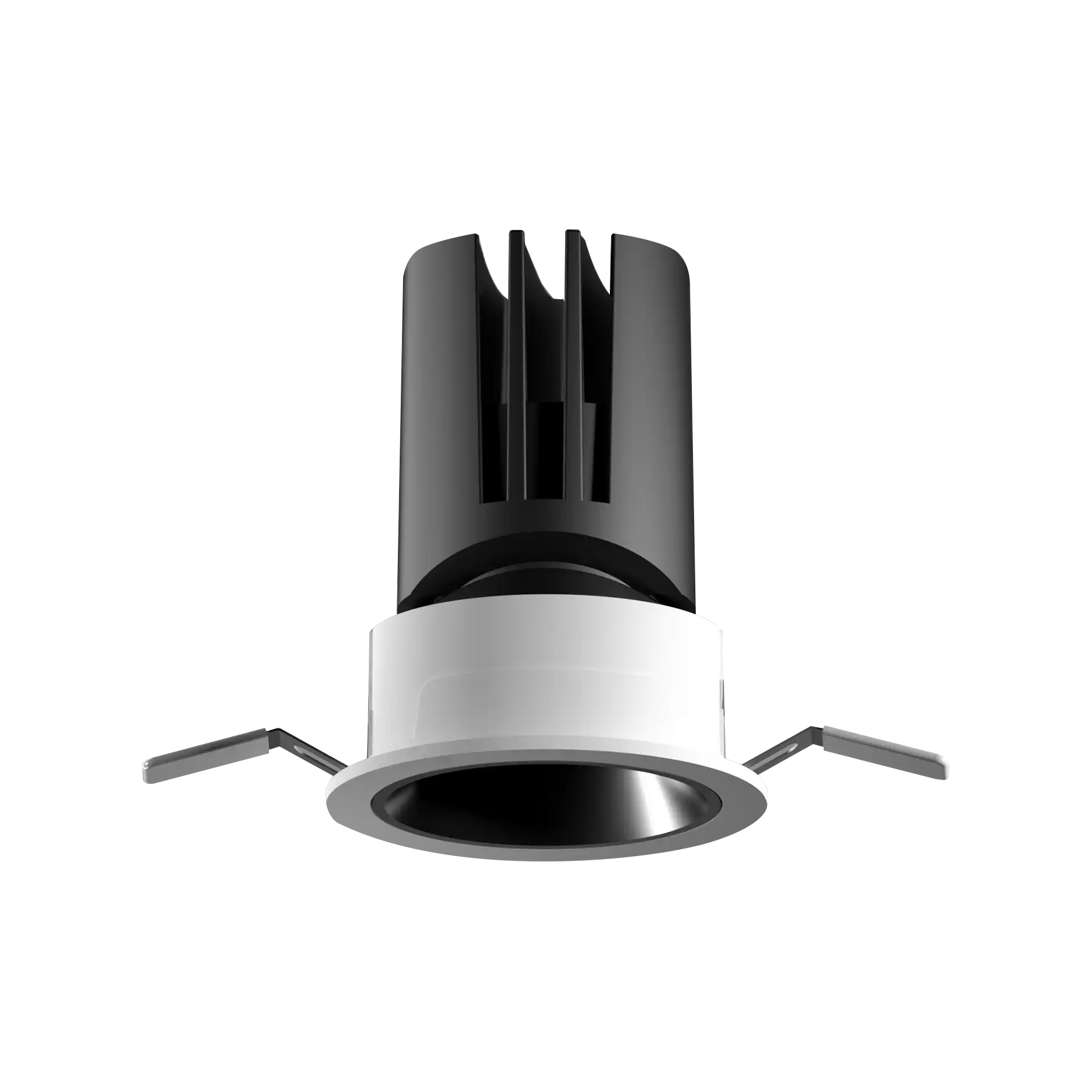

P2E75L luminaire
Power supply optional
no application accessories

Features

·Material: AL6063-T5,spraying surface
·Coating: Black(RAL9005)、White(RAL9003) optional
·Lighting direction: downward
·Light efficiency: 52 LM/W
·Spotlight angle: 18°/24°/36° optional
·UGR: ≤ 19 (X=4H, Y=8H)
·Opening size: φ75mm
·Dimming method: Non/ DALI/ 1-10V/No power optional
·Color tolerance: SDCM≤3(ANSI)
·CRI: 90
·CCT: 2700/3000/4000K optional
·Input voltage: AC220-240V
·Application: Indoor
·Power installation: External
·Installation: Recessed
·IP grade: IP20
·Certification: CE、UKCA、ROHS、Reach
·Warranty: 3 years

P2E75L

Reset selected

Length
  • φ75mm Spotlight

Typ.power
  • 8W

  • 12W

  • 10W

Beam Angle
  • 36°

  • 24°

  • 18°

Color
  • White(Border)

  • Black(Border)

Dimming Method
  • Non-Dimming

  • No Power

  • DALI Dimming

  • 1-10V Dimming

CRI
  • >90

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

Reflector Color
  • Black chrome

User Manual
  • EN

  • CN

Label Type
  • Customized Label

  • COLORS

Ordering Code:

DL-P2E75L9

Qty

$ ** /SET

Ordering Code:

DL-P2E75L9
