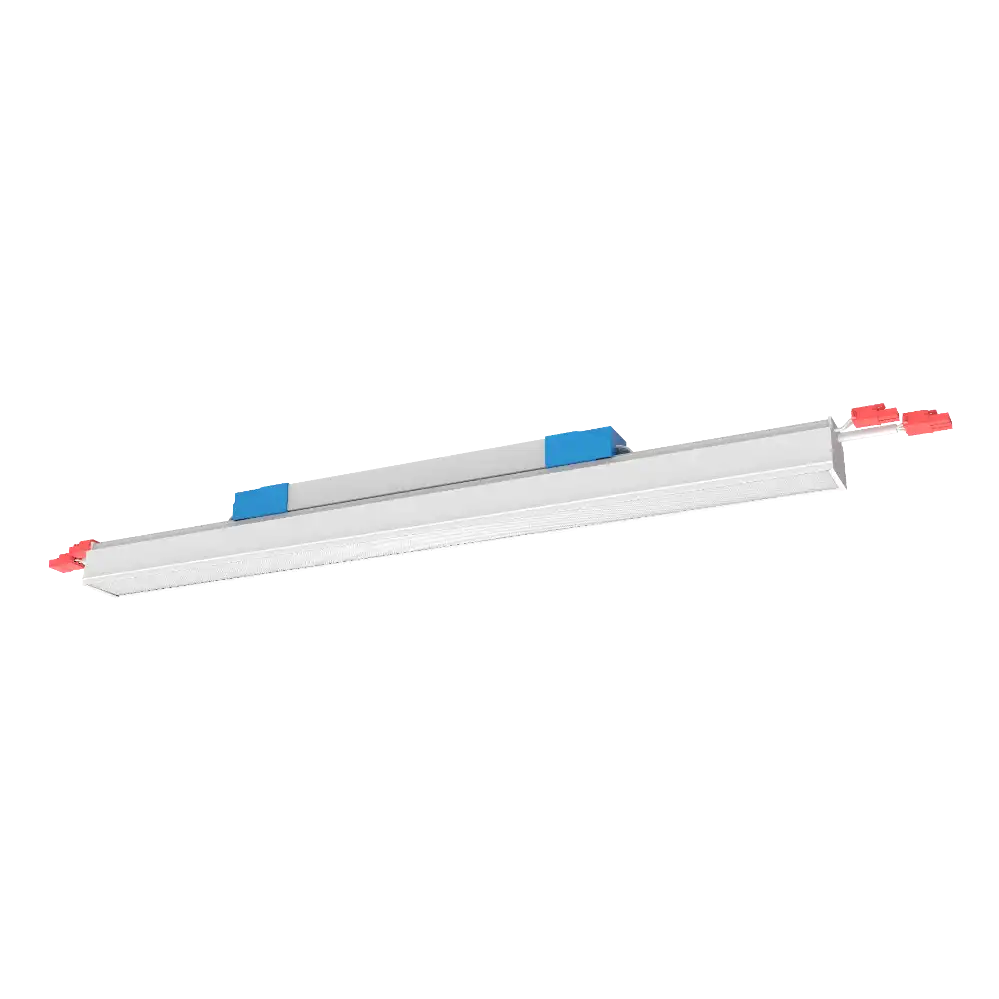

S40FP_Module(AC220V)
Including power supply
no application accessories
- EN
BASIC CONFIGURATION
Features
·Material:AL6063-T5，spraying surface
·Coating:Black(RAL9005)、White(RAL9003)
·Lighting direction: downward
·Light efficiency:90LM/W(Normal/Emergency)、120LM/W(High efficiency)
·UGR: ≤ 19 (X=4H, Y=8H)
·Dimming method:Non/ DALI-2+PUSH/ 1-10V optional
·Length:600mm/1200mm/1500mm/1800mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500/3000-6500K optional
·Input voltage:AC200-240V
·Application: Indoor
·Installation:Pendant、Ceiling
·IP grade:IP20
·Certification:CE、UKCA、ROHS、Reach
·Warranty:5 years (Emergency model: 3 years)
·Coating:Black(RAL9005)、White(RAL9003)
·Lighting direction: downward
·Light efficiency:90LM/W(Normal/Emergency)、120LM/W(High efficiency)
·UGR: ≤ 19 (X=4H, Y=8H)
·Dimming method:Non/ DALI-2+PUSH/ 1-10V optional
·Length:600mm/1200mm/1500mm/1800mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500/3000-6500K optional
·Input voltage:AC200-240V
·Application: Indoor
·Installation:Pendant、Ceiling
·IP grade:IP20
·Certification:CE、UKCA、ROHS、Reach
·Warranty:5 years (Emergency model: 3 years)
S40FP
Reset selected
Package
COLORS Individual
Light Source Type
Constant Current Rigid PCB
Length
600mm
1800mm
1500mm
1200mm
End Cap Style
Holeless end cap
Dimming Method
Non-Dimming
DALI Dimming
1-10V Dimming
Diffuser Nature
Prismatic
Color
White
Black
Carrier Style
No carrier
Version
Normal
High efficiency
Emergency
3 CCT tunable(Dial switch)
Typ.power
40W
34W
28W
14W
CCT
3000K-6500K
2700K
3000K
3500K
4000K
5000K
6500K
CRI
>80
>90
Label Type
Customized Label
COLORS
Qty
$ ** /SET
Ordering Code:
TLS-S40FPXS-T-D
Common Accessories
Installation accessory
Power feeder
End cap accessory
Splicing accessory
Standard Corner
