BASIC CONFIGURATION

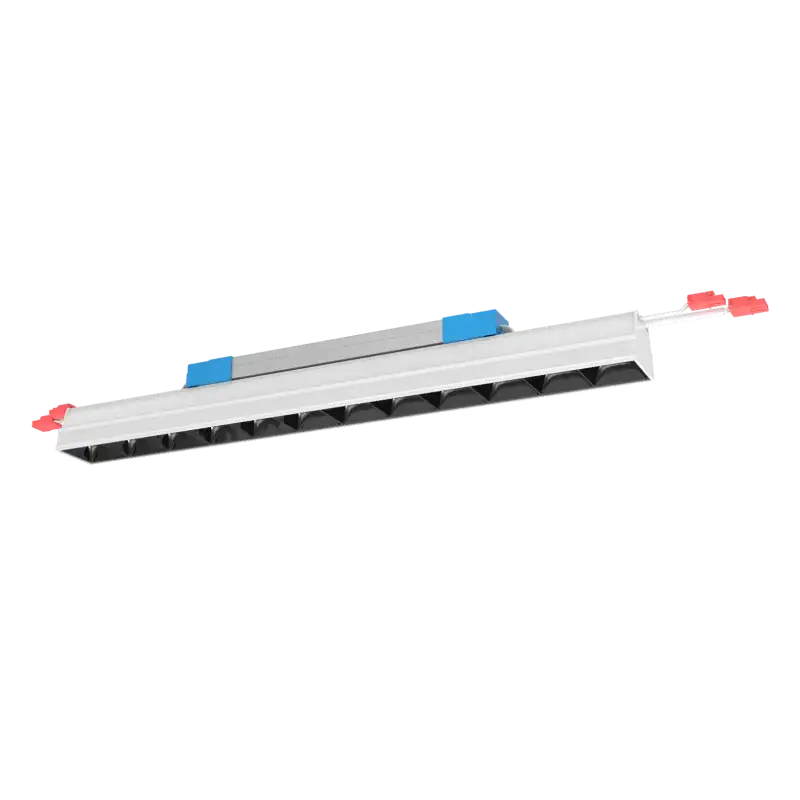

S60G_Module(AC220V)
Including power supply
no application accessories

Features

·Material:AL6063-T5,spraying surface
·Coating:Black(RAL9005)、White(RAL9003)
·Lighting direction: downward
·Light efficiency:85LM/W
·Grille angle:24°/38° optional
·UGR: ≤ 10 (X=4H, Y=8H)
·Dimming method:Non/ DALI-2+PUSH/ 1-10V optional
·Length:600mm/1200mm/2400mm optional (other length on request)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500/3000-6500 optional
·Input voltage:AC220-240V
·Application: Indoor
·Installation:Pendant、Ceiling、Trimless recessed
·IP grade:IP20
·Certification:CE、CB、UKCA、SAA、ROHS、Reach
·Warranty:5 years

S60G_Module(AC220V)

Linear Lights > Modular > TLS-S60 > Linear module

Reset selected

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 5000K

  • 6500K

  • 2700K-6500K

CRI

  • >80

  • >90

Typ.power

  • 12W

  • 25W

  • 50W

Label Type

  • COLORS

  • Customized Label

Package

  • COLORS Individual

Version

  • Normal

  • 3 CCT tunable(Dial switch)

Diffuser Nature

  • Grating 24°

  • Grating 38°

Carrier Style

  • No carrier

Color

  • White

  • Black

Light Source Type

  • Constant Current Rigid PCB

Length

  • 600mm

  • 1200mm

  • 2400mm

Dimming Method

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

End Cap Style

  • Holeless end cap

Ordering Code:

XS-T-D

Qty

$ ** /SET

Ordering Code:

XS-T-D
