BASIC CONFIGURATION

S60HP_Module(AC220V)
Including power supply
no application accessories

Features

·Material:AL6063-T5，spraying surface
·Coating:Black(RAL9005)、White(RAL9003)
·Lighting direction: downward
·Light efficiency:60LM/W
·UGR: ≤ 19 (X=4H, Y=8H)
·Dimming method:Non/ DALI-2+PUSH/ 1-10V optional
·Length:600mm/1200mm/2400mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500/3000-6500 optional
·Input voltage:AC200-240V
·Application: Indoor
·Installation:Pendant、Ceiling、Trimless recessed
·IP grade:IP20
·Certification:CE、CB、UKCA、SAA、ROHS、Reach
·Warranty:5 years

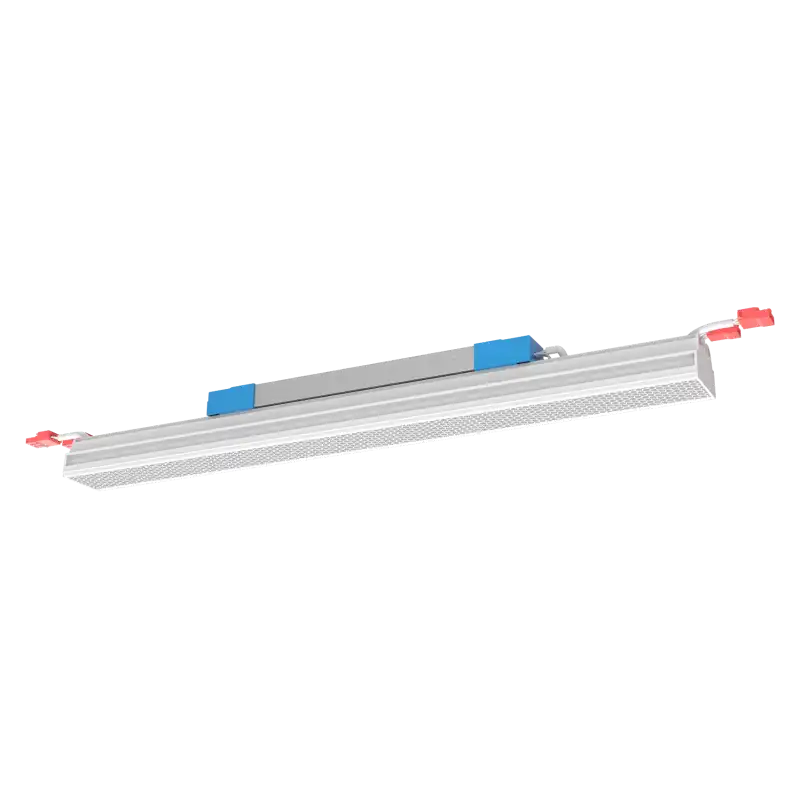

S60HP

Reset selected

Version

  • Normal

  • 3 CCT tunable(Dial switch)

Diffuser Nature

  • Honeycomb

Length

  • 600mm

  • 2400mm

  • 1200mm

Typ.power

  • 68W

  • 34W

  • 17W

Carrier Style

  • No carrier

Color

  • White

  • Black

Dimming Method

  • Non-Dimming

  • DALI Dimming

  • 1-10V Dimming

CRI

  • >80

  • >90

CCT

  • 3000K-6500K

  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 5000K

  • 6500K

Light Source Type

  • Constant Current Rigid PCB

End Cap Style

  • Holeless end cap

Label Type

  • Customized Label

  • COLORS

Package

  • COLORS Individual

Ordering Code:

TLS-S60HPXS-T-D

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

TLS-S60HPXS-T-D
