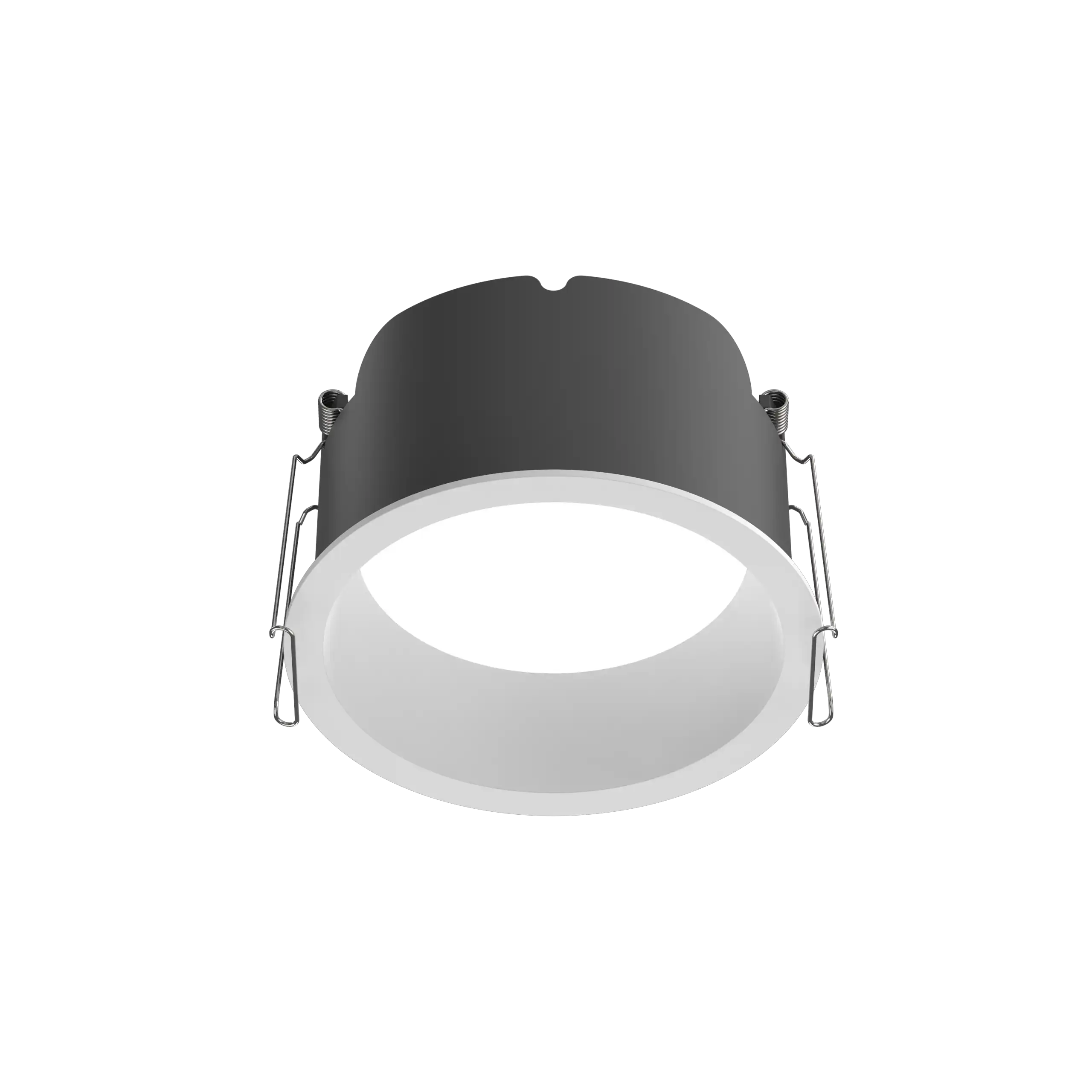

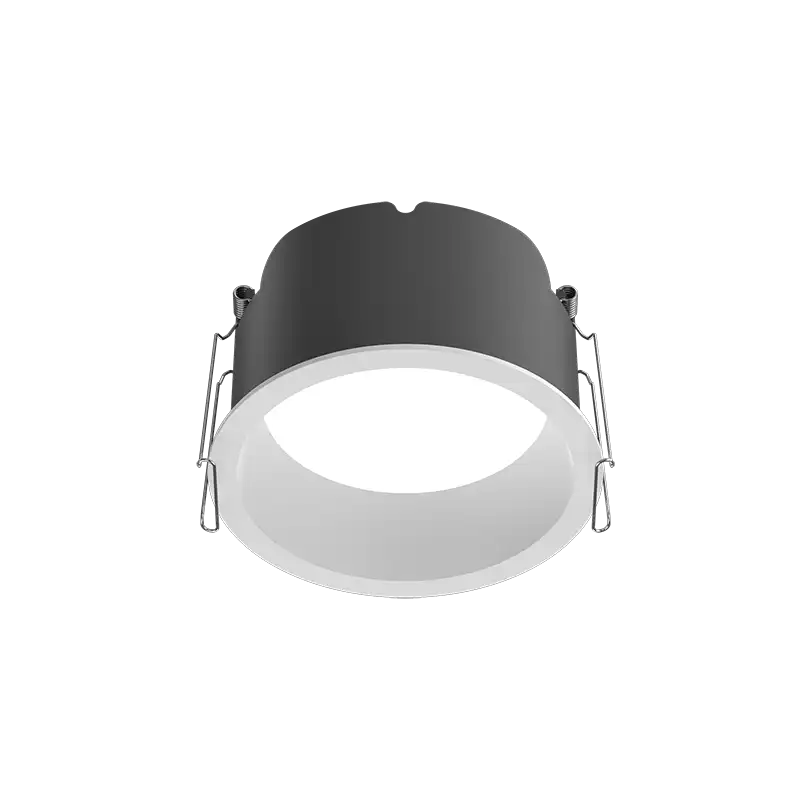

SE113D luminaire
Power supply optional
no application accessories
- EN
BASIC CONFIGURATION
Features
·Material:AL6063-T5，spraying surface
·Coating:White(RAL9003) optional
·Lighting direction: downward
·Light efficiency:100LM/W
·Spotlight angle:80° optional
·Opening size:φ113mm
·Dimming method:Non/ DALI/ 1-10V optional
·Color tolerance:SDCM≤5(ANSI)
·CRI:90
·CCT:2700/3000/4000/3000-5000K optional
·Input voltage:AC220-240V
·Application: Indoor
·Power installation:External
·Installation:Recessed
·IP grade:IP20/Front Part IP44
·Certification:CE、UKCA、ROHS、Reach
·Warranty:5 years
·Coating:White(RAL9003) optional
·Lighting direction: downward
·Light efficiency:100LM/W
·Spotlight angle:80° optional
·Opening size:φ113mm
·Dimming method:Non/ DALI/ 1-10V optional
·Color tolerance:SDCM≤5(ANSI)
·CRI:90
·CCT:2700/3000/4000/3000-5000K optional
·Input voltage:AC220-240V
·Application: Indoor
·Power installation:External
·Installation:Recessed
·IP grade:IP20/Front Part IP44
·Certification:CE、UKCA、ROHS、Reach
·Warranty:5 years
SE113D
Reset selected
Version
Normal
3 CCT tunable(Dial switch)
CCT
2700K
3000K
4000K
3000K-5000K
CRI
>90
Beam Angle
80°
Typ.power
20W
Entry Cable
With cable of drive input
With junction box
Label Type
COLORS
Customized Label
Diffuser Nature
Diffuser
Prismatic
Color
White
Length
φ113mm Downlight
Dimming Method
No Power
Non-Dimming
1-10V Dimming
DALI Dimming
IP Grade
IP20
IP44
User Manual
EN
CN
Qty
$ ** /SET
Ordering Code:
DL-SE113D209W80
