SE113L

BASIC CONFIGURATION

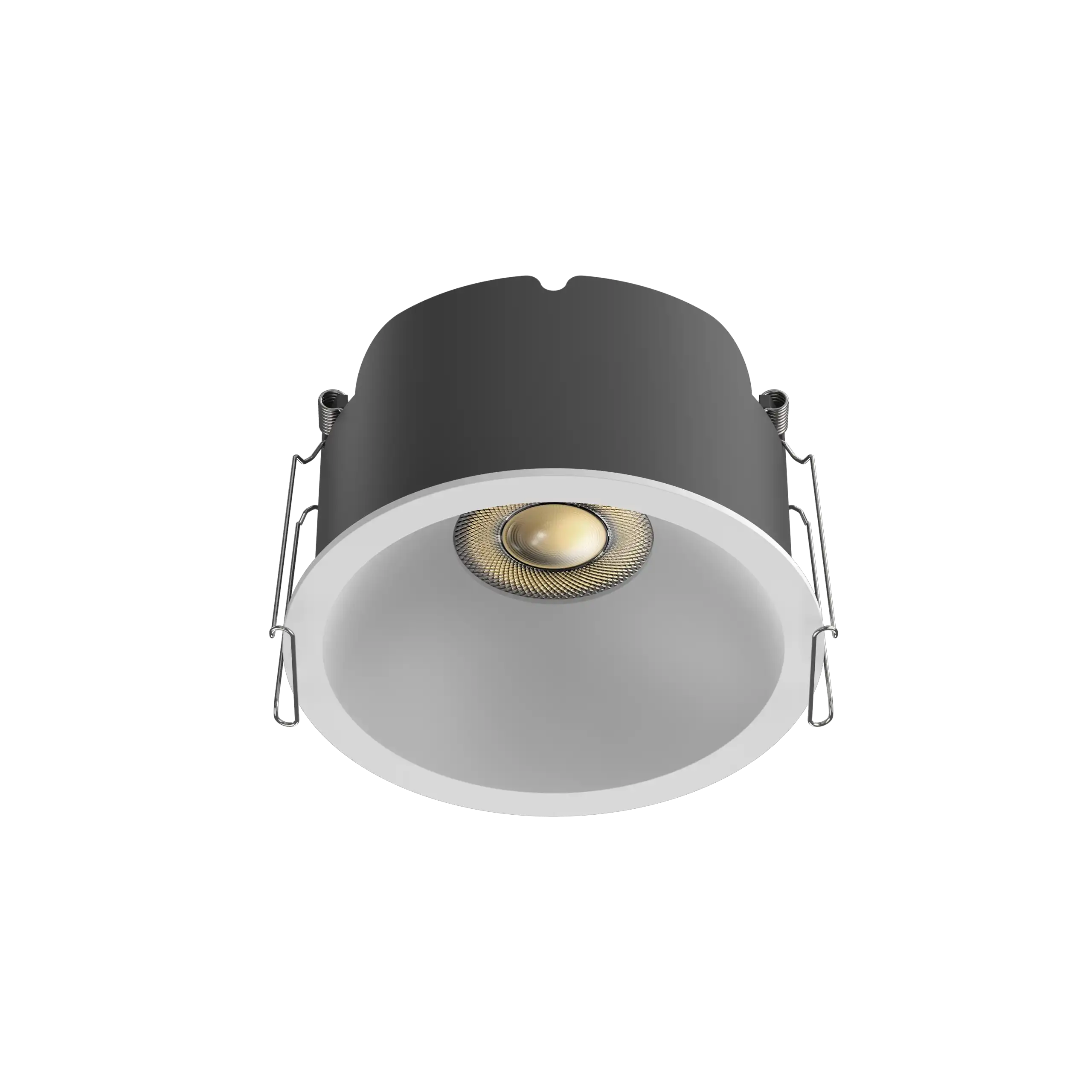

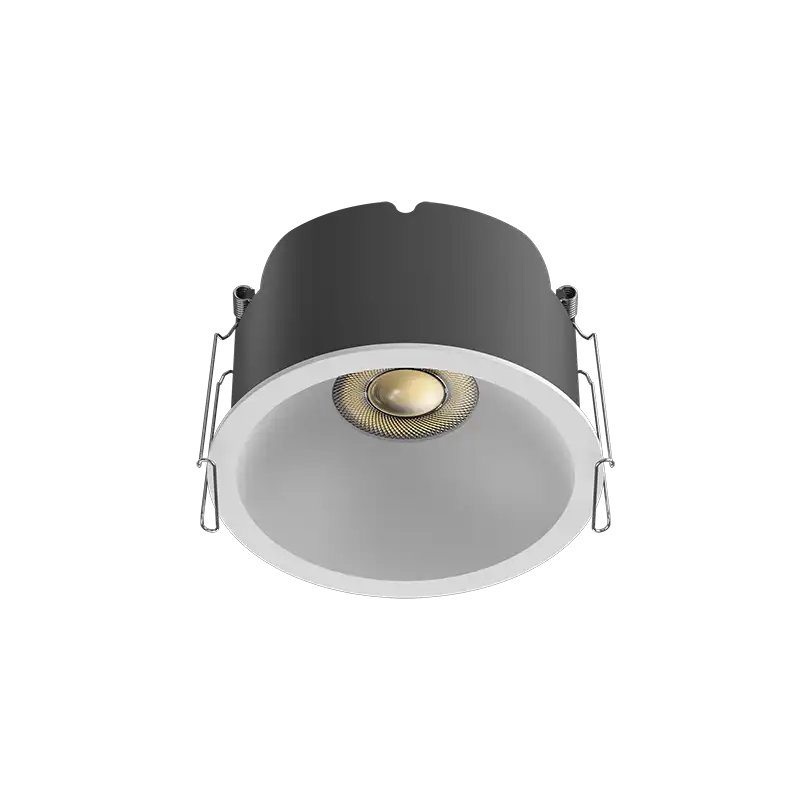

SE113L luminaire
Power supply optional
no application accessories

Features

·Material:AL6063-T5，spraying surface
·Coating:White(RAL9003) optional
·Lighting direction: downward
·Light efficiency:113LM/W
·Spotlight angle:28°/36°/45°/55°/35°x65° optional
·UGR: ≤ 13(X=4H, Y=8H)
·Opening size:φ113mm
·Dimming method:Non/ DALI/ 1-10V optional
·Color tolerance:SDCM≤5(ANSI)
·CRI:90
·CCT:2700/3000/4000/3000-5000K optional
·Input voltage:AC220-240V
·Application: Indoor
·Power installation:External
·Installation:Recessed
·IP grade:IP20
·Certification:CE、UKCA、ROHS、Reach
·Warranty:5 years

SE113L

Smart recommendations

Reset selected

Version

Normal
3 CCT tunable(Dial switch)

Length

φ113mm Lens Spotlight

Typ.power

Beam Angle

55°
45°
36°
35°x65°
28°

Color

White

Dimming Method

Non-Dimming
No Power
DALI Dimming
1-10V Dimming

CRI

CCT

3000K-5000K
2700K
3000K
4000K

IP Grade

IP44
IP20

Entry Cable

With junction box
With cable of drive input

User Manual

Label Type

Customized Label
COLORS

Ordering Code:

DL-SE113L209W

Qty

$ ** /SET

Ordering Code:

DL-SE113L209W
