BASIC CONFIGURATION

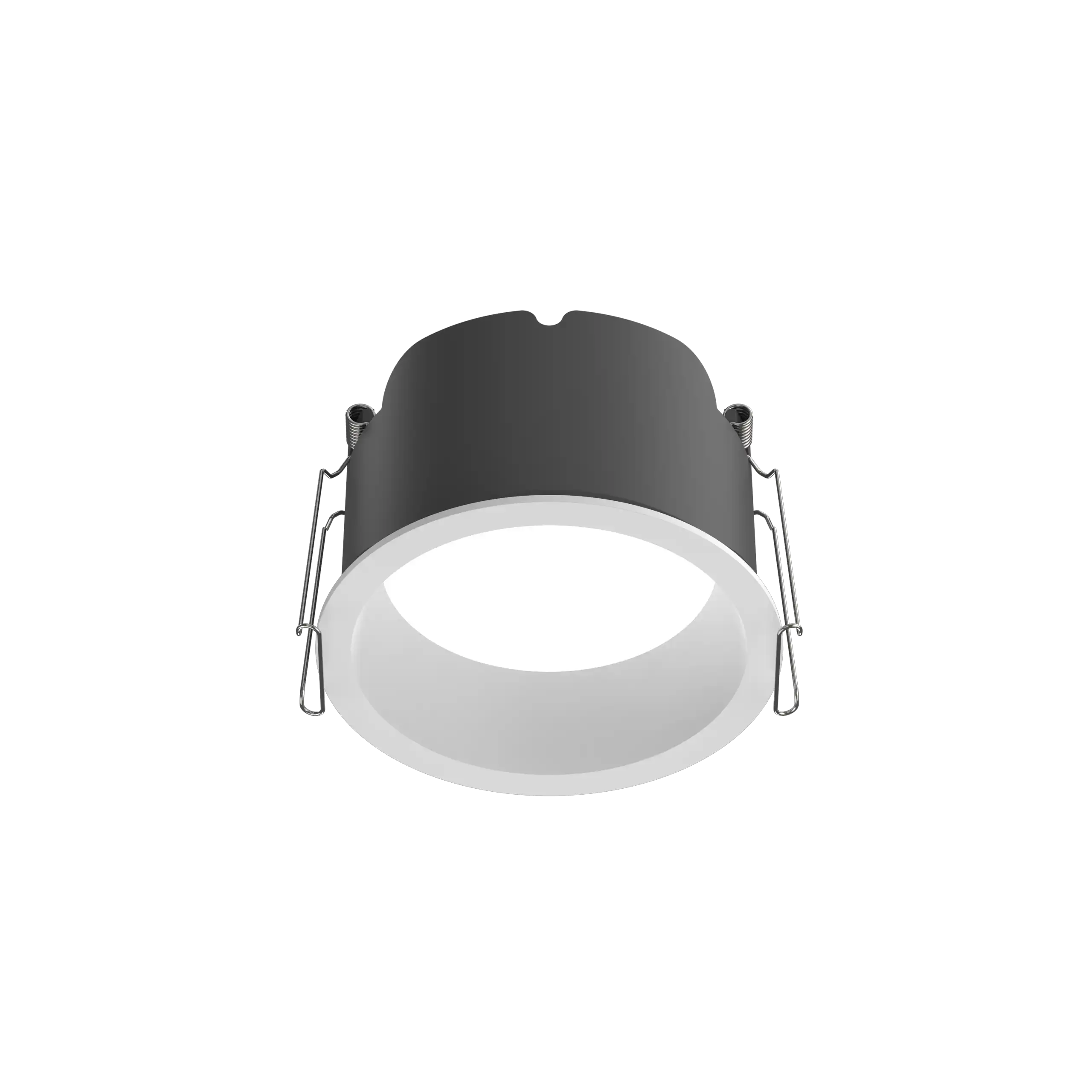

SE98D luminaire
Power supply optional
no application accessories

Features

·Material:AL6063-T5,spraying surface
·Coating:White(RAL9003) optional
·Lighting direction: downward
·Light efficiency:100LM/W
·Spotlight angle:80° optional
·Opening size:φ98mm
·Dimming method:Non/ DALI/ 1-10V optional
·Color tolerance:SDCM≤5(ANSI)
·CRI:90
·CCT:2700/3000/4000/3000-5000K optional
·Input voltage:AC220-240V
·Application: Indoor
·Power installation:External
·Installation:Recessed
·IP grade:IP20/Front Part IP44
·Certification:CE、UKCA、ROHS、Reach
·Warranty:5 years

SE98D

Downlights > Recessed > SPARK > Recessed

Reset selected

CCT

  • 2700K

  • 3000K

  • 4000K

  • 3000K-5000K

CRI

  • >90

Beam Angle

  • 80°

Typ.power

  • 15W

Entry Cable

  • With cable of drive input

  • Without cable of drive input

  • With junction box

Label Type

  • COLORS

  • Customized Label

Version

  • Normal

  • 3 CCT tunable(Dial switch)

Color

  • White

Length

  • φ98mm Diffuser Spotlight

Dimming Method

  • No Power

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

IP Grade

  • IP20

  • IP44

User Manual

  • EN

  • CN

Ordering Code:

DL-SE98D159W80

Qty

$ ** /SET

Ordering Code:

DL-SE98D159W80
