Features

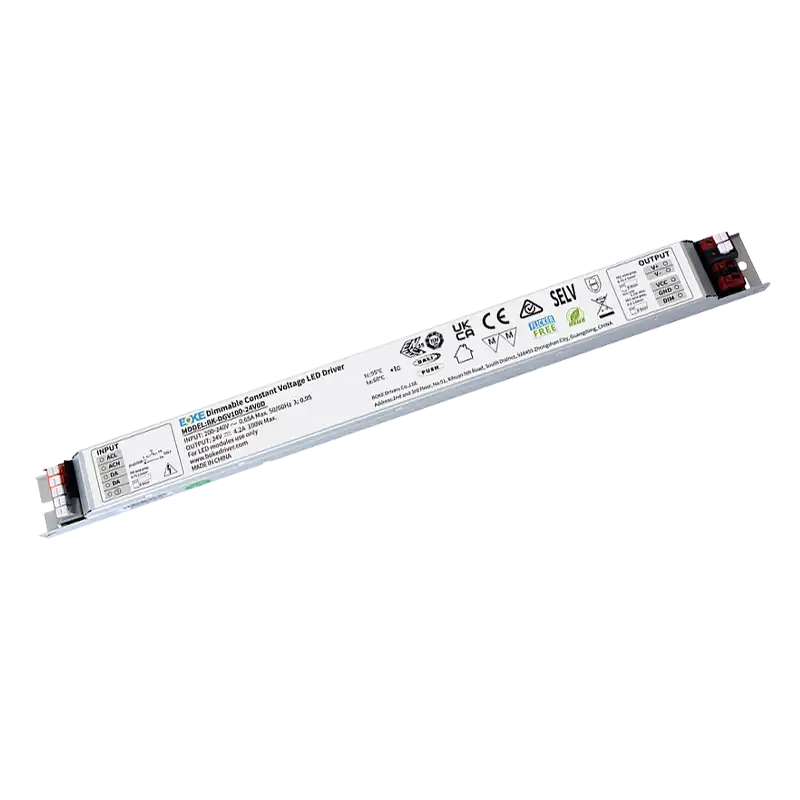

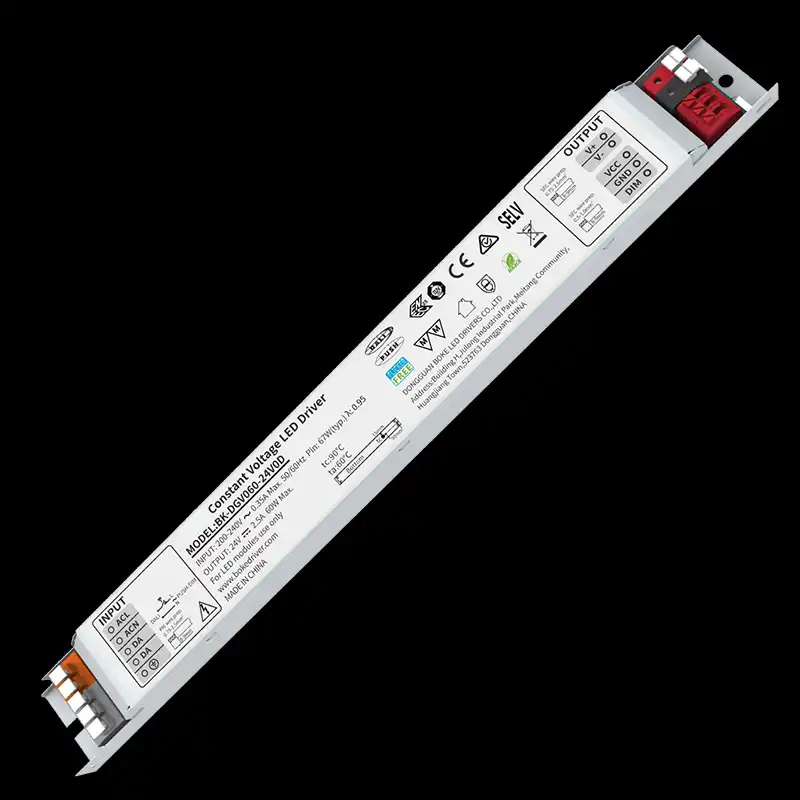

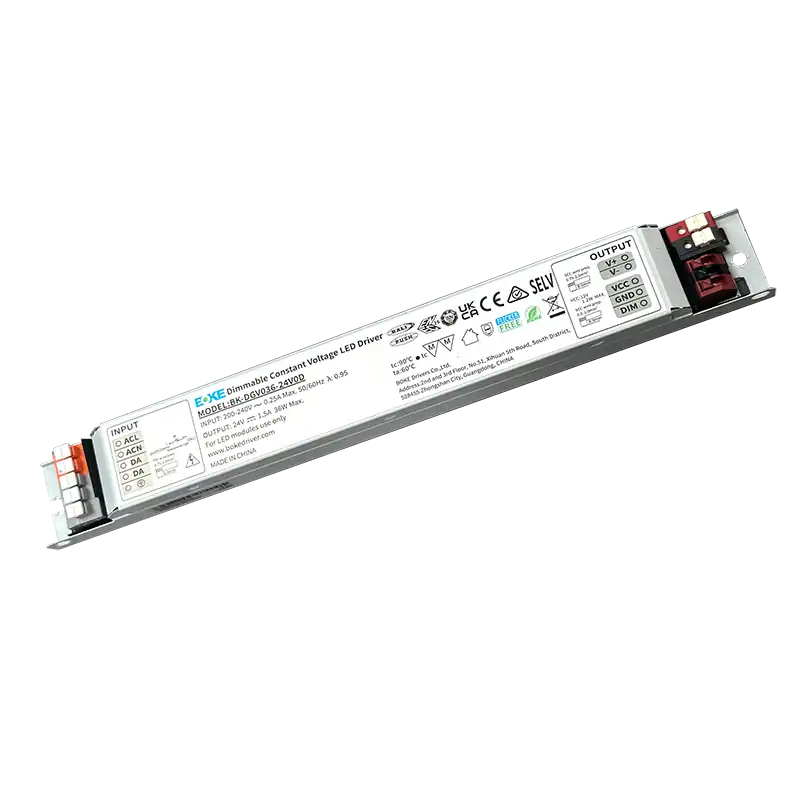

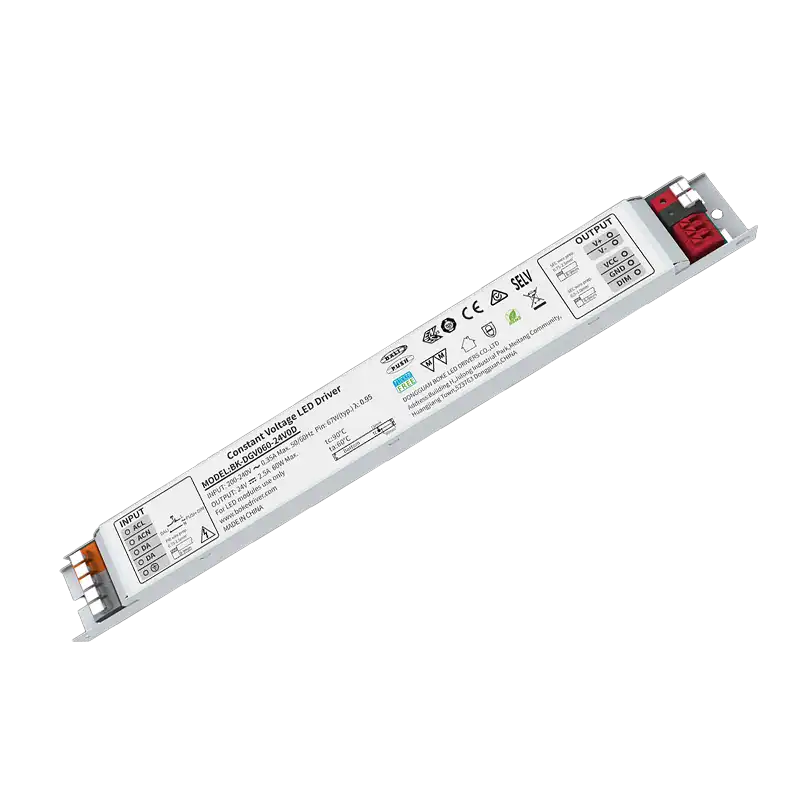

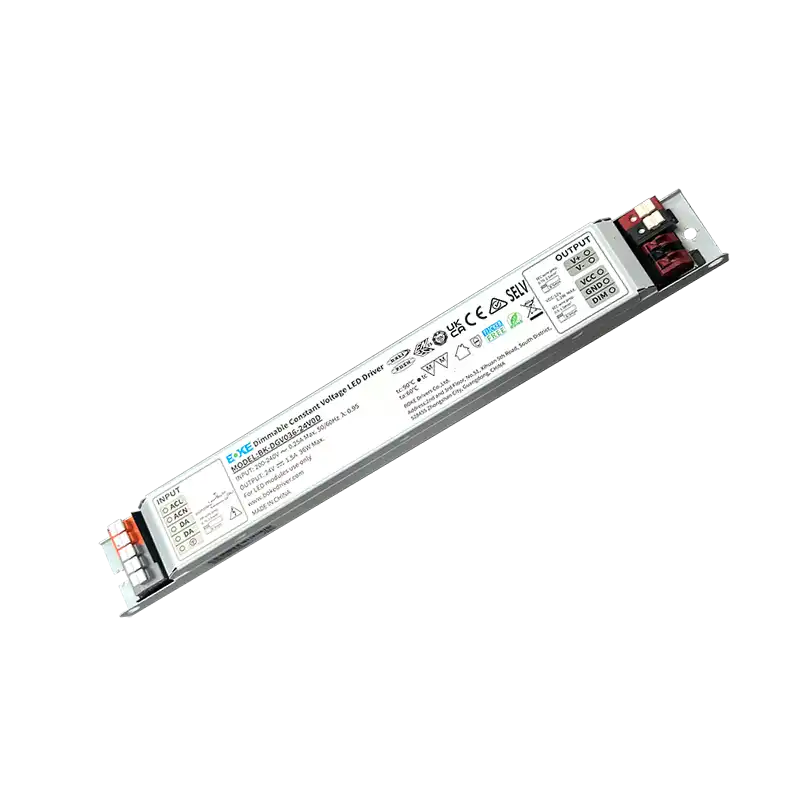

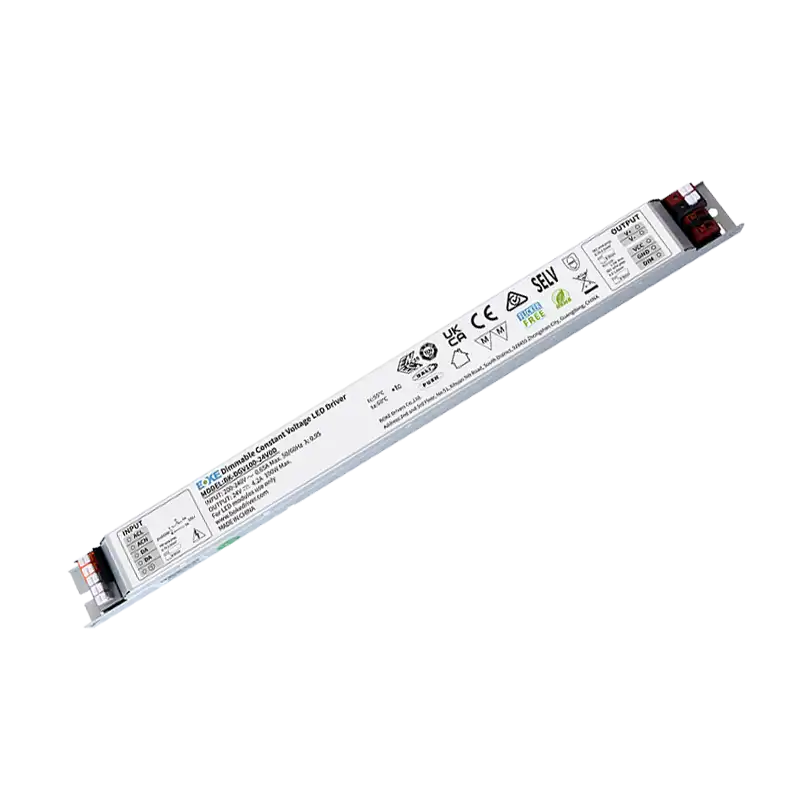

ProductName:BK-DGV036-24V0D/BK-DGV060-24V0D/BK-DGV100-24V0D
Applicable product model:General
Output power:36W/60W/100W
Output current:≤1.5A/≤2.5A/≤4.2A
Product size:245.0*30.0*21.0mm/285.0*30.0*21.0mm/355.0*30.0*21.0mm
Input voltage:AC200-240V
Input voltage:AC200~240V
Operating frequency:50/60Hz
Output voltage:DC24V
PF value:≥0.9
Efficiency:≥0.88
IP:IP20
Dimming mode:DALI-2,PUSH-Dimming,1-10V 3in1 Dimming
Certification:CE, ENEC, UKCA, RCM, CCC, EL
Material:Metal housing
Warranty:5 years

BK-DGVX-24V0D

$
**
/pcs
Login to view price

Flexible Options

Reset selected

Typ.power
  • 36W

  • 60W

  • 100W

Length
  • L245.0*W30.0*H21.0mm

  • L285.0*W30.0*H21.0mm

  • L355.0*W30.0*H21.0mm

Dimming Method
  • DALI-2&PUSH&1-10V 3 in 1 Dimming

Input Voltage
  • AC200-240V

IP Grade
  • IP20

Packaging Quantity
  • 1 PCS/SET

Output Voltage
  • DC24V

Output Current
  • ≤1.5A

  • ≤2.5A

  • ≤4.2A

PF Value
  • ≥0.9

Ordering Code :

$ **/pcs
