Features

·Material: ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: downward
·Beamangle: 15°/24°/36°/45° optional
·UGR(X=4H, Y=8H): ≤6(15°/24°/36°), ≤16(45°)
·Opening size: φ75mm
·Dimming method: Non/1-10V/DALI optional
·SDCM(Light source): <3 Step(ANSI)
·CRI: 90
·CCT: 2700/3000/3500/4000K optional
·Input voltage: AC220-240V
·Application: Indoor
·Installation: Trimless Recessed
·IP grade: IP65
·Certification: CE、ROHS、Reach
·Warranty: 5 years

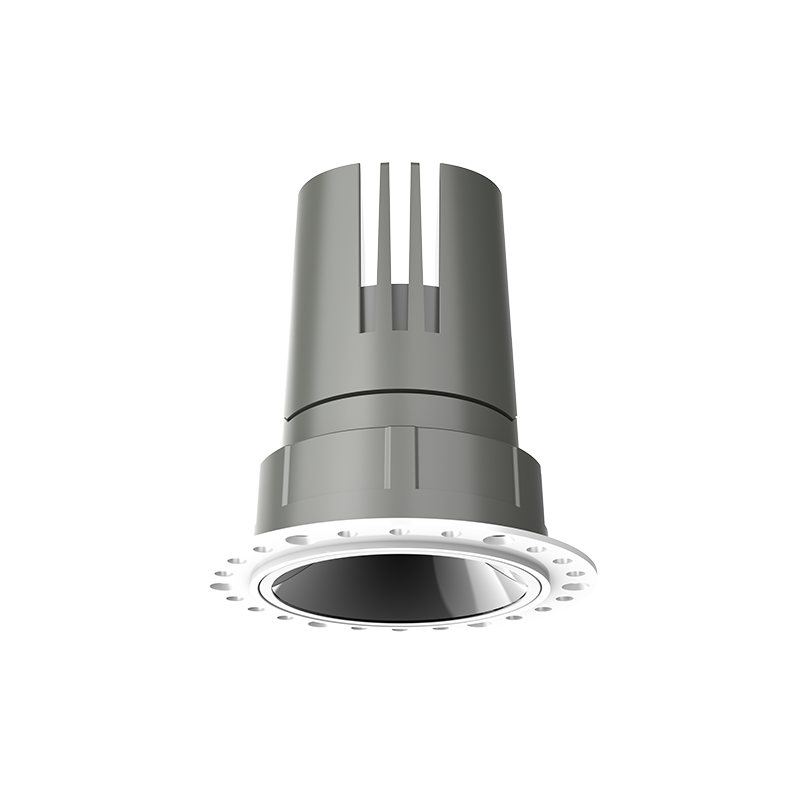

BR75L2

$
**
/set
Login to view price

Flexible Options

Reset selected

Typ.power
  • 12W

  • 15W

Beam Angle
  • 15°

  • 24°

  • 36°

  • 45°

Color
  • No(Frame)

  • White(Frame)

Dimming Method
  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

CRI
  • >90

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

Reflector Color
  • Mirror

  • Black chrome

  • Matte Black

  • Matte White

  • Matte Silver

IP Grade
  • IP65

Optical Accessory
  • Honeycomb

  • No Honeycomb

User Manual
  • CN

  • EN

Label Type
  • COLORS

  • Customized Label

Delivery Date
Ordering Code :

90

$ **/set

Common Accessories

Accessories Type
  • InstallationAccessory
Applicable product model: BR75L2Installation method: RecessedMaterial process: aluminum/oil sprayingSize: φ83*29mmQuantity: 1PCS/ setOther:   Including 1pcs recessed part of the BR75L2 downlight and 4pcs  screws.
$ ** /SET
Login to view price
