Features

Dimming method:Non-Dimming

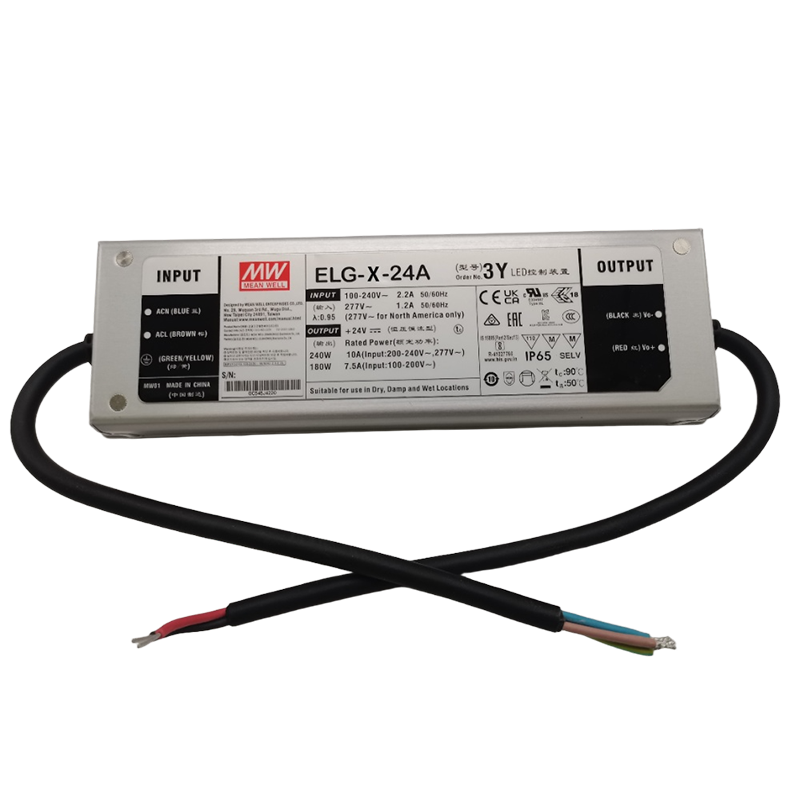

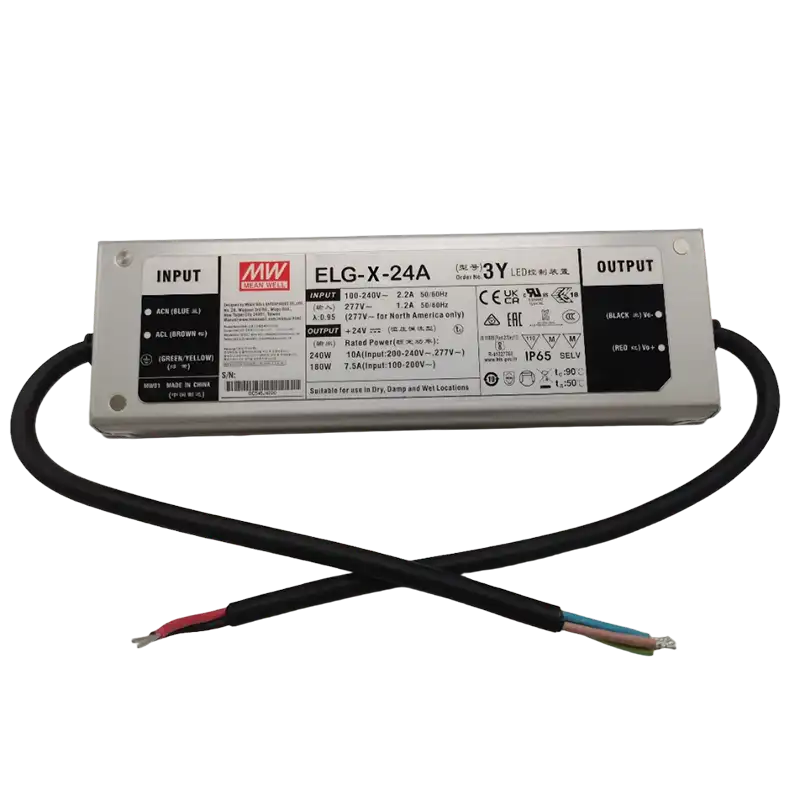

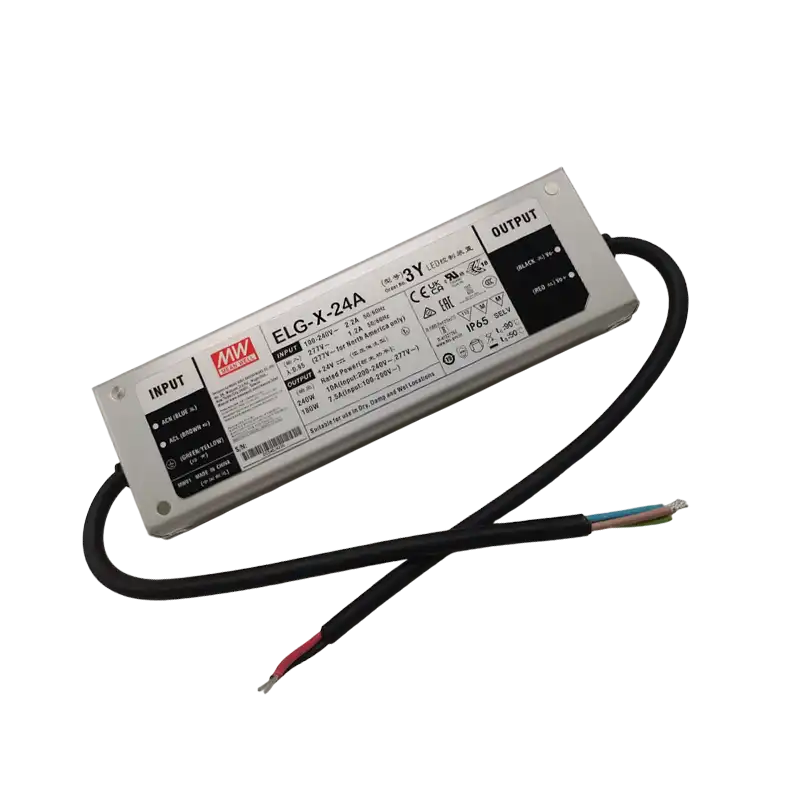

Product name: ELG-75-24A-3Y/ELG-100-24A-3Y/ELG-150-24A-3Y
Output power(MAX): 75W/100W/150W
Output current: ≤3.15A/≤4.00A/≤6.25A
Product size:180*63*35.5mm/199*63*35.5mm/219*63*35.5mm
Input voltage:100-305V
Output voltage:24V
PF value:PF>0.95
IP:IP65
Product certificates:UL/CCC/EAC/CB/CE
Material:Metal housing housing
Warranty:5 years
Others:The brown line is AC/L, the blue line is AC/N, the black line is V-, the red line is V+. The green/yellow line is GND

ELG-X-24A-3Y

$
**
/set
Login to view price

Flexible Options

Reset selected

Typ.power
  • 75W

  • 100W

  • 150W

Length
  • L180.0*W63.0*H35.5mm

  • L199.0*W63.0*H35.5mm

  • L219.0*W63.0*H35.5mm

Dimming Method
  • Non-Dimming

Input Voltage
  • AC100-305V

IP Grade
  • IP65

Packaging Quantity
  • 1 PCS/SET

Output Voltage
  • DC24V

Output Current
  • ≤3.15A

  • ≤4.00A

  • ≤6.25A

PF Value
  • ≥0.95

Ordering Code :

$ **/set
