Features

Dimming method:0-10V&PWM&RX-Dimming
Product name:ELG-75-48B-3Y/ELG-100-48B-3Y/ELG-150-48B-3Y/ELG-200-48B-3Y/ELG-240-48B-3Y
Output power(MAX):75W/100W/150W/200W/240W
Output current:1.60A/2.00A/3.13A/4.16A/5.00A
Product size:180*63*35.5mm/199*63*35.5mm/219*63*35.5mm/244*71*37.5mm/244*71*37.5mm
Input voltage:AC100-305V
Output voltage:DC48V
PF value:PF>0.9
IP:IP67
Product certificates:UL/CCC/EAC/CB/CE
Material:Metal housing
Warranty:5 years
Others:The brown line is AC/L, the blue line is AC/N, the purple line is DIM+, the pink line is DIM-, the black line is V-, and the red line is V+. The green/yellow line is GND

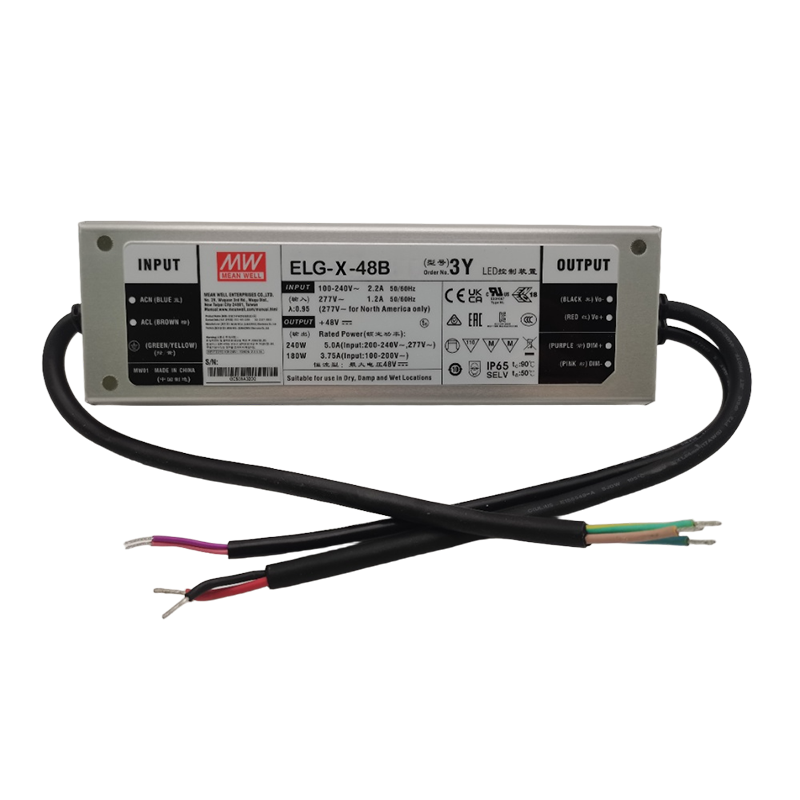

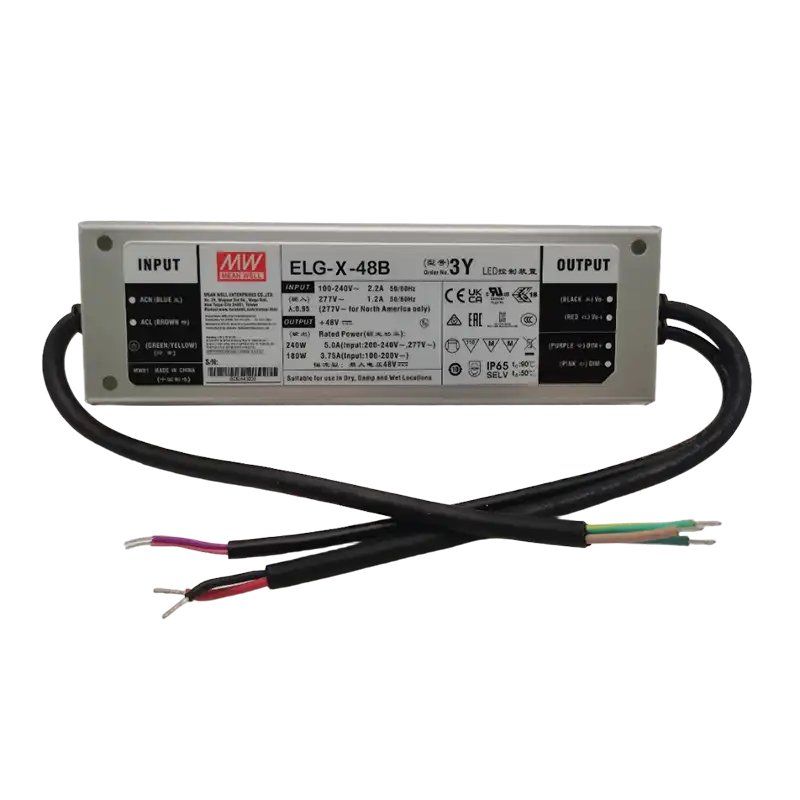

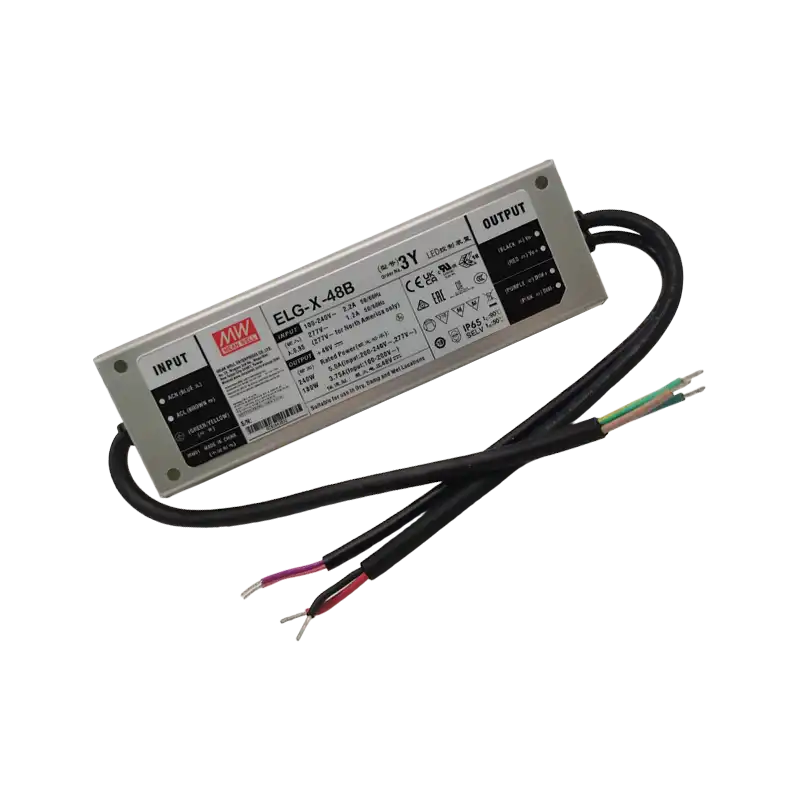

ELG-X-48B-3Y

$
**
/set
Login to view price

Flexible Options

Reset selected

Typ.power
  • 75W

  • 100W

  • 150W

  • 200W

  • 240W

Length
  • L180.0*W63.0*H35.5mm

  • L199.0*W63.0*H35.5mm

  • L219.0*W63.0*H35.5mm

  • L244.0*W71.0*H37.5mm

Dimming Method
  • 0-10V&PWM&RX-Dimming

Input Voltage
  • AC100-305V

IP Grade
  • IP67

Packaging Quantity
  • 1 PCS/SET

Output Voltage
  • DC48V

Output Current
  • ≤1.60A

  • ≤2.00A

  • ≤3.13A

  • ≤4.16A

  • ≤5.00A

PF Value
  • ≥0.9

Ordering Code :

$ **/set

Common Accessories

Accessories Type
