Features

·Material: ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: Downward
·Beamangle:18°/24°/36°/50° optional
·UGR(X=4H, Y=8H): ≤13(18°/24°),≤19(36°/50°)
·Opening size:φ65mm
·Dimming method:Non/1-10V/DALI optional
·SDCM(Light source): <3 Step(ANSI)
·CRI:90
·CCT:2700/3000/3500/4000K optional
·Input voltage:AC220-240V
·Application: Indoor
·Installation:Recessed
·IP grade:IP54
·Certification:CE,ROHS,Reach
·Warranty:5years

BASIC CONFIGURATION

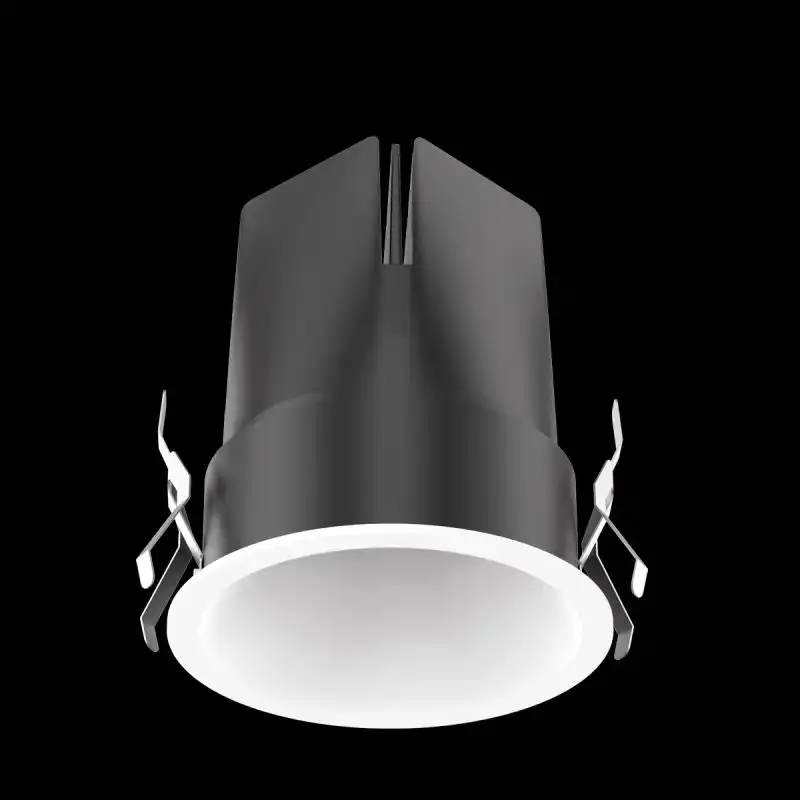

G2SE65L1(E) luminaire
Power supply optional
Note:
If the "Honeycomb" is selected, it will be installed on the spotlight by default,and the parameters will change as follows.
(1)Spotlights with beam angles of "18°" and "24°":the light efficiency will be reduced by 30%, the beam Angle will be reduced by 12%, the anti-glare effect will be better, and the UGR will be reduced by 40%.
(2)Spotlights with beam angles of "36°" and "50°":the light efficiency will be reduced by 50%, the beam Angle will be reduced by 25%, the anti-glare effect will be better, and the UGR will be reduced by 40%.

Dimension

G2SE65L1(E)

$
**
/set
Login to view price

Flexible Options

Reset selected

Typ.power
  • 9W

  • 12W

  • 15W

Beam Angle
  • 15°

  • 24°

  • 36°

  • 50°

Color
  • White(Frame)

Dimming Method
  • No Power

  • Non-Dimming

  • 0-10V Dimming

  • DALI Dimming

CRI
  • >90

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

Reflector Color
  • Matte Black

  • Matte White

IP Grade
  • IP54

Optical Accessory
  • Linear Spread Filter

  • Honeycomb

  • Diffusion Filter

  • Honeycomb + Linear Spread Filter

  • Honeycomb + Diffusion Filter

  • NO

Entry Cable
  • With junction box

  • With cable of drive input

User Manual
  • EN

Label Type
  • COLORS

  • Customized Label

Ordering Code :

$ **/set

Common Accessories

Accessories Type
