Features

·Material: AL1070,spraying surface
·Driver Installation: Remote
·Lighting direction: Downward
·Beam angle: 15°/24°/36° optional
·UGR(X=4H,Y=8H): ≤13(15°/24°),≤19(36°)
·Opening size: φ35mm
·Dimming method: Non-Dimming
·SDCM(Lightsource): <3 Step(ANSI)
·CRI: 90
·CCT: 2700/3000/3500/4000K optional
·Input voltage: AC220-240V
·Application: Indoor
·Installation: Trimless Recessed
·IP grade: IP20
·Certification: CE,ROHS,Reach
·Warranty: 5 years

BASIC CONFIGURATION

G2SR35L1(E) luminaire Power supply optional Embedded parts optional Note: If "Honeycomb" is selected, the luminous efficacy will decrease, and both the beam angle and UGR will be reduced.

Dimension

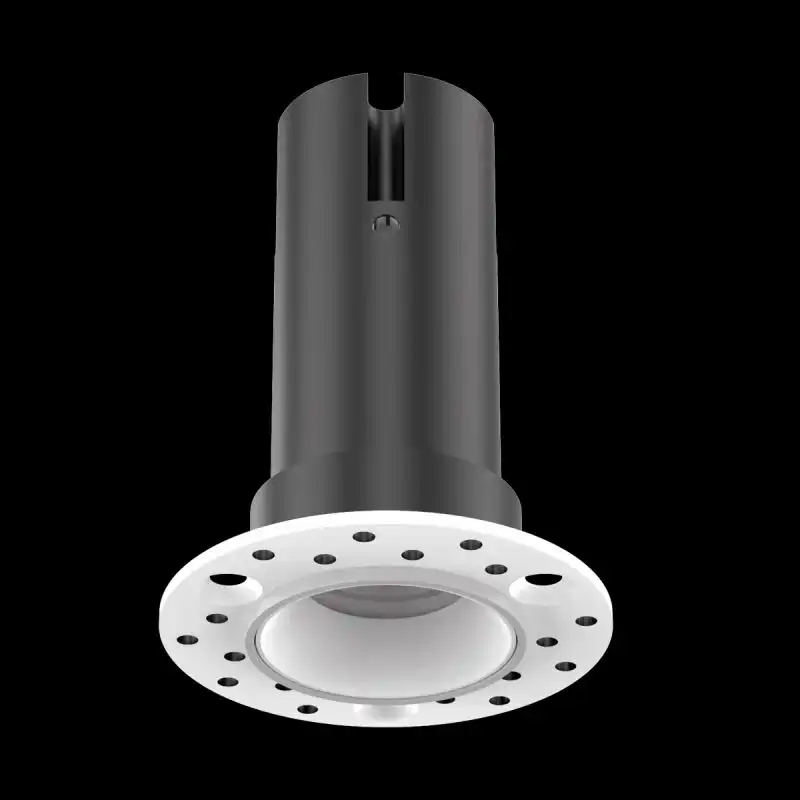

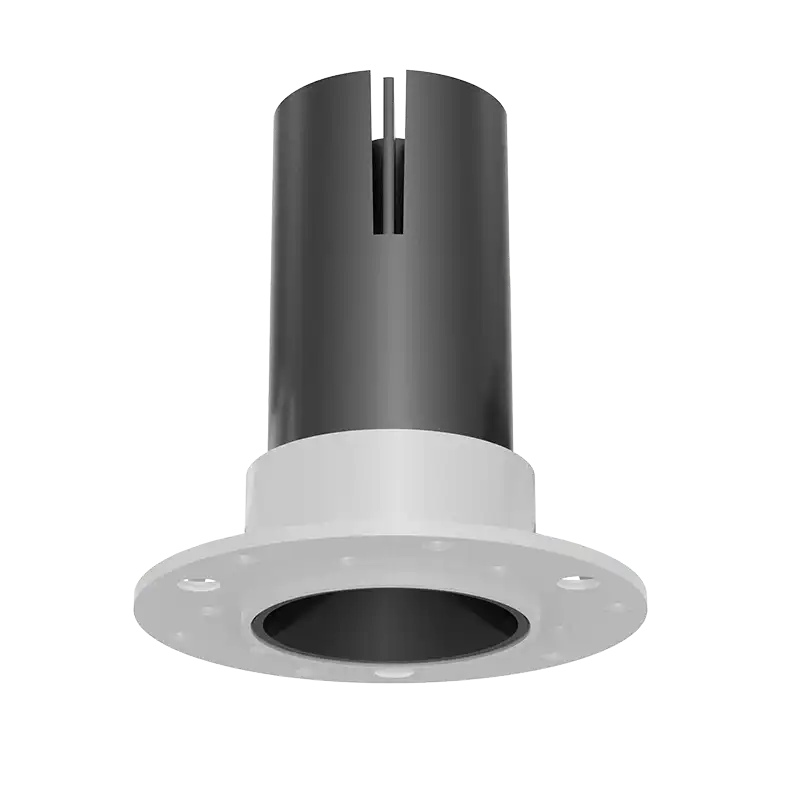

G2SR35L1(E)

$
**
/set
Login to view price

Flexible Options

Reset selected

Typ.power
  • 6W

Beam Angle
  • 15°

  • 24°

  • 36°

Color
  • No(Frame)

  • White(Frame)

Dimming Method
  • No Power

  • Non-Dimming

CRI
  • >90

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

Reflector Color
  • Mirror

  • Matte White

  • Matte Black

  • Black chrome

IP Grade
  • IP20

  • IP54

Optical Accessory
  • No Honeycomb

  • Honeycomb

Entry Cable
  • With cable of drive input

  • With junction box

User Manual
  • EN

Label Type
  • COLORS

  • Customized Label

Delivery Date : About 7~15 Days
Ordering Code :

$ **/set

Common Accessories

Accessories Type
  • Installation accessory
