Features

·Material: ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: downward
·Beam angle: 15°/24°/28°/36°/45° optional
·UGR(X=4H,Y=8H): ≤10(15°/24°),≤13(36°)≤19(45°)
·Opening size: 50x53mm
·Dimming method: Non/0-10V/Traic/DALI optional
·SDCM(Lightsource): <3 Step(ANSI)
·CRI: 90
·CCT: 2700/3000/3500/4000K/2700-6500K optional
·Input voltage: AC220-240V
·Application: Indoor
·Installation: Trimless Recessed
·IP grade: IP20/IP54
·Certification: CE、ROHS、Reach
·Warranty: 5 years

BASIC CONFIGURATION

G2SR50S1(E) luminaire Power supply optional Embedded parts optional Note: If "Honeycomb" is selected, the luminous efficacy will decrease, and both the beam angle and UGR will be reduced.

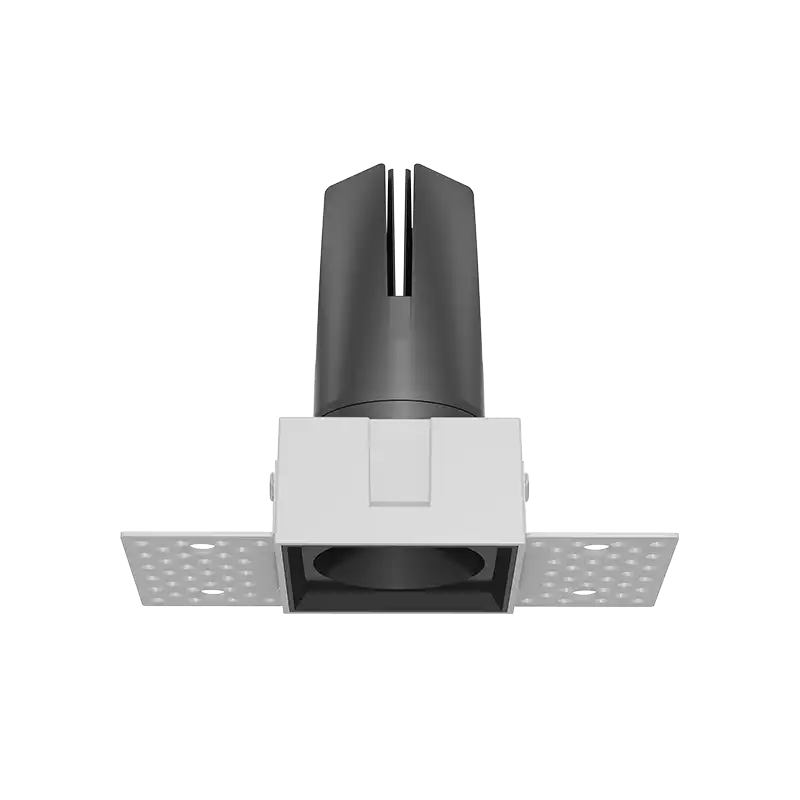

G2SR50S1(E)

$
**
/set
Login to view price

Flexible Options

Reset selected

Version
  • Normal

  • CCT Tunable

Length
  • Opening 53x50mm

Typ.power
  • 6W

  • 9W

Beam Angle
  • 15°

  • 24°

  • 28°

  • 36°

  • 45°

Color
  • No(Frame)

  • White(Frame)

Dimming Method
  • No Power

  • Non-Dimming

  • 0-10V Dimming

  • DALI Dimming

  • Triac Dimming

CRI
  • >90

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 2700K-6500K

Reflector Color
  • Mirror

  • Black chrome

  • Matte Black

  • Matte White

IP Grade
  • IP20

  • IP54

Optical Accessory
  • Honeycomb

  • NO

  • Linear Spread Filter

  • Diffusion Filter

  • Honeycomb + Linear Spread Filter

  • Honeycomb + Diffusion Filter

Entry Cable
  • With cable of drive input

  • With junction box

User Manual
  • EN

Label Type
  • COLORS

  • Customized Label

Ordering Code :
  • Datasheet

$ **/set
