Features

·Material: ADC12, spraying surface
·Driver Installation: Remote
·Lighting direction: downward
·UGR(X=4H, Y=8H): ≤1(10°/36°)、≤3(8°/24°)、≤16(50° )
·Dimming method: Non/0-10V/Traic/DALI optional
·SDCM(Light source): <3 Step
·CRI: 90
·CCT: 2700/3000/3500/4000K/2700-6500K optional
·Input voltage: AC220-240V
·Application: Indoor
·Installation: Trimless recessed
·IP grade: IP20
·Certification: CE、UKCA、ROHS、Reach
·Warranty: 5 years

BASIC CONFIGURATION

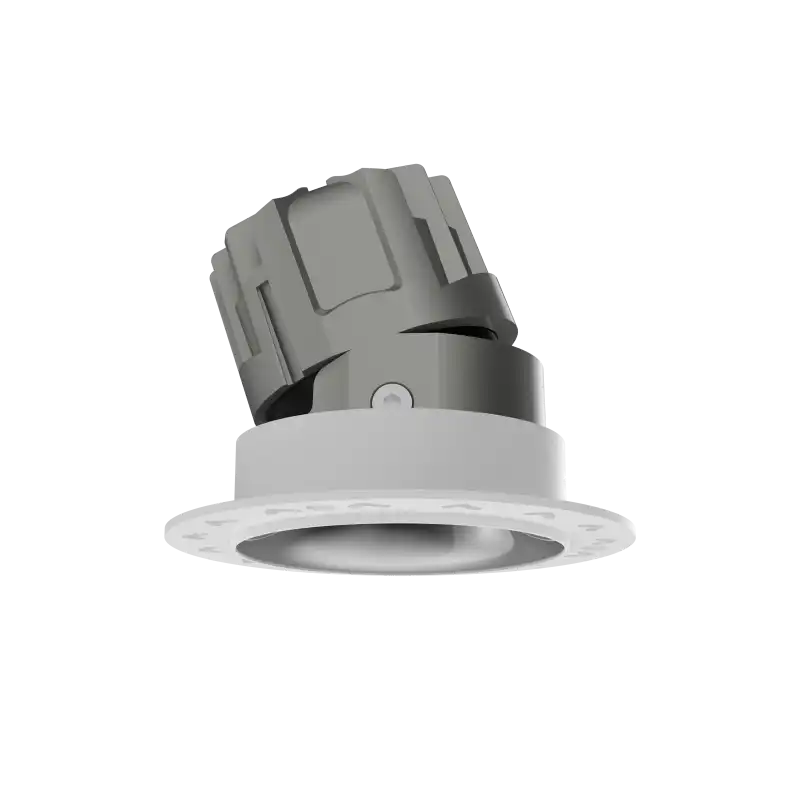

K2R75L2 luminaire Power supply optional

K2R75L2

$
**
/set
Login to view price

Flexible Options

Reset selected

Version
  • Normal

  • CCT Tunable

Length
  • Opening φ75mm

Typ.power
  • 10W

  • 12W

  • 15W

  • 20W

Beam Angle
  • 10°

  • 15°

  • 24°

  • 36°

  • 50°

Color
  • No(Frame)

  • White(Frame)

Dimming Method
  • No Power

  • Non-Dimming

  • 0-10V Dimming

  • DALI Dimming

  • Triac Dimming

CRI
  • >90

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 2700K-6500K

Reflector Type
  • Round

  • Pin hole

  • Oval

Reflector Color
  • Mirror

  • Black chrome

  • Matte Black

  • Matte White

  • Champagne Gold

IP Grade
  • IP20

  • IP54

Optical Accessory
  • Honeycomb

  • Linear Spread Filter

  • Diffusion Filter

  • Honeycomb + Linear Spread Filter

  • Honeycomb + Diffusion Filter

  • NO

Entry Cable
  • With cable of drive input

  • With junction box

User Manual
  • CN

  • EN

Label Type
  • COLORS

  • Customized Label

Ordering Code :

$ **/set

Common Accessories

Accessories Type
  • Other
