Features

·Material:ADC12,spraying surface

·Driver Installation: Remote

·Lighting direction: downward

·Beamangle:10°/15°/24°/38°/50° optional

·UGR(X=4H, Y=8H): ≤6(10°/15°/24°),≤16(38°/50°)

·Opening size:φ75mm

·Dimming method:Non/1-10V/DALI optional

·SDCM(Light source): <3 Step(ANSI)

·CRI:90

·CCT:2700/3000/3500/4000K optional

·Input voltage:AC220-240V

·Application: Indoor

·Installation:Trimless recessed

·IP grade:IP20

·Certification:CE、ROHS、Reach

·Warranty:5 years

BASIC CONFIGURATION

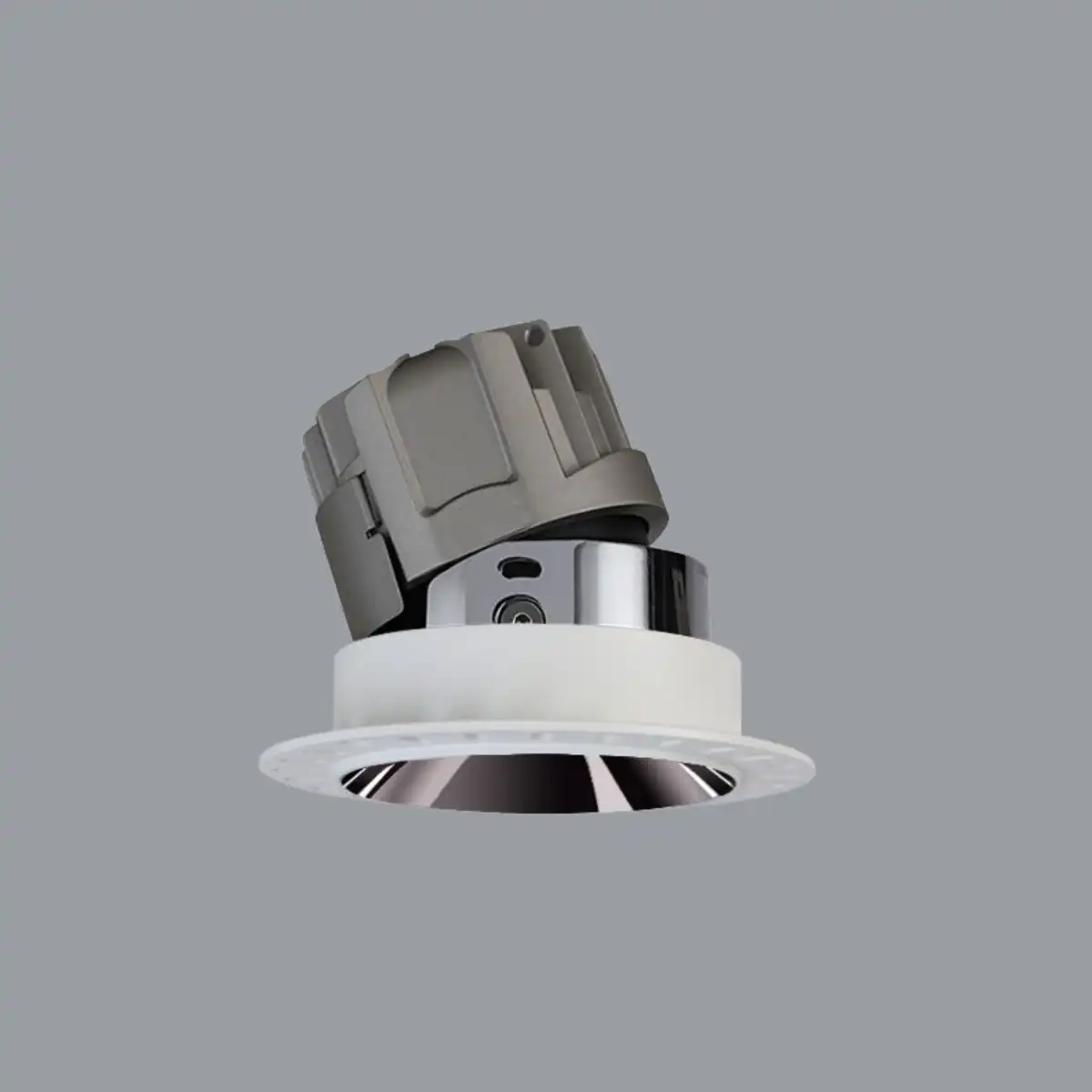

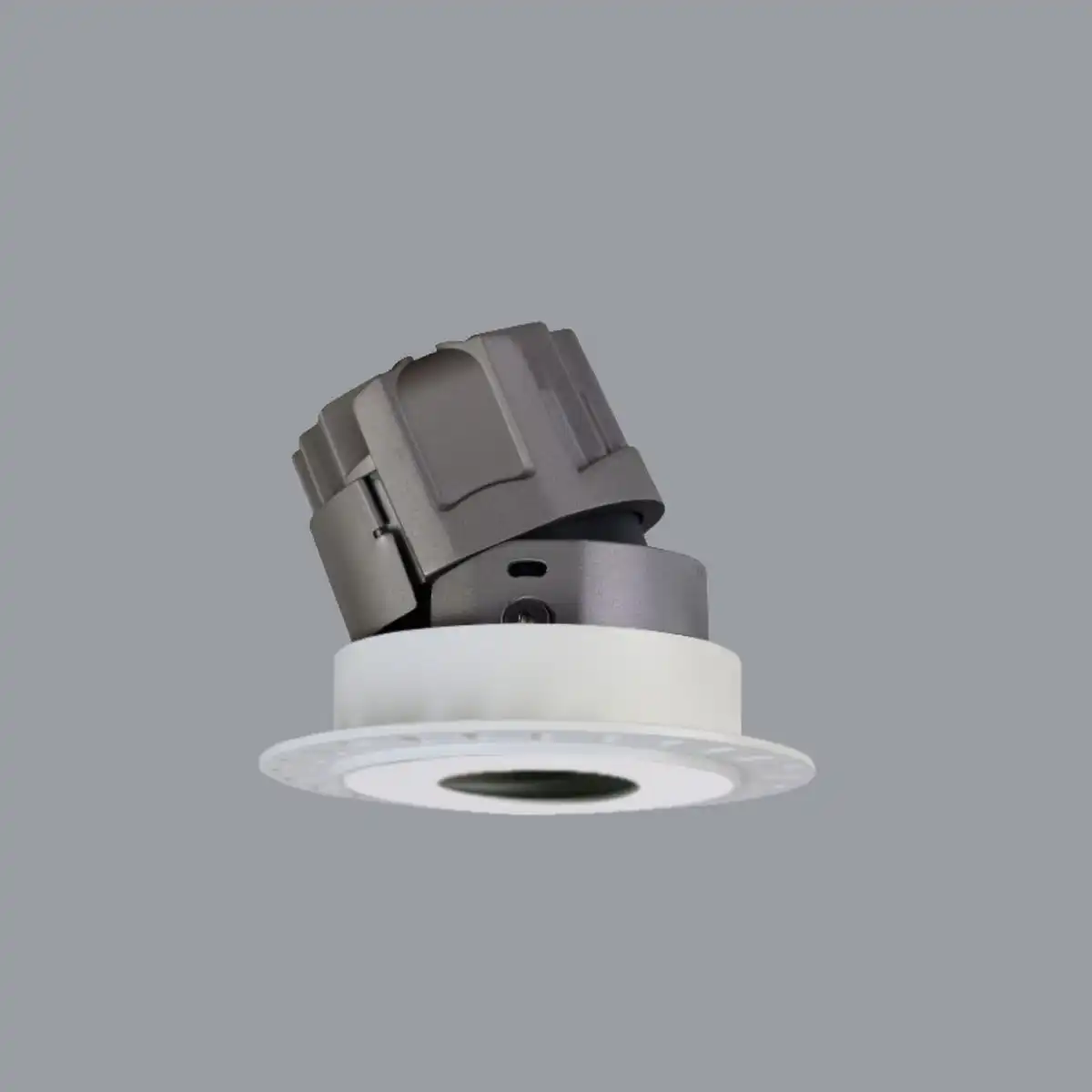

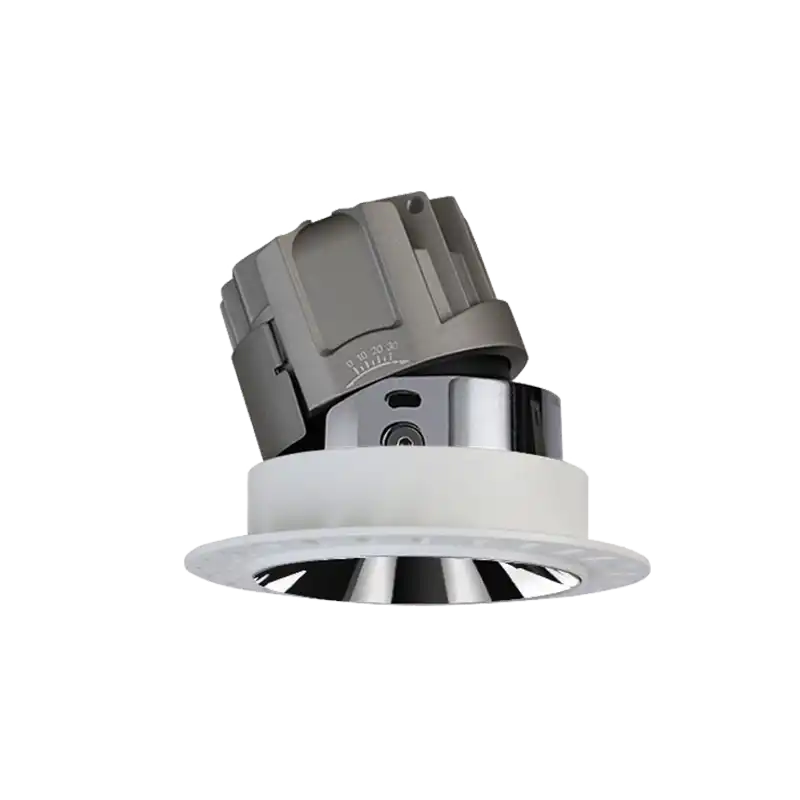

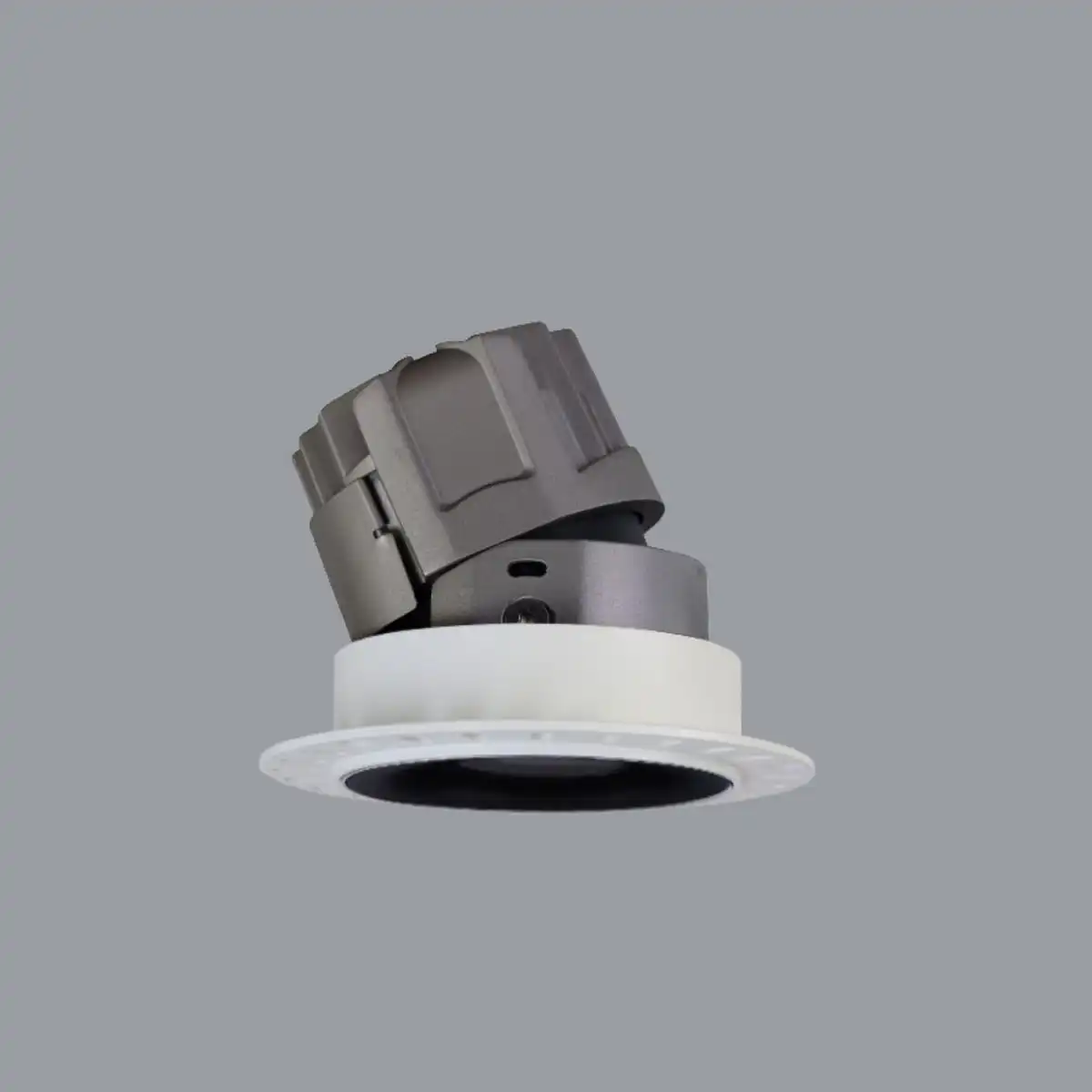

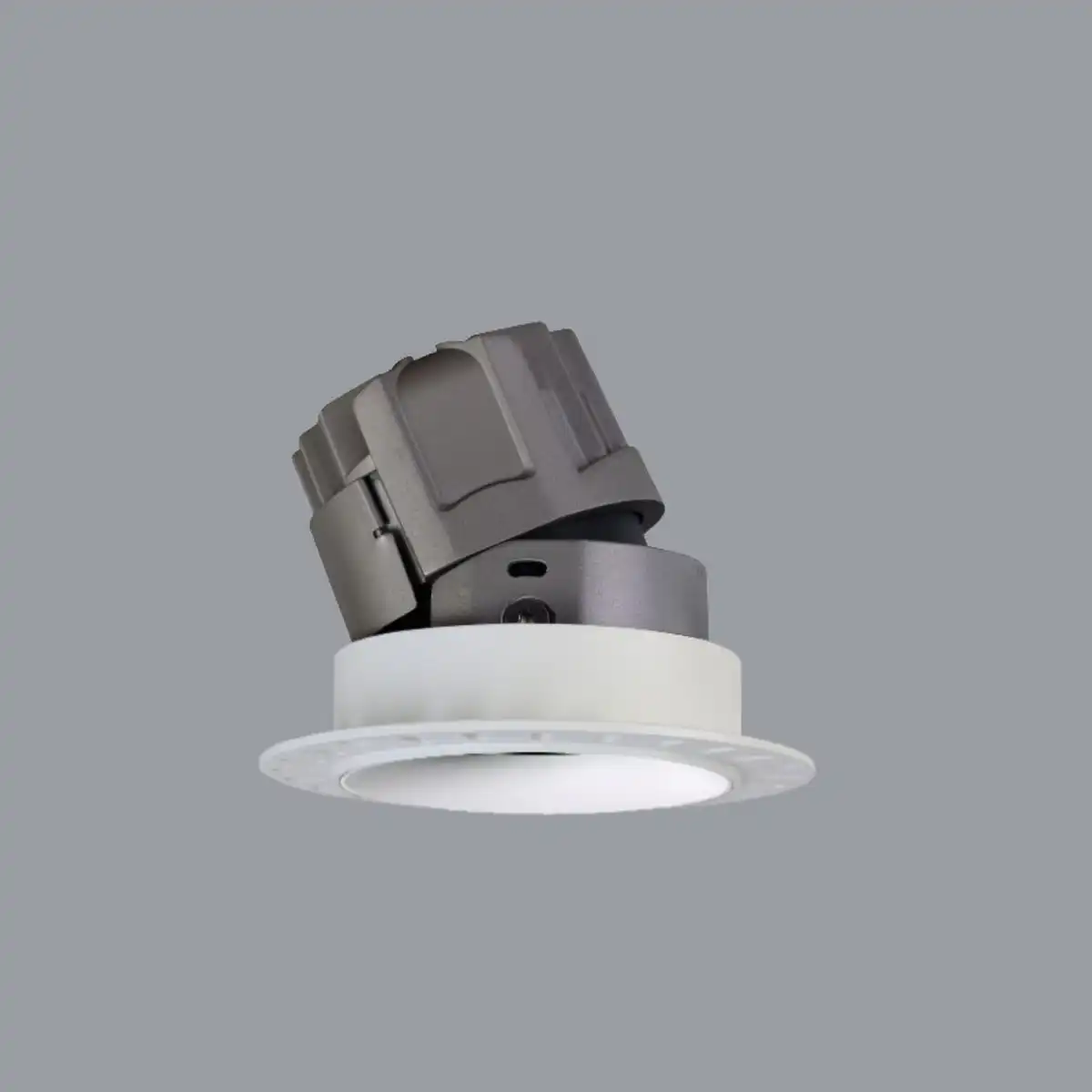

KR75L2 luminaire
Power supply and recessed installation accessories optional

Note:
1、If the "Honeycomb" is selected, it will be installed on the spotlight by default,and the parameters will change as follows.
(1)Spotlights with beam angles of "10°" , "15°" and "24°":the light efficiency will be reduced by 30%, the beam Angle will be reduced by 12%, the anti-glare effect will be better, and the UGR will be reduced by 40%.
(2)Spotlights with beam angles of "38°" and "50°":the light efficiency will be reduced by 50%, the beam Angle will be reduced by 25%, the anti-glare effect will be better, and the UGR will be reduced by 40%.

2、If you want to order the recessed parts separately, it is recommended to select the"0(Excluding recessed parts)" of the Accessory Quantity, and the model of the recessed parts is RE-KR75L.2

Dimension

KR75L2

$
**
/set
Login to view price

Flexible Options

Reset selected

Typ.power

  • 8W

  • 17W

  • 15W

  • 12W

  • 11W

  • 10W

Beam Angle

  • 10°

  • 15°

  • 24°

  • 38°

  • 50°

Color

  • No(Frame)

  • White(Frame)

Dimming Method

  • No Power

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

CRI

  • >90

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

Reflector Type

  • Round

  • Pin hole

  • Oval

Reflector Color

  • Mirror

  • Matte White

  • Matte Black

  • Champagne Gold

  • Black chrome

IP Grade

  • IP20

Accessory Quantity

  • 1(Including embedded parts)

  • 0(Excluding embedded parts)

Optical Accessory

  • Honeycomb

  • Linear Spread Filter

  • Diffusion Filter

  • Honeycomb + Linear Spread Filter

  • Honeycomb + Diffusion Filter

  • NO

Entry Cable

  • With junction box

  • With cable of drive input

User Manual

  • EN

  • CN

Label Type

  • Customized Label

  • COLORS

Size

  • φ75mm Spotlight

Delivery Date : About 7~15 Days
Ordering Code :

90

  • Datasheet

$ **/set

Common Accessories

Accessories Type
  • Installation accessory
Applicable product model:KR75L2 Installation method: recessed Material process: aluminum/oil spraying Size: φ105*88mm Quantity: 1PCS/ set Other:  Including 1pcs recessed part of the P2R75L spotlight and 3pcs screws.
$ ** /SET
