Features

Dimming method: Non-Dimming
Product name: LF-GMR080YSⅡ1600H, LF-GMR080YSⅡ1700H, LF-GMR080YSⅡ1800H,
LF-GMR080YSⅡ1900H, LF-GMR080YSⅡ2000H
Output power:64W, 68W, 72W, 76W, 80W
Output current: 1.6A, 1.7A, 1.8A, 1.9A, 2.0A
Product size: 245*30*21mm
Input voltage: AC220-240V
Output voltage: DC33-42V, DC25-42V
PF：PF≥0.9
IP: IP20
Material: Metal housing
Certification: CCC/ENEC/CE/RCM/UKCA
Warranty: 5 years

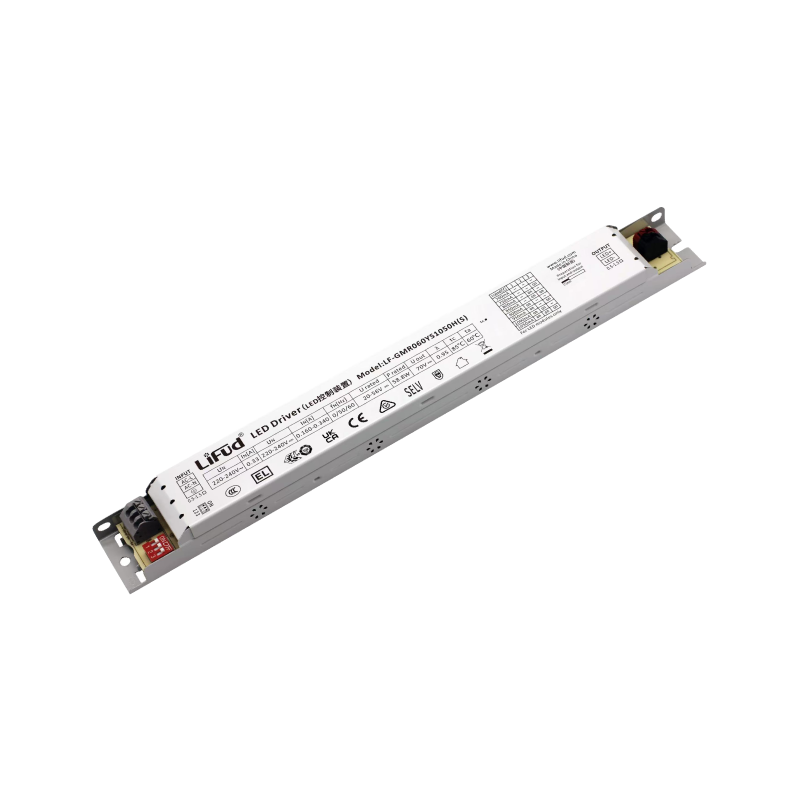

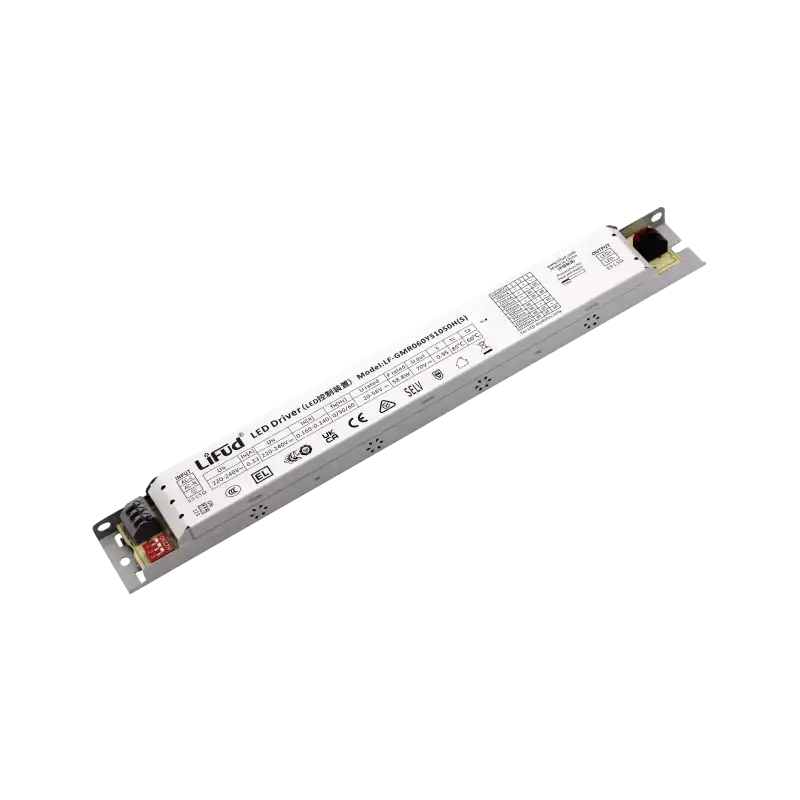

LF-GMR080YS II

/set

Flexible Options

Smart Picks

Reset selected

Length:

L245*W30.0*H21.0mm

Dimming Method:

Non-Dimming

Input Voltage:

AC220-240V

IP Grade:

IP20

PF Value:

≥0.9

Packaging Quantity:

1 PCS/SET

Typ.power

Output Voltage

DC33-42V
DC25-42V

Output Current

1.6A
1.7A
1.8A
1.9A
2A

Ordering Code :

$ **/set

Specifications
