Features

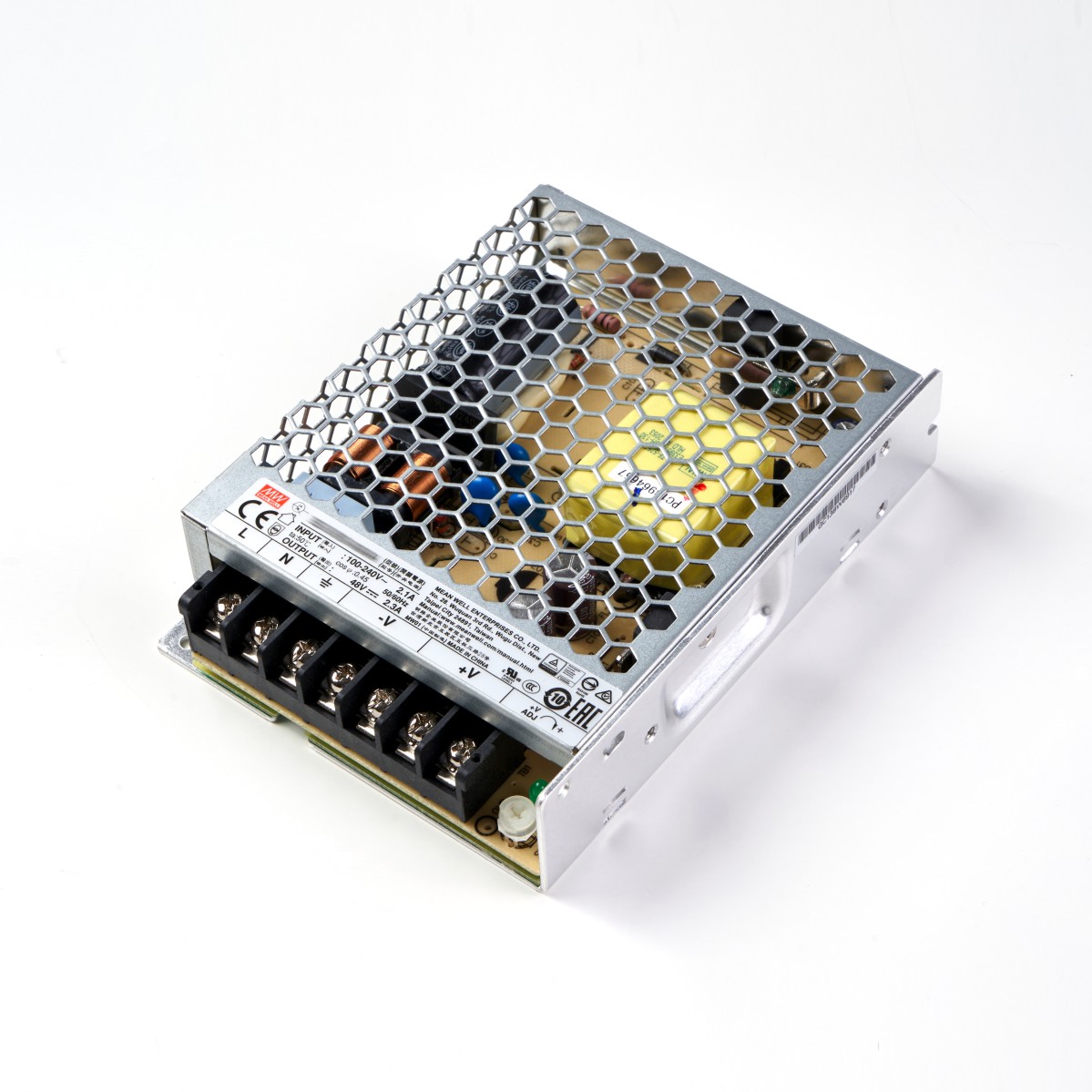

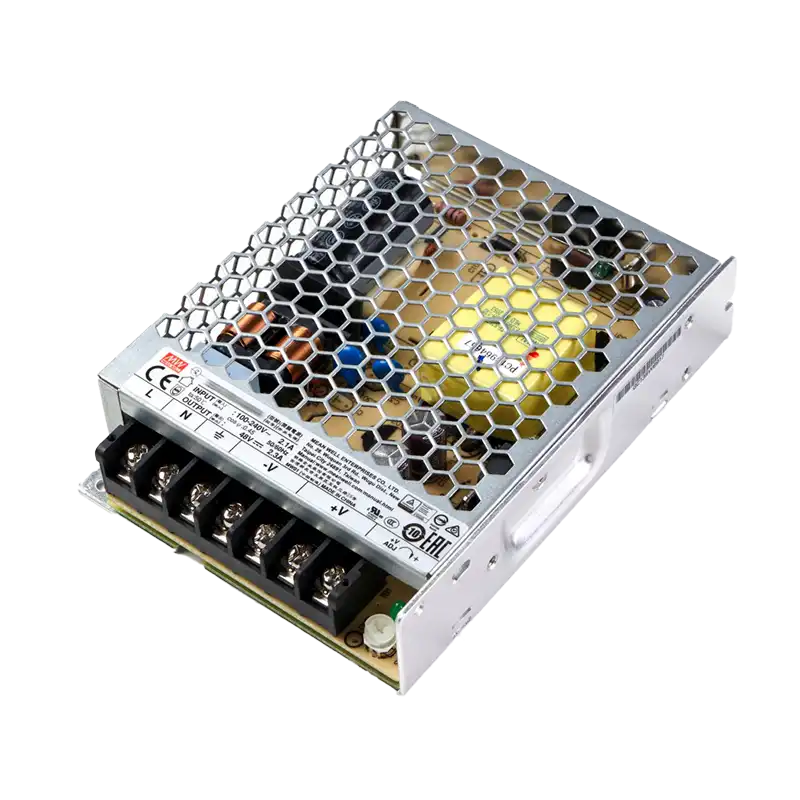

Product name:LRS-100-24/LRS-200-24/LRS-350-24
Output power:100W/200W/350W
Output current:≤4.50A/≤8.80A/≤14.60A
Product size:129*97*30mm/215*115*30mm/215*115*30mm
Input voltage:AC85-264V/AC90-132V or AC180-264V/AC90-132V or AC180-264V
Output voltage:DC24V
PF:PF>0.5
IP:IP20
Dimming method:Non-Dimming
Material:Metal housing
Product certificates:CCC/UL/TUV/EAC/CB/CE
Warranty:3 years

LRS-X-24

$
**
/set
Login to view price

Flexible Options

Reset selected

Typ.power
  • 100W

  • 200W

  • 350W

Length
  • L215.0*W115.0*H30.0mm

  • L129.0*W97.0*H30.0mm

Dimming Method
  • Non-Dimming

Input Voltage
  • AC85-264V

  • AC90-132V

  • AC180-264V

IP Grade
  • IP20

Packaging Quantity
  • 1 PCS/SET

Output Voltage
  • DC24V

Output Current
  • ≤8.80A

  • ≤4.50A

  • ≤14.60A

PF Value
  • ≥0.5

Ordering Code :

$ **/set

Common Accessories

Accessories Type
