Features

·Material: AL6063-T5,spraying surface
·Coating: White(RAL9003) optional
·Lighting direction: downward
·Light efficiency: 64 LM/W
·Spotlight angle: 20°/30°/40° optional
·UGR: ≤ 19 (X=4H, Y=8H)
·Opening size: φ55mm
·Dimming method: Non/ DALI/ 1-10V/No power optional
·Color tolerance: SDCM≤3(ANSI)
·CRI: 90
·CCT: 2700/3000/4000K optional
·Input voltage: AC220-240V
·Application: Indoor
·Power installation: External
·Installation: Trimless recessed
·IP grade: IP20
·Certification: CE、UKCA、ROHS、Reach
·Warranty: 3 years

BASIC CONFIGURATION

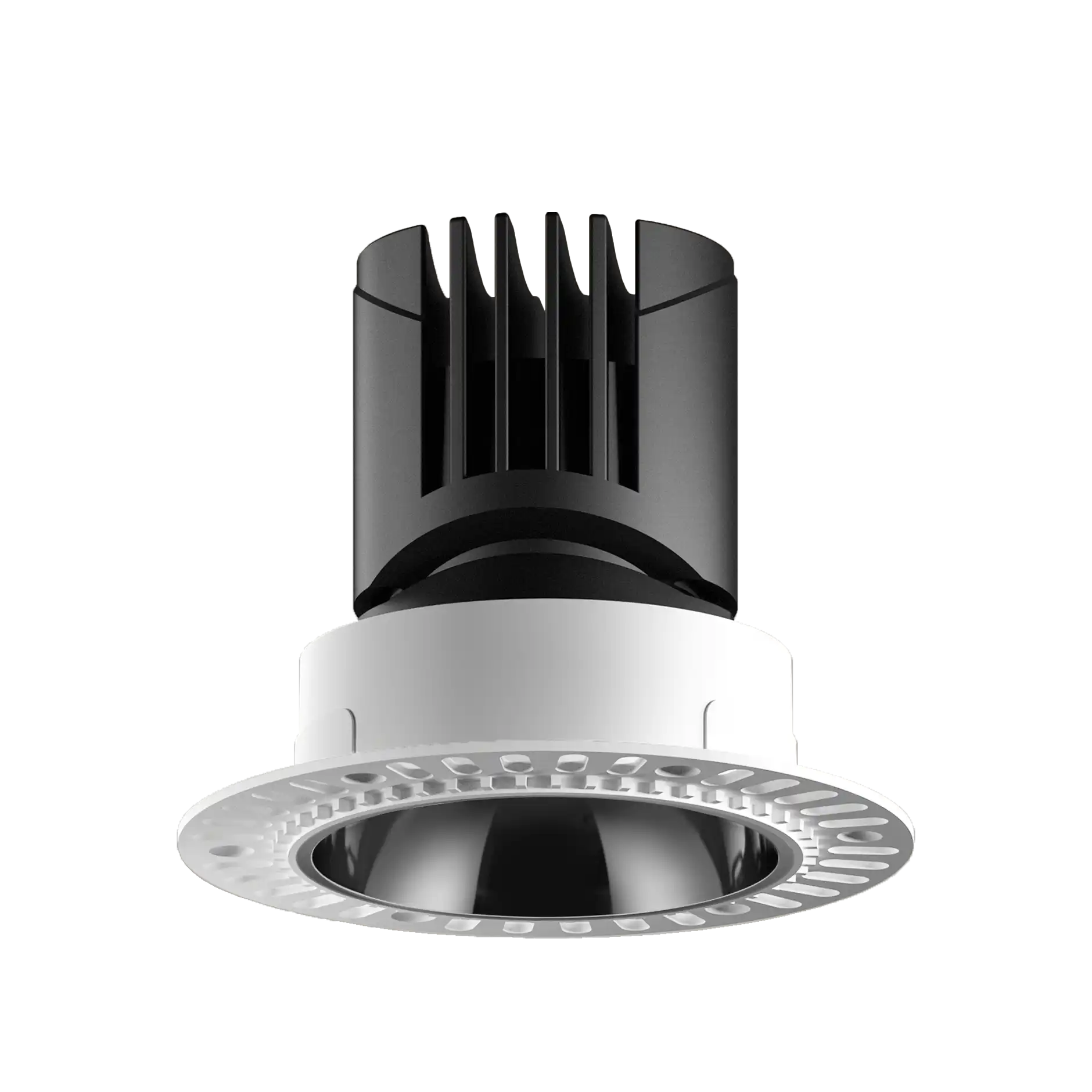

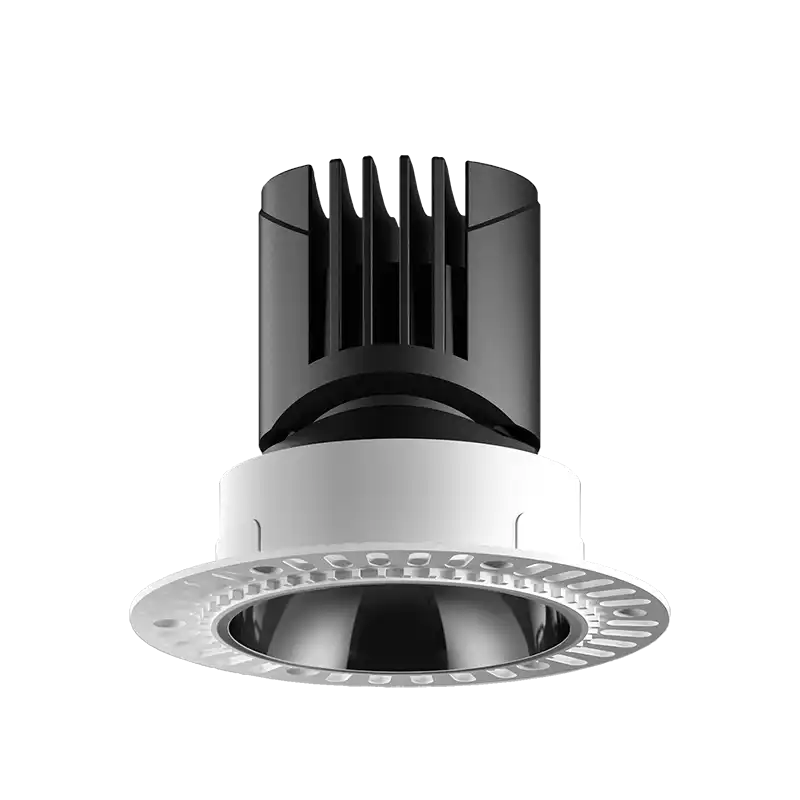

P2R55L luminaire power supply and recessed installation accessories optional

P2R55L

$
**
/set
Login to view price

Flexible Options

Reset selected

Length:
φ55mm Spotlight
Typ.power:
8W
CRI:
>90
Reflector Color:
Black chrome
Beam Angle
  • 20°

  • 30°

  • 40°

Color
  • No(Frame)

  • White(Frame)

Dimming Method
  • No Power

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

Accessory Quantity
  • 1(Including embedded parts)

  • 0(Excluding embedded parts)

User Manual
  • EN

  • CN

Label Type
  • Customized Label

  • COLORS

Ordering Code :

$ **/set

Common Accessories

Accessories Type
  • Installation accessory
Specifications
