P2R75L

BASIC CONFIGURATION

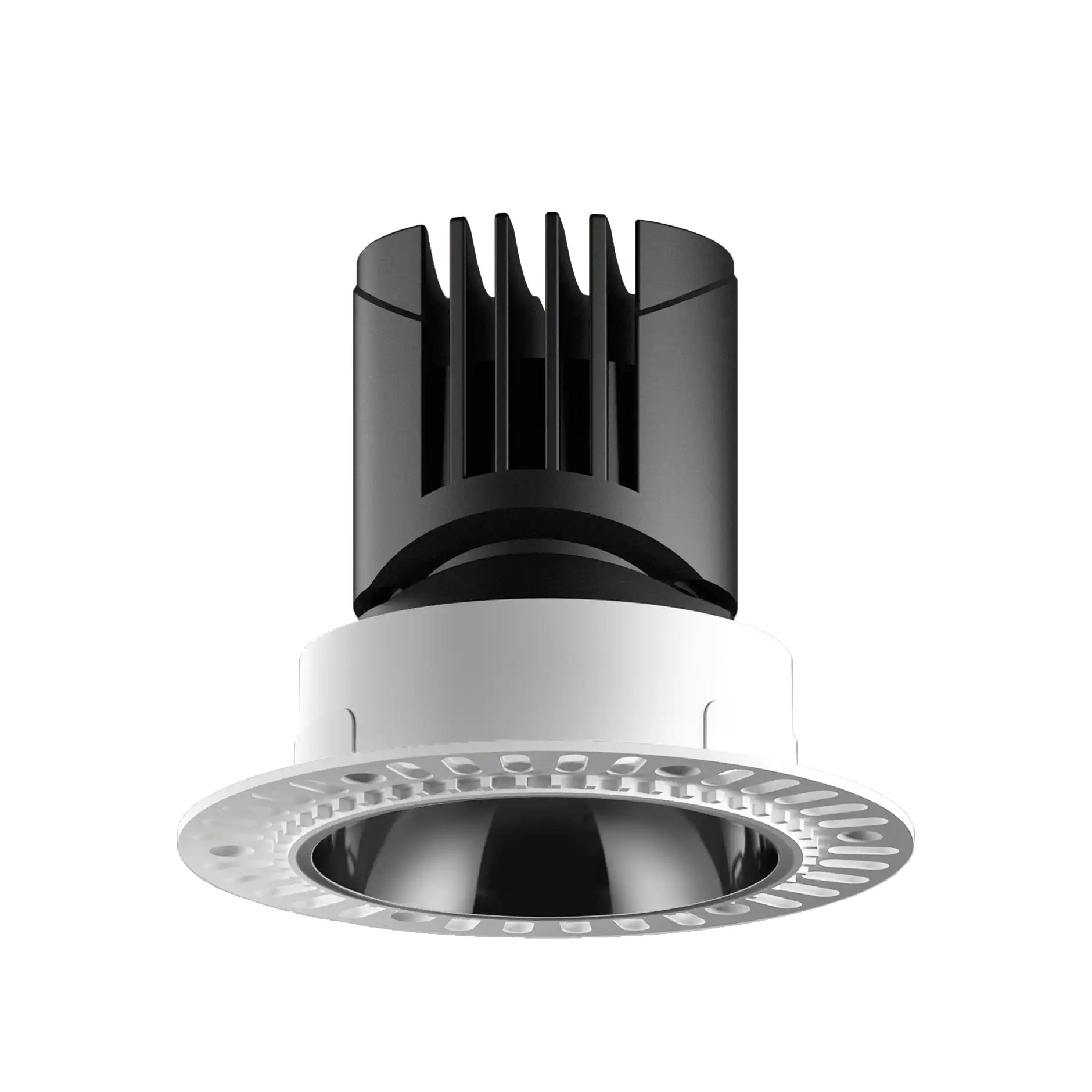

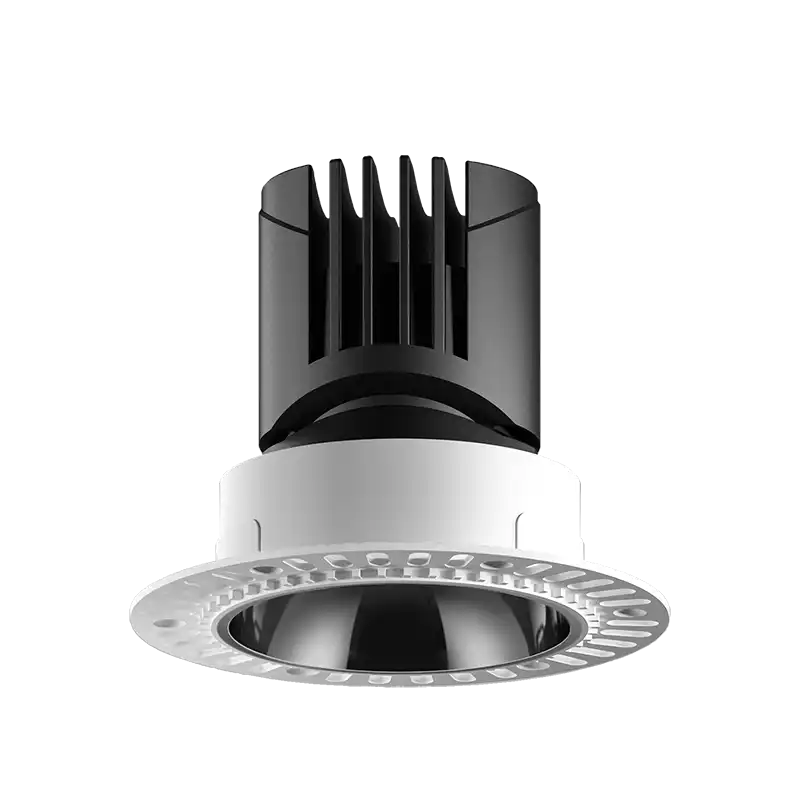

P2R75L luminaire
power supply and recessed installation accessories optional

Features

·Material: AL6063-T5，spraying surface
·Coating: White(RAL9003) optional
·Lighting direction: downward
·Light efficiency: 52 LM/W
·Spotlight angle: 18°/24°/36° optional
·UGR: ≤ 19 (X=4H, Y=8H)
·Opening size: φ75mm
·Dimming method: Non/ DALI/ 1-10V/No power optional
·Color tolerance: SDCM≤3(ANSI)
·CRI: 90
·CCT: 2700/3000/4000K optional
·Input voltage: AC220-240V
·Application: Indoor
·Power installation: External
·Installation: Trimless recessed
·IP grade: IP20
·Certification: CE、UKCA、ROHS、Reach
·Warranty: 3 years

P2R75L

Smart recommendations

Reset selected

Length

φ75mm Spotlight

Typ.power

Beam Angle

36°
24°
18°

Color

White(Border)
No(Border)

Dimming Method

Non-Dimming
No Power
DALI Dimming
1-10V Dimming

CRI

CCT

2700K
3000K
3500K
4000K

Reflector Color

Black chrome

Accessory Quantity

1(Including embedded parts)
0(Excluding embedded parts)

User Manual

Label Type

Customized Label
COLORS

Ordering Code:

DL-P2R75L9

Qty

$ ** /SET

Ordering Code:

DL-P2R75L9

Common Accessories
