Features

Led：CSP
FPCB：3oz
CRI：90
Typ.Power：9.6W/M
Max.Power：10.6W/M
Min Cut：100mm
Luminous flux:550LM/M@4000K
Warranty：5years
Product Certification：UL,CE
Operating temperature:-25~40°C;Tc：75°C（max）

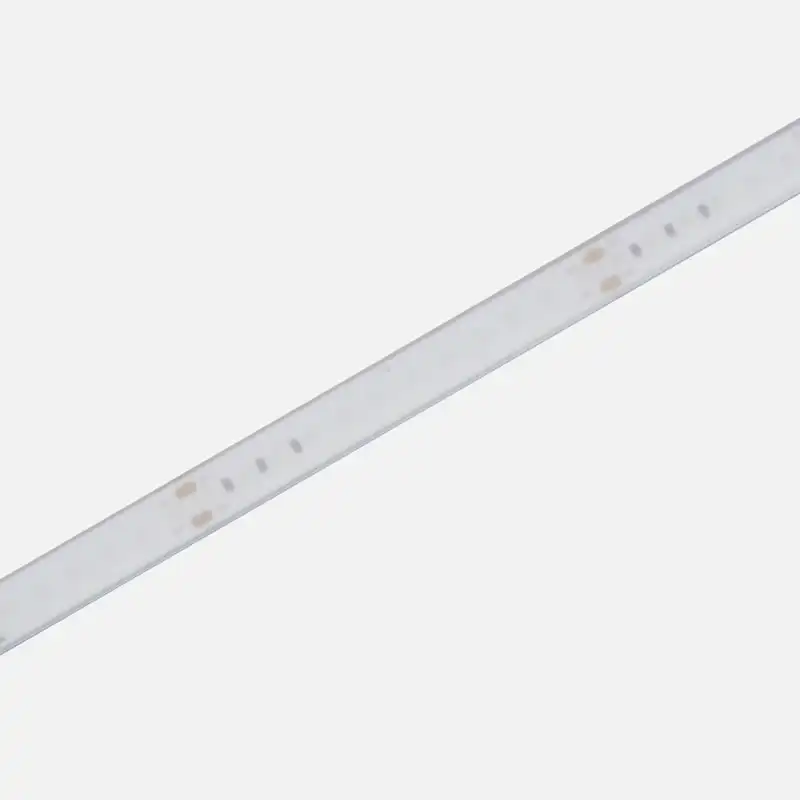

PD120-48V-12mm

Name: PD120-48V-12mm
Brand: COLORS Lighting

Flexible Options

Reset selected

Version

Non-UL
UL

CCT

2700K
3000K
4000K
6500K

CRI

Typ.power

9.6W/M

Silk Printing

COLORS
Neutral
Customize

Strip Length

5M
10M
25M
Customized Length

IP Process

IP20(NO)
IP65(NA)
IP67(EF)
IP67(ES)

Tape Type

No tape
White(3M 55230H)
Red(4910F)
Yellow(3M 9495)

Entry Cable

No
One end
Dual ends

Wire Type

No
Parallel
Silicone
PVC

Wire Length

No
12CM
20CM
50CM
100CM
200CM
others

Label Type

COLORS
Customized Label

Package

COLORS
Paper-neutral
Plastic-neutral

ESD

Delivery Date

Ordering Code :

PD1204812-9

$ **/m

Common Accessories

Accessories Type

Other
Quick connector

CBB208-DFTA

Product Name：8MM-2P Solderless Connector(Board to Board) Applicable Model:For bare board 8mm width light strip.SKU:CR8120-24V-8mm/CR8160-24V-8mm/C8200-24V-8mm/D8120N-24V-8mm/PD128-24V-8mm/PD160-24V-8mm/DP10-24V-8mm/DF6N-24V-8mm/D864-24V-8mm/D880-24V-8mm/D8128-24V-8mm/D8160-24V-8mm/D860-12V-8mm/D860-24V-8mm/D898-24V-8mm/D8120-12V-8mm/D8120-24V-8mm/D8168-24V-10mm/D6120-24V-8mm/D6140-24V-8mm/D6210-24V-8mm/D6280-24V-8mm Packing:10PCS/bag

$ ** /SET

CBBL208-DFTA

Product Name：8MM-2P Solderless (L) Connector (Board to Board) Applicable model:For bare board 8mm width light strip,SKU:CR8120-24V-8mm/CR8160-24V-8mm/C8200-24V-8mm/D8120N-24V-8mm/PD128-24V-8mm/PD160-24V-8mm/DP10-24V-8mm/DF6N-24V-8mm/D864-24V-8mm/D880-24V-8mm/D8128-24V-8mm/D8160-24V-8mm/D860-12V-8mm/D860-24V-8mm/D898-24V-8mm/D8120-12V-8mm/D8120-24V-8mm/D8168-24V-10mm/D6120-24V-8mm/D6140-24V-8mm/D6210-24V-8mm/D6280-24V-8mm Packing:10PCS/bag

$ ** /SET

CXB208-DFTA

Product Name: 8MM-2P Solderless Connector(Wire to Board) Applicable Model:For bare board 8mm width light strip.SKU:CR8120-24V-8mm/CR8160-24V-8mm/C8200-24V-8mm/D8120N-24V-8mm/PD128-24V-8mm/PD160-24V-8mm/DP10-24V-8mm/DF6N-24V-8mm/D864-24V-8mm/D880-24V-8mm/D8128-24V-8mm/D8160-24V-8mm/D860-12V-8mm/D860-24V-8mm/D898-24V-8mm/D8120-12V-8mm/D8120-24V-8mm/D8168-24V-10mm/D6120-24V-8mm/D6140-24V-8mm/D6210-24V-8mm/D6280-24V-8mm Suitable Cable diameter: AWG 20/22. Packing:10PCS/bag

$ ** /SET

LS1613

·Material:AL6063-T5,spraying surface/anodizing ·Coating:Silver anodized(RAL9006),Black(RAL9005),White(RAL9003) ·Length:2500mm/0-2500mm customizable (Other lengths on request) ·Application: Indoor ·Installation:Ceiling、Trimless recessed ·IP grade:IP20 ·Certification:ROHS、Reach ·Warranty:5 years

$ ** /SET
