BASIC CONFIGURATION

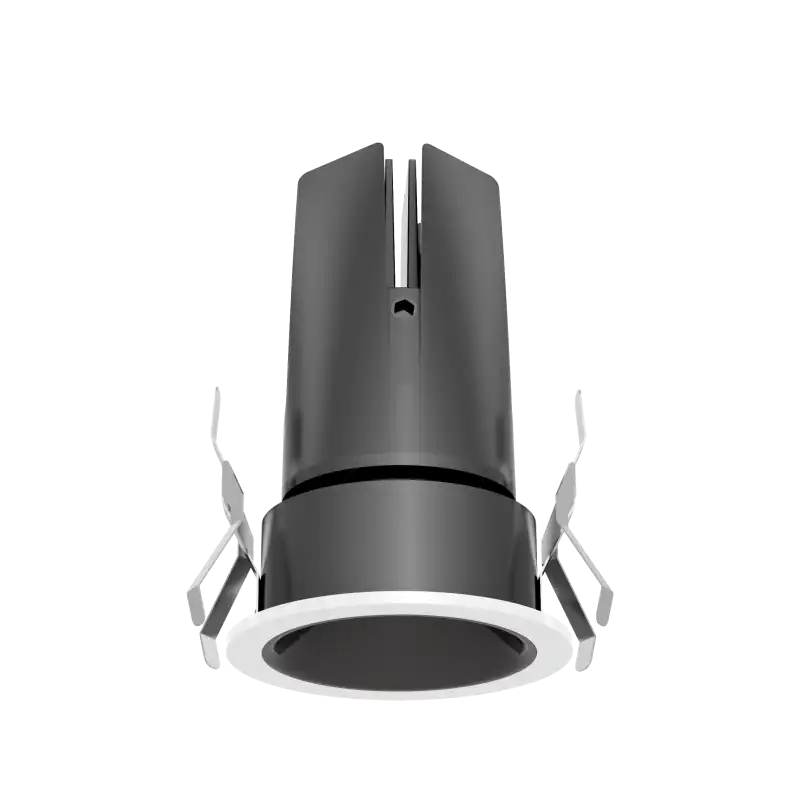

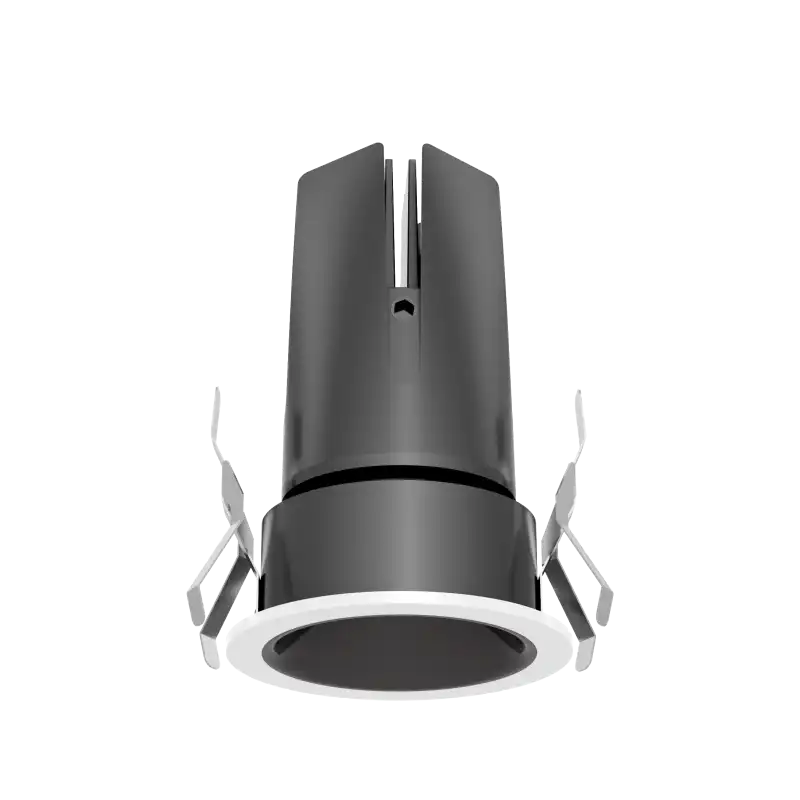

G2SE45L2(E) luminaire
Power supply optional
no application accessories

Note:
If the "Honeycomb" is selected, it will be installed on the spotlight by default,and the parameters will change as follows.
(1)Spotlights with beam angles of "15°" and "24°":the light efficiency will be reduced by 30%, the beam Angle will be reduced by 12%, the anti-glare effect will be better, and the UGR will be reduced by 40%.
(2)Spotlights with beam angles of "36°":the light efficiency will be reduced by 50%, the beam Angle will be reduced by 25%, the anti-glare effect will be better, and the UGR will be reduced by 40%.

Features

·Material:ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: downward
·Beamangle:15°/24°/36° optional
·UGR(X=4H, Y=8H): ≤10(15°/24°),≤16(36°)
·Opening size:φ45mm
·Dimming method:Non/1-10V/DALI optional
·SDCM(Light source): <3 Step(ANSI)
·CRI:90
·CCT:2700/3000/3500/4000K optional
·Input voltage:AC220-240V
·Application: Indoor
·Installation:Recessed
·IP grade:IP20/ IP54
·Certification:CE、ROHS、Reach
·Warranty:5 years

G2SE45L2(E)

Reset selected

Typ.power

  • 6W

  • 9W

Beam Angle

  • 15°

  • 24°

  • 36°

Color

  • White(Border)

  • Black(Border)

Dimming Method

  • No Power

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

CRI

  • >90

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

Reflector Color

  • Mirror

  • Matte White

  • Matte Black

  • Black chrome

IP Grade

  • IP20

  • IP54

Optical Accessory

  • Honeycomb

  • NO

  • Linear Spread Filter

  • Honeycomb & Linear Spread Filter

  • Honeycomb & Diffusion Filter

  • Diffusion Filter

Entry Cable

  • With cable of drive input

  • With junction box

User Manual

  • EN

Label Type

  • COLORS

  • Customized Label

Ordering Code:

90

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

90

Request A Quote
