Features

·Material: ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: downward
·Beam angle: 9°/15°/24°/36°/50° optional
·UGR(X=4H,Y=8H): ≤10(9°/15°/24°/36°),≤19(50°)
·Opening size: φ65mm
·Dimming method: Non/0-10V/Traic/DALI optional
·SDCM(Lightsource): <3 Step(ANSI)
·CRI: 90
·CCT: 2700/3000/3500/4000K/2700-6500K optional
·Input voltage: AC220-240V
·Application: Indoor
·Installation: Recessed
·IP grade: IP20/IP54
·Certification: CE、ROHS、Reach
·Warranty: 5 years

BASIC CONFIGURATION

G2SE65L2(E) luminaire Power supply optional no application accessories Note: If "Honeycomb" is selected, the luminous efficacy will decrease, and both the beam angle and UGR will be reduced.

Dimension

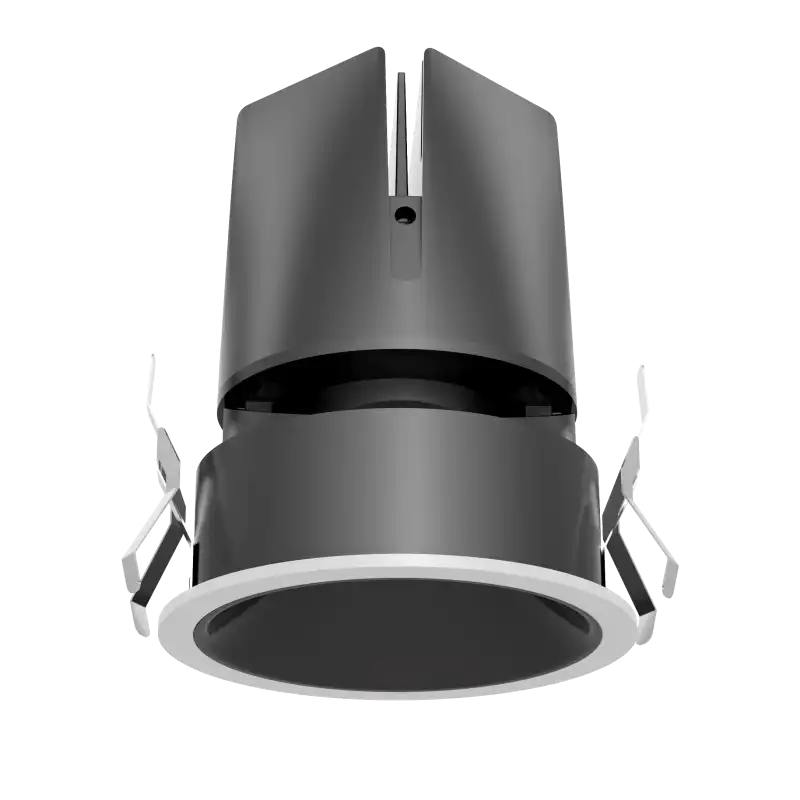

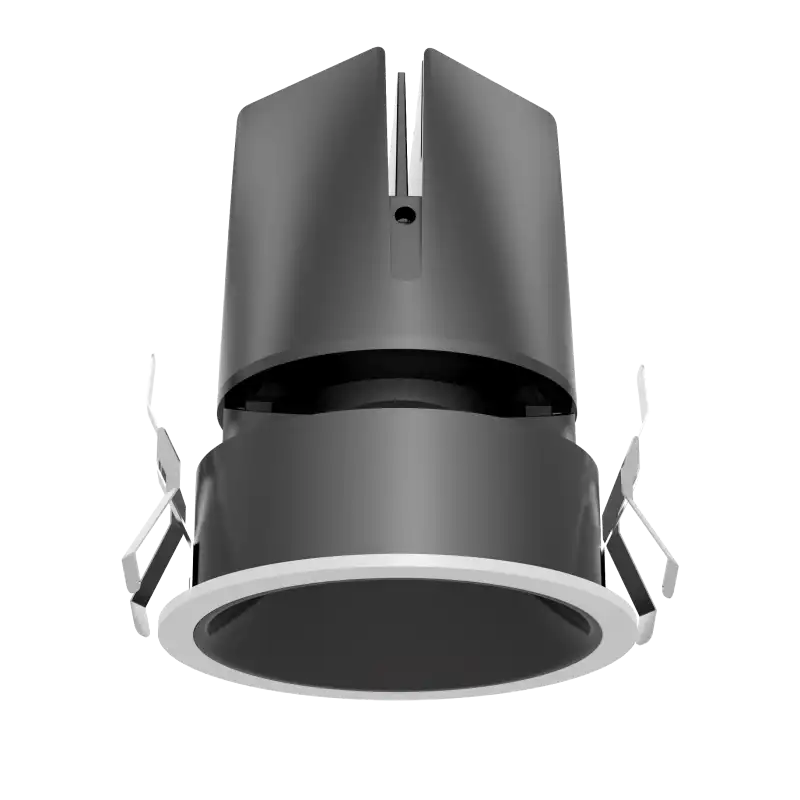

G2SE65L2(E)

Reset selected

$
**
/set
Login to view price
Length:
Opening φ65mm
CRI:
>90
User Manual:
EN
Version
  • Normal
  • CCT Tunable
Typ.power
  • 12W
  • 15W
  • 9W
Beam Angle
  • 15°
  • 24°
  • 36°
  • 50°
Color
  • Black(Frame)
  • White(Frame)
Dimming Method
  • No Power
  • Non-Dimming
  • 0-10V Dimming
  • DALI Dimming
  • Triac Dimming
CCT
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 2700K-6500K
Reflector Color
  • Mirror

  • Matte White

  • Matte Black

  • Black chrome

IP Grade
  • IP20
  • IP54
Optical Accessory
  • Honeycomb + Linear Spread Filter
  • Honeycomb + Diffusion Filter
  • Honeycomb

  • NO
  • Linear Spread Filter
  • Diffusion Filter
Entry Cable
  • With cable of drive input
  • With junction box
Label Type
  • COLORS

  • Customized Label

Ordering Code :
Delivery Date :    7-15 Days

$ **/set

Opening φ65mm,
>90,
EN
Specifications

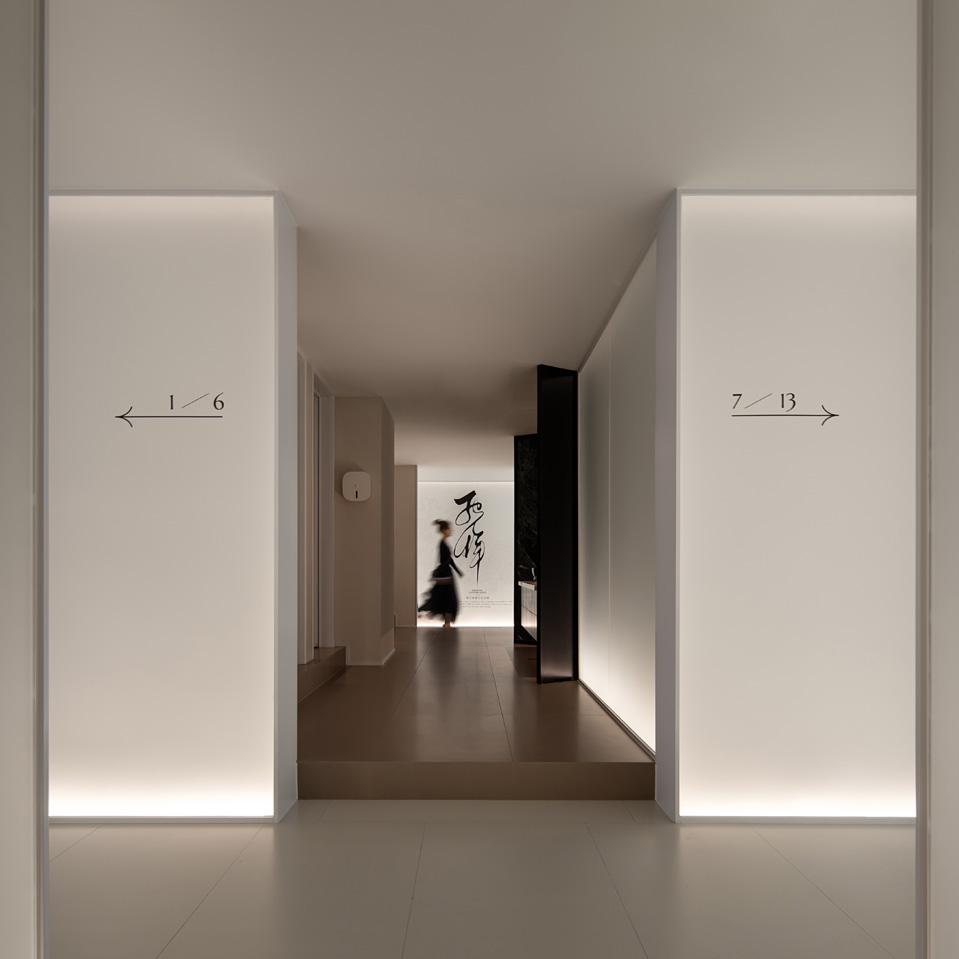

Related Projects
