BASIC CONFIGURATION

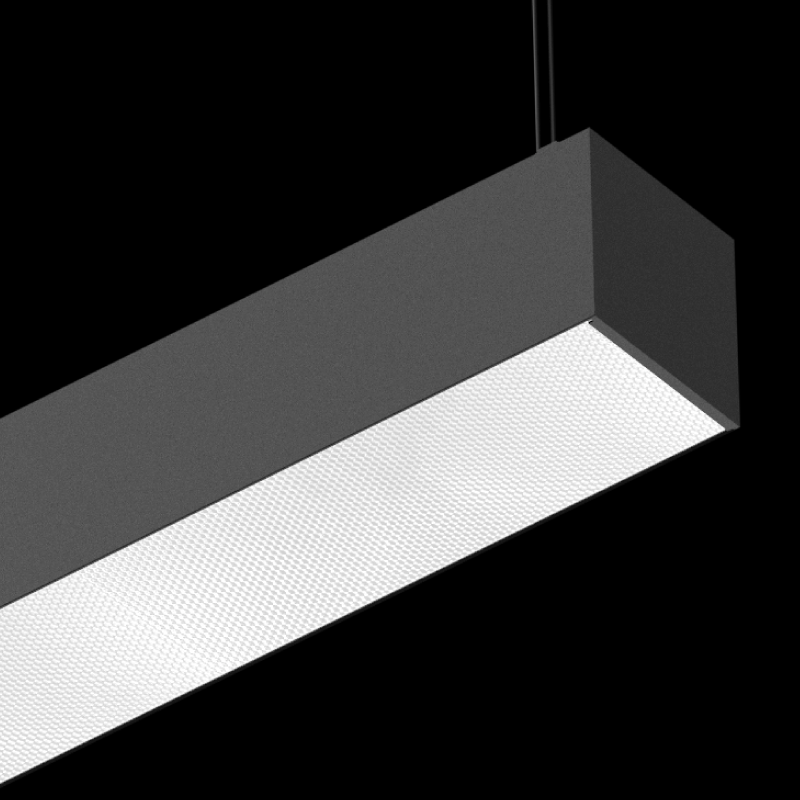

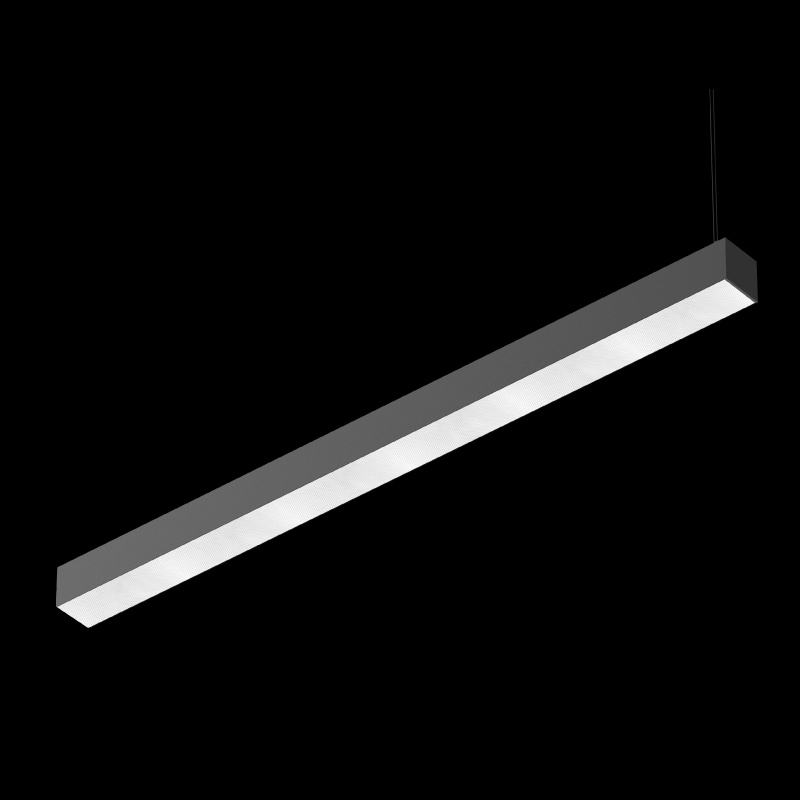

AH70FP luminaire
luminaire entry cable 1.6M
1PCS end cap
L≤1.2m luminaire included 2 PCS clips;
1.2m<L≤1.8m luminaire included 3 PCS clips;

Features

·Material:AL6063-T5,spraying surface
·Coating:Matte black,Matte white
·Length:1200,1800mmoptional
·Lighting direction:Upward and Downward
·Installaton:Pendant
·IP grade:IP20
·Application:Indoor
·Light efficiency:105LM/W(Normal),130LM/W(High efficiency-3CCT Dial switch)
130LM/W(High efficiency),110LM/W(Normal-3CCT Dial switch)
·UGR(X=4H,Y=8H):≤19
·SDCM:<3 Step (ANSI)
·CRI:80,90
·CCT:2700,3000,4000,6500,3000-4200-6200K optional
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years

AH70FP

Reset selected

Version
  • Normal

  • High efficiency

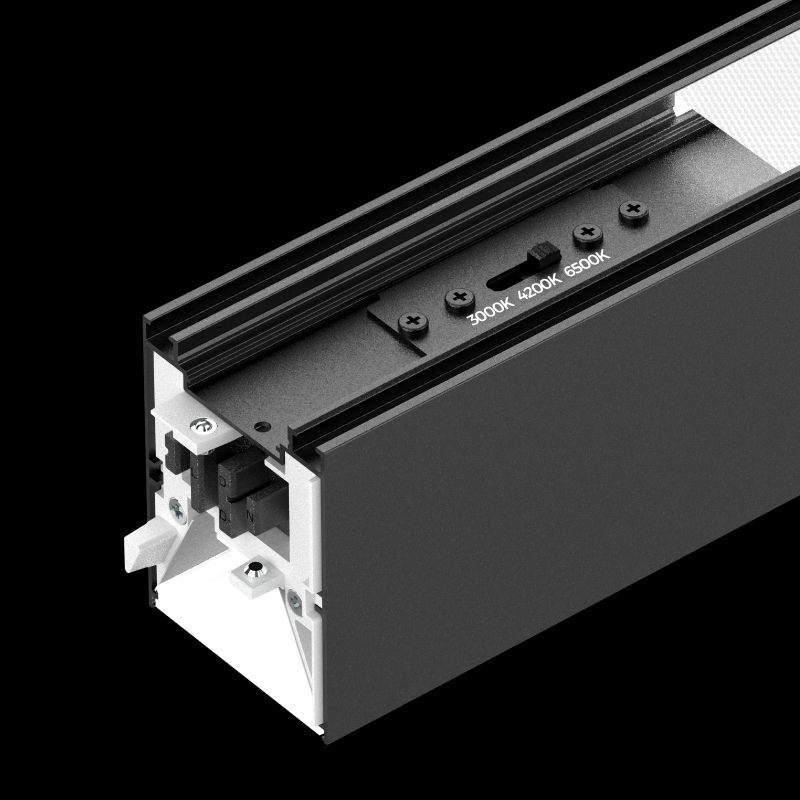

  • Normal-3 CCT Dial Switch

  • High efficiency-3 CCT Dial Switch

Diffuser Nature
  • Prismatic

Length
  • 1200mm

  • 1800mm

Typ.power
  • 70W

  • 106W

Carrier Style
  • No carrier

Color
  • Matte Black

  • Matte White

Dimming Method
  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

CRI
  • >80

  • >90

CCT
  • 2700K

  • 3000K

  • 4000K

  • 6500K

  • 3000K-4200K-6500K

Light Source Type
  • Constant Current Rigid PCB

Input Voltage
  • AC220-240V

End Cap Style
  • Holeless end cap

Label Type
  • COLORS

  • Customized Label

Package
  • Single-Unit Inner Box Packaging

Ordering Code:

LLS-AH70FPXS-T-D

Qty

$ ** /SET

Ordering Code:

LLS-AH70FPXS-T-D
