Features

·Material: ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: downward
·Beamangle: 15°/24°/36°/45° optional
·UGR(X=4H, Y=8H): ≤6(15°/24°/36°), ≤16(45°)
·Opening size: φ75mm
·Dimming method: Non/1-10V/DALI optional
·SDCM(Light source): <3 Step(ANSI)
·CRI: 90
·CCT: 2700/3000/3500/4000K optional
·Input voltage: AC220-240V
·Application: Indoor/Outdoor
·Installation: Recessed
·IP grade: IP65
·Certification: CE、ROHS、Reach
·Warranty: 5 years

BASIC CONFIGURATION

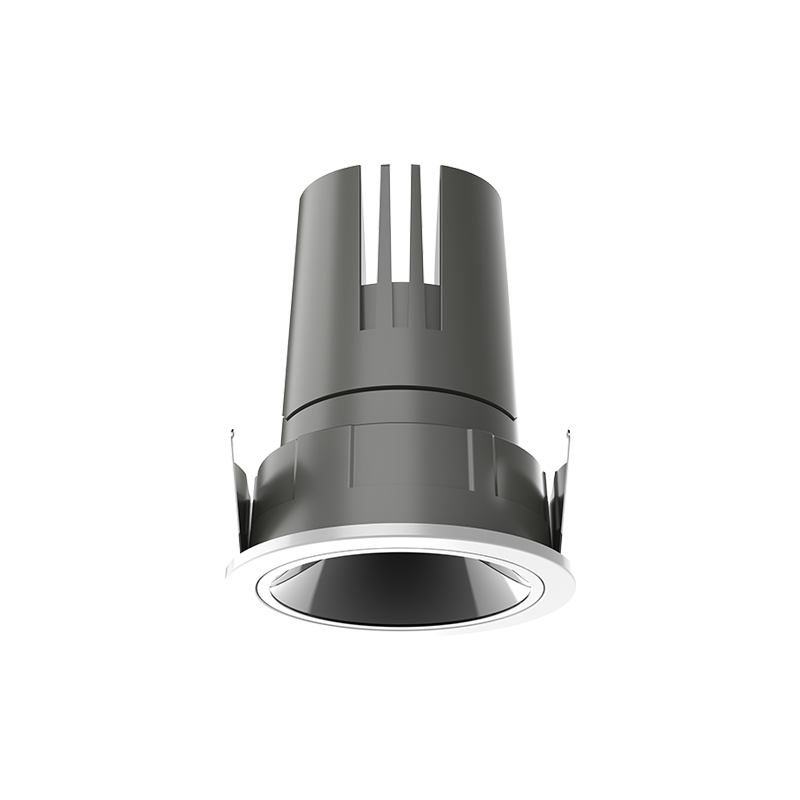

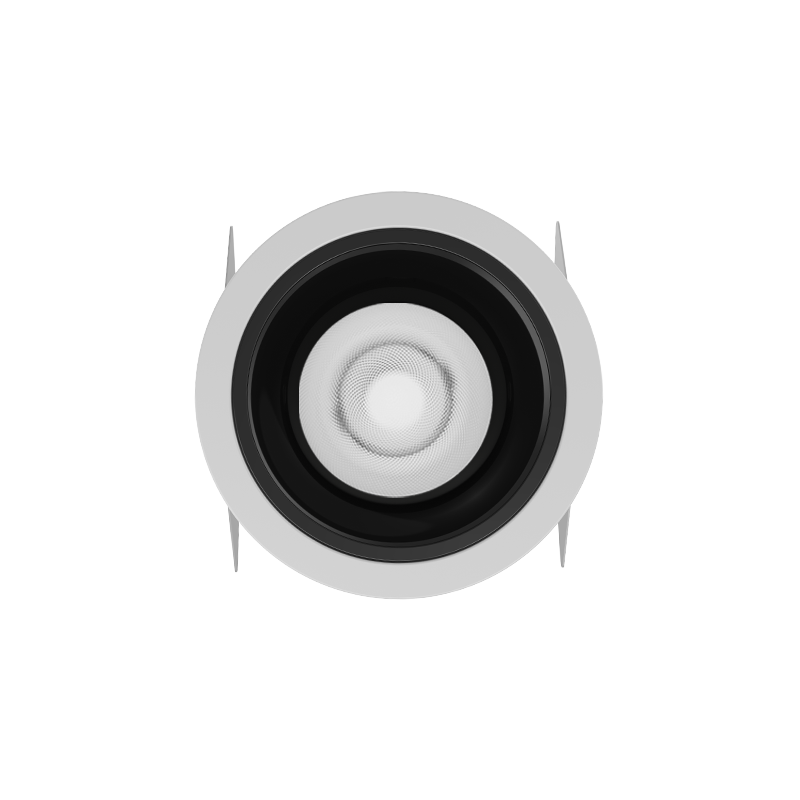

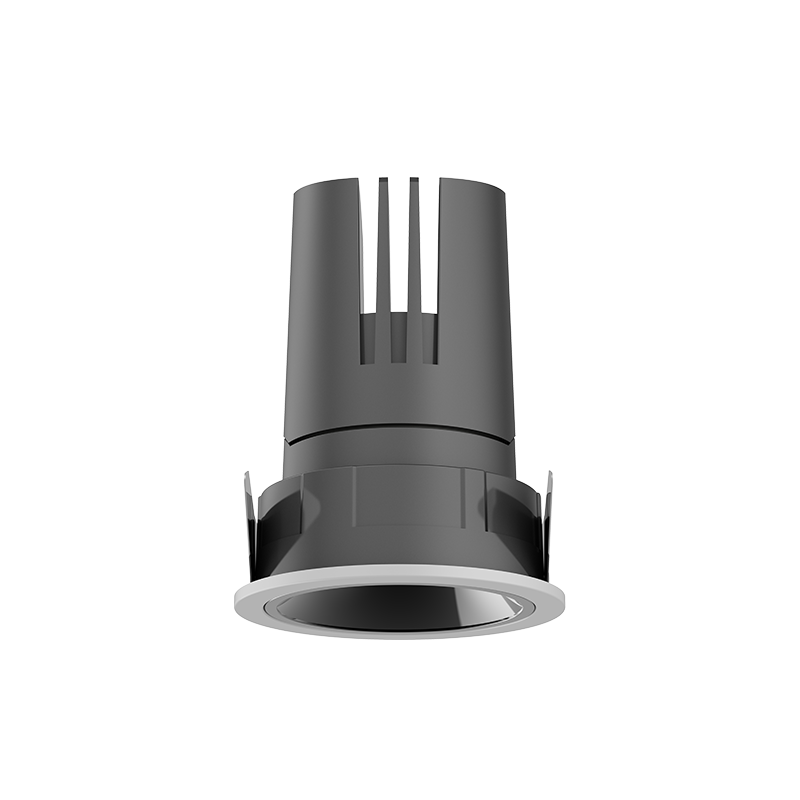

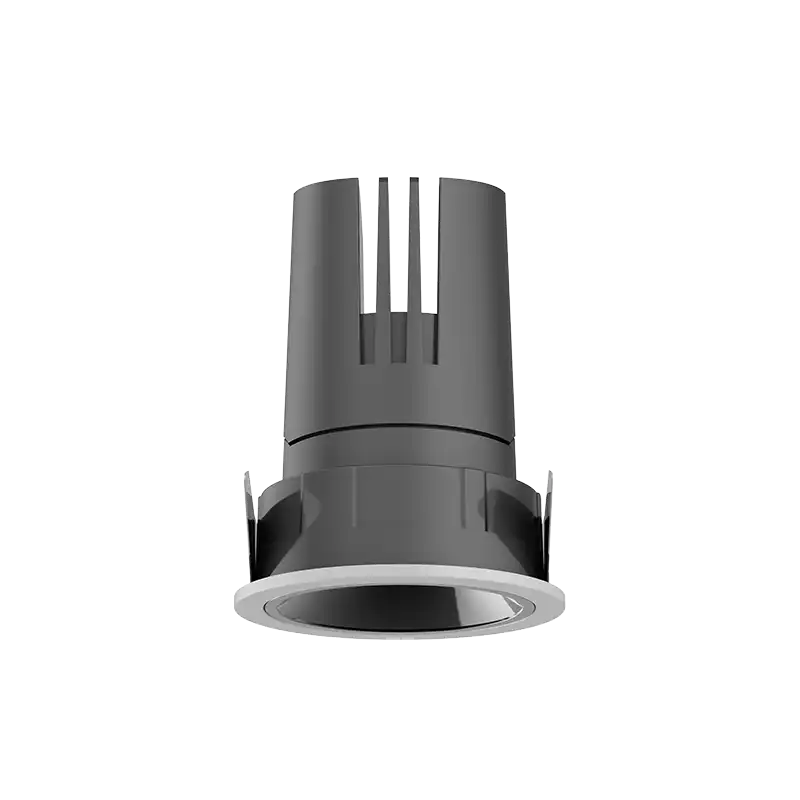

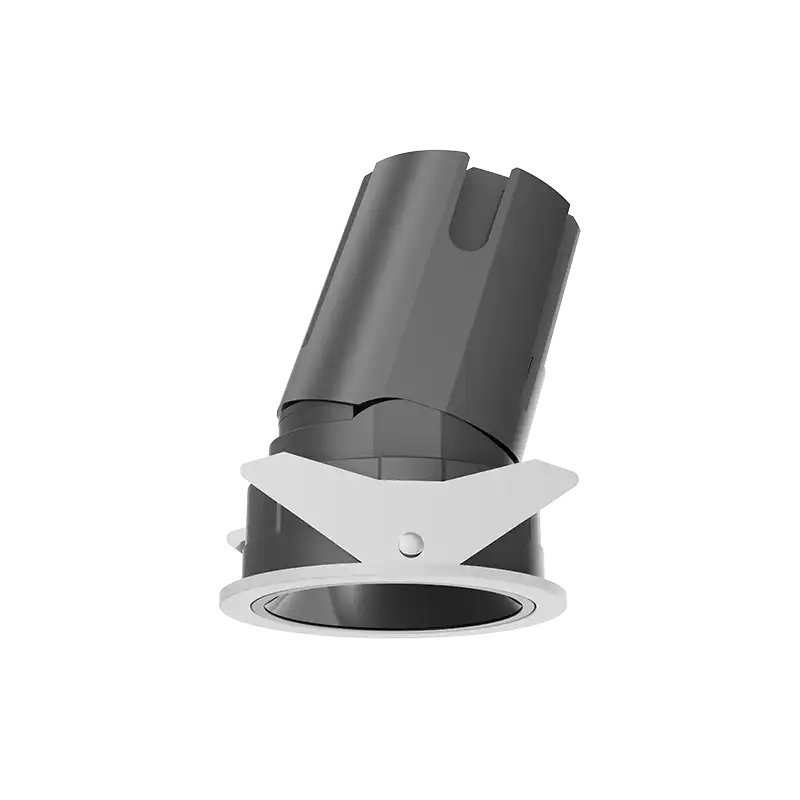

BE75L2 luminaire
Power supply optional
Note:
If the "Honeycomb"  accessory is selected, it will be pre-installed on the downlight by default. This will result in:
1. Reduced luminous efficacy and UGR (Unified Glare Rating) value
2. Narrower beam angle

Dimension

BE75L2

$
**
/set
Login to view price

Flexible Options

Reset selected

Typ.power
  • 12W

  • 15W

Beam Angle
  • 15°

  • 24°

  • 36°

  • 45°

Color
  • Black(Frame)

  • White(Frame)

Dimming Method
  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

CRI
  • >90

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

Reflector Color
  • Mirror

  • Black chrome

  • Matte Black

  • Matte White

  • Matte Silver

IP Grade
  • IP65

Optical Accessory
  • Honeycomb

  • No Honeycomb

User Manual
  • CN

  • EN

Label Type
  • COLORS

  • Customized Label

Ordering Code :
  • Datasheet

$ **/set
