Features

·Material: ADC12,spraying surface
·Driver Installation: Remote
·Lighting direction: Downward
·Beam angle:15°/24°/36° optional
·UGR(X=4H, Y=8H): ≤13(15°/24°),≤19(36°)
·Opening size:φ45mm
·Dimming method:Non/1-10V/DALI optional
·SDCM(Light source): <3 Step(ANSI)
·CRI:90
·CCT:2700/3000/3500/4000K optional
·Input voltage:AC220-240V
·Application: Indoor
·Installation:Recessed
·IP grade:IP54
·Certification:CE,ROHS,Reach
·Warranty:5 years

BASIC CONFIGURATION

G2SE45L1(E) luminaire Power supply optional Note: If the "Honeycomb" is selected, it will be installed on the spotlight by default,and the parameters will change as follows. (1)Spotlights with beam angles of "15°" and "24°":the light efficiency will be reduced by 30%, the beam Angle will be reduced by 12%, the anti-glare effect will be better, and the UGR will be reduced by 40%. (2)Spotlights with beam angles of "36°"the light efficiency will be reduced by 50%, the beam Angle will be reduced by 25%, the anti-glare effect will be better, and the UGR will be reduced by 40%.v

Dimension

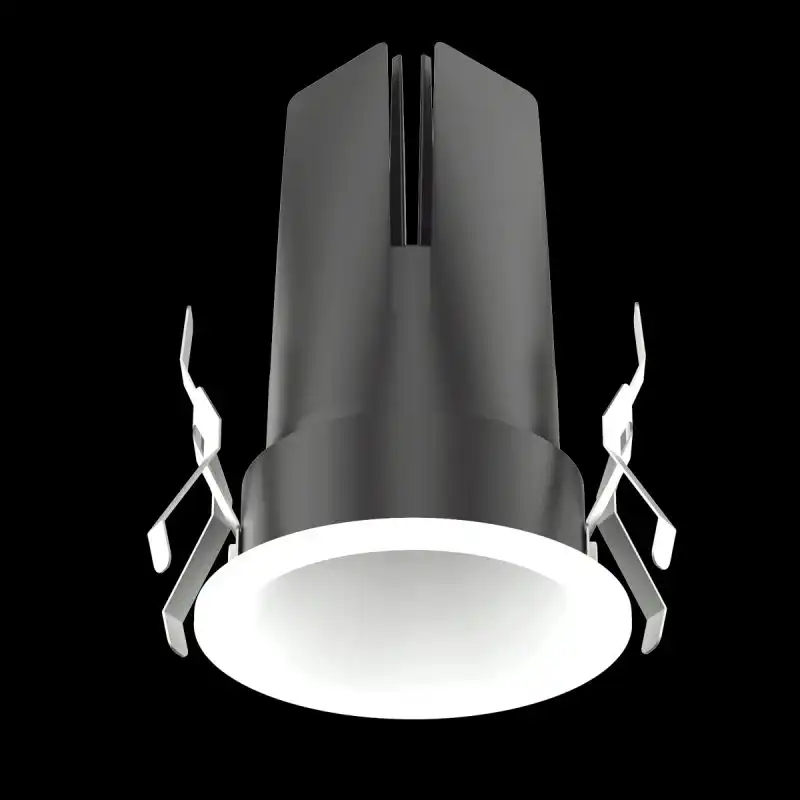

G2SE45L1(E)

$
**
/set
Login to view price

Flexible Options

Reset selected

Color:
White(Frame)
CRI:
>90
IP Grade:
IP54
User Manual:
EN
Typ.power

  • 6W

  • 9W

Beam Angle

  • 15°

  • 24°

  • 36°

Dimming Method

  • No Power

  • Non-Dimming

  • 0-10V Dimming

  • DALI Dimming

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

Reflector Color

  • Matte Black

  • Matte White

Optical Accessory

  • Linear Spread Filter

  • Honeycomb

  • Diffusion Filter

  • Honeycomb + Linear Spread Filter

  • Honeycomb + Diffusion Filter

  • NO

Entry Cable

  • With junction box

  • With cable of drive input

Label Type

  • COLORS

  • Customized Label

Ordering Code :

$ **/set
