Features

·Material: ADC12,sprayingsurface

·DriverInstallation: Remote

·Lightingdirection: downward

·Beamangle: 9°/15°/24°/36°/50°optional

·UGR(X=4H,Y=8H): ≤10(9°/15°/24°/36°),≤19(50°)

·Openingsize: 136x70mm

·Dimmingmethod: Non/0-10V/Traic/DALI optional

·SDCM(Lightsource): <3Step(ANSI)

·CRI: 90

·CCT: 2700/3000/3500/4000K/2700-6500K optional

·Inputvoltage: AC220-240V

·Application: Indoor

·Installation: Recessed

·IPgrade: IP20/IP54

·Certification: CE、ROHS、Reach

·Warranty: 5years

BASIC CONFIGURATION

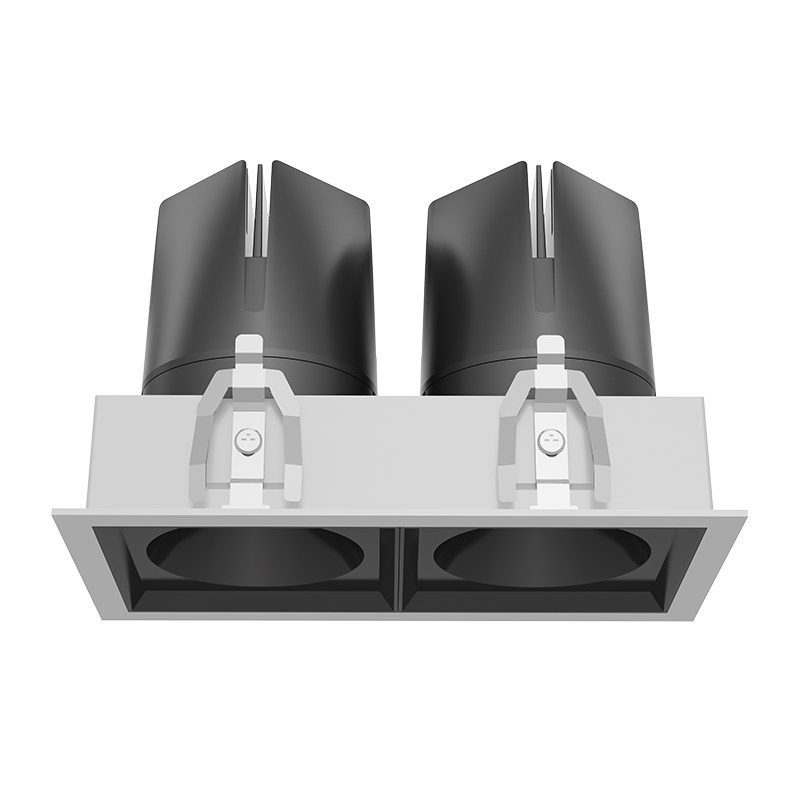

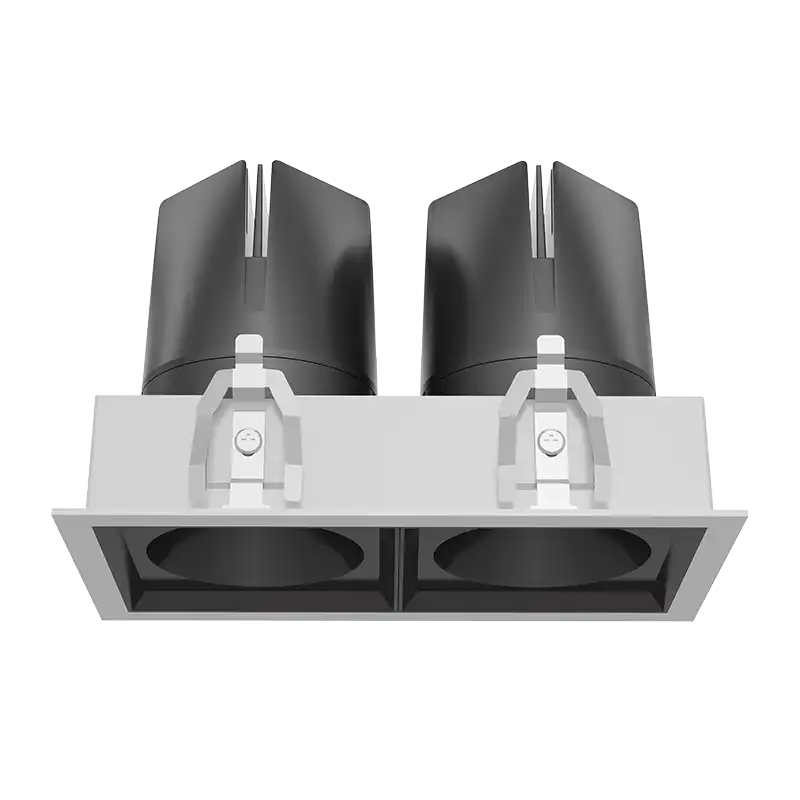

G2SE70S2(E) luminaire

Power supply optional

no application accessories



Note:

If "Honeycomb" is selected, the luminous efficacy will decrease, and both the beam angle and UGR will be reduced.

G2SE70S2(E)

$
**
/set
Login to view price

Flexible Options

Reset selected

Version
  • Normal

  • CCT Tunable

Length
  • Opening 136x70mm

Typ.power
  • 2x9W

  • 2x12W

  • 2x15W

Beam Angle
  • 15°

  • 24°

  • 36°

Color
  • Black(Frame)

  • White(Frame)

Dimming Method
  • No Power

  • Non-Dimming

  • 0-10V Dimming

  • DALI Dimming

  • Triac Dimming

CRI
  • >90

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 2700K-6500K

Reflector Color
  • Mirror

  • Black chrome

  • Matte Black

  • Matte White

IP Grade
  • IP20

  • IP54

Optical Accessory
  • Honeycomb

  • NO

  • Linear Spread Filter

  • Diffusion Filter

  • Honeycomb + Linear Spread Filter

  • Honeycomb + Diffusion Filter

Entry Cable
  • With cable of drive input

  • With junction box

User Manual
  • EN

Label Type
  • COLORS

  • Customized Label

Delivery Date
Ordering Code :

90

$ **/set
