Features

·Material:AL6063-T5,spraying surface
·Coating:Matte black,Matte white
·Length:1200,1800,2400mm optional
·Lighting direction:Downward
·Installation:Pendant,Ceiling
·IP grade:IP20
·Application:Indoor
·Light efficiency:115LM/W(Regular),120LM/W(Regular-3CCT Dial switch)
150LM/W(High efficiency),145LM/W(High efficiency-3CCT Dial switch)
·SDCM:<3 Step (ANSI)
·CRI:80,90
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years

BASIC CONFIGURATION

MS70FD Module(AC220V) L≤1.2m modular included 2 PCS clips, 1PCS ceiling screw; 1.2m<L≤2.5m modular included 3 PCS clips;

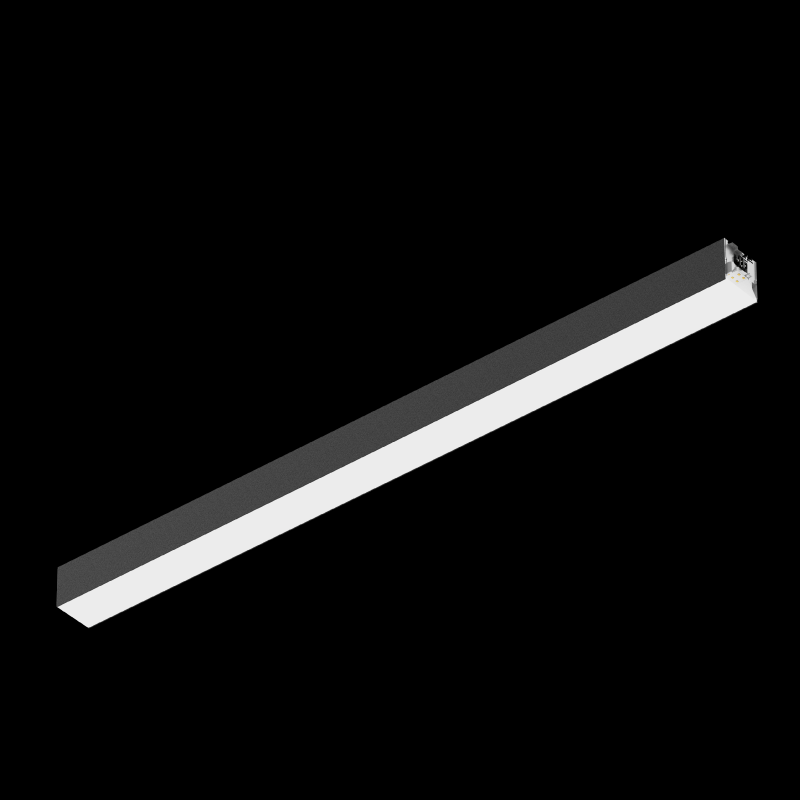

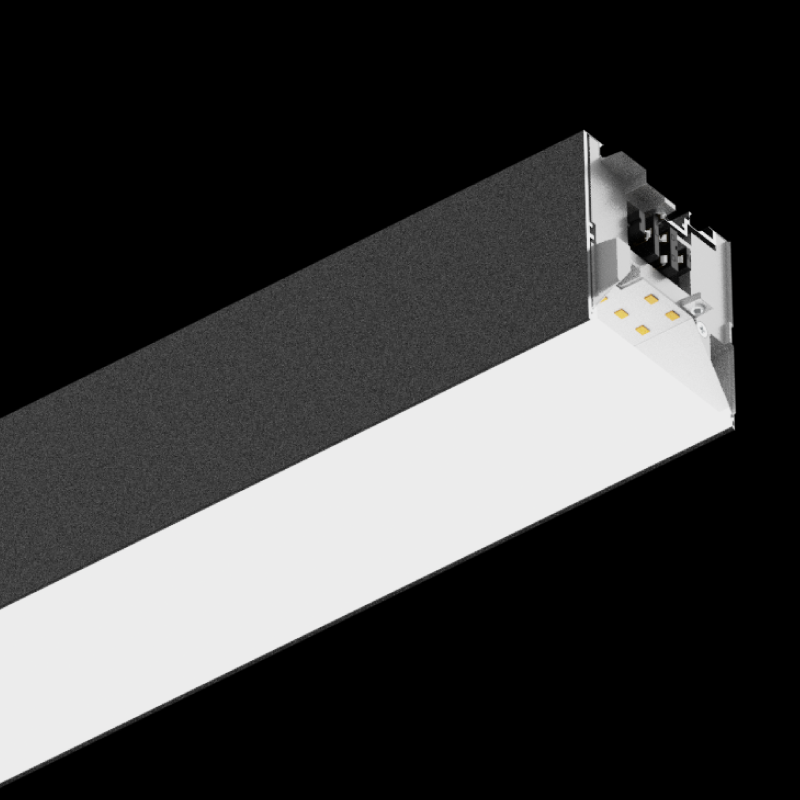

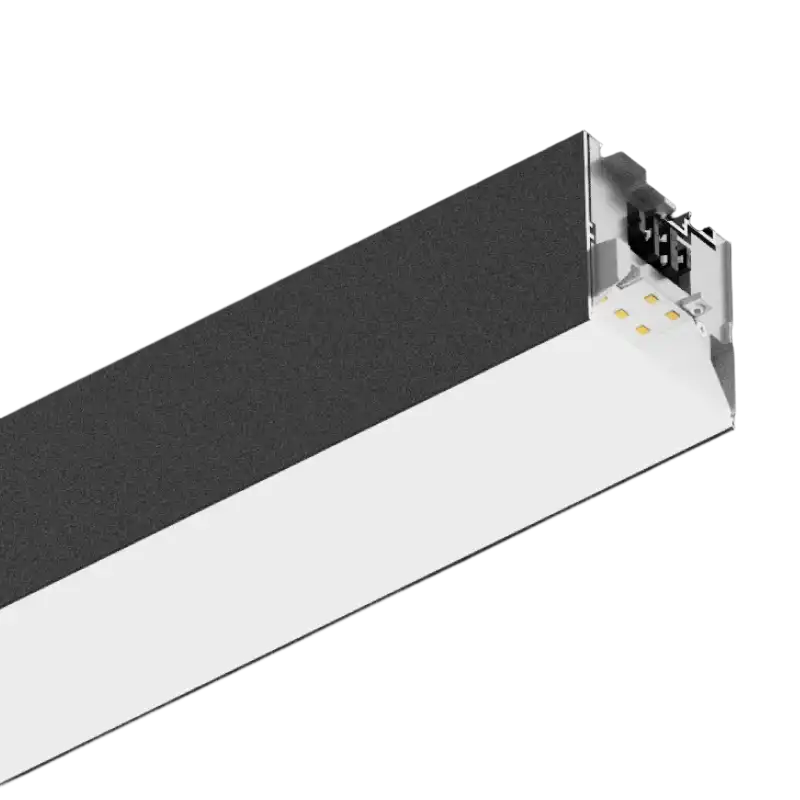

MS70FD

Reset selected

$
**
/set
Login to view price
Carrier Style:
No carrier
Light Source Type:
Constant Current Rigid PCB
Input Voltage:
AC220-240V
Package:
Single-Unit Inner Box Packaging
Version
  • Regular

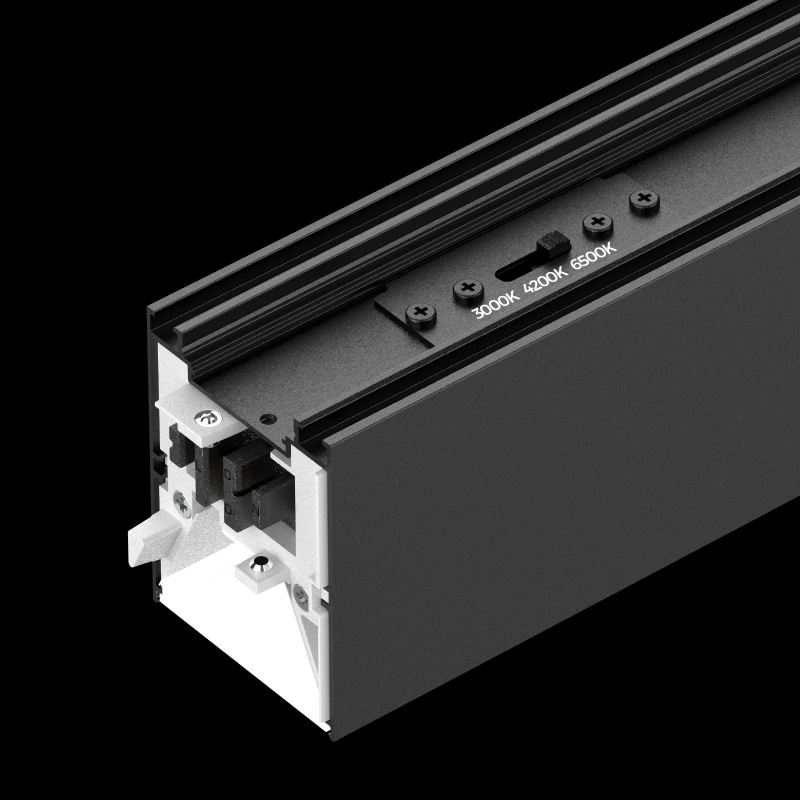

  • Regular-3 CCT Dial Switch
  • High efficiency
  • High efficiency-3 CCT Dial Switch
Diffuser Nature
  • Diffuser

  • No diffuser
Length
  • 1200mm
  • 1800mm
  • 2400mm
Typ.power
  • 36W
  • 47W
  • 54W
  • 70W
  • 72W
  • 90W
Color
  • Black
  • White
Dimming Method
  • Non-Dimming
  • 1-10V Dimming
  • DALI Dimming
CRI
  • >80
  • >90
CCT
  • 2700K
  • 3000K
  • 4000K
  • 6500K
  • 3000K-4200K-6500K
End Cap Style
  • No end cap
  • Holeless end cap

Label Type
  • COLORS

  • Customized Label

Ordering Code :

$ **/set

No carrier,
Constant Current Rigid PCB,
AC220-240V,
Single-Unit Inner Box Packaging

Common Accessories

Accessories Type

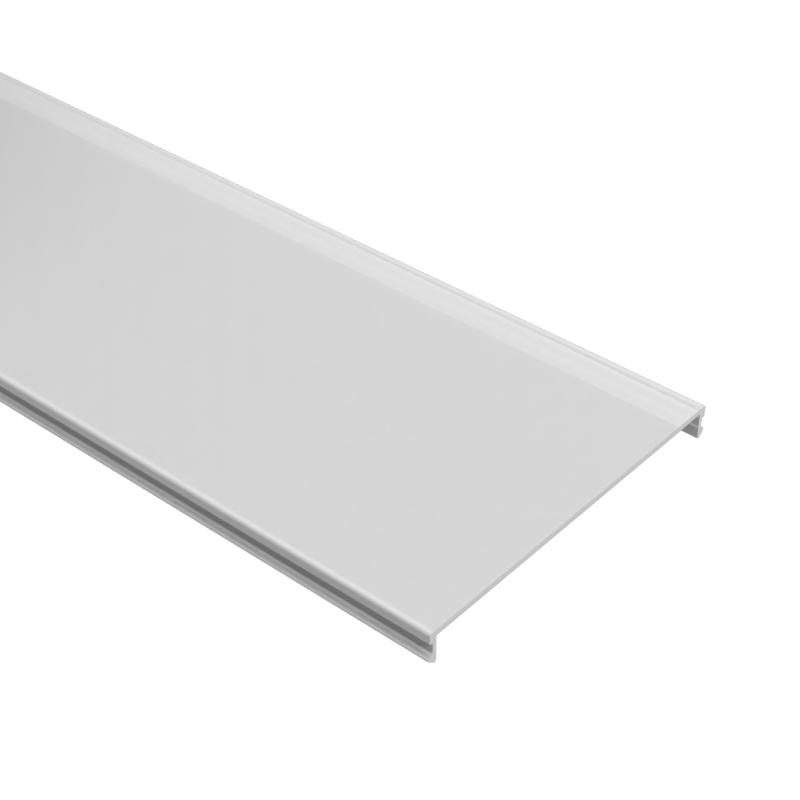

  • Cover

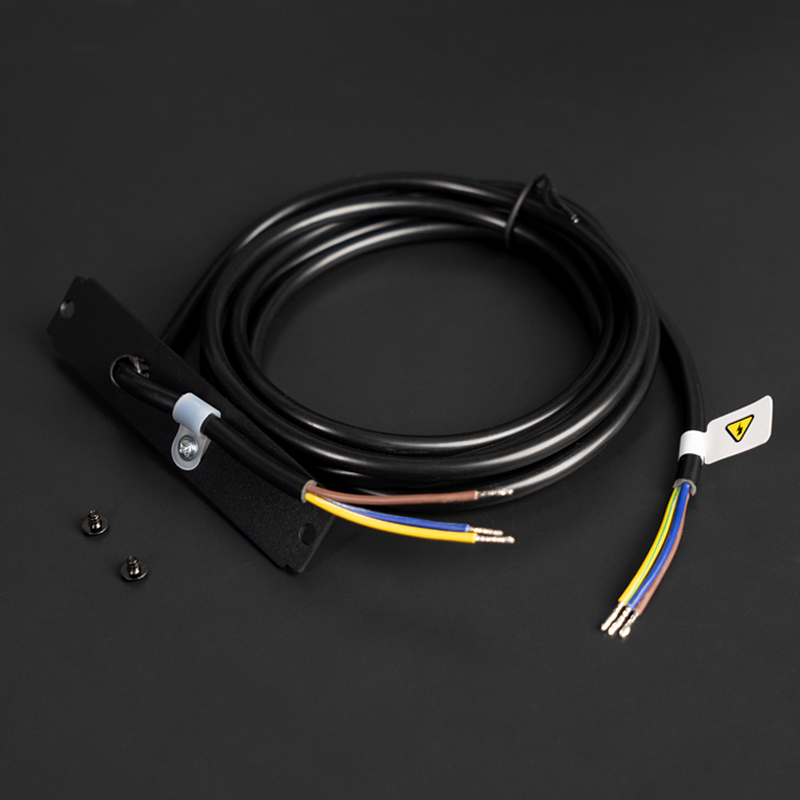

  • Power feeder
  • End cap accessory
  • Installation accessory
  • Standard Corner
Specifications
