Features

·Material:AL6063-T5,spraying surface
·Coating:Matte black,Matte white
·Length:1200,1800mm optional
·Lighting direction:Downward

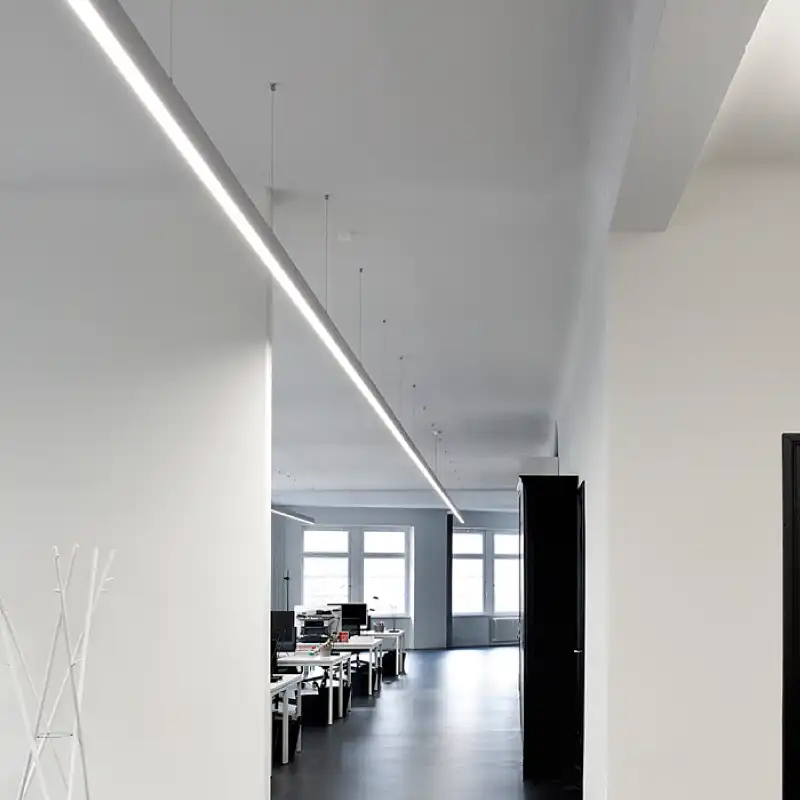

·Installation:Pendant,Surface mounted
·IP grade:IP20
·Application:Indoor
·Light efficiency:110LM/W(Regular),100LM/W(Regular-3CCT Dial switch)
135LM/W(High efficiency),115LM/W(High efficiency-3CCT Dial switch)
·SDCM:<3 Step (ANSI)
·CRI:80,90
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years

MS70FP

/set

Flexible Options

Reset selected

Diffuser Nature:

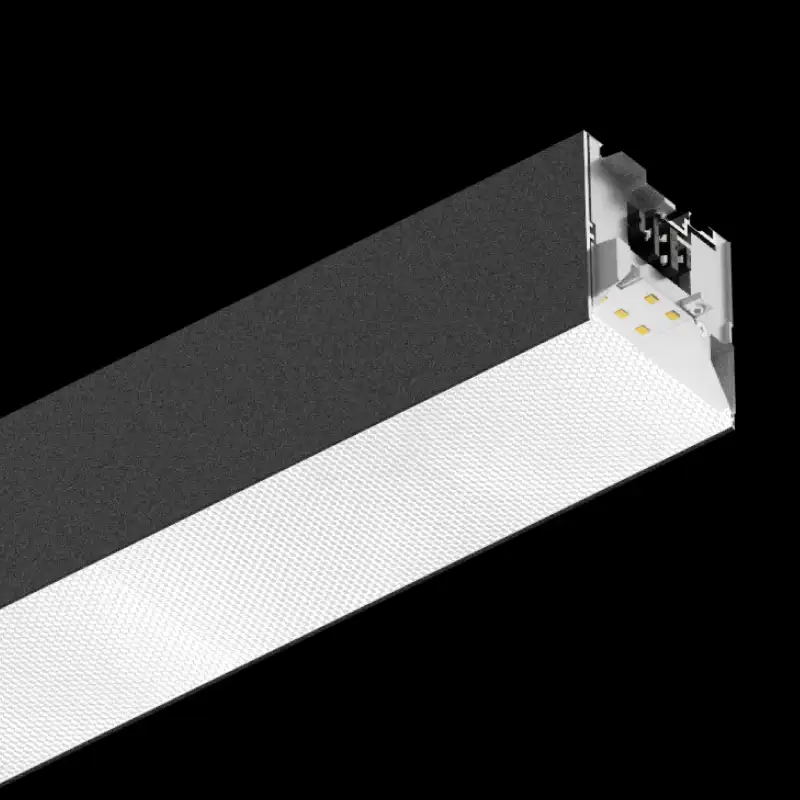

Prismatic

Carrier Style:

No carrier

Light Source Type:

Constant Current Rigid PCB

Input Voltage:

AC220-240V

Package:

Single-Unit Inner Box Packaging

Version

Regular

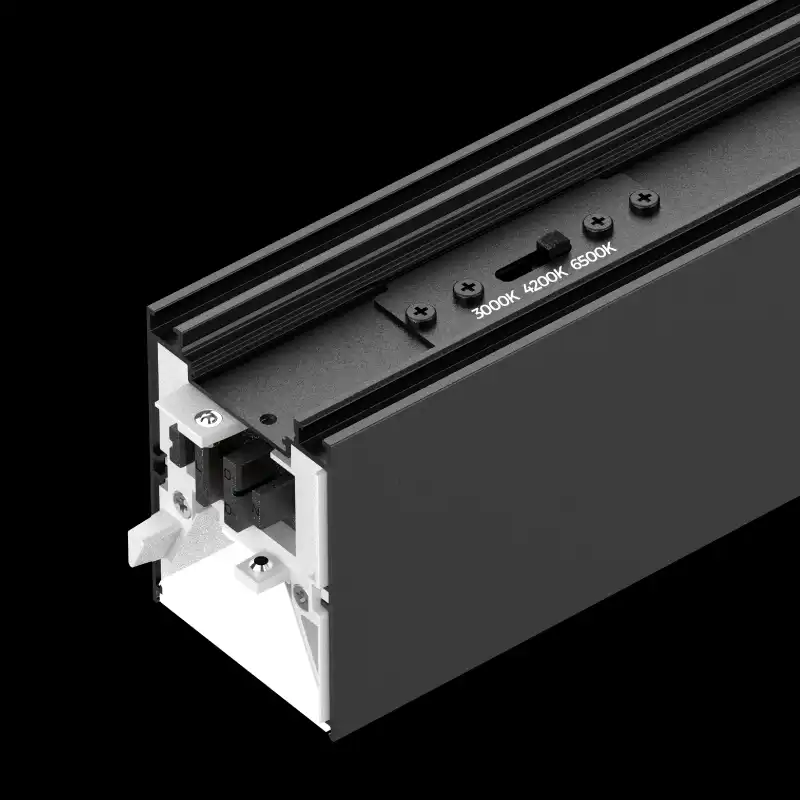

Regular-3 CCT Dial Switch
High efficiency
High efficiency-3 CCT Dial Switch

Length

1200mm
1800mm

Typ.power

Color

Black
White

Dimming Method

Non-Dimming
1-10V Dimming
DALI Dimming

CRI

CCT

2700K
3000K
4000K
6500K
3000K-4200K-6500K

End Cap Style

No end cap
Holeless end cap

Label Type

COLORS
Customized Label

Ordering Code :

$ **/set

Common Accessories

Accessories Type

Power feeder
End cap accessory
Installation accessory
Standard Corner

Specifications
