MagTrack 20 Linear

General Info

Application: Indoor
Mounting Type: Track
Light Direction: Direct
Dimension: 110mm,220mm,300mm,440mm,600mm,900mm,1000mm,1200mm
Lamp Body Material: AL6063-T5
Finish Colors: Black,White
Diffuser Type: Asymmetric,Corss-track round tube,Diffuser,Double Asymmetric,Prismatic,Round tube
Cover Material: PC
Diffuser Transmittance: >85%
Reflector Type: —
Reflector Coating: —
Fire-Resistance Rating: UL94-V2
IK Rating: -
IP Rating: IP20
Operating Temperature: -15℃~35℃
Storage Temperature: 0℃-40℃
Warranty: 5 years
Certifications: CE,Reach,RoHS,UKCA

Electrical Info

Input Voltage: DC24-48V,DC48V
Driver Brand: Colors
Electrical Insulation Class: Class Ⅲ
Dimming: DALI-2,External Dimming,Non-Dimmable,Tuya Bluetooth Mesh

Optical Info

Version: 3 CCT tunable(Dial switch),Regular
LED Type: SMD2835
LED Brand: Bridgelux,Jufei,Lumileds
CRI: Ra90+
CCT: 2700K,3000K,3000K-4000K-5000K,3500K,4000K
SDCM: ≤3 Step (ANSI)
Beam Angle: 60°x25°x75°,65°x90°,90°x45°x15°,100°,100°x90°x15°,200°x110°,Grating 30°,Grating 40°,Grating 55°
UGR(4H,8H): /,UGR＜13
Luminous Efficacy: 30 lm/W,70 lm/W,73 lm/W,75 lm/W,83 lm/W,100 lm/W
Light Output Ratio: -
LED Voltage: DC24-48V,DC48V
Cutting Unit: -
ErP Class (EU 2019/2020): -
LED Lifetime: 000H,>50,L90B10(Ta 25℃)

Download

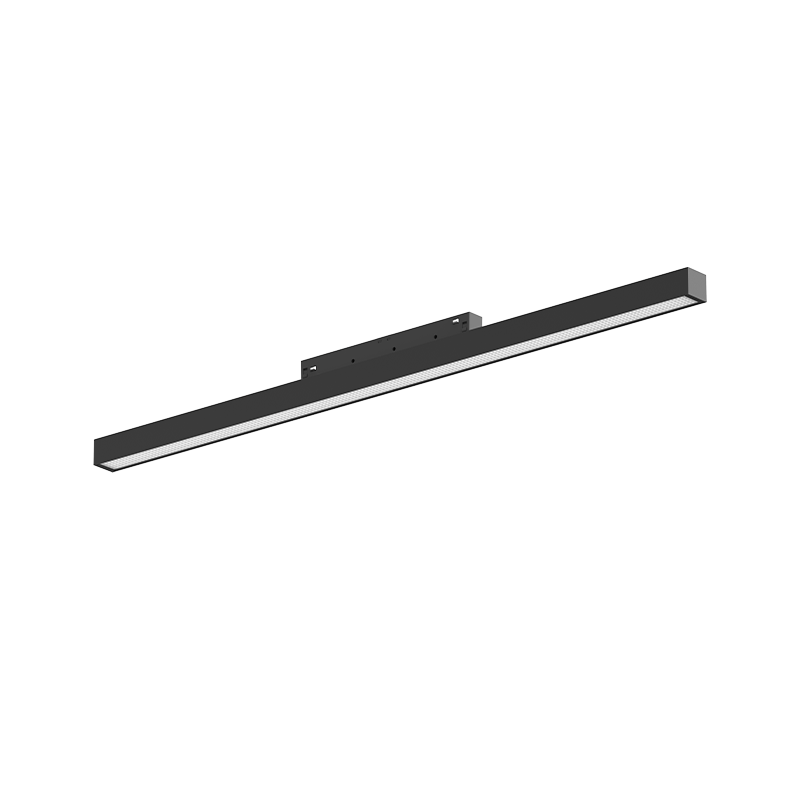

Product Code

MT20FP

MT20FP

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20FP,3 CCT tunable(Dial switch),300mm,7W,Ra90+,4000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	4000K		65°x90°	490 lm	70 lm/W	DC24-48V,DC48V
MT20FP,3 CCT tunable(Dial switch),600mm,14W,Ra90+,4000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	4000K		65°x90°	985 lm	70 lm/W	DC24-48V,DC48V
MT20FP,3 CCT tunable(Dial switch),900mm,20W,Ra90+,4000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	4000K		65°x90°	1400 lm	70 lm/W	DC24-48V,DC48V
MT20FP,3 CCT tunable(Dial switch),300mm,7W,Ra90+,3000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	3000K		65°x90°	441 lm	63 lm/W	DC24-48V,DC48V
MT20FP,3 CCT tunable(Dial switch),600mm,14W,Ra90+,3000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	3000K		65°x90°	887 lm	63 lm/W	DC24-48V,DC48V
MT20FP,3 CCT tunable(Dial switch),900mm,20W,Ra90+,3000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	3000K		65°x90°	1260 lm	63 lm/W	DC24-48V,DC48V
MT20FP,3 CCT tunable(Dial switch),300mm,7W,Ra90+,5000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	5000K		65°x90°	466 lm	67 lm/W	DC24-48V,DC48V
MT20FP,3 CCT tunable(Dial switch),600mm,14W,Ra90+,5000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	5000K		65°x90°	936 lm	67 lm/W	DC24-48V,DC48V
MT20FP,3 CCT tunable(Dial switch),900mm,20W,Ra90+,5000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	5000K		65°x90°	1330 lm	67 lm/W	DC24-48V,DC48V
MT20FP,Regular,300mm,7W,Ra90+,4000K	Regular	300mm	7W	Ra90+	4000K		65°x90°	525 lm	75 lm/W	DC24-48V,DC48V

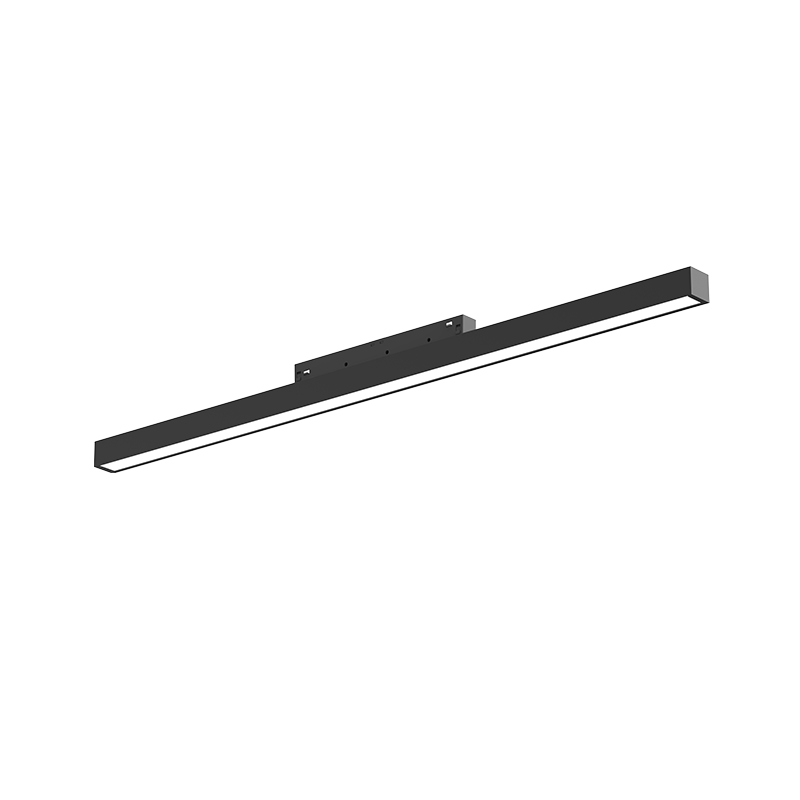

MT20FD

MT20FD

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20FD,3 CCT tunable(Dial switch),300mm,7W,Ra90+,4000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	4000K		100°	455 lm	65 lm/W	DC24-48V,DC48V
MT20FD,3 CCT tunable(Dial switch),600mm,14W,Ra90+,4000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	4000K		100°	910 lm	65 lm/W	DC24-48V,DC48V
MT20FD,3 CCT tunable(Dial switch),900mm,20W,Ra90+,4000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	4000K		100°	1300 lm	65 lm/W	DC24-48V,DC48V
MT20FD,3 CCT tunable(Dial switch),300mm,7W,Ra90+,3000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	3000K		100°	410 lm	70 lm/W	DC24-48V,DC48V
MT20FD,3 CCT tunable(Dial switch),600mm,14W,Ra90+,3000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	3000K		100°	819 lm	70 lm/W	DC24-48V,DC48V
MT20FD,3 CCT tunable(Dial switch),900mm,20W,Ra90+,3000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	3000K		100°	1170 lm	70 lm/W	DC24-48V,DC48V
MT20FD,3 CCT tunable(Dial switch),300mm,7W,Ra90+,5000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	5000K		100°	432 lm	60 lm/W	DC24-48V,DC48V
MT20FD,3 CCT tunable(Dial switch),600mm,14W,Ra90+,5000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	5000K		100°	865 lm	60 lm/W	DC24-48V,DC48V
MT20FD,3 CCT tunable(Dial switch),900mm,20W,Ra90+,5000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	5000K		100°	1235 lm	60 lm/W	DC24-48V,DC48V
MT20FD,Regular,300mm,7W,Ra90+,4000K	Regular	300mm	7W	Ra90+	4000K		100°	490 lm	63 lm/W	DC24-48V,DC48V

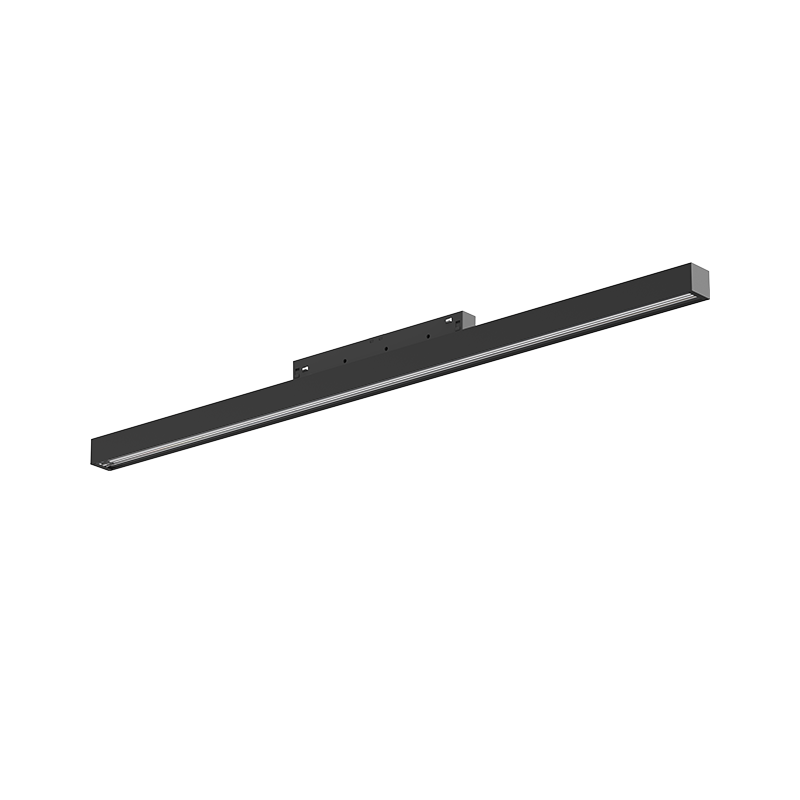

MT20LS

MT20LS

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20LS,3 CCT tunable(Dial switch),300mm,7W,Ra90+,4000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	4000K		100°x90°x15°	525 lm	75 lm/W	DC24-48V,DC48V
MT20LS,3 CCT tunable(Dial switch),600mm,14W,Ra90+,4000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	4000K		100°x90°x15°	1050 lm	75 lm/W	DC24-48V,DC48V
MT20LS,3 CCT tunable(Dial switch),900mm,20W,Ra90+,4000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	4000K		100°x90°x15°	1500 lm	75 lm/W	DC24-48V,DC48V
MT20LS,3 CCT tunable(Dial switch),300mm,7W,Ra90+,3000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	3000K		100°x90°x15°	473 lm	68 lm/W	DC24-48V,DC48V
MT20LS,3 CCT tunable(Dial switch),600mm,14W,Ra90+,3000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	3000K		100°x90°x15°	945 lm	68 lm/W	DC24-48V,DC48V
MT20LS,3 CCT tunable(Dial switch),900mm,20W,Ra90+,3000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	3000K		100°x90°x15°	1350 lm	68 lm/W	DC24-48V,DC48V
MT20LS,3 CCT tunable(Dial switch),300mm,7W,Ra90+,5000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	5000K		100°x90°x15°	499 lm	71 lm/W	DC24-48V,DC48V
MT20LS,3 CCT tunable(Dial switch),600mm,14W,Ra90+,5000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	5000K		100°x90°x15°	998 lm	71 lm/W	DC24-48V,DC48V
MT20LS,3 CCT tunable(Dial switch),900mm,20W,Ra90+,5000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	5000K		100°x90°x15°	1425 lm	71 lm/W	DC24-48V,DC48V
MT20LS,Regular,300mm,7W,Ra90+,4000K	Regular	300mm	7W	Ra90+	4000K		100°x90°x15°	700 lm	100 lm/W	DC24-48V,DC48V

MT20LA

MT20LA

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20LA,3 CCT tunable(Dial switch),300mm,7W,Ra90+,4000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	4000K		90°x45°x15°	490 lm	70 lm/W	DC24-48V,DC48V
MT20LA,3 CCT tunable(Dial switch),600mm,14W,Ra90+,4000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	4000K		90°x45°x15°	985 lm	70 lm/W	DC24-48V,DC48V
MT20LA,3 CCT tunable(Dial switch),900mm,20W,Ra90+,4000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	4000K		90°x45°x15°	1400 lm	70 lm/W	DC24-48V,DC48V
MT20LA,3 CCT tunable(Dial switch),300mm,7W,Ra90+,3000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	3000K		90°x45°x15°	441 lm	63 lm/W	DC24-48V,DC48V
MT20LA,3 CCT tunable(Dial switch),600mm,14W,Ra90+,3000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	3000K		90°x45°x15°	887 lm	63 lm/W	DC24-48V,DC48V
MT20LA,3 CCT tunable(Dial switch),900mm,20W,Ra90+,3000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	3000K		90°x45°x15°	1260 lm	63 lm/W	DC24-48V,DC48V
MT20LA,3 CCT tunable(Dial switch),300mm,7W,Ra90+,5000K	3 CCT tunable(Dial switch)	300mm	7W	Ra90+	5000K		90°x45°x15°	466 lm	67 lm/W	DC24-48V,DC48V
MT20LA,3 CCT tunable(Dial switch),600mm,14W,Ra90+,5000K	3 CCT tunable(Dial switch)	600mm	14W	Ra90+	5000K		90°x45°x15°	936 lm	67 lm/W	DC24-48V,DC48V
MT20LA,3 CCT tunable(Dial switch),900mm,20W,Ra90+,5000K	3 CCT tunable(Dial switch)	900mm	20W	Ra90+	5000K		90°x45°x15°	1330 lm	67 lm/W	DC24-48V,DC48V
MT20LA,Regular,300mm,7W,Ra90+,4000K	Regular	300mm	7W	Ra90+	4000K		90°x45°x15°	700 lm	100 lm/W	DC24-48V,DC48V

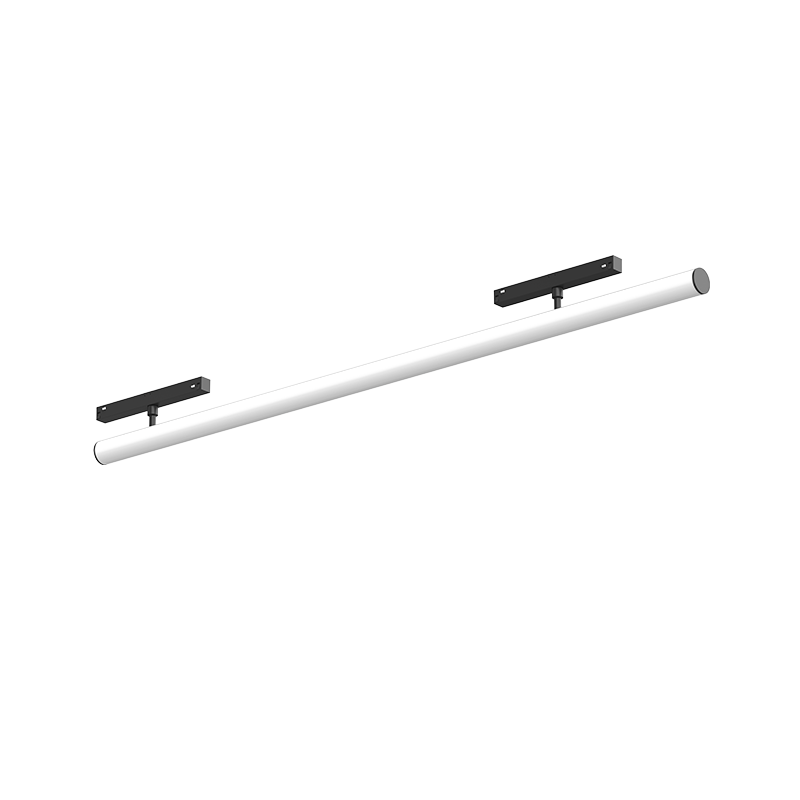

MT20CD(A)

MT20CD(A)

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20CD(A),3 CCT tunable(Dial switch),600mm,12W,Ra90+,4000K	3 CCT tunable(Dial switch)	600mm	12W	Ra90+	4000K		200°x110°	1080 lm	90 lm/W	DC24-48V,DC48V
MT20CD(A),3 CCT tunable(Dial switch),900mm,18W,Ra90+,4000K	3 CCT tunable(Dial switch)	900mm	18W	Ra90+	4000K		200°x110°	1620 lm	90 lm/W	DC24-48V,DC48V
MT20CD(A),3 CCT tunable(Dial switch),1200mm,24W,Ra90+,4000K	3 CCT tunable(Dial switch)	1200mm	24W	Ra90+	4000K		200°x110°	2160 lm	90 lm/W	DC24-48V,DC48V
MT20CD(A),3 CCT tunable(Dial switch),600mm,12W,Ra90+,3000K	3 CCT tunable(Dial switch)	600mm	12W	Ra90+	3000K		200°x110°	972 lm	81 lm/W	DC24-48V,DC48V
MT20CD(A),3 CCT tunable(Dial switch),900mm,18W,Ra90+,3000K	3 CCT tunable(Dial switch)	900mm	18W	Ra90+	3000K		200°x110°	1458 lm	81 lm/W	DC24-48V,DC48V
MT20CD(A),3 CCT tunable(Dial switch),1200mm,24W,Ra90+,3000K	3 CCT tunable(Dial switch)	1200mm	24W	Ra90+	3000K		200°x110°	1944 lm	81 lm/W	DC24-48V,DC48V
MT20CD(A),3 CCT tunable(Dial switch),600mm,12W,Ra90+,5000K	3 CCT tunable(Dial switch)	600mm	12W	Ra90+	5000K		200°x110°	1026 lm	86 lm/W	DC24-48V,DC48V
MT20CD(A),3 CCT tunable(Dial switch),900mm,18W,Ra90+,5000K	3 CCT tunable(Dial switch)	900mm	18W	Ra90+	5000K		200°x110°	1539 lm	86 lm/W	DC24-48V,DC48V
MT20CD(A),3 CCT tunable(Dial switch),1200mm,24W,Ra90+,5000K	3 CCT tunable(Dial switch)	1200mm	24W	Ra90+	5000K		200°x110°	2052 lm	86 lm/W	DC24-48V,DC48V
MT20CD(A),Regular,600mm,12W,Ra90+,4000K	Regular	600mm	12W	Ra90+	4000K		200°x110°	1200 lm	100 lm/W	DC24-48V,DC48V

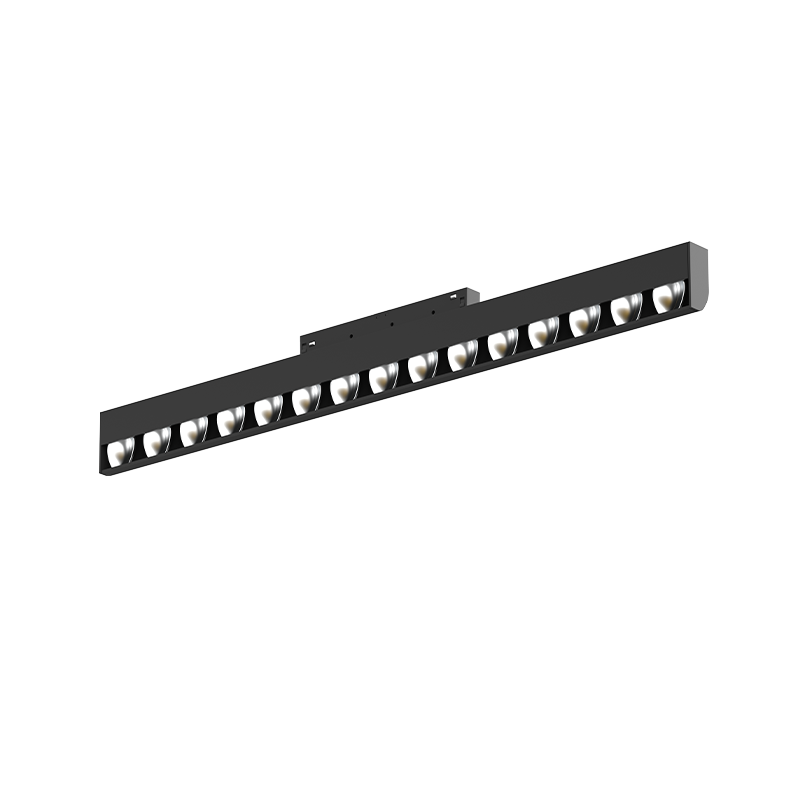

MT20GW

MT20GW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
-	Regular	600mm	10W	Ra90+	2700K		60°x25°x75°	750 lm	75 lm/W	DC24-48V,DC48V
-	Regular	600mm	10W	Ra90+	3000K		60°x25°x75°	770 lm	77 lm/W	DC24-48V,DC48V
-	Regular	600mm	10W	Ra90+	4000K		60°x25°x75°	830 lm	83 lm/W	DC24-48V,DC48V
-	Regular	1000mm	15W	Ra90+	2700K		60°x25°x75°	1140 lm	76 lm/W	DC24-48V,DC48V
-	Regular	1000mm	15W	Ra90+	3000K		60°x25°x75°	1160 lm	77 lm/W	DC24-48V,DC48V
-	Regular	1000mm	15W	Ra90+	4000K		60°x25°x75°	1250 lm	83 lm/W	DC24-48V,DC48V
-	Regular	1200mm	20W	Ra90+	2700K		60°x25°x75°	1510 lm	76 lm/W	DC24-48V,DC48V
-	Regular	1200mm	20W	Ra90+	3000K		60°x25°x75°	1540 lm	77 lm/W	DC24-48V,DC48V
-	Regular	1200mm	20W	Ra90+	4000K		60°x25°x75°	1660 lm	83 lm/W	DC24-48V,DC48V

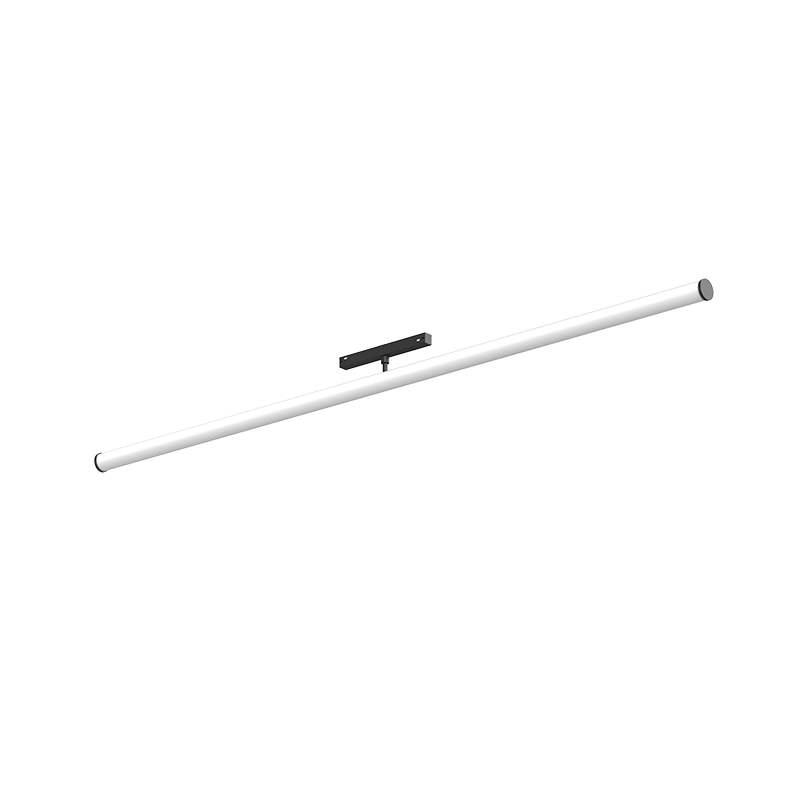

MT20CD

MT20CD

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20CD,3 CCT tunable(Dial switch),600mm,12W,Ra90+,4000K	3 CCT tunable(Dial switch)	600mm	12W	Ra90+	4000K		200°x110°	1080 lm	90 lm/W	DC24-48V,DC48V
MT20CD,3 CCT tunable(Dial switch),900mm,18W,Ra90+,4000K	3 CCT tunable(Dial switch)	900mm	18W	Ra90+	4000K		200°x110°	1620 lm	90 lm/W	DC24-48V,DC48V
MT20CD,3 CCT tunable(Dial switch),1200mm,24W,Ra90+,4000K	3 CCT tunable(Dial switch)	1200mm	24W	Ra90+	4000K		200°x110°	2160 lm	90 lm/W	DC24-48V,DC48V
MT20CD,3 CCT tunable(Dial switch),600mm,12W,Ra90+,3000K	3 CCT tunable(Dial switch)	600mm	12W	Ra90+	3000K		200°x110°	972 lm	81 lm/W	DC24-48V,DC48V
MT20CD,3 CCT tunable(Dial switch),900mm,18W,Ra90+,3000K	3 CCT tunable(Dial switch)	900mm	18W	Ra90+	3000K		200°x110°	1458 lm	81 lm/W	DC24-48V,DC48V
MT20CD,3 CCT tunable(Dial switch),1200mm,24W,Ra90+,3000K	3 CCT tunable(Dial switch)	1200mm	24W	Ra90+	3000K		200°x110°	1944 lm	81 lm/W	DC24-48V,DC48V
MT20CD,3 CCT tunable(Dial switch),600mm,12W,Ra90+,5000K	3 CCT tunable(Dial switch)	600mm	12W	Ra90+	5000K		200°x110°	1026 lm	86 lm/W	DC24-48V,DC48V
MT20CD,3 CCT tunable(Dial switch),900mm,18W,Ra90+,5000K	3 CCT tunable(Dial switch)	900mm	18W	Ra90+	5000K		200°x110°	1539 lm	86 lm/W	DC24-48V,DC48V
MT20CD,3 CCT tunable(Dial switch),1200mm,24W,Ra90+,5000K	3 CCT tunable(Dial switch)	1200mm	24W	Ra90+	5000K		200°x110°	2052 lm	86 lm/W	DC24-48V,DC48V
MT20CD,Regular,600mm,12W,Ra90+,4000K	Regular	600mm	12W	Ra90+	4000K		200°x110°	1200 lm	100 lm/W	DC24-48V,DC48V

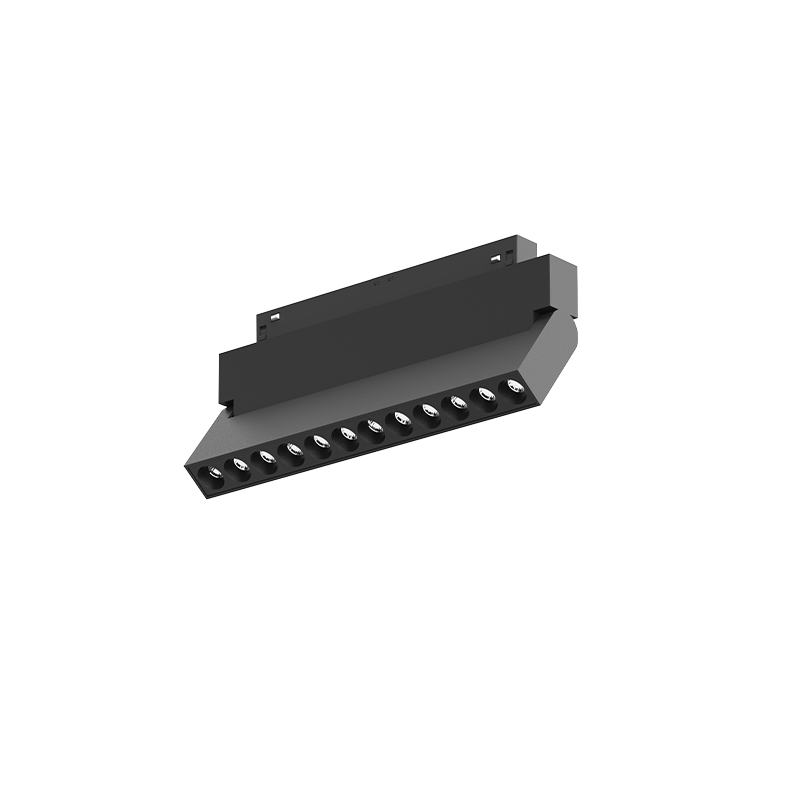

MT20G(A)

MT20G(A)

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20G(A),3 CCT tunable(Dial switch),110mm,6W,Ra90+,4000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	4000K		30°	420 lm	70 lm/W	DC24-48V
MT20G(A),3 CCT tunable(Dial switch),110mm,6W,Ra90+,4000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	4000K		40°	390 lm	65 lm/W	DC24-48V
MT20G(A),3 CCT tunable(Dial switch),220mm,12W,Ra90+,4000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	4000K		30°	840 lm	70 lm/W	DC24-48V
MT20G(A),3 CCT tunable(Dial switch),220mm,12W,Ra90+,4000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	4000K		40°	780 lm	65 lm/W	DC24-48V
MT20G(A),3 CCT tunable(Dial switch),110mm,6W,Ra90+,3000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	3000K		30°	378 lm	63 lm/W	DC24-48V
MT20G(A),3 CCT tunable(Dial switch),110mm,6W,Ra90+,3000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	3000K		40°	351 lm	59 lm/W	DC24-48V
MT20G(A),3 CCT tunable(Dial switch),220mm,12W,Ra90+,3000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	3000K		30°	756 lm	63 lm/W	DC24-48V
MT20G(A),3 CCT tunable(Dial switch),220mm,12W,Ra90+,3000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	3000K		40°	702 lm	59 lm/W	DC24-48V
MT20G(A),3 CCT tunable(Dial switch),110mm,6W,Ra90+,5000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	5000K		30°	399 lm	67 lm/W	DC24-48V
MT20G(A),3 CCT tunable(Dial switch),110mm,6W,Ra90+,5000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	5000K		40°	371 lm	62 lm/W	DC24-48V

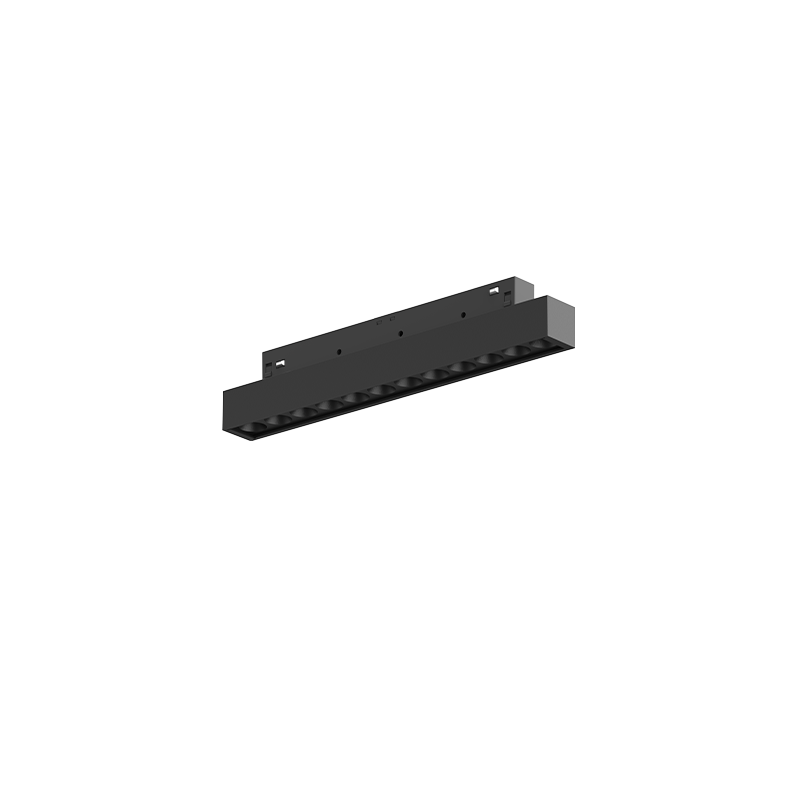

MT20G

MT20G

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20G,3 CCT tunable(Dial switch),110mm,6W,Ra90+,4000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	4000K		30°	450 lm	75 lm/W	DC24-48V,DC48V
MT20G,3 CCT tunable(Dial switch),110mm,6W,Ra90+,4000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	4000K		55°	420 lm	70 lm/W	DC24-48V,DC48V
MT20G,3 CCT tunable(Dial switch),220mm,12W,Ra90+,4000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	4000K		30°	900 lm	75 lm/W	DC24-48V,DC48V
MT20G,3 CCT tunable(Dial switch),220mm,12W,Ra90+,4000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	4000K		55°	840 lm	70 lm/W	DC24-48V,DC48V
MT20G,3 CCT tunable(Dial switch),440mm,24W,Ra90+,4000K	3 CCT tunable(Dial switch)	440mm	24W	Ra90+	4000K		30°	1800 lm	75 lm/W	DC24-48V,DC48V
MT20G,3 CCT tunable(Dial switch),440mm,24W,Ra90+,4000K	3 CCT tunable(Dial switch)	440mm	24W	Ra90+	4000K		55°	1680 lm	70 lm/W	DC24-48V,DC48V
MT20G,3 CCT tunable(Dial switch),110mm,6W,Ra90+,3000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	3000K		30°	405 lm	68 lm/W	DC24-48V,DC48V
MT20G,3 CCT tunable(Dial switch),110mm,6W,Ra90+,3000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	3000K		55°	378 lm	63 lm/W	DC24-48V,DC48V
MT20G,3 CCT tunable(Dial switch),220mm,12W,Ra90+,3000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	3000K		30°	810 lm	68 lm/W	DC24-48V,DC48V
MT20G,3 CCT tunable(Dial switch),220mm,12W,Ra90+,3000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	3000K		55°	756 lm	63 lm/W	DC24-48V,DC48V

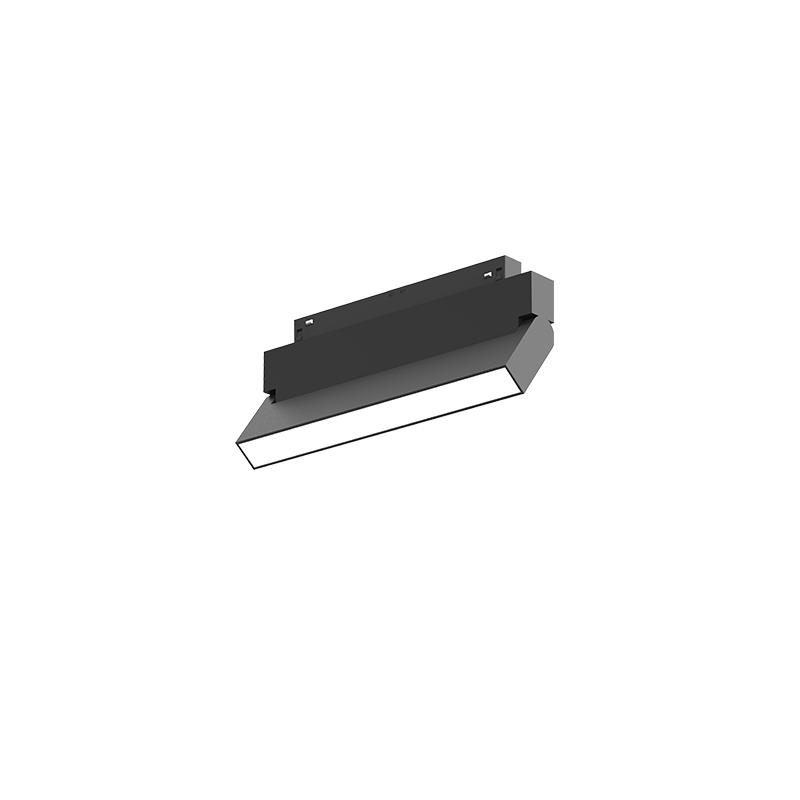

MT20FD(A)

MT20FD(A)

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20FD(A),3 CCT tunable(Dial switch),110mm,6W,Ra90+,4000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	4000K		100°	175 lm	29 lm/W	DC24-48V
MT20FD(A),3 CCT tunable(Dial switch),220mm,12W,Ra90+,4000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	4000K		100°	350 lm	29 lm/W	DC24-48V
MT20FD(A),3 CCT tunable(Dial switch),110mm,6W,Ra90+,3000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	3000K		100°	158 lm	26 lm/W	DC24-48V
MT20FD(A),3 CCT tunable(Dial switch),220mm,12W,Ra90+,3000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	3000K		100°	315 lm	26 lm/W	DC24-48V
MT20FD(A),3 CCT tunable(Dial switch),110mm,6W,Ra90+,5000K	3 CCT tunable(Dial switch)	110mm	6W	Ra90+	5000K		100°	166 lm	28 lm/W	DC24-48V
MT20FD(A),3 CCT tunable(Dial switch),220mm,12W,Ra90+,5000K	3 CCT tunable(Dial switch)	220mm	12W	Ra90+	5000K		100°	333 lm	28 lm/W	DC24-48V
MT20FD(A),Regular,110mm,6W,Ra90+,4000K	Regular	110mm	6W	Ra90+	4000K		100°	175 lm	29 lm/W	DC24-48V
MT20FD(A),Regular,220mm,12W,Ra90+,4000K	Regular	220mm	12W	Ra90+	4000K		100°	350 lm	29 lm/W	DC24-48V
MT20FD(A),Regular,110mm,6W,Ra90+,3000K	Regular	110mm	6W	Ra90+	3000K		100°	158 lm	26 lm/W	DC24-48V
MT20FD(A),Regular,220mm,12W,Ra90+,3000K	Regular	220mm	12W	Ra90+	3000K		100°	315 lm	26 lm/W	DC24-48V
