MagTrack 20 Spotlight

General Info

Application: Indoor
Mounting Type: Track
Light Direction: Direct
Dimension: φ22mm,φ30mm,φ42mm,φ45mm,φ52mm,φ55mm,φ62mm,φ65mm
Lamp Body Material: AL6063-T5
Finish Colors: Black,White
Reflector Type: —
Reflector Coating: —
Fire-Resistance Rating: UL94-V2
IP Rating: IP20
Operating Temperature: -15℃~35℃
Storage Temperature: 0℃-40℃
Warranty: 5 years
Certifications: CE,Reach,RoHS,UKCA

Electrical Info

Input Voltage: DC24-48V,DC24V,DC48V
Driver Brand: Colors
Electrical Insulation Class: Class Ⅲ
Dimming: DALI-2,External Dimming,Non-Dimmable,Tuya Bluetooth Mesh

Optical Info

Version: 3 CCT tunable(Dial switch),Regular
LED Type: COB
LED Brand: Bridgelux,Guineng
CRI: Ra90+,Ra95+
CCT: 1500K,2700K,3000K,3000K-4000K-5000K,3500K,4000K
SDCM: ≤3 Step (ANSI)
Beam Angle: 12°,15°,15°-45° Angle Adjustable,18°,20°,20°-30°,24°,28°,30°,36°,38°,45°,50°
UGR(4H,8H): /,UGR＜14 min,UGR＜16,UGR＜17,UGR＜18,UGR＜19
Luminous Efficacy: 33 lm/W,50 lm/W,57 lm/W,65 lm/W,74 lm/W,75 lm/W,78 lm/W,82 lm/W,91 lm/W,93 lm/W
LED Voltage: DC24-48V,DC48V
LED Lifetime: 000H,>50,L90B10(Ta 25℃)

Download

Product Code

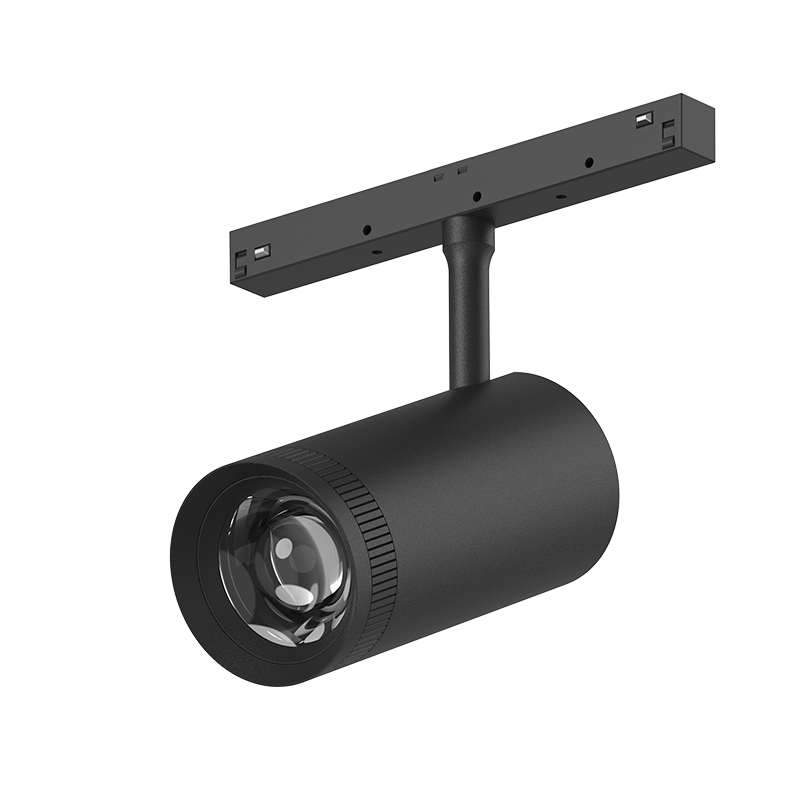

MT20SZ-65

MT20SZ-65

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20SZ-65,Regular,φ65mm,12W,Ra90+,2700K	Regular	φ65mm	12W	Ra90+	2700K		15°-45°	825 lm	69 lm/W	DC24-48V
MT20SZ-65,Regular,φ65mm,12W,Ra90+,3000K	Regular	φ65mm	12W	Ra90+	3000K		15°-45°	870 lm	73 lm/W	DC24-48V
MT20SZ-65,Regular,φ65mm,12W,Ra90+,4000K	Regular	φ65mm	12W	Ra90+	4000K		15°-45°	935 lm	78 lm/W	DC24-48V
MT20SZ-65,3 CCT tunable(Dial switch),φ65mm,12W,Ra90+,3000K	3 CCT tunable(Dial switch)	φ65mm	12W	Ra90+	3000K		15°	745 lm	62 lm/W	DC24-48V
MT20SZ-65,3 CCT tunable(Dial switch),φ65mm,12W,Ra90+,4000K	3 CCT tunable(Dial switch)	φ65mm	12W	Ra90+	4000K		15°	840 lm	70 lm/W	DC24-48V
MT20SZ-65,3 CCT tunable(Dial switch),φ65mm,12W,Ra90+,5000K	3 CCT tunable(Dial switch)	φ65mm	12W	Ra90+	5000K		15°	840 lm	70 lm/W	DC24-48V
MT20SZ-65,3 CCT tunable(Dial switch),φ65mm,12W,Ra90+,3000K	3 CCT tunable(Dial switch)	φ65mm	12W	Ra90+	3000K		45°	865 lm	72 lm/W	DC24-48V
MT20SZ-65,3 CCT tunable(Dial switch),φ65mm,12W,Ra90+,4000K	3 CCT tunable(Dial switch)	φ65mm	12W	Ra90+	4000K		45°	960 lm	80 lm/W	DC24-48V
MT20SZ-65,3 CCT tunable(Dial switch),φ65mm,12W,Ra90+,5000K	3 CCT tunable(Dial switch)	φ65mm	12W	Ra90+	5000K		45°	985 lm	82 lm/W	DC24-48V

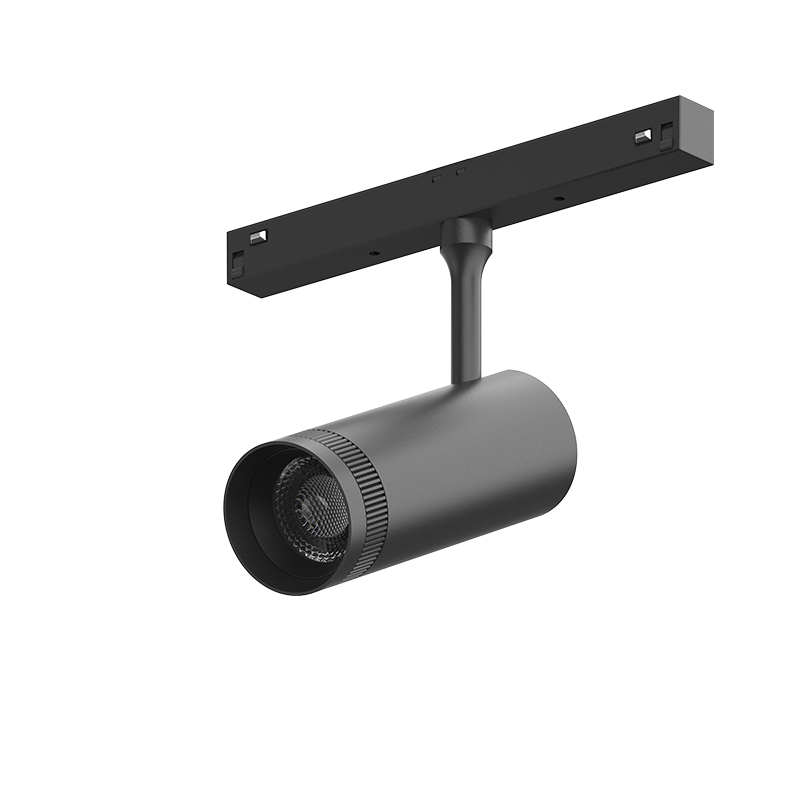

MT20SZ-45

MT20SZ-45

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20SZ-45,Regular,φ45mm,5W,Ra90+,2700K	Regular	φ45mm	5W	Ra90+	2700K		15°-45°	330 lm	66 lm/W	DC48V
MT20SZ-45,Regular,φ45mm,5W,Ra90+,3000K	Regular	φ45mm	5W	Ra90+	3000K		15°-45°	350 lm	70 lm/W	DC48V
MT20SZ-45,Regular,φ45mm,5W,Ra90+,4000K	Regular	φ45mm	5W	Ra90+	4000K		15°-45°	375 lm	75 lm/W	DC48V

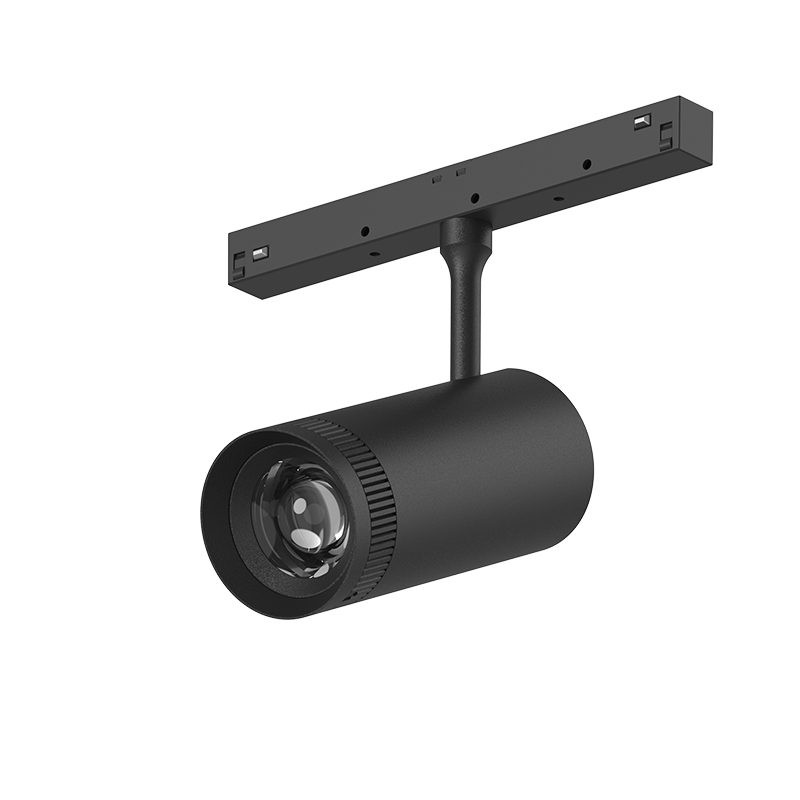

MT20SZ-55

MT20SZ-55

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20SZ-55,Regular,φ55mm,8W,Ra90+,2700K	Regular	φ55mm	8W	Ra90+	2700K		15°-45°	460 lm	58 lm/W	DC24-48V
MT20SZ-55,Regular,φ55mm,8W,Ra90+,3000K	Regular	φ55mm	8W	Ra90+	3000K		15°-45°	485 lm	61 lm/W	DC24-48V
MT20SZ-55,Regular,φ55mm,8W,Ra90+,4000K	Regular	φ55mm	8W	Ra90+	4000K		15°-45°	520 lm	65 lm/W	DC24-48V
MT20SZ-55,3 CCT tunable(Dial switch),φ55mm,8W,Ra90+,3000K	3 CCT tunable(Dial switch)	φ55mm	8W	Ra90+	3000K		15°	440 lm	55 lm/W	DC24-48V
MT20SZ-55,3 CCT tunable(Dial switch),φ55mm,8W,Ra90+,4000K	3 CCT tunable(Dial switch)	φ55mm	8W	Ra90+	4000K		15°	495 lm	62 lm/W	DC24-48V
MT20SZ-55,3 CCT tunable(Dial switch),φ55mm,8W,Ra90+,5000K	3 CCT tunable(Dial switch)	φ55mm	8W	Ra90+	5000K		15°	495 lm	62 lm/W	DC24-48V
MT20SZ-55,3 CCT tunable(Dial switch),φ55mm,8W,Ra90+,3000K	3 CCT tunable(Dial switch)	φ55mm	8W	Ra90+	3000K		45°	520 lm	65 lm/W	DC24-48V
MT20SZ-55,3 CCT tunable(Dial switch),φ55mm,8W,Ra90+,4000K	3 CCT tunable(Dial switch)	φ55mm	8W	Ra90+	4000K		45°	575 lm	72 lm/W	DC24-48V
MT20SZ-55,3 CCT tunable(Dial switch),φ55mm,8W,Ra90+,5000K	3 CCT tunable(Dial switch)	φ55mm	8W	Ra90+	5000K		45°	590 lm	74 lm/W	DC24-48V

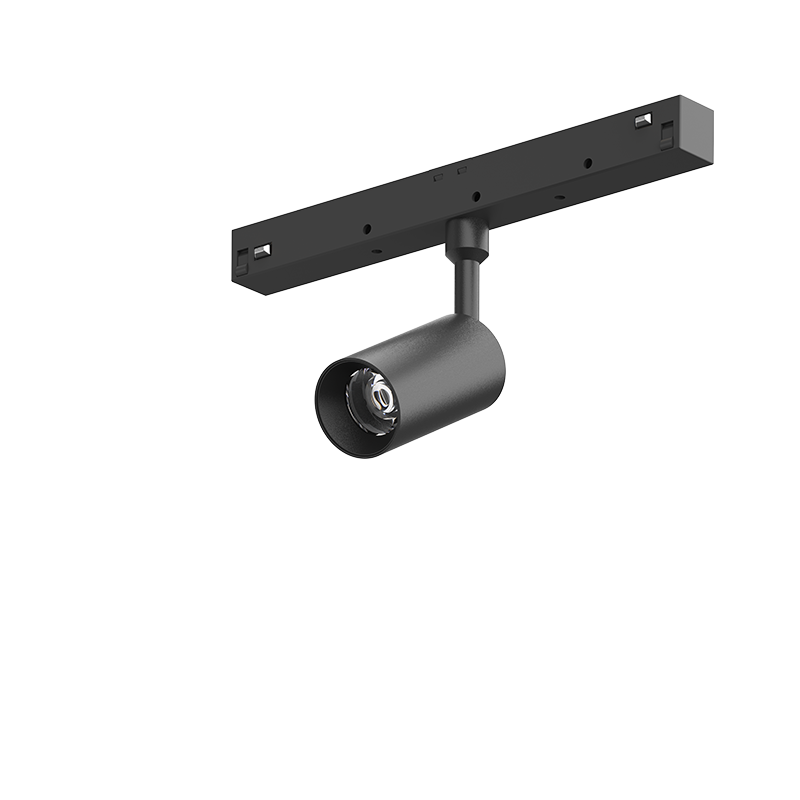

MT20S-30

MT20S-30

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20S-30,Regular,φ30mm,3W,Ra90+,2700K	Regular	φ30mm	3W	Ra90+	2700K		18°	200 lm	67 lm/W	DC24-48V
MT20S-30,Regular,φ30mm,3W,Ra90+,3000K	Regular	φ30mm	3W	Ra90+	3000K		18°	210 lm	70 lm/W	DC24-48V
MT20S-30,Regular,φ30mm,3W,Ra90+,4000K	Regular	φ30mm	3W	Ra90+	4000K		18°	225 lm	75 lm/W	DC24-48V
MT20S-30,Regular,φ30mm,3W,Ra90+,2700K	Regular	φ30mm	3W	Ra90+	2700K		24°	205 lm	68 lm/W	DC24-48V
MT20S-30,Regular,φ30mm,3W,Ra90+,3000K	Regular	φ30mm	3W	Ra90+	3000K		24°	220 lm	73 lm/W	DC24-48V
MT20S-30,Regular,φ30mm,3W,Ra90+,4000K	Regular	φ30mm	3W	Ra90+	4000K		24°	235 lm	78 lm/W	DC24-48V
MT20S-30,Regular,φ30mm,3W,Ra90+,2700K	Regular	φ30mm	3W	Ra90+	2700K		36°	205 lm	68 lm/W	DC24-48V
MT20S-30,Regular,φ30mm,3W,Ra90+,3000K	Regular	φ30mm	3W	Ra90+	3000K		36°	220 lm	73 lm/W	DC24-48V
MT20S-30,Regular,φ30mm,3W,Ra90+,4000K	Regular	φ30mm	3W	Ra90+	4000K		36°	235 lm	78 lm/W	DC24-48V
MT20S-30,Regular,φ30mm,3W,Ra90+,2700K	Regular	φ30mm	3W	Ra90+	2700K		50°	190 lm	63 lm/W	DC24-48V

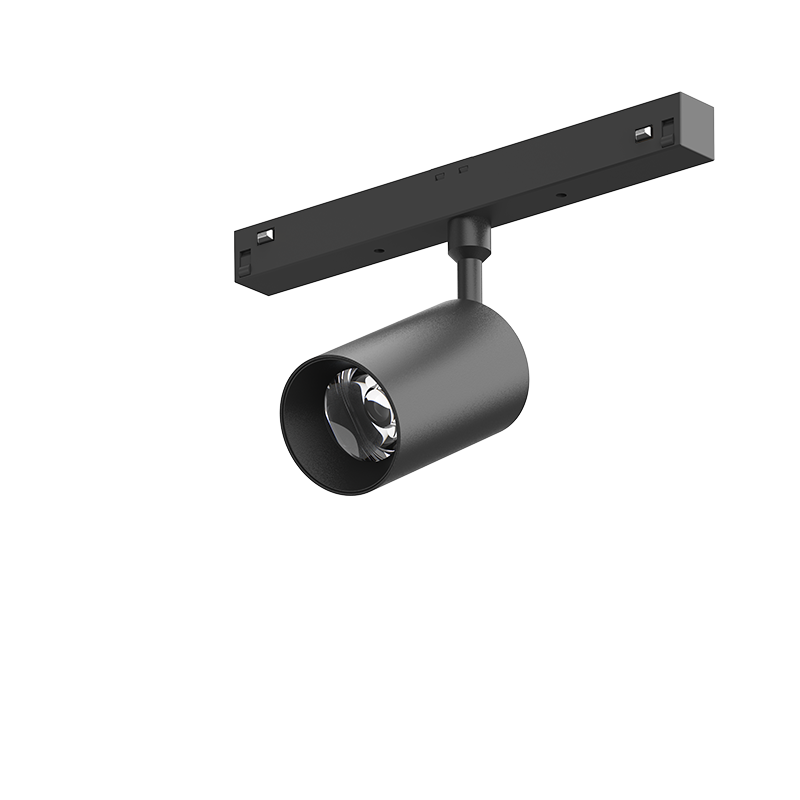

MT20S-42

MT20S-42

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20S-42,Regular,φ42mm,6W,Ra90+,2700K	Regular	φ42mm	6W	Ra90+	2700K		15°	400 lm	67 lm/W	DC24-48V,DC48V
MT20S-42,Regular,φ42mm,6W,Ra90+,3000K	Regular	φ42mm	6W	Ra90+	3000K		15°	425 lm	71 lm/W	DC24-48V,DC48V
MT20S-42,Regular,φ42mm,6W,Ra90+,4000K	Regular	φ42mm	6W	Ra90+	4000K		15°	455 lm	76 lm/W	DC24-48V,DC48V
MT20S-42,Regular,φ42mm,6W,Ra90+,2700K	Regular	φ42mm	6W	Ra90+	2700K		24°	420 lm	70 lm/W	DC24-48V,DC48V
MT20S-42,Regular,φ42mm,6W,Ra90+,3000K	Regular	φ42mm	6W	Ra90+	3000K		24°	445 lm	74 lm/W	DC24-48V,DC48V
MT20S-42,Regular,φ42mm,6W,Ra90+,4000K	Regular	φ42mm	6W	Ra90+	4000K		24°	480 lm	80 lm/W	DC24-48V,DC48V
MT20S-42,Regular,φ42mm,6W,Ra90+,2700K	Regular	φ42mm	6W	Ra90+	2700K		36°	420 lm	70 lm/W	DC24-48V,DC48V
MT20S-42,Regular,φ42mm,6W,Ra90+,3000K	Regular	φ42mm	6W	Ra90+	3000K		36°	445 lm	74 lm/W	DC24-48V,DC48V
MT20S-42,Regular,φ42mm,6W,Ra90+,4000K	Regular	φ42mm	6W	Ra90+	4000K		36°	480 lm	80 lm/W	DC24-48V,DC48V
MT20S-42,Regular,φ42mm,6W,Ra90+,2700K	Regular	φ42mm	6W	Ra90+	2700K		50°	425 lm	71 lm/W	DC24-48V,DC48V

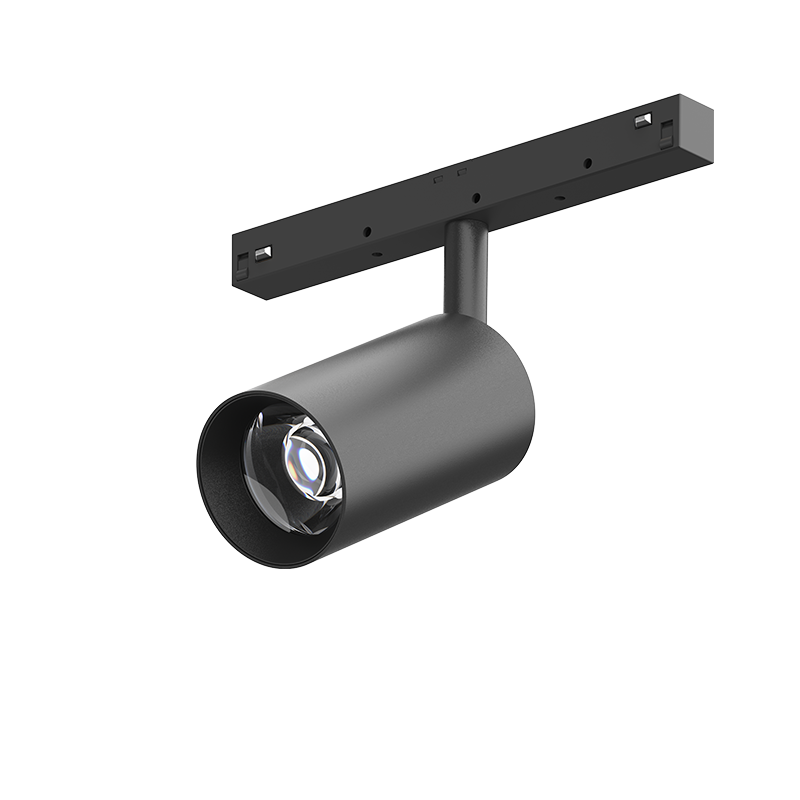

MT20S-52

MT20S-52

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20S-52,Regular,φ52mm,10W,Ra90+,2700K	Regular	φ52mm	10W	Ra90+	2700K		15°	755 lm	76 lm/W	DC24-48V,DC48V
MT20S-52,Regular,φ52mm,10W,Ra90+,3000K	Regular	φ52mm	10W	Ra90+	3000K		15°	795 lm	80 lm/W	DC24-48V,DC48V
MT20S-52,Regular,φ52mm,10W,Ra90+,4000K	Regular	φ52mm	10W	Ra90+	4000K		15°	855 lm	86 lm/W	DC24-48V,DC48V
MT20S-52,Regular,φ52mm,10W,Ra90+,2700K	Regular	φ52mm	10W	Ra90+	2700K		20°	785 lm	79 lm/W	DC24-48V,DC48V
MT20S-52,Regular,φ52mm,10W,Ra90+,3000K	Regular	φ52mm	10W	Ra90+	3000K		20°	830 lm	83 lm/W	DC24-48V,DC48V
MT20S-52,Regular,φ52mm,10W,Ra90+,4000K	Regular	φ52mm	10W	Ra90+	4000K		20°	890 lm	89 lm/W	DC24-48V,DC48V
MT20S-52,Regular,φ52mm,10W,Ra90+,2700K	Regular	φ52mm	10W	Ra90+	2700K		36°	805 lm	81 lm/W	DC24-48V,DC48V
MT20S-52,Regular,φ52mm,10W,Ra90+,3000K	Regular	φ52mm	10W	Ra90+	3000K		36°	850 lm	85 lm/W	DC24-48V,DC48V
MT20S-52,Regular,φ52mm,10W,Ra90+,4000K	Regular	φ52mm	10W	Ra90+	4000K		36°	915 lm	92 lm/W	DC24-48V,DC48V
MT20S-52,Regular,φ52mm,10W,Ra90+,2700K	Regular	φ52mm	10W	Ra90+	2700K		50°	745 lm	75 lm/W	DC24-48V,DC48V

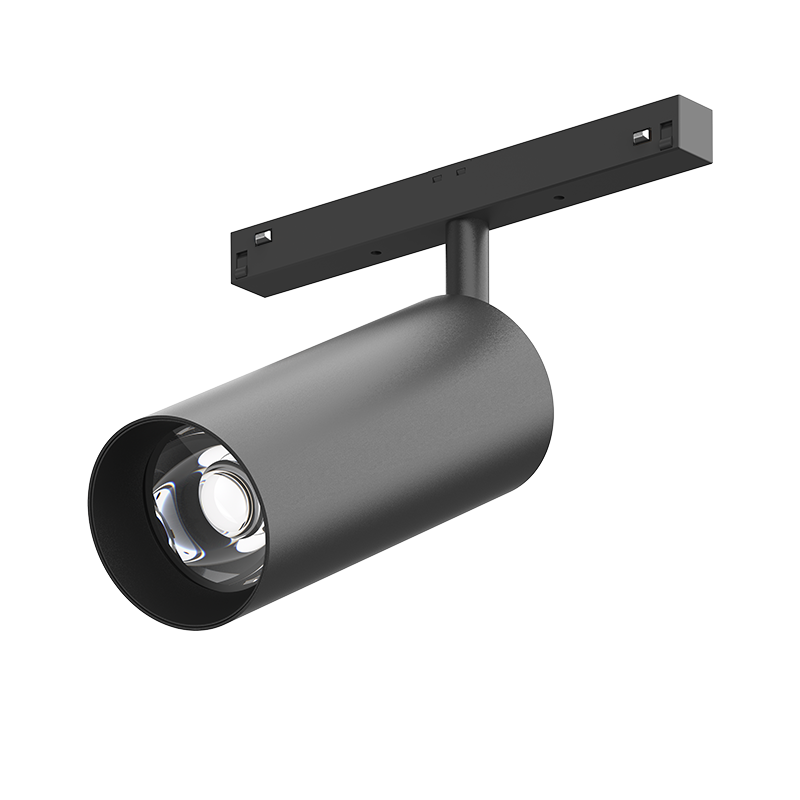

MT20S-62

MT20S-62

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20S-62,Regular,φ62mm,15W,Ra90+,2700K	Regular	φ62mm	15W	Ra90+	2700K		12°	990 lm	66 lm/W	DC24-48V,DC48V
MT20S-62,Regular,φ62mm,15W,Ra90+,3000K	Regular	φ62mm	15W	Ra90+	3000K		12°	1045 lm	70 lm/W	DC24-48V,DC48V
MT20S-62,Regular,φ62mm,15W,Ra90+,4000K	Regular	φ62mm	15W	Ra90+	4000K		12°	1125 lm	75 lm/W	DC24-48V,DC48V
MT20S-62,Regular,φ62mm,15W,Ra90+,2700K	Regular	φ62mm	15W	Ra90+	2700K		20°	990 lm	66 lm/W	DC24-48V,DC48V
MT20S-62,Regular,φ62mm,15W,Ra90+,3000K	Regular	φ62mm	15W	Ra90+	3000K		20°	1045 lm	70 lm/W	DC24-48V,DC48V
MT20S-62,Regular,φ62mm,15W,Ra90+,4000K	Regular	φ62mm	15W	Ra90+	4000K		20°	1125 lm	75 lm/W	DC24-48V,DC48V
MT20S-62,Regular,φ62mm,15W,Ra90+,2700K	Regular	φ62mm	15W	Ra90+	2700K		30°	965 lm	64 lm/W	DC24-48V,DC48V
MT20S-62,Regular,φ62mm,15W,Ra90+,3000K	Regular	φ62mm	15W	Ra90+	3000K		30°	1020 lm	68 lm/W	DC24-48V,DC48V
MT20S-62,Regular,φ62mm,15W,Ra90+,4000K	Regular	φ62mm	15W	Ra90+	4000K		30°	1095 lm	73 lm/W	DC24-48V,DC48V
MT20S-62,Regular,φ62mm,15W,Ra90+,2700K	Regular	φ62mm	15W	Ra90+	2700K		45°	885 lm	59 lm/W	DC24-48V,DC48V

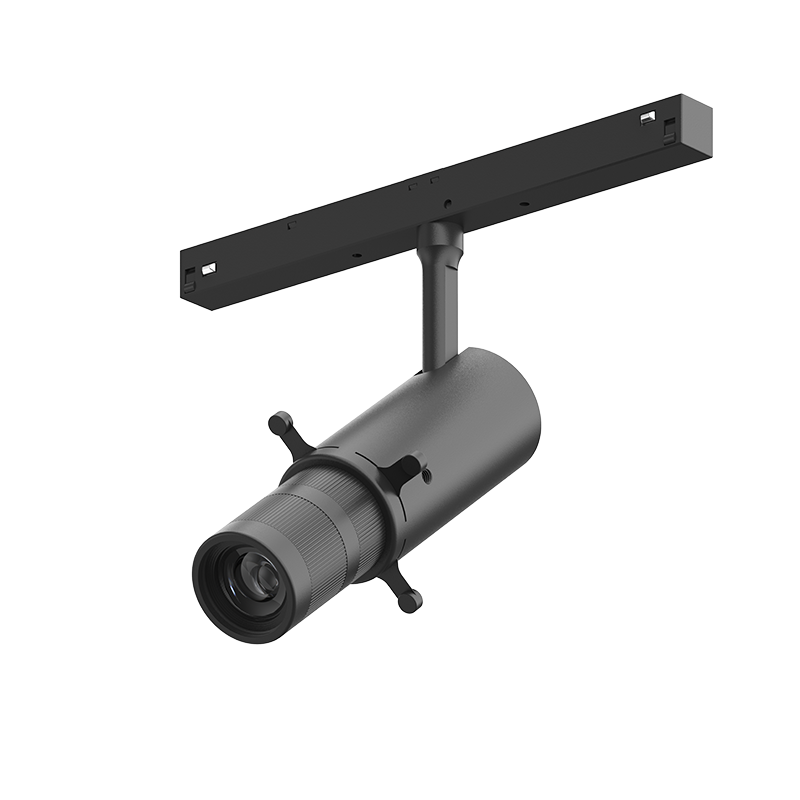

MT20SL-45

MT20SL-45

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20SL-45,Regular,φ45mm,10W,Ra95+,3000K	Regular	φ45mm	10W	Ra95+	3000K		20°	297 lm	30 lm/W	DC48V
MT20SL-45,Regular,φ45mm,10W,Ra95+,4000K	Regular	φ45mm	10W	Ra95+	4000K		20°	330 lm	33 lm/W	DC48V
MT20SL-45,Regular,φ45mm,10W,Ra95+,3000K	Regular	φ45mm	10W	Ra95+	3000K		30°	306 lm	31 lm/W	DC48V
MT20SL-45,Regular,φ45mm,10W,Ra95+,4000K	Regular	φ45mm	10W	Ra95+	4000K		30°	340 lm	34 lm/W	DC48V

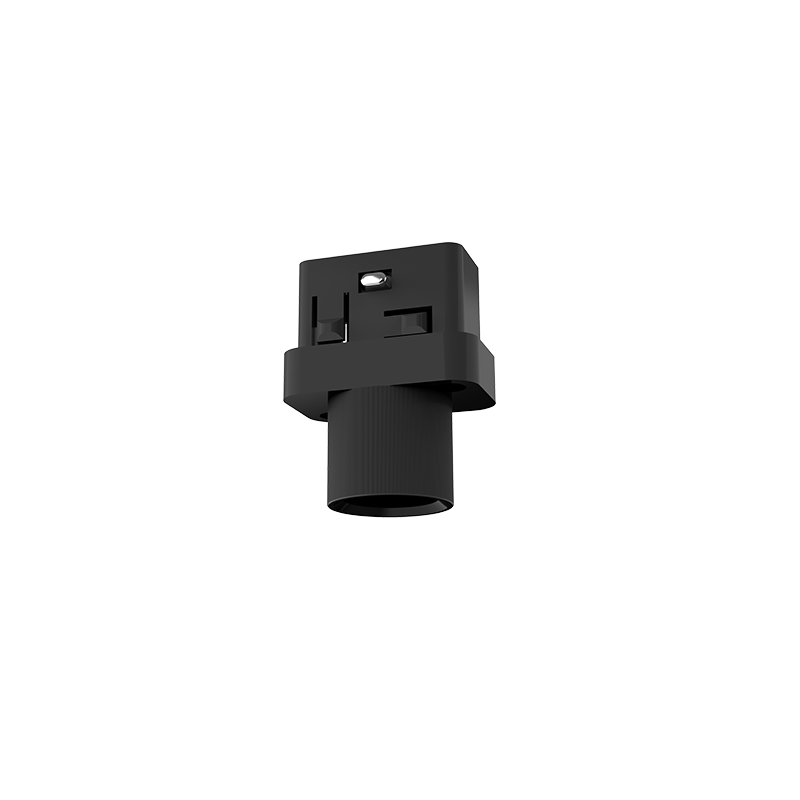

MT20S-22

MT20S-22

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20S-22,Regular,φ22mm,2W,Ra90+,2700K	Regular	φ22mm	2W	Ra90+	2700K		24°	85 lm	43 lm/W	DC24V,DC24-48V
MT20S-22,Regular,φ22mm,2W,Ra90+,3000K	Regular	φ22mm	2W	Ra90+	3000K		24°	90 lm	45 lm/W	DC24V,DC24-48V
MT20S-22,Regular,φ22mm,2W,Ra90+,4000K	Regular	φ22mm	2W	Ra90+	4000K		24°	100 lm	50 lm/W	DC24V,DC24-48V
MT20S-22,Regular,φ22mm,2W,Ra90+,2700K	Regular	φ22mm	2W	Ra90+	2700K		36°	89 lm	45 lm/W	DC24V,DC24-48V
MT20S-22,Regular,φ22mm,2W,Ra90+,3000K	Regular	φ22mm	2W	Ra90+	3000K		36°	95 lm	48 lm/W	DC24V,DC24-48V
MT20S-22,Regular,φ22mm,2W,Ra90+,4000K	Regular	φ22mm	2W	Ra90+	4000K		36°	105 lm	53 lm/W	DC24V,DC24-48V

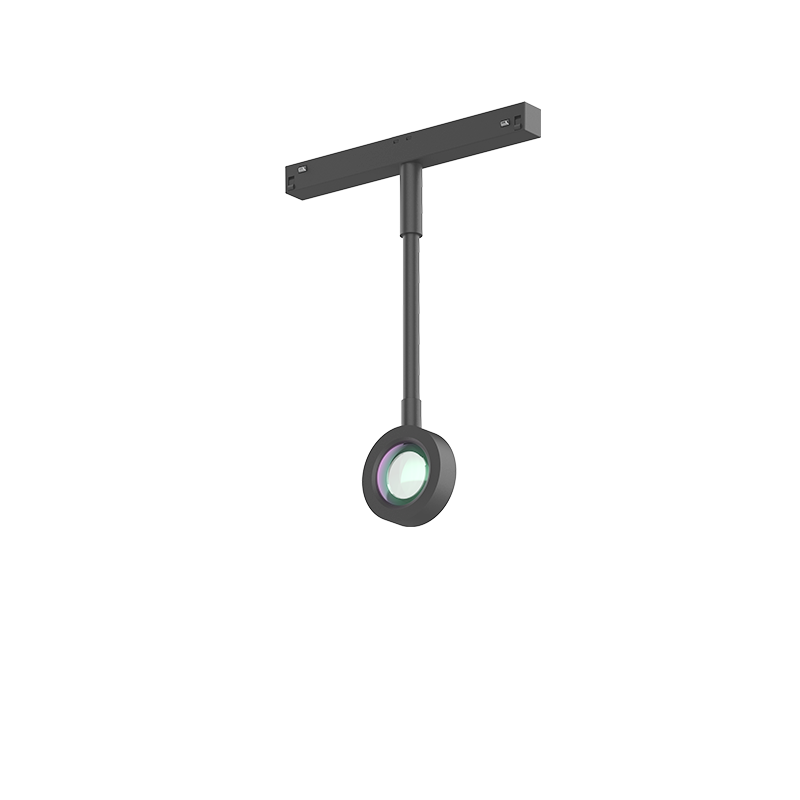

MT20SS-55

MT20SS-55

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download
MT20SS-55,Regular,φ55mm,3W,Ra90+,Colorful(1500K)	Regular	φ55mm	3W	Ra90+	Colorful(1500K)		-	170 lm	57 lm/W	DC24-48V
